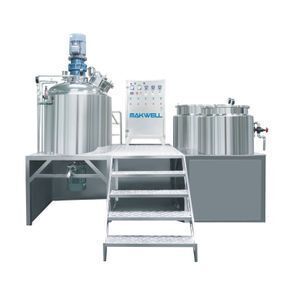

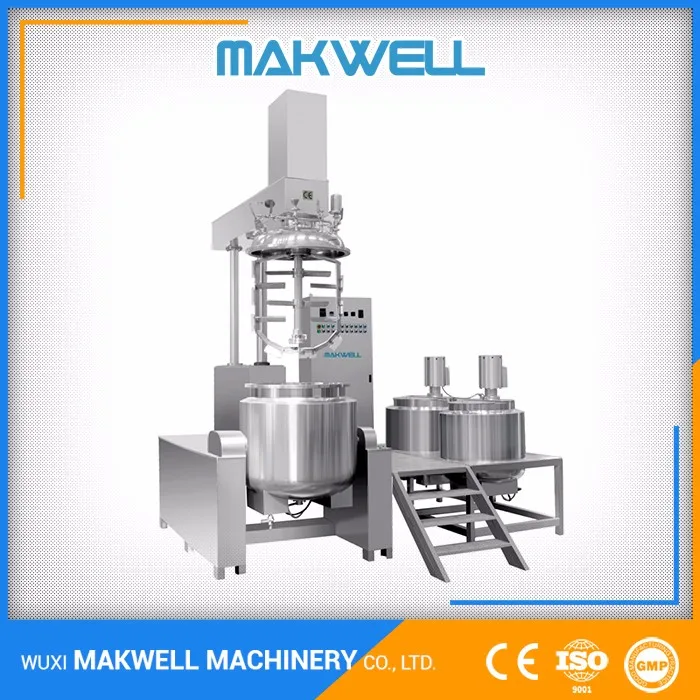

Vacuum Emulsifying lotion cosmetic cream mixer machine

Supplier: Wuxi Makwell Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms JANE JIANG
Price: $5000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Response Time:	Within 24hrs;	Dimension(LWH):	Model Specific;
Water Pot Stirrer Speed:	960 to 1400 RPM;	Application:	Medicine Processing,Chemicals Processing,Plastics Processing;
Port:	Shanghai;	Application:	Viscous Fluid;
Place of Origin:	Jiangsu China (Mainland);	Product Type:	Cosmetic;
Supply Ability:	100 Piece/Pieces per Month Urgent Order Negotiable;	Certification:	CE;
Condition:	New;	Max. Loading Volume (L):	300;
Applicable Industries:	Machinery;	Packaging Detail:	Export Standard High Quality Plywood Case;
After-sales Service Provided:	Engineers available to service machinery overseas;	Oil Pot Volume:	4 to 950L;
Homogenizer Speed:	0 to 3500 RPM;	Mixer Type:	Homogenizer;
Mixer Pot Volume:	6 to 2000L;	Key Selling Points:	Automatic;
After-sales Service Provided:	Field installation, commissioning and training;	Power (kW):	20;
Brand Name:	MAKWELL;	Warranty:	1 Year;
Water Pot Volume:	4 to 1200L;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Emulsifying Mixer Pot Speed:	0 to 86 RPM;	Oil Pot Stirrer Speed:	960 to 1400 RPM;
Weight (KG):	500;	Voltage:	220V/380V;
Barrel Volume (L):	350;	OEM:	Available;
Additional Capabilities:	According to Requirement;	Max. Loading Capacity:	350L;

Product Details

1)Introduce:

the machine include: oil pot, water pot, emulsifying mixer pot, heating and cooling system( electrical or steam), sweep wall stirrer( lower speed mixing system), homogenizer( 0-2900rpm), vacuum system, hydraulic lifting cover, discharging system and so on

2)Process Flow:

a. oil and others ,heated and mixed in Liquid Pot and Oil Pot.

b. Materials ,Sucked into emulsifying pot by vacuum system

c. Stirred by both the center blade and side scraper. Then cut off in cut-off mixing unit,all in the Emulsifying Pot.

d. The materials are finally crushed into small pellets of 200um~2um.

e. The finished product , pumed out from Discharge Valve

f. Fully in accordance with the GMP standard production and passed CE certification

3.)Features:

a.Cover can be lifted up-down by lifting system
b.Main pot ,can be tilted
c.The bubbles (generated during stirring and mixing process), sucked out from material,because of Vacuum Effect
d.Machine Materials,ss304.And ss316 or ss316L according to the requirement of Corrosion Resistance

Model	Volume(L)			Emulsifying mixer pot		Homogenizer
Model	Mixer Pot	Water Pot	Oil Pot	Power(KW)	Speed(RPM)	Power(KW)	Speed(RPM)
MK-5	6	4	4	0.55	0-86	1.1	0-3500
MK-10	10	8	8	0.55	0-86	1.1	0-3500
MK-30	30	25	17.5	0.75	0-86	1.5	0-2900
MK-50	50	38	25	0.75	0-86	1.5	0-2900
MK-100	100	60	45	1.5	0-86	3	0-2900
MK-150	150	100	75	1.5	0-86	4	0-2900
MK-200	200	120	100	2.2	0-65	4	0-2900
MK-250	250	160	130	2.2	0-65	4	0-2900
MK-350	350	250	200	2.2	0-65	4	0-2900
The complete model list and machine parameters are not shown here. For detailed information, please contact us

Detail Photos

Application: face cream, , ointment, shampoo, cosmetics cream, detergent, liquid soap, tooth paste, mascara, Ultrasonic gel, Shoe polish, lotion, baby cream, hair color cream, skin care product, facial cream, shower cream, shaving cream, cold cream, sunscreen cream, face cleanser, moisture cream, hair gel, skin cream, sauce, chocolate, cake gel, tomato paste, ketchup, tomatto sauce
