Packaging Detail: | High quality plywood case of export standards; | Product Type: | Soap; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Port: | Shanghai; |
Brand Name: | MAKWELL; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Machine Material: | Stainless Steel 304 / SUS316L; | Place of Origin: | Jiangsu China (Mainland); |
Supply Ability: | 5 Set/Sets per Month; | Control: | Button or PLC (SIMENS, ABB, Panasonic or others); |
Tank Heating type: | electrical heating or steam heating; |

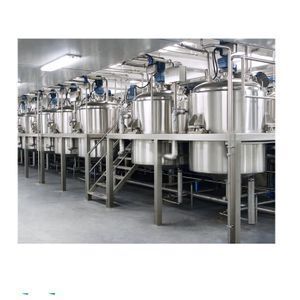

Soap Production Machine,Soap Making Plants,Soap Making Line

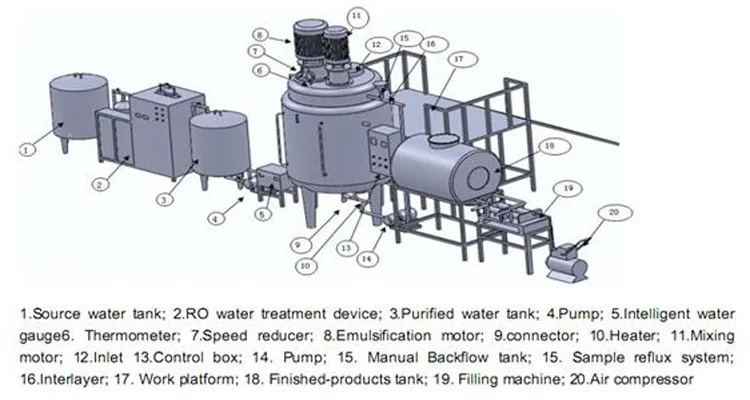

1)Equipment includes:
Water tank — Tank bracket — Ro water treatment device — Intelligent water gauge — Liquid soap production machine — Screw pump — Work platform — Pipes and Valves.
Of cause,we can supply filling machine too.As belows,

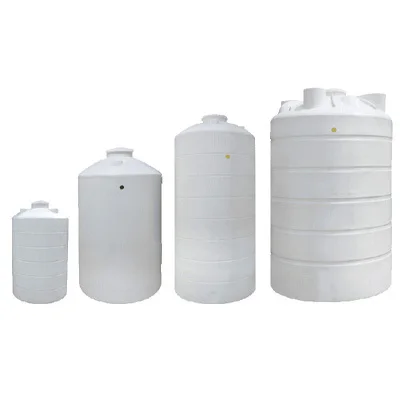

Source water tank,Purified water tank.
Material: PE ,normal;304 stainless steel if needed
Size : According to the output of products | |

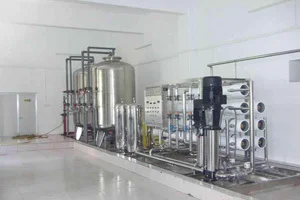

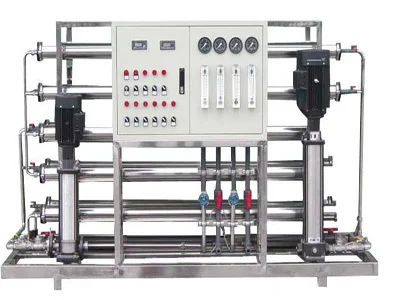

Ro water treatment device.
Material: 304 stainless steel
Voltage: 380V/220V
Specification: According to the output of products
Conductivity: ≤10 1/Ω | |
Intelligent water gauge
Material: 304 stainless steel
Voltage: 380V/220V
Specification: 1kg--9999kg | |

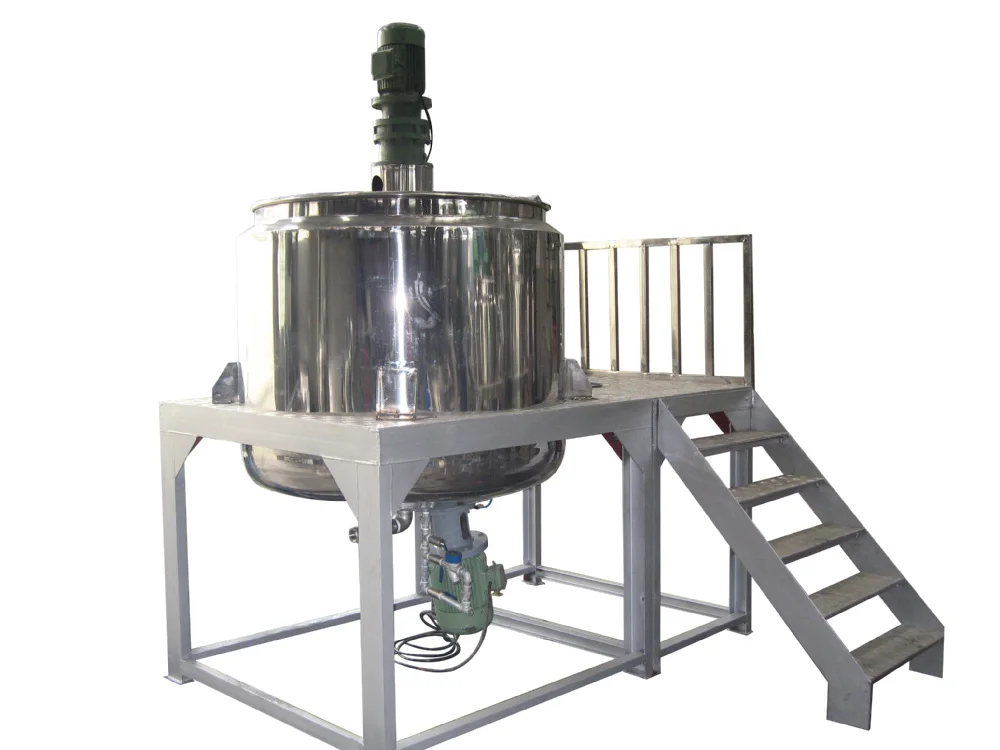

Liquid soap making machine
Material: 304 stainless steel
Voltage: 380V/220V
Output: Can be made according to your requirement
Heat source: steam or heat-conducting oil | |

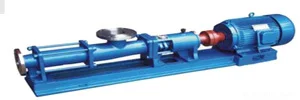

Screw pump
Remark: double layer
|

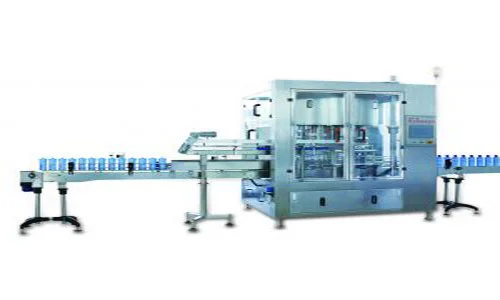

The Filling Machine |
2)Process Flow:
a. Materials sucked into the Reaction Pot,close the Lid.
b.Press button,the machine mixs
c.When It's finish,the product is out from valve on the bottom or top of pot.
3)Main Technical Parameter
Model Number | Capacity(kg)/batch | Inner Diameter(mm) | Heating Type | Vaccum System(yes/no) | Power(KW) | Rotationl Speed(RPM) |
MWK-G30L | 30 | 400 | electric | According to requirement | 0.6 | 60-100 |
MWK-G50L | 50 | 500 | electric | 0.8 | ||
MWK-G100L | 100 | 550 | electric | 1.1 | ||
MWK-G150L | 150 | 600 | electric | 2.2 | ||
MWK-G200L | 200 | 650 | electric | 2.2 | ||
MWK-G300L | 300 | 800 | electric | 3 | ||
MWK-G500L | 500 | 900 | electric | 3 | ||
MWK-G800L | 800 | 1100 | electric | 4 | ||
MWK-G1000L | 1000 | 1200 | electric | 4 | ||
MWK-G1500L | 1500 | 1300 | steam | 4 | ||
MWK-G2000L | 2000 | 1400 | steam | 5.5 | ||
MWK-G2500L | 2500 | 1400 | steam | 7.5 | ||
MWK-G3000L | 3000 | 1400 | steam | 7.5 | ||
MWK-G3500L | 3500 | 1400 | steam | 7.5 | ||
MWK-G4000L | 4000 | 1500 | steam | 7.5 | ||
MWK-G5000L | 5000 | 1600 | steam | 7.5 | ||
MWK-G6000L | 6000 | 1800 | steam | 15 | ||
MWK-G18000L | 18000 | 2000 | steam | 15 | ||
MWK-G32000L | 32000 | 3000 | steam | 37 | 30-60 |
4)Features:
a.The Mixing speed is Adjustable
b.Shaft Sealing Device , packing seal or mechanical seal
c.Variety of Agitator Type, Anchor Stirrer, Impeller, Pusher, Frame ,etc.
d.Machine Materials,ss304.And ss316 or ss316L according to the requirement of Corrosion Resistance
Detergent Filling,Detergent Filling Machine,Detergent Equipment | Shampoo Filling Machine,Shampoo Filling,Automatic Shampoo Filling Machine | Filling Machine Shampoo,Shampoo Filler,Shampoo Bottle Filling Machine |
Cream Shampoo Machine,High Viscosity Shampoo Manufacturing Machine | Lotion Mixing Machine,Lotion Mixing Tank,Lotion Mixer Machine | Automatic Cosmetic Lotion Filling Machine,Lotion Making Machine,Lotion Filling Sealing Machine |
1.what the machine can be used for ?
Can be used for production of liquid, daily chemical such as liquid detergent,liquid soap,liquid shampoo,liquid lotion and so on.
2.How about the price and quality of the machines?
a.We are a professional mixer and filling equipment manufacturing factory that set up for many years.We always pay attention to the development of the industry !By comparing,we are the one of cheapest mixer and filling machine suppliers.And we can give a discount according to the quantity of machine you purchase.
b.At the same time,we take effective measures to control the production process for ensuring the quality of products.

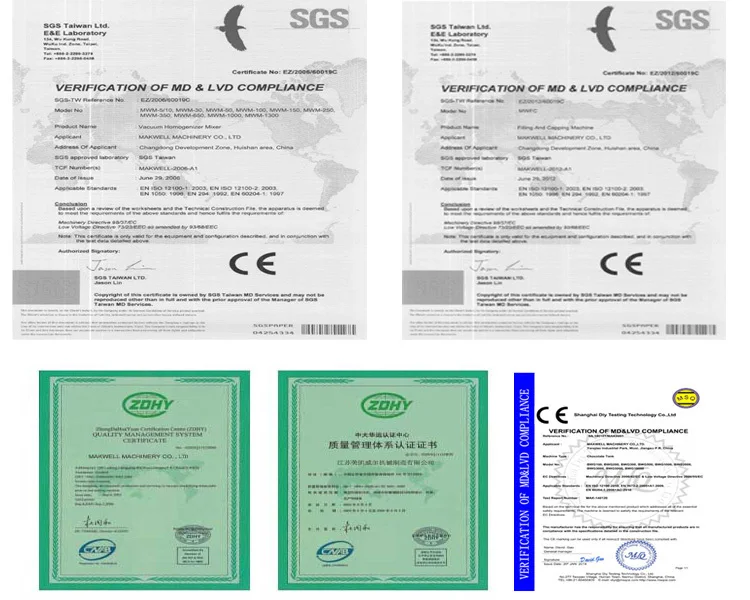

Our products are certified.And we can supply ISO90001,CE certification.
3.Are you a factory or trading company ?

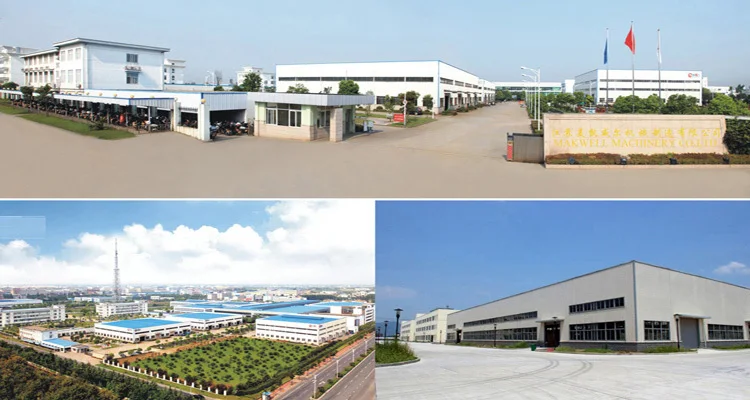

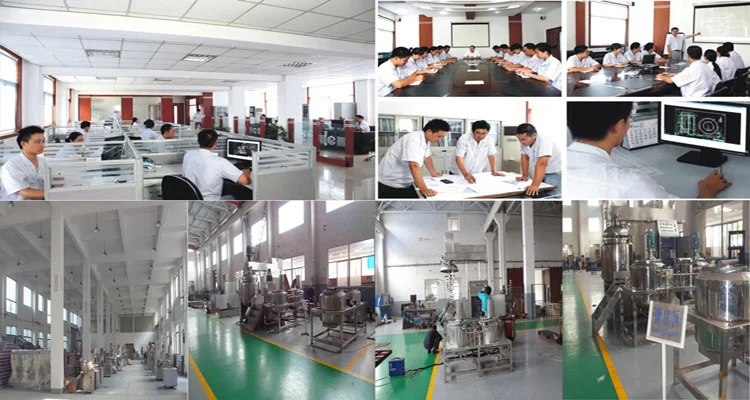

Cause of business expansion , Wuxi Makwell Technology Ltd. is establish on MAKWELL MACHINERY CO., LTD in 2014 that is a professional filling and chemical ,food mixer production factory .Our factory ,MAKWELL MACHINERY CO., LTD is in Jiangsu Province near Shanghai Port.It is a leading China manufacturer and exporter of all kind of pharmacy machinery, cosmetic machinery, food machinery.chemical machinery. It owns lots of experienced mechanical engineers and skilled workers.‘Pursuing High Quality With Perfect Service’is our unswerving pursuit. Our management is stick in accordance with IS09001 standard and our machine have CE certificate, and it has been trusted by our customer.
We are a factory ,We can supply competitive price ,and good service.
4.About your Delivery ,Packaging details,Payment Terms,etc ?
1) Delivery Details : 40-60 working days after receiving deposit
2) Packaging Details : Winding with film.Then put the machine in the plywood case.
3) Payment Terms : We can accept L/C,D/A,D/P,T/T,Western Union,MoneyGram,and Escrow according to different situation.
1, Warranty Time: one year, within this period if spare parts damage except the wrong operation , seller supply spare parts for free.We can send technician overseas for debugging machine, buyer should be responsible for necessary fee.
2, Commissioning Services: During the time of installation and debugging, our engineers will not leave, until you are satisfied with the machine.
3, Training Services: Our engineer will train your staff installation and commissioning, operation during this period if necessary.And they will not be leave until your staff can operate properly.
4, Maintenance Services: As soon as we receive your inquiry about fault, we will reply you within 24 hours
5, Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6, Certificate Services: we can provide certificates to customers
7,Inspection Services: Accept the third party inspection company or inspectors check the products before shipment
8,File Services: we can supply Manual Specification,Operate Video and other files you need.
More Product Information,please contact supplier !
Our products are exported to the United States, Brazil, Britain, France, Algeria, Egypt, Saudi Arabia, Pakistan, India etc.,dozens countries and regions of continents.

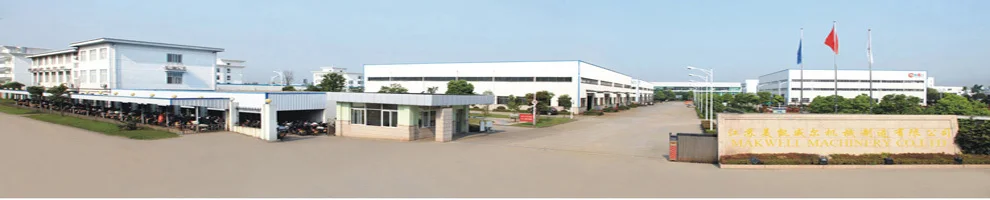

More Facotry Information,please contact supplier !
