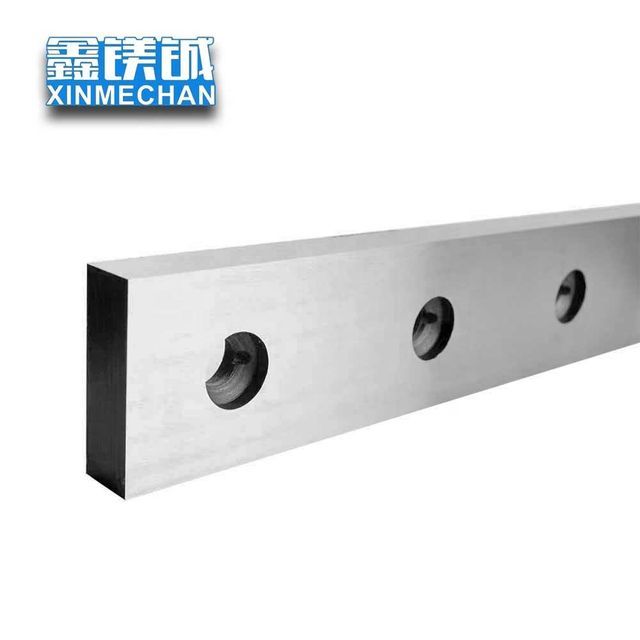

Metal cutting shear blades for cut-to-length wire
-
Supplier: Jiangsu Xinmechan Technology Co., Ltd. -
Region: Jiangsu, China -
Price: $38.00 / 1 - 9 pieces
$30.00 / 10 - 49 pieces
$20.00 / 50 - 9999 pieces
$6.00 / >=10000 pieces -
Min. Order: 1 piece
Product details
| Key selling points: | High security level | Certification: | ISO9001:2008 and CE |
| Origin: | Jiangsu, China | hardness: | Depends on material, ± 1 HRC |
| Spare Part Type: | Cutting parts | Health status: | new |
| Mechanical test report: | if | Production capacity: | Maximum length 5600mm |
| Package Preview: | Material: | 1.2746 H13 X70 X40CrMo5 Cr12MoV 60W6V7,1.2746 H13 X70 X40CrMo5 Cr12MoV 60W6v7 | |
| Video factory inspection: | if | application: | Steel mills and non-ferrous metal processing plants |
| Parallelism: | Up to 0.005 mm on request | plating: | other |
| Weight (kg): | 50 kg | Local service locations: | Philippines, Brazil, Indonesia, Mexico, Russia, Spain |
| Exhibition Hall Location: | Philippines, Brazil, Indonesia, Russia, Tajikistan | Marketing Type: | New products for 2023 |
| Applicable industries: | Integrated steel mills, non-ferrous metal processing plants, cold rolling mills, steel service centers, pipe mills, transformer belt manufacturers, surface treatment companies, packaging tape manufacturers, metal packaging companies, steel grating manufacturers, mechanical engineering companies | port: | Shanghai |
| surface: | Standard Ra up to 0.4μm, can reach Ra 0.03μm on request | advantage: | High toughness, high wear resistance |
| type: | Machined parts | incision: | Smooth and burr-free |
| Incremental pitch tolerance: | ± 0.6 mm/1000 mm | payment terms: | Western Union, L/C, T/T, VIASA |
| Packaging Details: | 1. PE film or kraft paper coated with anti-rust oil - isolates air/water/moisture, thus preventing rust. 2. Bubble film - increases impact resistance. 3. Rubber pads or corrugated corners - special protection for knife edges. 4. Wood screw crates - make opening easier without damaging the crates 5. Corrugated or plywood boxes - provide excellent protection and stackability | brand: | New Electromechanical |
| Supply capacity: | 2000 blades per month | Warranty: | 1 year |
Product Description
Xinji Metal Shear Blades are manufactured strictly in accordance with YB/T 4070.1~4070.2 standards, with extremely reliable quality, high precision and competitive prices.
Material and hardness are very important for the service life of metal shear blades. Therefore, production including heat treatment is carried out completely in-house, thus guaranteeing a continuous supply of high-quality shear blades with an optimal microstructure and the best mechanical properties.
At the same time, our team of engineers can provide you with professional advice based on more than 30 years of experience and recommend the most suitable material and hardness according to the application of the blade at a competitive price.

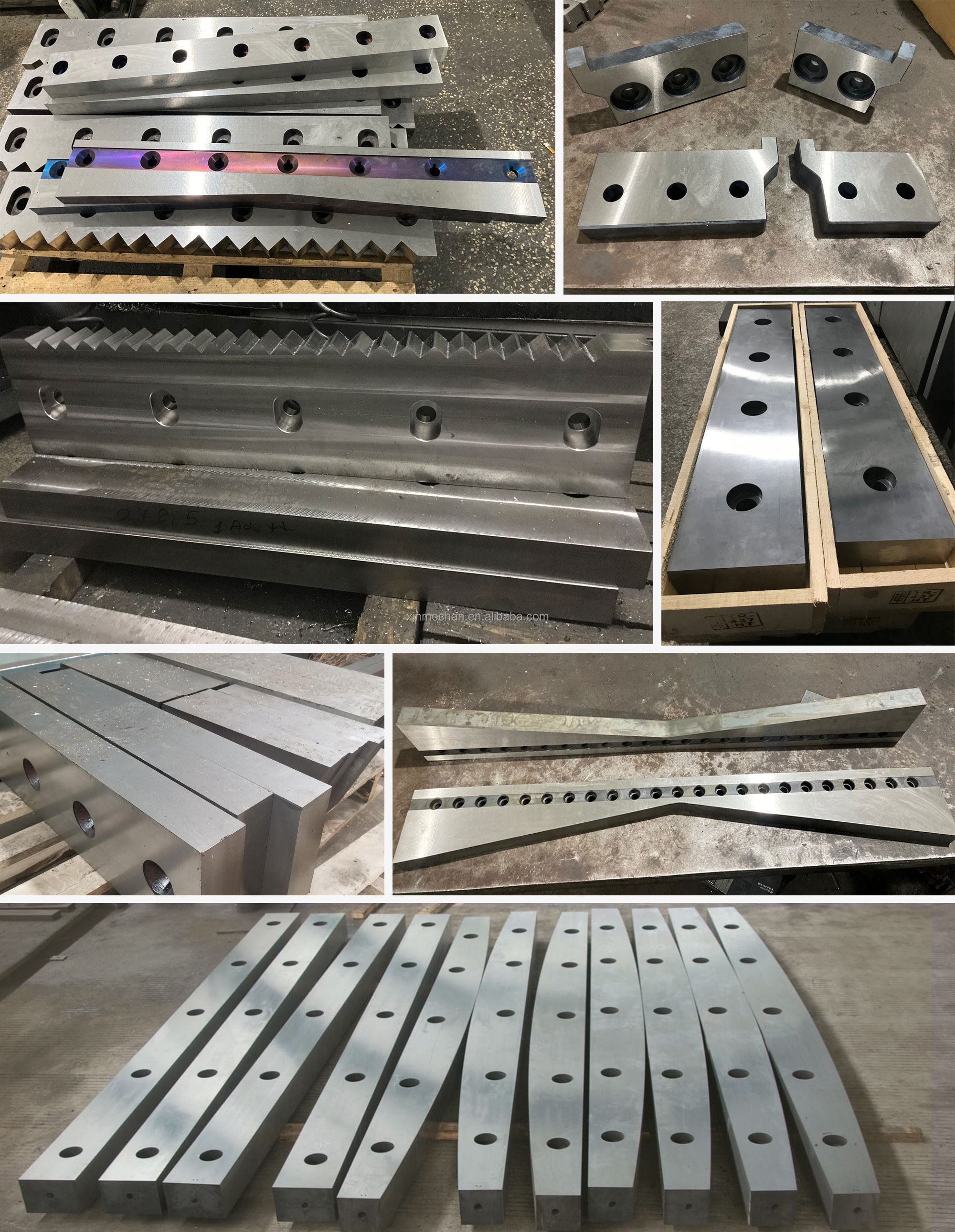

In addition, we produce high-precision knives and shear blades up to 5,500 mm in length for cut-to-length lines and guillotine shears.
Comparison of main material grades: | ||||||||||
U.K. | DIN | Tungsten No. | Japanese Standard | American Society for Testing and Materials | ISO | |||||
9 Silicon chromium | 90CrSi5 | 1.2108 | \ | \ | \ | |||||
7Cr7Mo2V2Si(Low density polyethylene) | \ | \ | \ | \ | \ | |||||
Cr12MoV | X165CrMoV12 | 1.2601 | SKD11 | \ | \ | |||||
Cr12Mo1V1 | X155CrVMo12-1 | 1.2379 | D2 | 160CrMoV12 | ||||||
4Cr5MoSiV1 | X40CrMoV5-1 | 1.2344 | SKD61 | H13 | 40CrMoV5 | |||||
Chrome 15 | 100Cr6 | 1.3505 | SUJ2 | E52100 | 100Cr6 | |||||
42CrMo | 42CrMo4 | 1.7225 | SCM440 | 4140 | 42CrMo4 | |||||
Product Parameters
Popular sizes (※Any size can be customized) | ||||
Length (mm) | Width (mm) | Thickness (mm) | ||
90 | 90 | thirty | ||
560 | 50 | 20 | ||
625 | 80 | twenty five | ||
810 | 80 | twenty five | ||
1015 | 60 | 20 | ||
1100 | 100 | twenty five | ||
1350 | 120 | thirty eight | ||
2540 | 180 | 86 | ||
3200 | 210 | 160 | ||
4600 | 240 | 120 | ||
These are just some typical sizes. Many more sizes are available. Please contact us for more information.

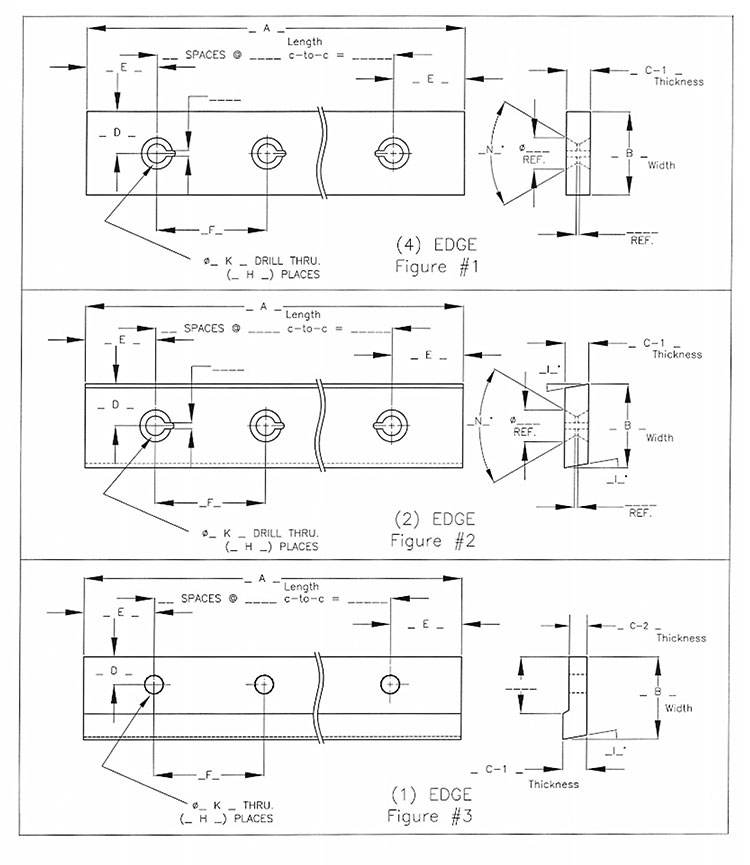

We also provide OEM service. Just send us the drawing or basic information about the blade. Our skilled engineers will take care of the rest.

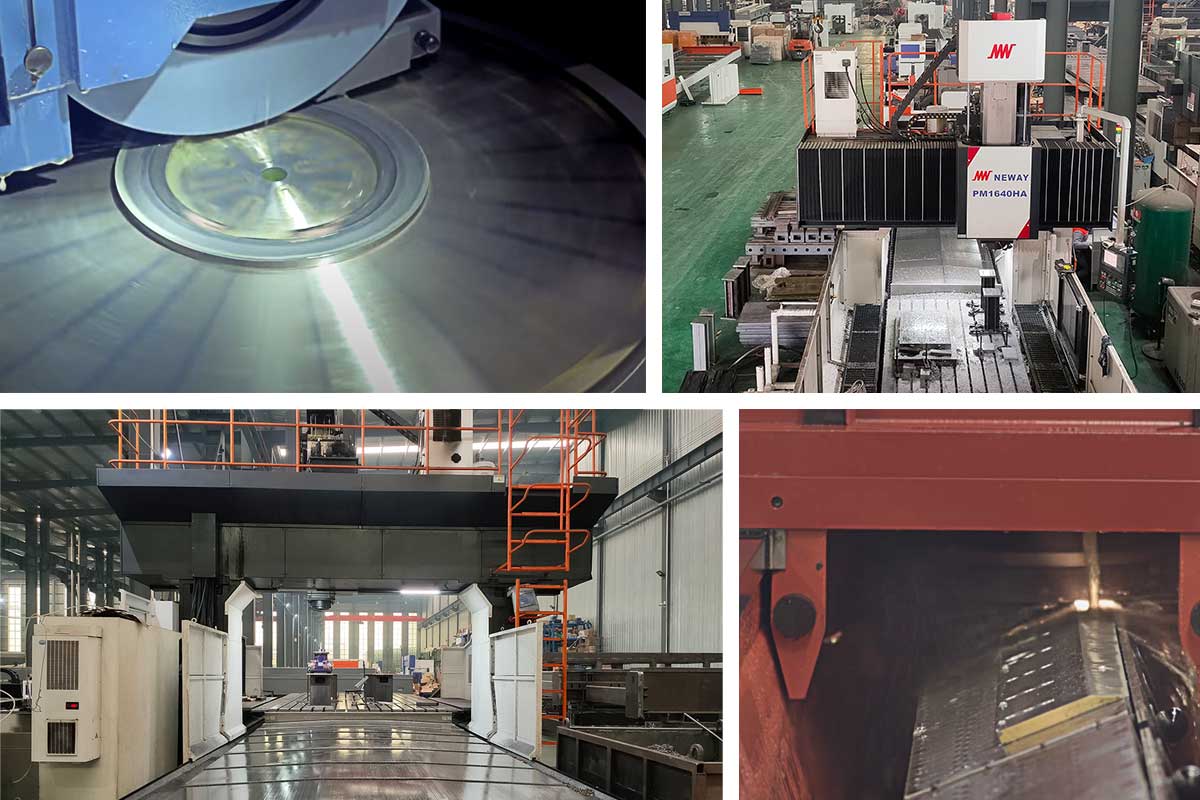

Technical services and processing
Technical services and processing
_______
◎ Steel Selection: With our skills and experience, we select the best grade of steel.
◎ Cutting, forging and annealing: choose the processing method that best suits the material and size.
◎ Cutting: Compensate for dimensional changes caused by heat treatment and adapt to various situations.
◎ Heat treatment: an important process to extend the life of the blade.
◎ Grinding: In the final grinding step, the shear blades are processed to the size that meets the specifications.
◎ Inspection: Through strict inspection, it meets high precision requirements.
