Handheld Thermocouple Calibrator

Model: LGK-JS02-064

Overview

LGK-JS02-064 handheld thermocouple calibrator is a product independently developed and designed by Wuhan CenterRise M&C Engineering Co., Ltd. The calibrator can measure the temperature detected by two thermocouples.

We fully consider the customer's needs. In order to be used conveniently, our calibrator pursues accuracy, stability, durability and beauty in research and development and design. At the same time, it is also committed to the characteristics of small size, flexibility, simple operation, and long standby time.

Working principle

The LGK-JS02-064 handheld thermocouple calibrator reads the temperature data of the thermocouple sensor at a single point through a special chip, and then displays it on the screen through a nixie light.

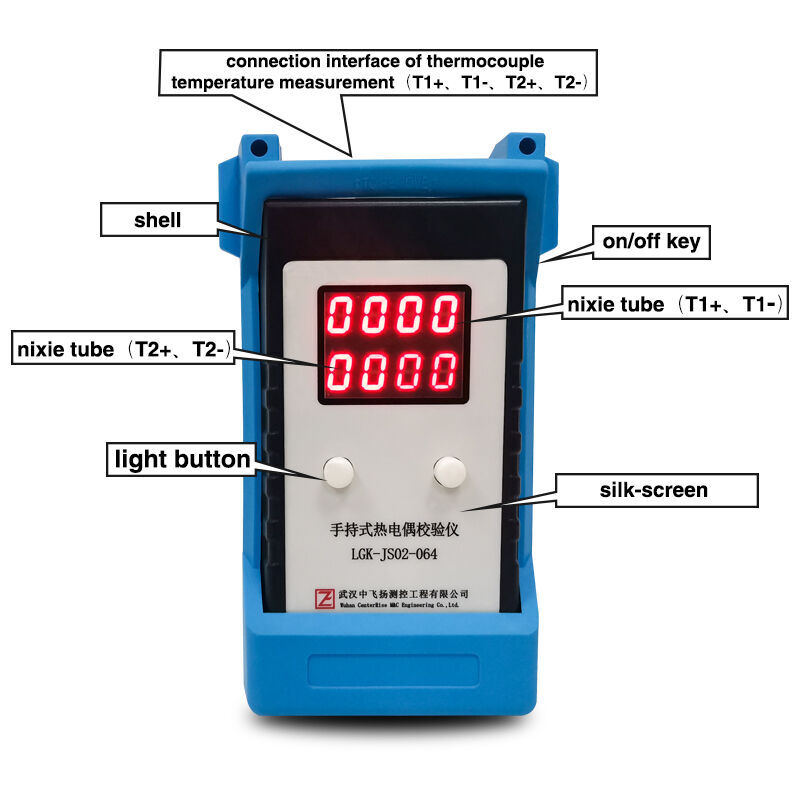

Front view of LGK-JS02-064 handheld thermocouple calibrator

Figure 4.1.1 Front view of thermocouple calibrator

The above picture shows the front view of the LGK-JS02-064 handheld thermocouple calibrator. As can be seen from the above figure, the instrument has one switch button, two operation buttons, one interface to be calibrated and LCD display.

Technical parameters

Test temperature range: 0-1000℃

Operating temperature: 0°C-50°C

Common working section 25°C-800°C

Power supply: 2 AA dry batteries
