BPS-K600 Continuous Casting Mold Breakout System

BPS-K600 Continuous Casting Mold Breakout System

    Overview:

The BPS-K600 continuous casting mould breakout prediction system is developed by Wuhan CenterRise M&C Measuring Co., Ltd. It adopts artificial neural network and combines with traditional artificial intelligence and information processing technology to overcome the defects of traditional logic-based prediction models. It has the functions of self-adaptation, self-organization and real-time learning.

The breakout prediction system has an optimized industrial network structure. According to the distribution and change rules of the temperature field of the mold, it can track and respond to the breakout process in real time. It can learn and judge by itself, and provide early warning information for on-site operations. It can effectively prevent the occurrence of breakout accidents, greatly reducing the cost and improving the safety factor of continuous casting.

The system is suitable for all kinds of continuous casting machines such as square billet, round billet, rectangular billet and slab.

     The composition of the system

Thermocouple: according to the on-site conditions of the mold, water tank, bolts and mold frame to desgin

Front-end acquisition system: Multi-module acquisition chain, industrial Ethernet interface, high-speed embedded processing module

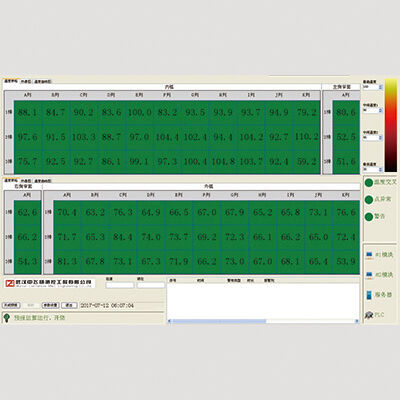

Working platform: Real-time display of mold temperature field status, online analysis and prediction of mold breakout

Server: Data exchange and storage management, reporting and printing system, with data analysis and self-learning functions

      The Main technical parameters

          Data sampling: the sampling frequency of K-type/T-type thermocouple can up to 10HZ

          Accuracy of temperature measurement: ±0.25℃

          Support communication protocol: Industrial Ethernet (TCP/IP)，PROFIBUS-DP，CANopen

          Executive standard: DE0411 Standard Class III/1EC584/IEC1515
          Transmission speed: 100M/bps

      The composition of the software

          Online monitoring software for breakout prediction

          Offline query software for breakout prediction

          Data recovery and self-learning software packages

          Data acquisition and monitoring software

          The software package of mold thermal status display

     The functions of the system

1. Real-time data acquisition, data analysis and judgment
2. Automatic selection of steel grade’s alarm parameters
3. Real-time dynamic picture monitoring
4. Prediction alarm and information display of breakout signs
5. Automatic deceleration after alarm
6. Historical data storage and historical trend graph display
7. Automatic report generation and printing
8. Alarm prediction and pattern recognition of unknown steel grades by neural network
9. Dynamic real-time temperature profile prediction
10. Mould heat flow field display

       The features of the system

1. 1. Reasonable design of temperature measurement point and professional protection front-end acquisition system, and complete installation and calibration tool components.
2. 2. The system has strong adaptability and can meet the transformation of various structural continuous casting machines.
3. 3. High-speed data communication, using industrial network to form an independent local area network for each workstation and server. It can realize high-speed data transmission of alarm files, alarm parameters, and other databases.
4. 4. The combination of artificial neural network and intelligent forecasting model improves the accuracy of breakout forecasting.
5. 5. Historical data storage and historical trend graph display, historical reports, historical alarm legend printing, real-time alarm data printing.
6. 6. Provide a local area network interface, which can realize the storage and forwarding of alarm files, and the input and output of offline alarm data.
7. 7. Remote Web browsing can be achieved according to customer needs.
8. 8. Can be seamlessly connected with MES-C220 mould expert system.

Wuhan CenterRise M&C Engineering CO., Ltd.

more info, please contact zero zero eight six one three nine nine five five eight eight five nine seven or sales@whzfy.com
