Paper Egg Tray Making Machine for Small BusinessesMachine for Fabricating Paper Egg Trays for Small Businesses

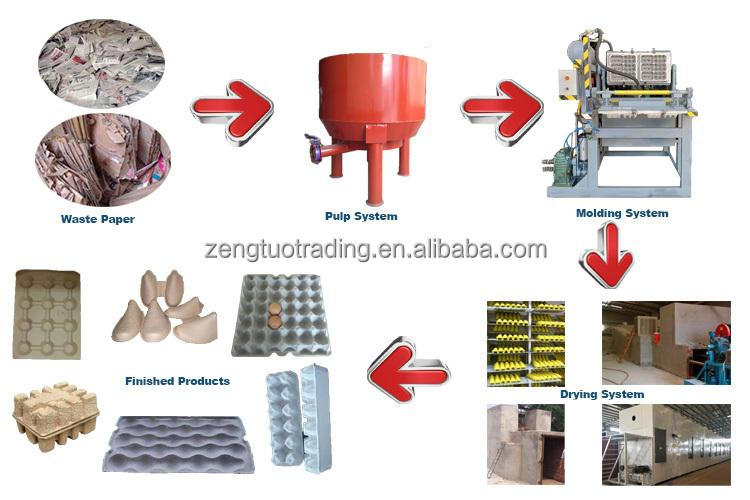

The first step: put the prepared waste paper boxes, newspapers and other raw materials into the hydraulic pulper, use the shear force and friction of water to make the waste paper into pulp, and transport the prepared pulp to the mixing tank.
Step 2: Transfer the pulp and water to the paper supply pool, filter out impurities in the pulp, and adjust the concentration of the pulp. At this time, you can add materials such as colorants and waterproofing agents as needed and stir them evenly.
enough.

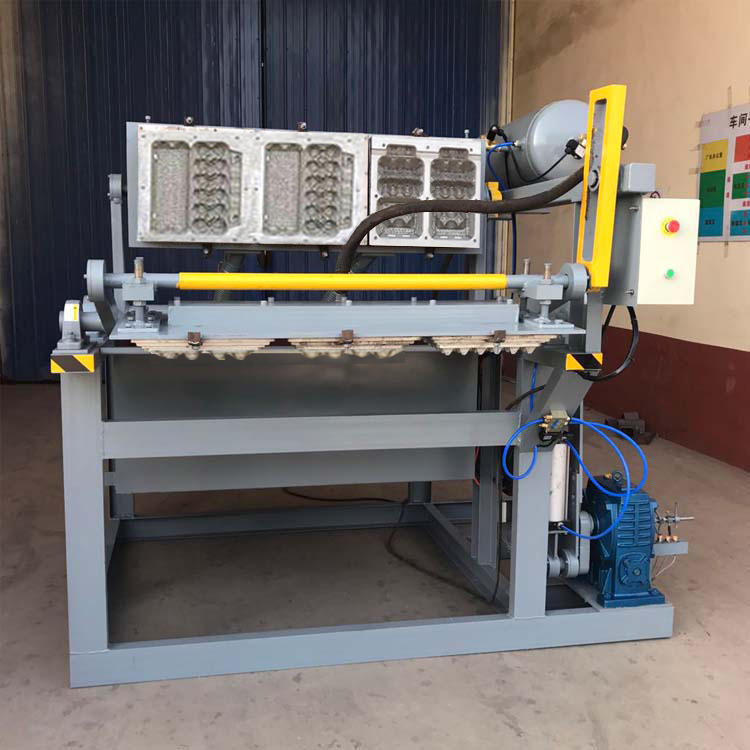

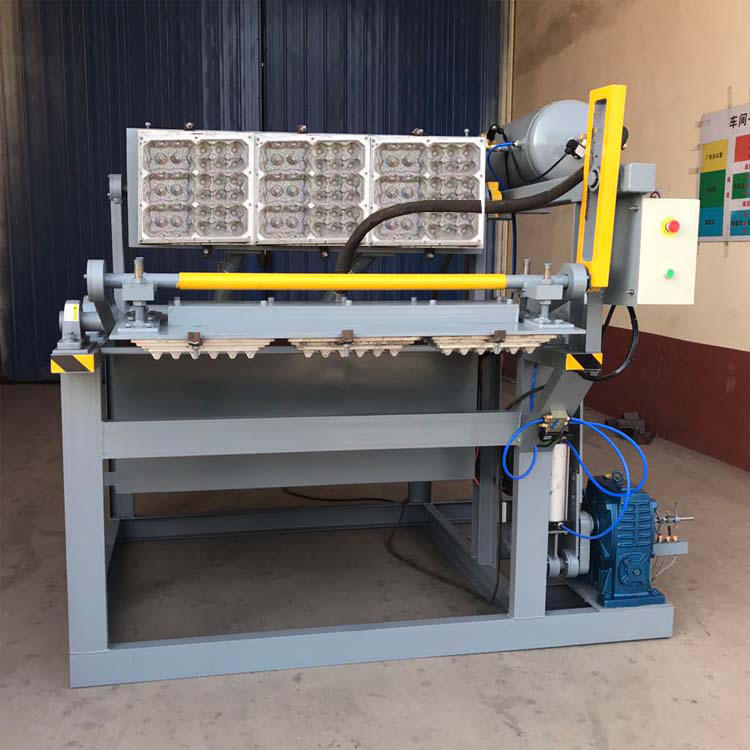

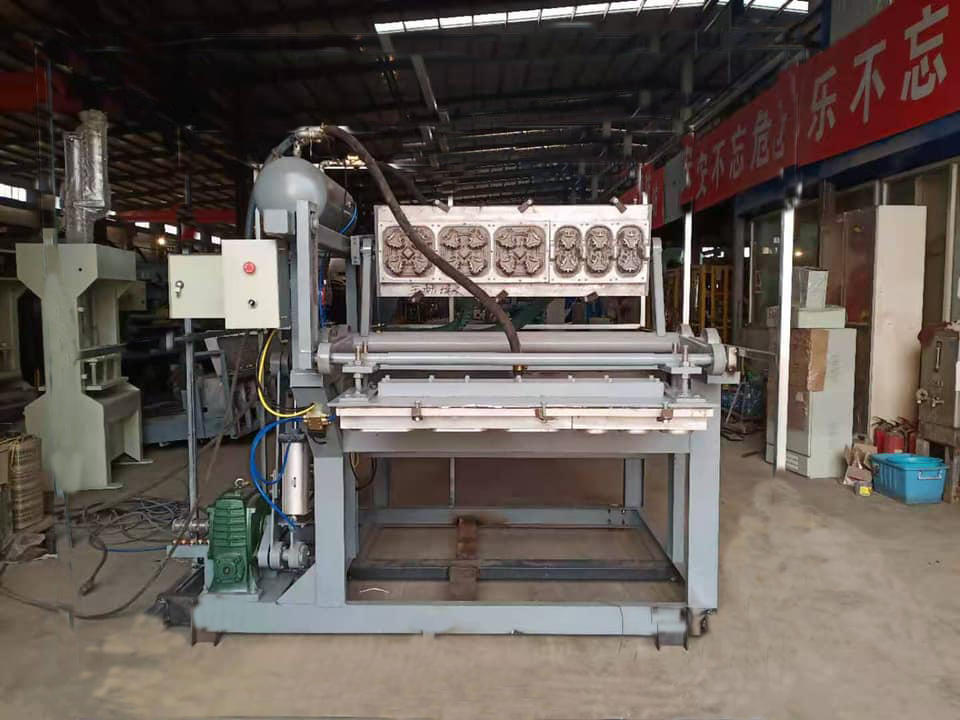

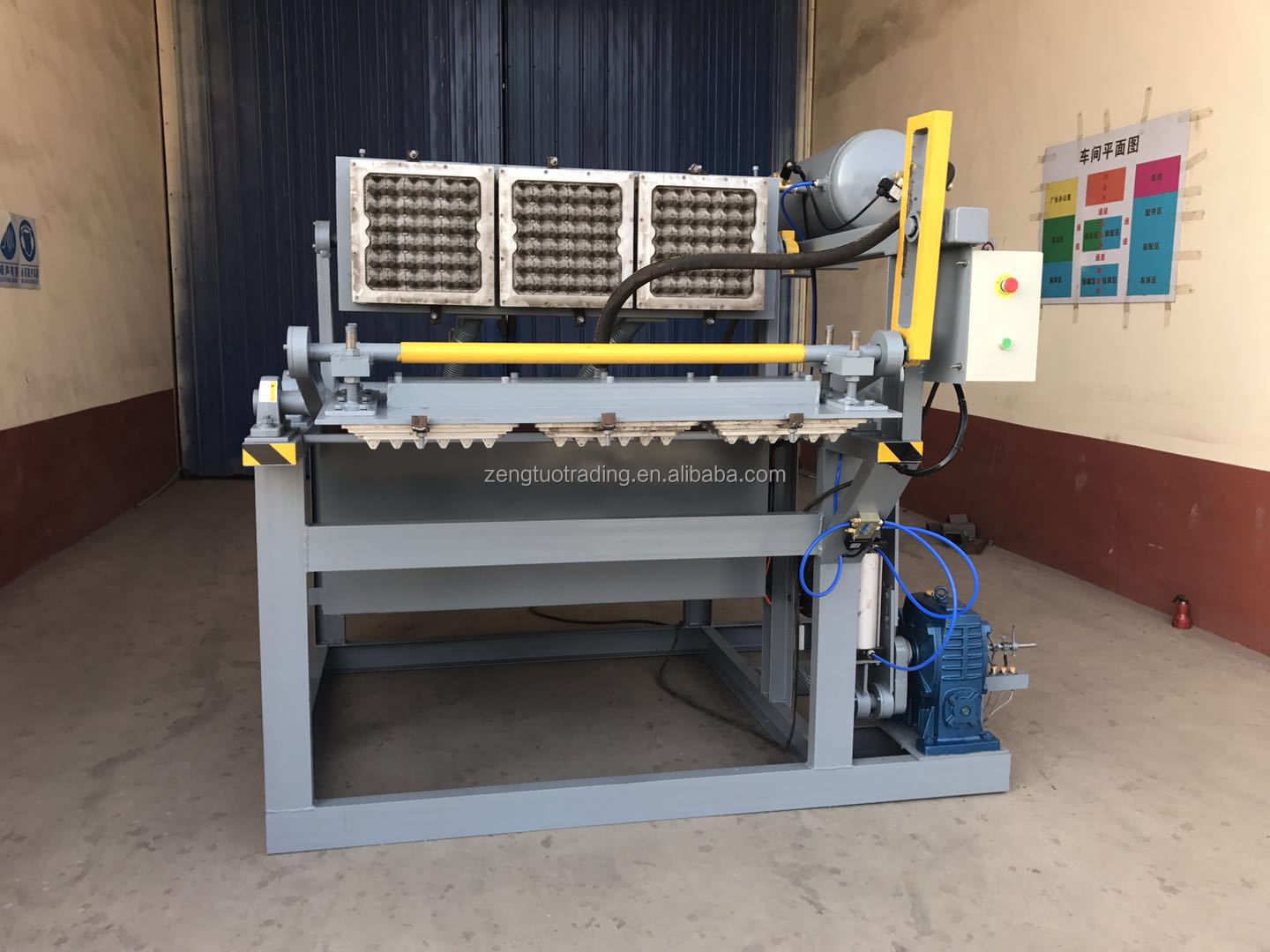

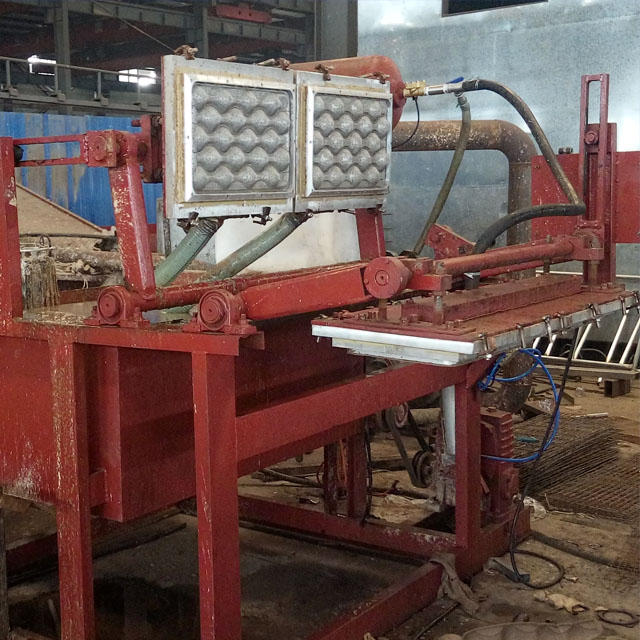

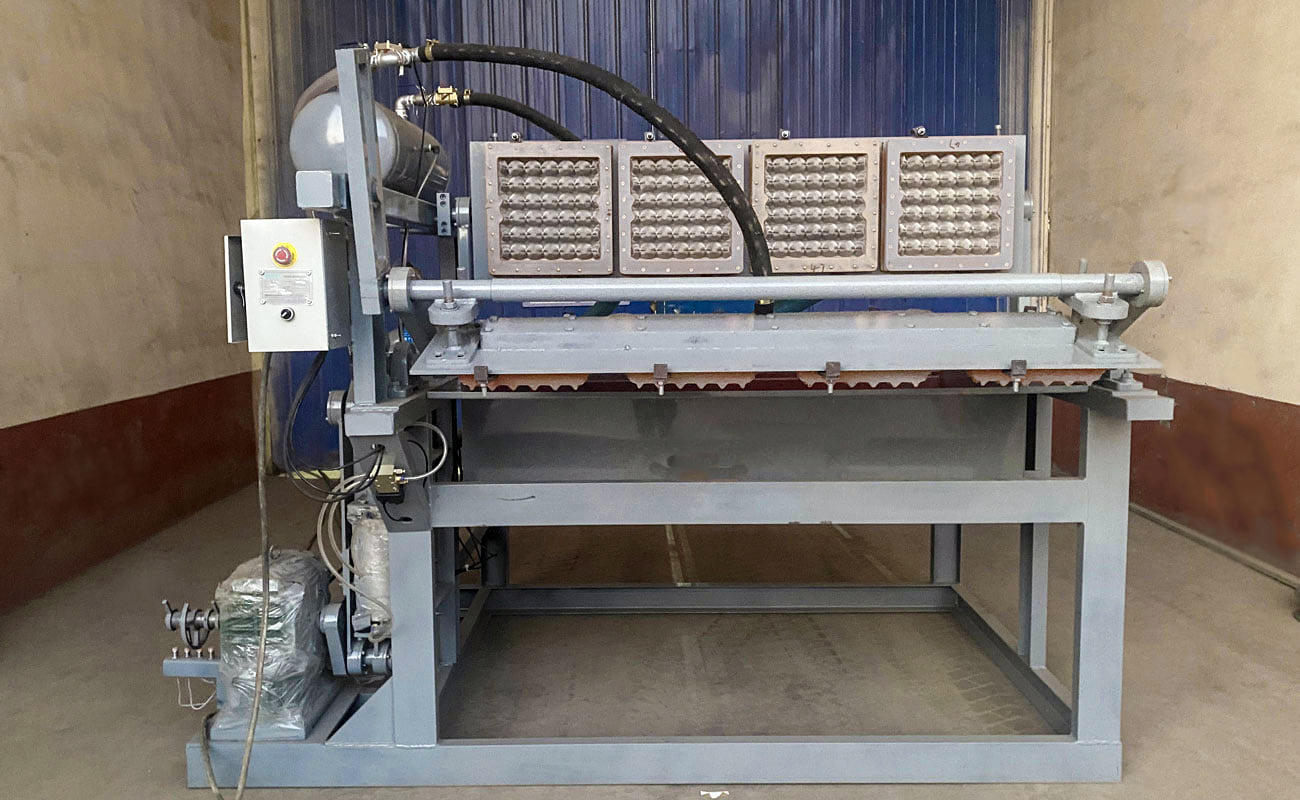

Step 3: Pump the prepared pulp from the pulp supply pool into the egg tray forming machine with a pulp pump. The upper mold is completely immersed in the pulp. Under the suction effect of the vacuum mold at the back, the pulp is adsorbed on the mold surface and the moisture in the pulp is extracted to form a moist egg tray on the mold surface.
Step 4: When the forming machine is working, the water in the pulp is pumped out by the vacuum pump, and then the waste water is discharged into the waste water pool. The waste water can be transported to the hydraulic pulper and mixing pool for recycling through the waste paper pump.
Step 5: Place the wet egg trays into the drying line for drying, and finally trim and package the egg trays.
