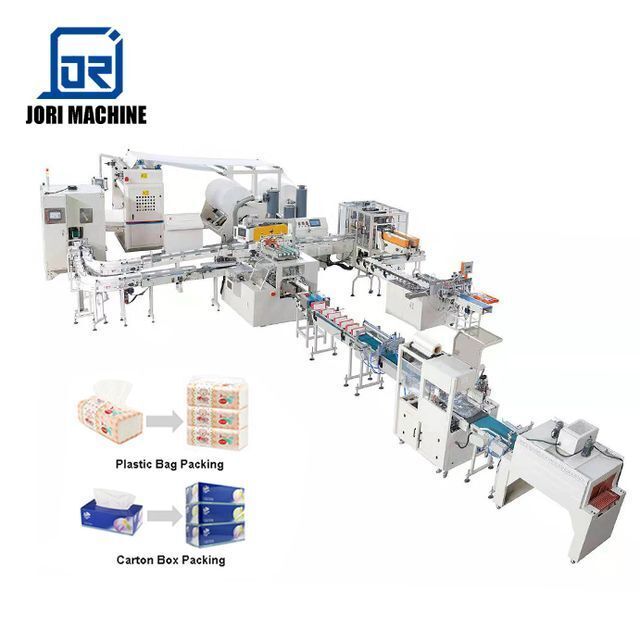

Automatic V Fold Facial Tissue Hand Towel Paper Making Processing Machine Production Line

Supplier: Dalian Jori Co., Ltd.
Region: Liaoning, China
Contact: Ms Jessica Tian
Price: $13000.00 / 1 - 1 units
$12000.00 / >=2 units
Min. Order: 1 unit

Click here to contact

Product details

Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Place of Origin:	Fujian, China;
Packaging Detail:	Wooden Cases, Seaworthy Package. Automatic V Fold Facial Tissue Hand Towel Paper Making Processing Machine Production Line;	Raw material size:	420mm/630mm/840mm/1050mm/1260mm;
Product Type:	Facial Tissue Machine;	Product name:	Automatic V Fold Facial Tissue Hand Towel Paper Making Machine;
Video outgoing-inspection:	Provided;	Warranty:	1 Year;
Core Components:	PLC,Motor,Pump;	Brand Name:	JORI;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;	Warranty of core components:	1 Year;
Weight:	4 kg;	Folding products size:	95(length) x130-210 (adjustable width);
Voltage:	380V 50HZ;	Supply Ability:	40 Units per Month Automatic V Fold Facial Tissue Hand Towel Paper Making Processin;
Marketing Type:	New Product 2020;	Port:	xiamen port,China;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Power:	3-4.5KW;
Condition:	New;	Machinery Test Report:	Provided;
Processing Type:	Facial Tissue Paper;	Dimension(LWH):	45007001500mm;
Production Capacity:	200m/min;

Product Description

Automatic V Fold Facial Tissue Hand Towel Paper Making Processing Machine Production Line

Features:

Box-drawing facial tissue machine use jumbo roll to process and fold into "V" type of paper. The machine adopts the vaccum adsorption principle and auxiliary manipulator folding.
1. Automatic counting points a whole row output;

2. Helical balde shear, vacuum adsorption folding;
3. Stepless speed regulation unwind, It can adjust to use for high or low tension paper material;
4. Adopt PLC computer programming control, pneumatic lifting for jumbo roll, easy for operation;
5. Frequency conversion contrtol, save energy;
6. The width of paper can be adjustable, to meet different market requirement;
7. Supporting paper rolling pattern device and edge rolling device, Pattern is obvious, flexible to meet market demand. (Pattern selected by customers)
8. It can make "V" type single layer towel and two layers glue lamination.(Optional)

Specification:

Name	Specification
Production rate:	60~80 meters/minute per line
Product unfold size (mm):	180(length) x130-210 (adjustable width)
		190(length) x130-210 (adjustable width)
		200(length) x130-210 (adjustable width)
Folding proucts size (mm):	90(length) x130-210 (adjustable width)
		95(length) x130-210 (adjustable width)
		100(length) x130-210 (adjustable width)
Max. jumbo roll width:	2L	3L	4L	5L	6L
Max. jumbo roll width:		420mm	630mm	840mm	1050mm	1260mm
Max. jumbo roll width:	1100mm (other sizes can be specify)
Main motor power:	2L	3L	4L	5L	6L
Main motor power:		3.0kw	3.0kw	4.0kw	5.5kw	5.5kw
Vacuum blower power:	2L	3L	4L	5L	6L
Vacuum blower power:		7.5kw	11kw	15kw	15kw	22kw
Embossing unit:	Steel to rubber rollers, (steel yo steel embossing need customized)
Edge embossing unit:	Steel to steel rollers

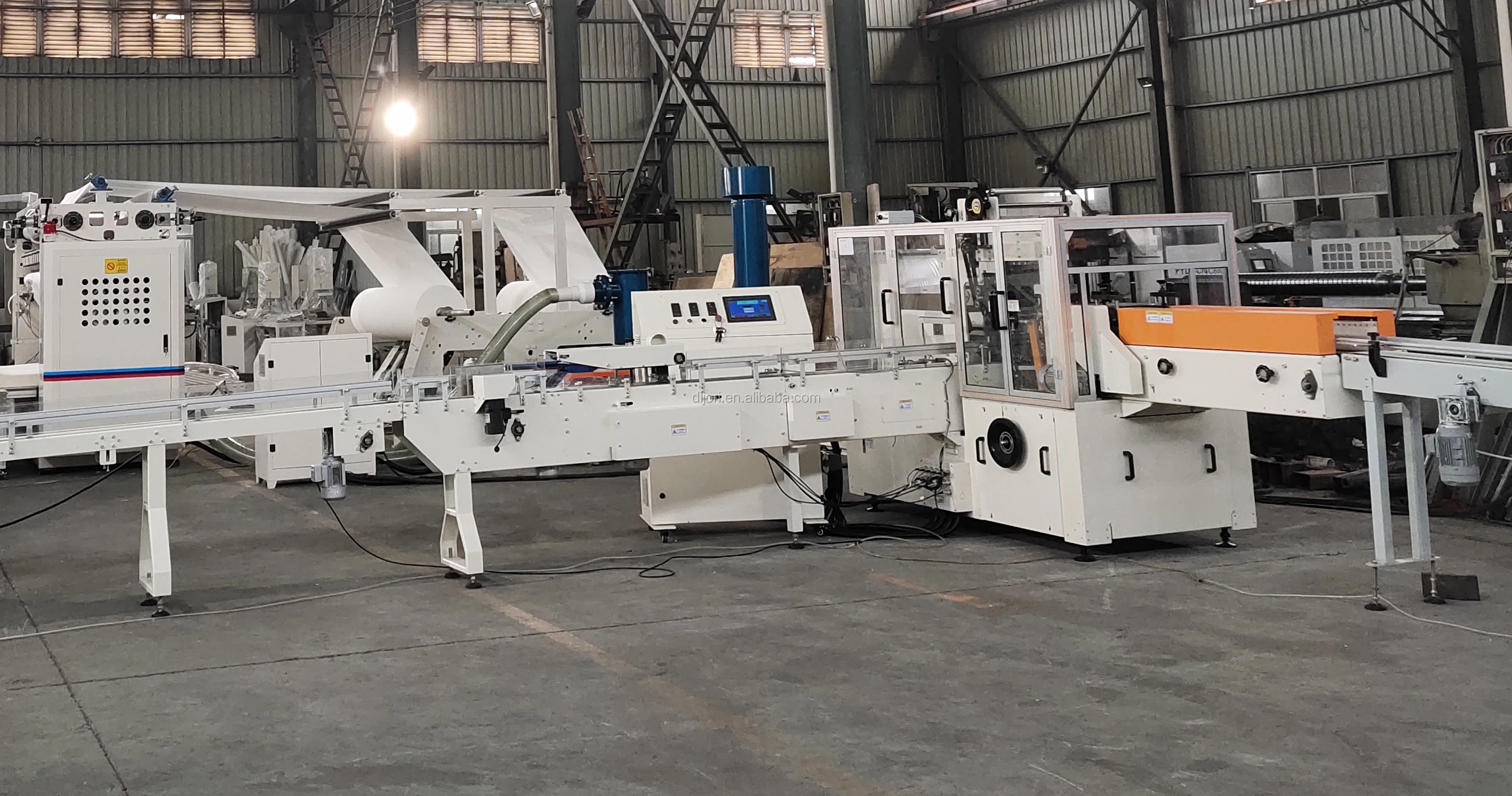

Machine Details:

The Edge Embossing

The Full Embossing

Finished Products:

Our Company

Packing & Delivery

Pre-sales Service Of Automatic V Fold Facial Tissue Hand Towel Paper Making Processing Machine Production Line

1.Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract

In-sales service for Automatic V Fold Facial Tissue Hand Towel Paper Making Processing Machine Production Line

One-stop and customize service for you, all napkin paper processing related machines are available from us
24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.

After sales service for Automatic V Fold Facial Tissue Hand Towel Paper Making Processing Machine Production Line

1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
