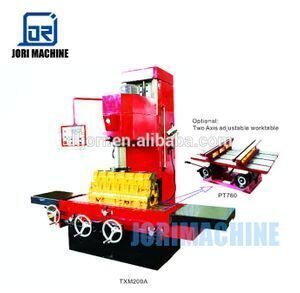

TXM200A Cylinder boring machine with deliver time 30 days

Supplier: Dalian Jori Co., Ltd.
Region: Liaoning, China
Contact: Ms Jessica Tian
Price: $15000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Power(W):	5.5kw;	Warranty:	1 years;
Spindle speed:	120-1200 r/min;	Voltage:	380V/50Hz/3Ph;
Dimension(LWH):	2600x1630x2300mm;	Weight:	3300kg;
Name:	Engine Repairing Cylinder Boring Milling Drilling Grinding Machine;	Place of Origin:	Yunnan China;
CNC or Not:	Normal;	G.W:	565kgs;
Packaging Details:	Wooden Case;	Max. boring diameter:	?170 mm;
Production Capacity:	High;	Condition:	New;
Port:	Guangzhou, China;	Supply Ability:	50 Unit/Units per Year;
Delivery Detail:	30 days after payment;	Condition:	New;
Color:	white Red;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	Wooden case, Seaworthy package;	Voltage:	As customer require;
Certification:	ISO9001:2008;	Brand Name:	JORI;
Max. boring depth:	400 mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Model Number:	TXM170A TXM200A TXM250A;

Product Description

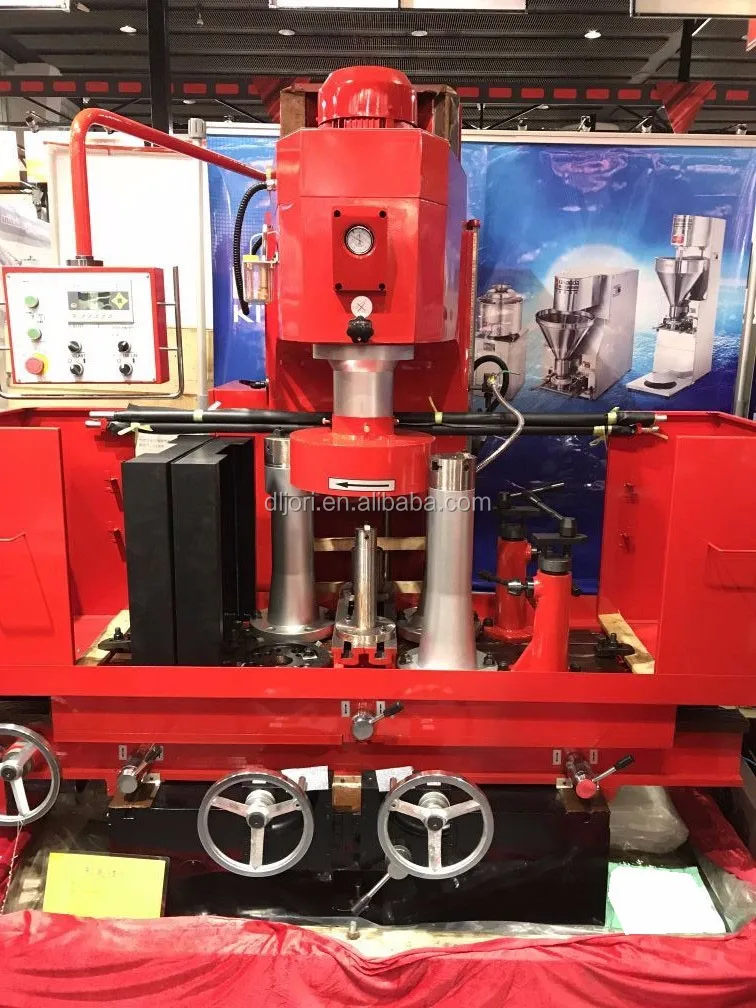

Vertical Boring-Milling&Grinding Machine:

1. Stepless of spindle turning ,feeding and table travelling.

2. Rotating speed and feed of spindle as well as the movement of worktable is free—setup, automatical retuming of spindle can be realized.

3. Longitudingal and cross movement of table.

4. Complete set of accessories of boring, milling, drilling & reaming and easy exchange.

5. SpindleFastcenteringdevice.

6. Boring depth control device.

7. Table with digital readout for jig borer machine.

Specification:

Model	TXM170A	TXM200A	TXM250A
Max. boring diameter	Φ170 mm	Φ200 mm	Φ250 mm
Max. boring depth	400 mm	500 mm	500 mm
Max. grinding area	400×1000 mm
Max. milling area	400×1000 mm
Max. milling & reaming diameter	Φ30 mm
Spindle speed	120-1200 r/min
Feeding of the spindle	14-900 mm/min
Rapid moving speed of the spindle	1000 mm/min
Spindle travel	700 mm
Distance between spindle end face and table	0-700 mm
Distance between spindle axis and carriage vertical plane	375 mm
Longitudinal feed of worktable	32-1350mm/min
Rapid Moving speed of worktable longitu travel	1350mm/min
Longitudinal Travel of worktable	1500mm
Transversal travel of worktable	200mm
Worktable Dimension	500×1250 mm	500×1500 mm	500×1250 mm
Main Motor	5.5KW
Processing roughness(Boring)	Ra 2.5
Processing roughness(Milling)	Ra 3.2
Processing roughness(Grinding)	Ra 0.8
Overall Dimension	2600×1630×2300mm
Packing Dimension	2230x1870x2270mm
Net/Gross Weight	3300/3600kg	3500/3800kg	3500/3800

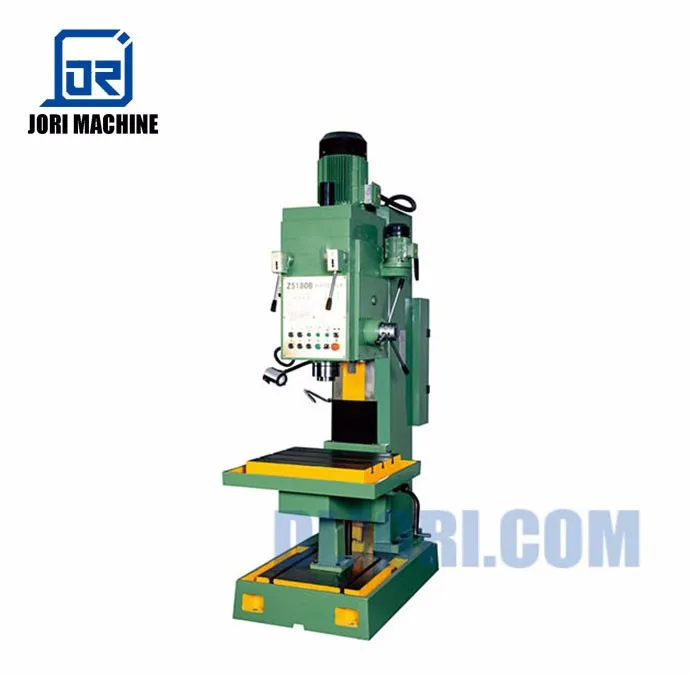

Environment Friendly Z5140B Box-type Vertical Drilling Machine Series

91.8% Response Rate

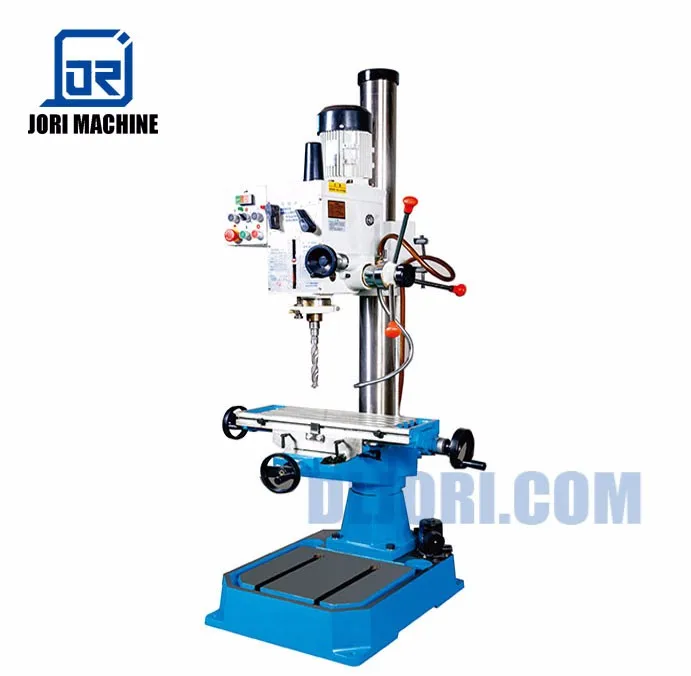

Gear Head Drilling & Milling Machine

91.8% Response Rate

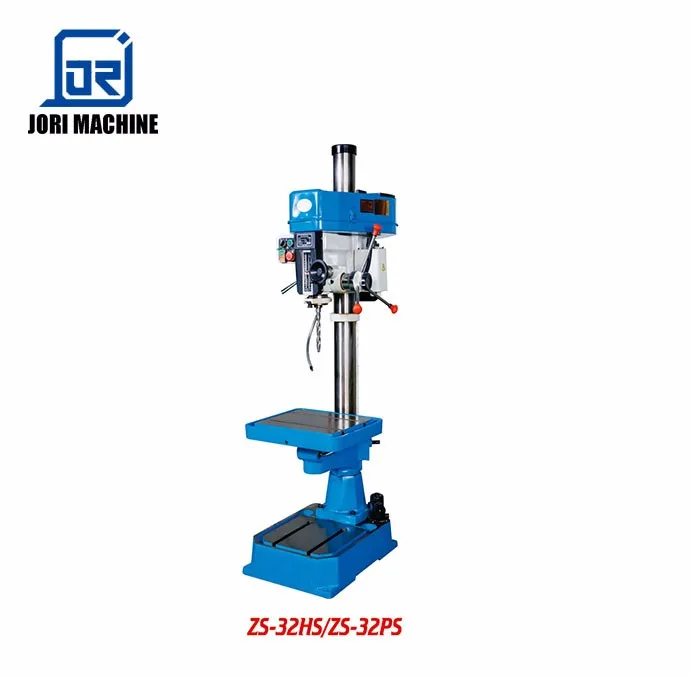

Gear Head Drilling&Tapping Machine
