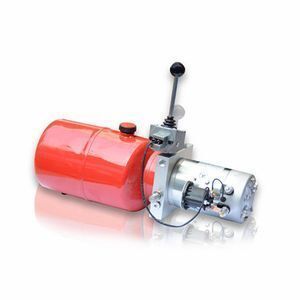

24volt 20mpa semi-electric stacker truck mini hydraulic power pack with hand valve

Supplier: Wuxi Jinle Automobile Motor Factory
Region: Jiangsu, China
Contact: Mr James Gu
Price: $150.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	Hydraulic Power Units;	Mounting:	Lateral Horizontal;
Brand Name:	Jinle;	Tank capacity(L):	8;
Single gross weight:	20 KG;	Pressure(Mpa):	20;
Place of Origin:	Jiangsu China (Mainland);	Oil port:	3/8"NPT;
Single package size:	50X45X40 cm;	L(mm):	370;
Model Number:	HPU-10BEANHSAFJF;	Selling Units:	Single item;
Pump displacement(cc/r):	2.6;

Product Description

24volt 20mpa semi-electric stacker truck mini

hydraulic power pack with hand valve

Type	HPU-10BEANHSAFJF
Motor	24V 2.2KW 2500RPM
Pump displacement（cc/r）	2.6
Tank capacity	8
Pressure	20
Mounting	LATERAL HORIZONAL
Oil port	3/8"NPT
L(mm)	370MM

General Description:

This POWER UNITS FOR MANUAL ELECTRIC STACKER is designed exclusively for the forklift, consist of high pressure gear pump,DC motor,multifunctional manifold ,valves ,tank,etc.
The up and down movement are controlled by the level of the mannal release valve ,which is equipped with an electric switch for the motor start . The lowering speed is automatically adjusted by the pressure compensated flow control valve.

SPECIAL NOTES:

1. The duty of this power unit is S3,i .e.,30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst,which should also be clean and free of impurities. N46 hydraulicoil is recom-mended.
4.This power units should be mounted horizontal.
5.Check the oil level in the tank after the first start of the power unit.
6.Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.

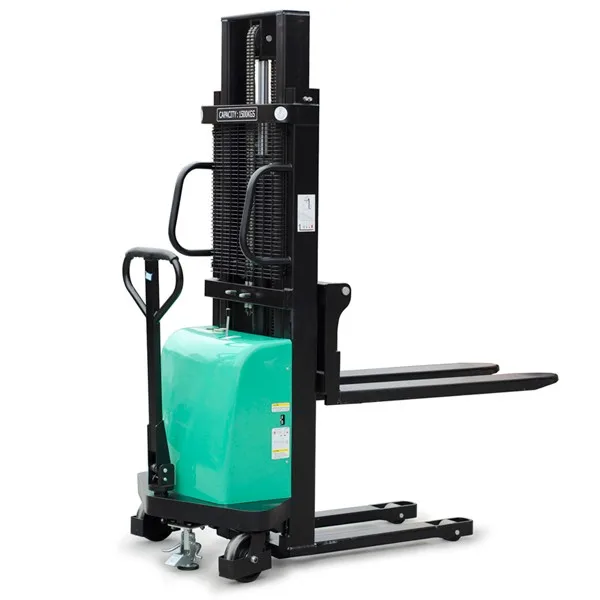

Application

Our Company

Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.

We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.

So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.

Packing & Delivery

Our Service

1.Sample service: samples can provide preferential.
2.customized services: a variety of power units can be customized according to customer demand.
3. aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

FAQ

Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?

Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.

Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.

Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
