L&B stainless steel single mono screw pump for slurry

Supplier: Zhejiang L&B Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Carlos Xiang
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	BLS;	experience:	20 years manufacture experience;
Type:	Screw pump;	advantage:	high quality with favorable pump;
Flow:	0.5-60T/H;	Model Number:	G10-1---G86-1;
Material:	stainless steel ss304 ss316;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Speed:	720-1400rpm;	Product name:	mono screw pump;
Power:	0.37-15KW;	Port:	Ningbo or Shanghai;
Packaging Detail:	Plywood case mono screw pump;	Applicable Industries:	Building Material Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Food & Beverage Shops;
Supply Ability:	300 Set/Sets per Month mono screw pump;

Product Description

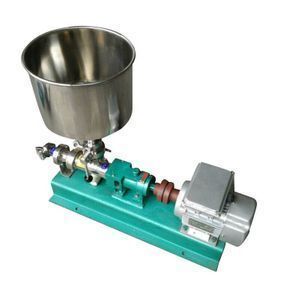

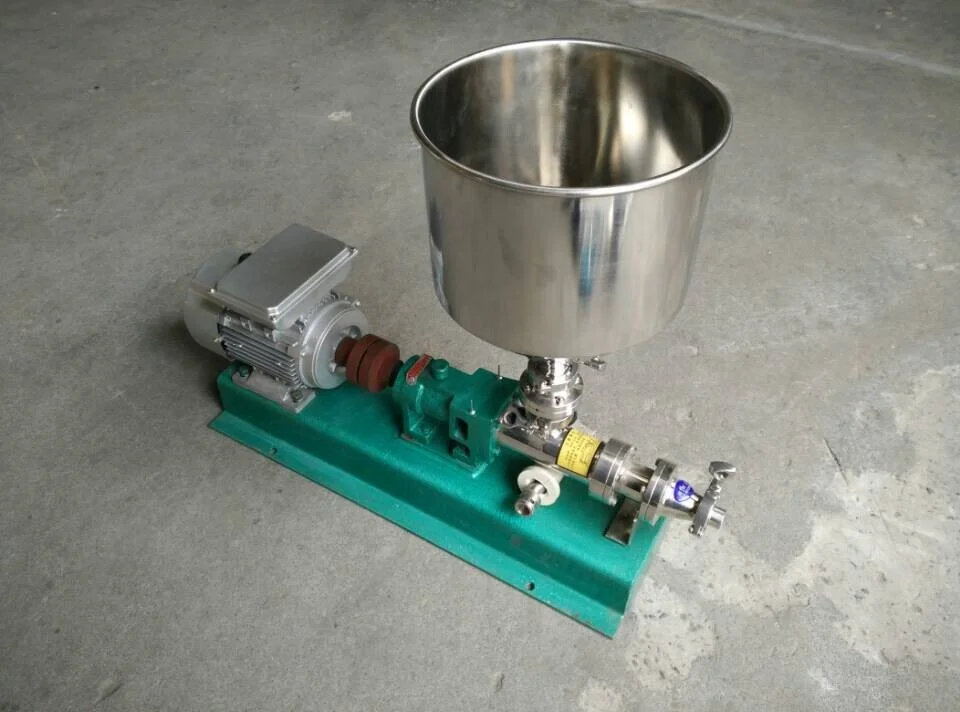

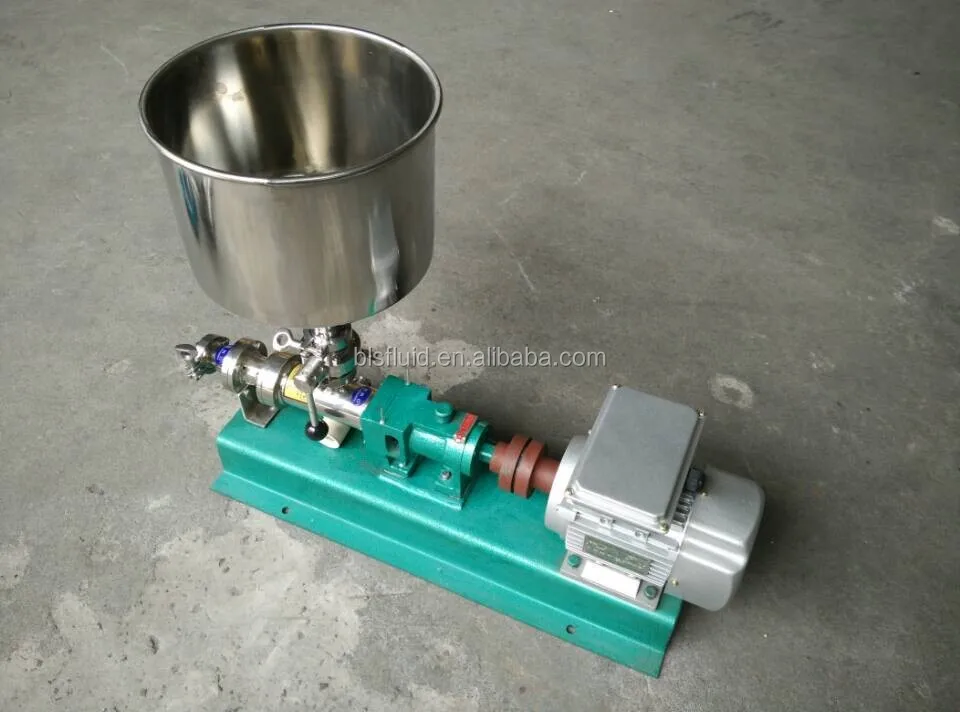

L&B stainless steel juice transfer pump single mono screw pump for slurry

Application:

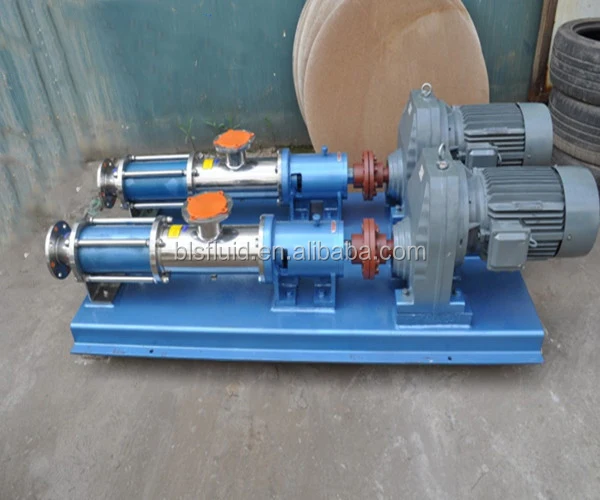

Mono screw pump for food industry is also called progressive cavity pump, Is widely used in

delivery of high viscosity products such as chocolate, syrup and jams etc.

Characteristics:

Our screw pump is made form high purity stainless steel, And with no dead corner design, Very

easy to clean, We have two type of screw pump, : Single screw pump and twin screw

pump. Our new designed twin screw pump is CE approved,

Design and features
Different Connection type: Welding; Thread; Clamp; Flange
Different connections standard: DIN, SMS, JIS, ISO.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.4 um.
Outside surface finishing Mirror polished
Various rotor available three lobe butterfly lobe etc
Heating chamber (Jacket)
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection. (movable, ABB Explosion proof).
Trolley and/ Switchboard with invertor

Technical Parameters

screw pump	(mm)	(r/min)	(m³/h)	(kw)
Model	Diameter	Speed	Flow	Power
G10-1	20	1400	0.5	0.37
G15-1	25	960	1	0.55
G20-1	32	960	1.5	0.75
G25-1	32	960	2	1.1
G30-1	40	960	3	1.5
G35-1	50	960	5	2.2
G40-1	50	960	7	3
G40-1	50	720	5.5	2.2
G45-1	50	960	9	4
G45-1	50	720	7	3
G50-1	65	960	13	5.5
G50-1	65	720	10	4
G55-1	65	960	18	7.5
G55-1	65	720	13	5.5
G65-1	80	720	30	11
G86-1	100	720	60	15
