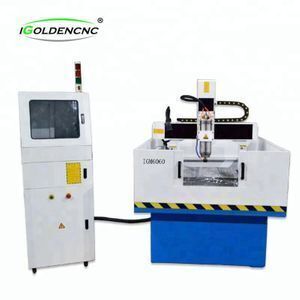

3 axis aluminum steel mold cnc router milling engraving machine for metal

Supplier: Shandong Igolden Cnc Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Linda zhen
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	15 days;	Dimensions:	1400x1220x2000mm;
Place of Origin:	Shandong China (Mainland);	Brand Name:	iGolden;
Table:	T-slot and PVC plate;	Warranty:	2 Years;
Lathe structure:	Cast iron;	control system:	NC Studio;
Product name:	3 axis mold cnc router milling engraving machine for metal;	driving system:	stepper motor and leadshine driver;
Application:	mold, metal and craft industry;	Engraving Speed:	30M/min;
Port:	Qingdao,Tianjin,Shanghai,guangzhou;	Main Axle Rotational Speed:	24000rpm/min;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Model Number:	iGM-6060;
Supply Ability:	200 Set/Sets per Month 6060 cnc router;	working area:	600x600x200mm;
Certification:	CE;	Weight:	600KGS;
Milling Cutter Diameter:	10mm;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	transmission:	X,Y,Z-ball screw;
Feeding Height:	200mm;	Rated Power:	2.2KW;
cooling system:	water cooling;	guide rail:	Taiwan Hiwin guide rail;
spindle:	2.2kw;	Packaging Detail:	3 axis aluminum steel plastic mold cnc router milling engraving machine for metal package by strong wooden case;

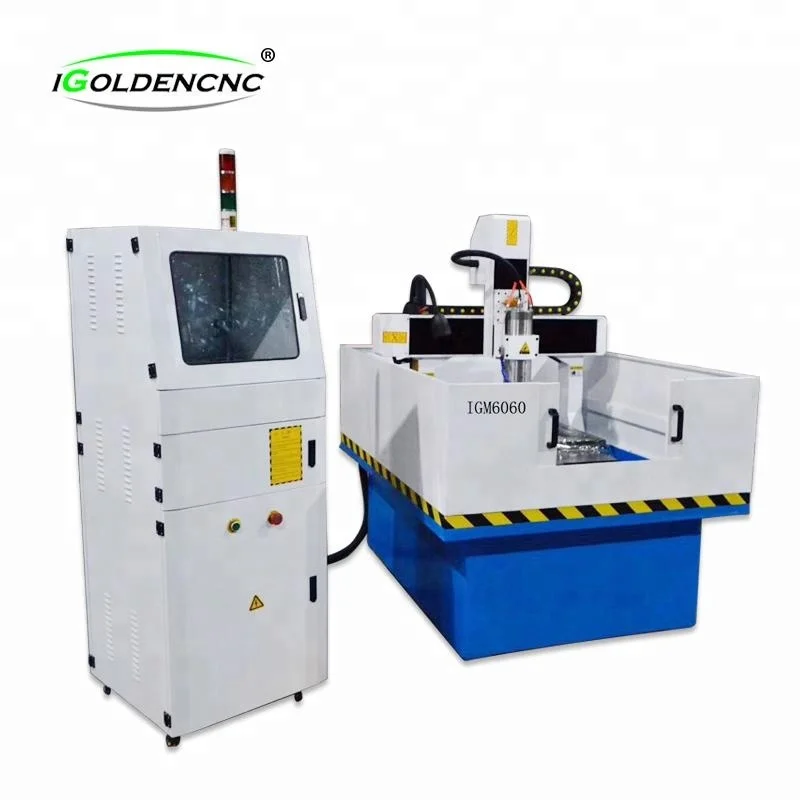

3 axis aluminum steel plastic mold cnc router milling engraving machine for metal

Product Description

Parameters:

NO.	Model	IGM-6060
1	Working area	600x600x200mm
2	Z feeding height	200mm
3	Working table	T-slot table and PVC plate
4	spindle	2.2kw/3kw/5.5kw
5	Cooling system	Water cooling
6	Control system	NC Studio
7	inverter	Fuing
8	transmission	X,Y,Z-ball screw
9	Guide rail	Hiwin from Taiwan
10	Ball screw	TBI ball screw from Taiwan
11	Drive system	Leadshine driver and stepper motor optional servo motor and driver
12	body	Integrally cast lathe bed
13	Working accuracy	0.01mm
14	Reposition accuracy	0.005mm
15	Command code	G Code.PLT.ENG
16	Working voltage	AC220V/50HZ
17	dimension	1400x1220x2000mm
18	Net weight	600kg

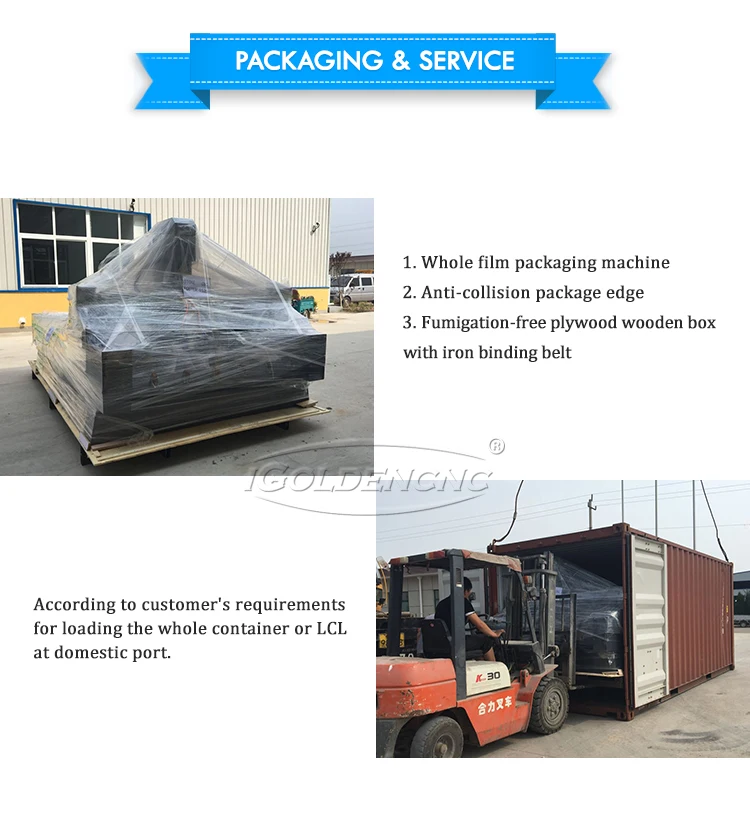

Packaging & Shipping

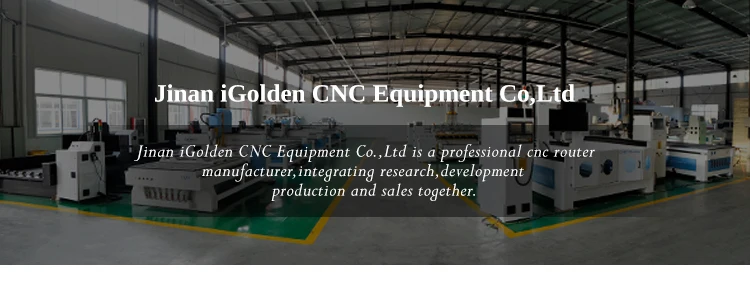

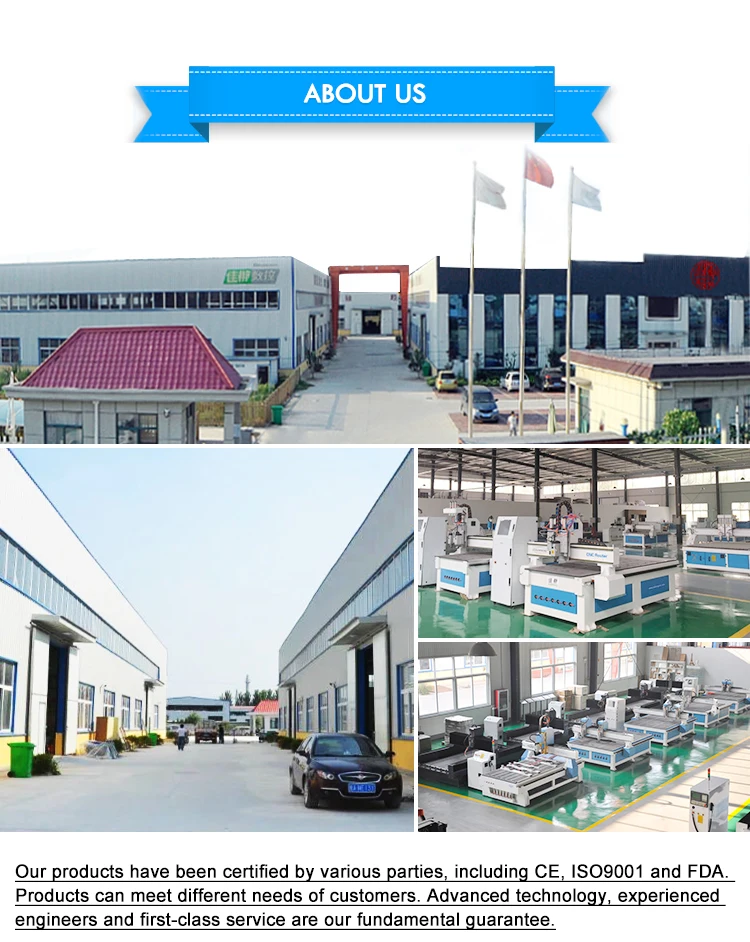

About us

Buyer Feedback

Contact info
