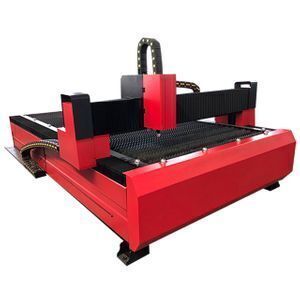

Plasma Cutting Machine Plasma Metal Cutting Machine China Cnc Plasma Cutting Machine Cheap Price

Supplier: Shandong Igolden Cnc Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Linda zhen
Price: $4850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Standard export wooden case for cnc plasma cutting machine;	Keywords:	cnc plasma cutting machine;
Dimension(LWH):	1500*3000mm;	Drive motor:	Stepper System;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,ESCROW, Paypal;	Working area:	1500*3000mm;
Voltage:	220V/380V,50-60Hz;	Place of Origin:	Shandong China;
Software:	Fastcam Software;	Cutting speed:	8000mm/min;
Key Selling Points:	Competitive Price;	Rated Power:	8.5-10.5KW;
Control system:	Beijing Starfire Control System;	Supply Ability:	200 Set/Sets per Month cnc plasma cutting machine;
Brand Name:	IGOLDENCNC;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Motor Type:	Stepper Motor;	Weight (KG):	1600;
Application:	Industrial Metal Cutting;	Year:	2019;
Condition:	New;	Dimensions:	3600x2250x1450mm;
Certification:	CE, FDA, ISO;	Plasma power:	63A/100A/120A/160A/200A/300A;
Port:	Qingdao;	Warranty:	2 Years;
Cutting material:	Metal Stainless Steel Carbon Steel Aluminum;	Cutting thickness:	0-30mm;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Advertising Company,metal cutting machine;

Plasma Cutting Machine Plasma Metal Cutting Machine China Cnc Plasma Cutting Machine Cheap Price

Product Description

Features:plasma cutting machine price

1) The beam uses light structural design,with good rigidity structure, light deadweight .

2) The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3) Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4) Equipped with other advertise equipment (blister/engraving machine) .Improve the efficiency of several times

5) Cutting mouth is small, tidy,and avoid a second dressing processing.

6) It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.

7) The numerical control system disposes high, the automatic striking arc, the performance is stable.

8) Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents

Parameters:plasma cutting machine price

We could also accept custom made, so just tell us your require.

Model	IGP1530
Working area (X-Y)	1500mmx3000mm
Working material	Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates
Working Thickness	0.5-19 mm
Cutting Speed	0-6000mm/min
Power	8.5kw
Input Voltage	380V 50HZ (or according to your need)
Plasma Current	63A/100A/120A/160A/200A/300A
Connecting Way	USB
Working Mode	Untouched arc striking
Cooling method	With water pump and tank provide circulating water cooling
Z axis travel	0-70mm
The automatic elastic raise	0-5mm
Rail guide	Precision work round
Transmit way	Taiwan imported ball screw
Operation language	English (Option)
Command	G code, uoo, mmg, plt*
Optional power source	USA brand Hypertherm
Spare parts	Electrode ,Electricity nozzle and Water jacket

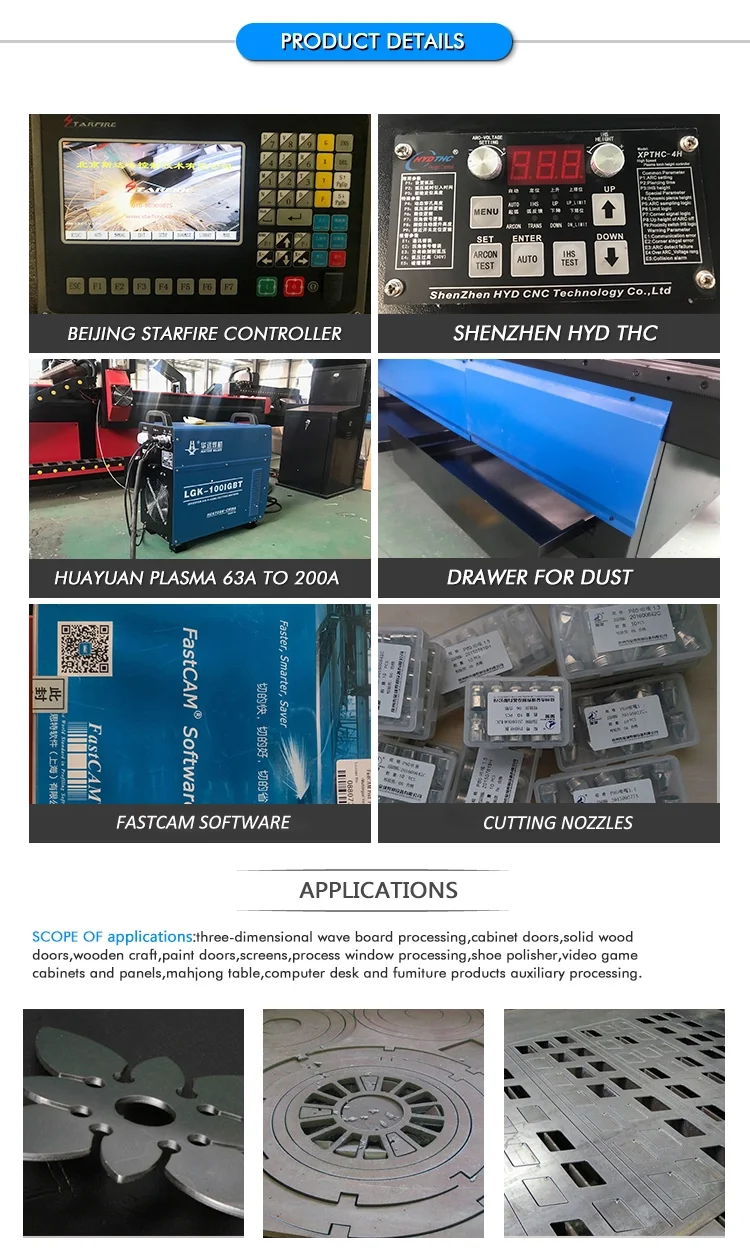

Main parts:

Application:plasma cutting machine price

To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.

Cutting thickness:plasma cutting machine price

Key point:

Please Kindly tell us the Cutting Materials, the maximum working area and the cutting depth. According to this,we suggest most suitable machine for you.

Our Services

# 24 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.

# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, WhatsApp, Email, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
