ChinaCNCzone New 80w Mini CNC CO2 Laser Cutting Machine Price Competitive

Product details
Laser Type:CO2;Cutting speed:0-700 mm/s;
Place of Origin:China (Mainland);Laser type:CO2;
Graphic Format Supported:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;Cooling Mode:Water Cooling;
Supply Ability:200 Set/Sets per Month;Cutting Area:1000*400mm;
Control Software:Coredraw;Delivery Detail:Shipped in 5 days after payment;
Model Number:SL-1040;Application:Laser Cutting;
Working area:400*1000 mm;Certification:CE,None;
Total power:<300W;Applicable Material:Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal, Escrow, E-credit Line;CNC or Not:Yes;
Laser power:80W;Brand Name:ChinaCNCzone;
Cutting Speed:0-700 mm/s;Port:Shenzhen, UK, Germany;
Lifting platform:0-250 mm Honeycomb Worktable;Condition:New;
Min shaping character:Character: 2*2mm, Letter: 1*1mm;Engraving depth:0-10 mm;
After-sales Service Provided:No overseas service provided;Engraving speed:0-700 mm/s;
Packaging Detail:Wooden box with foam inside, 157*94*78 cm, 230 kg;Cutting Thickness:0-10 mm;
Cutting depth:0-10 mm;

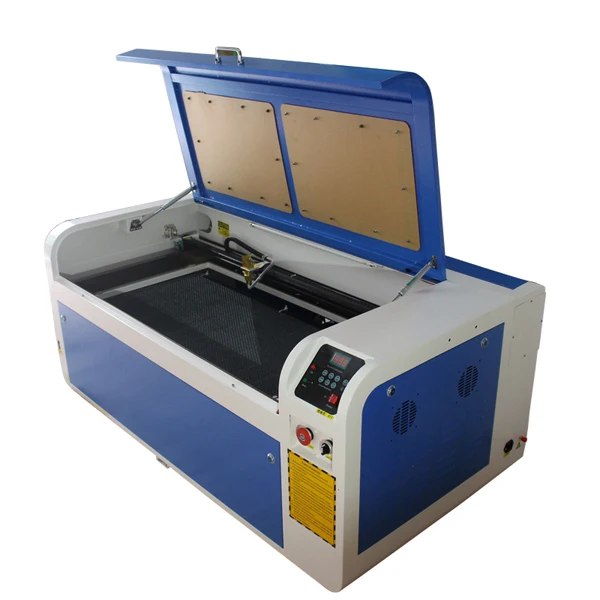

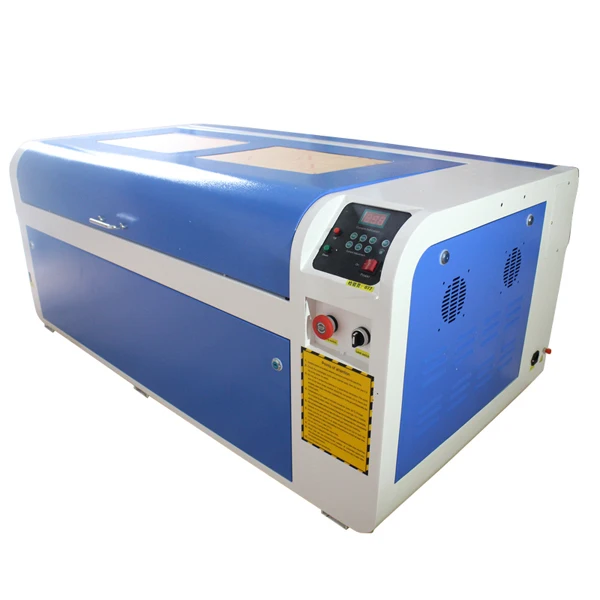

ChinaCNCzone New 80w Mini CNC CO2 Laser Cutting Machine Price Competitive



Product Description

Highlights for this 80w Mini CNC CO2 Laser Cutting Machine



1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2. USB Interface

3. Air Assist, Remove heat and combustible gases from the cutting surface.

    18W Air pump, flow can be 38L/Min.

4. Embedded Exhaust Fan, Easier install, Safer transport.

    40W  exhaust fan, flow can be  5.27m³\Min.

5. Rotary Axis, Engrave any cylindrical object.

6. Cellular platform, Leave no chippings on working area.

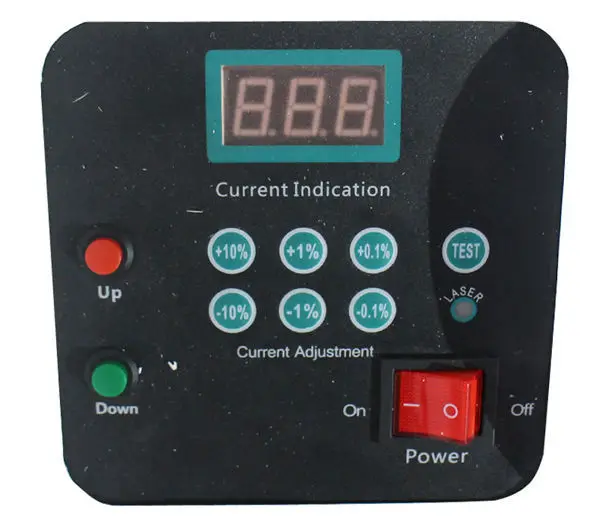

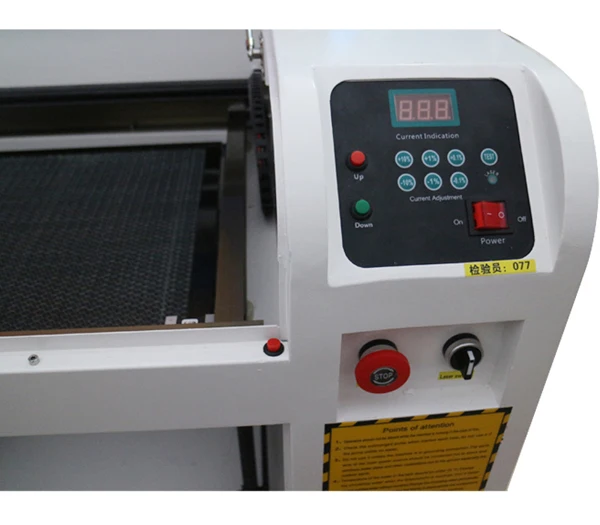

7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

8. Water Cooling and Protection System with a chiller.

     With jam-proof heat exchanger, water flow detection alarm, over temperature alarm.

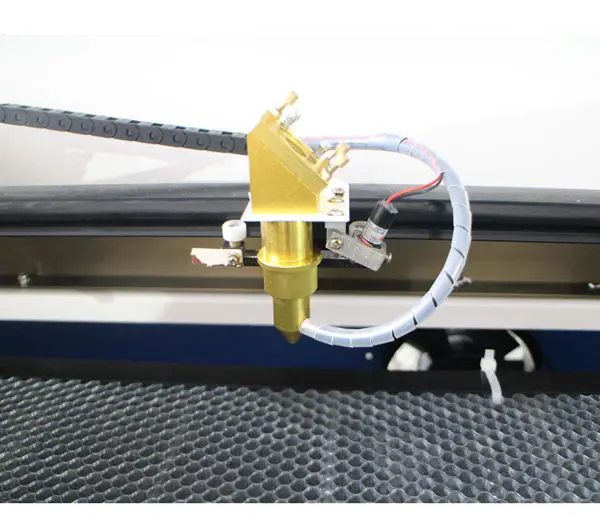

9. Laser position.

10. Emergency Stop Buttom.

11. Larger Size, 400*1000mm working area.

12. Lifting platform is electric control, 0-25cm.

13. Drag - and - chain transmission line

14. Laser focal length: 5CM
15. A limit switch let it can only work when the cover is closed.
16. Machine service life: 7200H at least for laser tube, 5-8 years for machine body.

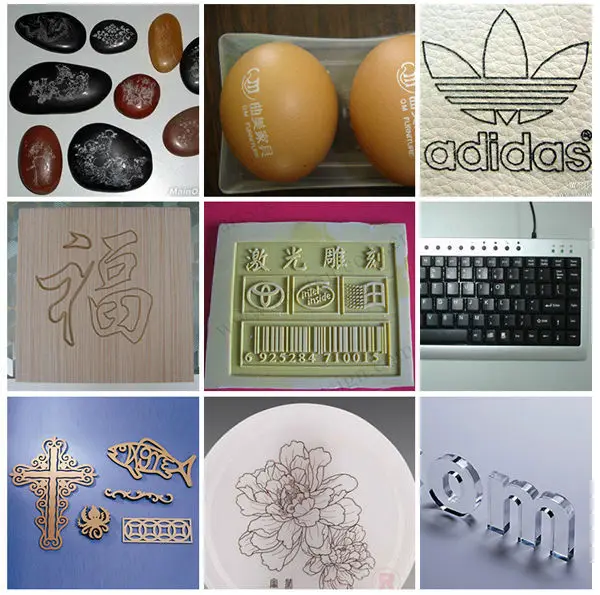

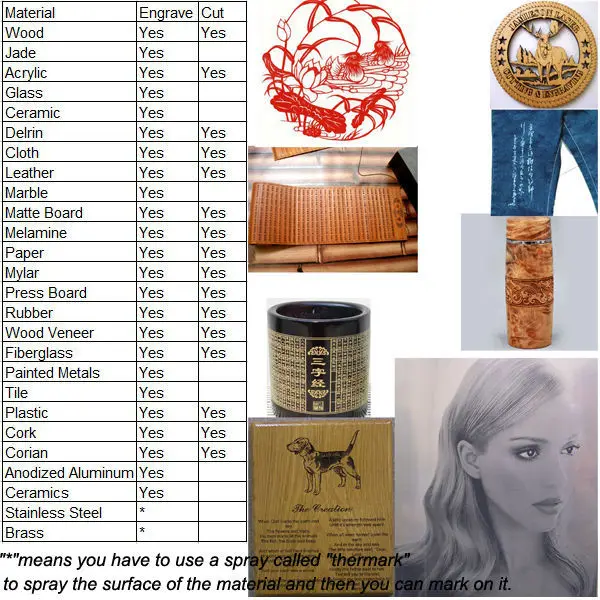

Applied Material of this 80w Mini CNC CO2 Laser Cutting Machine







Technical Detailes for this 80w Mini CNC CO2 Laser Cutting Machine

Total power<300W
Laser power80W
Laser typeCO2 laser engraving machine
Power supplyAC 220V/110V
Working area400*1000 mm
Engraving depth0-10 mm (different material differ)
Cutting depth0-10 mm
Engraving speed0-700mm/s
Cutting speed0-700mm/s
Lifting platform0-250 mm  Honeycomb Worktable
Locating precision<0.01 mm
Min shaping characterCharacter: 2*2mm, Letter: 1*1mm
Working temperature5℃-45℃
Working humidity5%-95%
Resolution ratio≤1000dpi
Data transfer interfaceUSB 2.0 (offline)
System environmentWindows XP / Win 7 / Win 8
Cooling Water Cooling and protection system with chiller
Graphic Format SupportedThe Files which CorelDraw & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF
Compatible softwareCorelDraw,WinsealXP
Color separationNO
Sloping engravingNO
ProtectionEmergency stop buttom and Stop working when water broken
Machine Dimensions140*75*58 cm
PackingWooden box with foam inside
Package Dimension157*94*78 cm
Package Weight230 kg

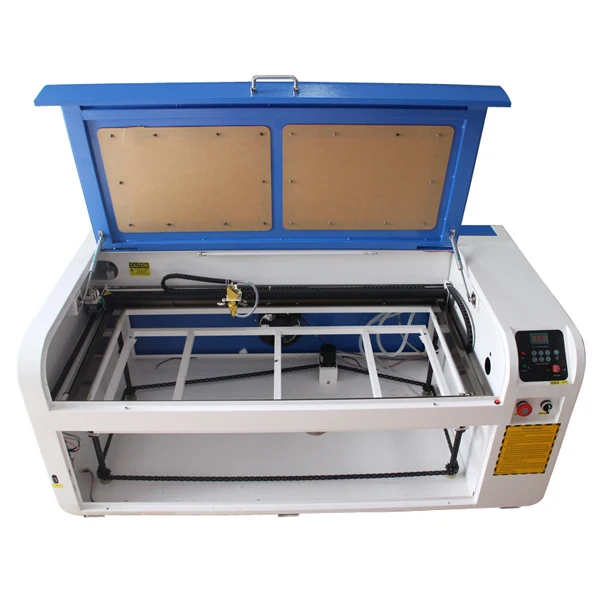

Main Structure of this 80w Mini CNC CO2 Laser Cutting Machine







More Details of this 80w Mini CNC CO2 Laser Cutting Machine

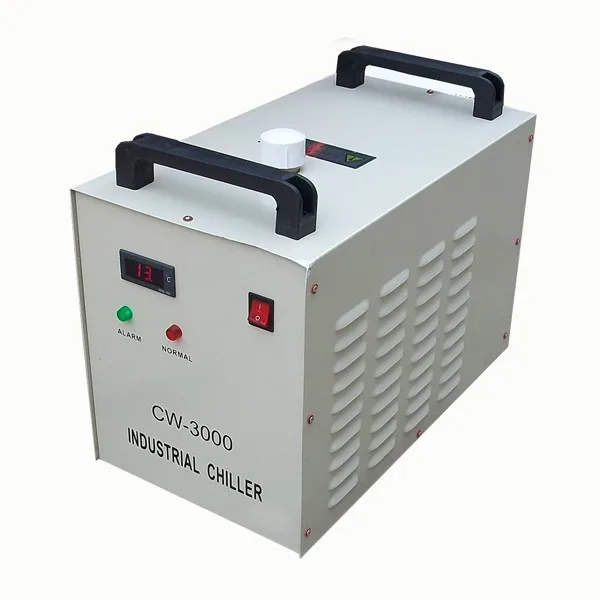

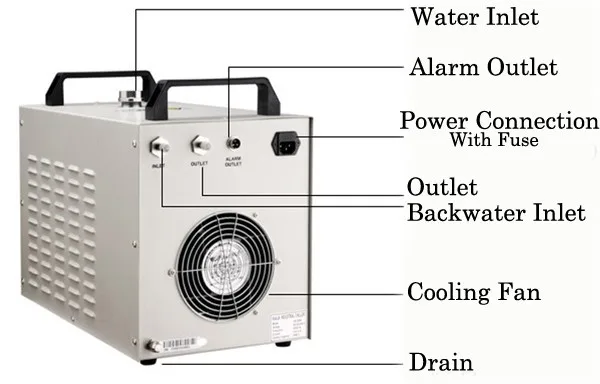

CW-300 Chiller

CW-3000 is not only equipped with anti-clogging chiller heat exchanger,
Also has a water flow detection alarm, over temperature alarm protection, low power consumption.

High efficiency, long life, durable, easy to operate.

Heat dissipation: 50W / ℃

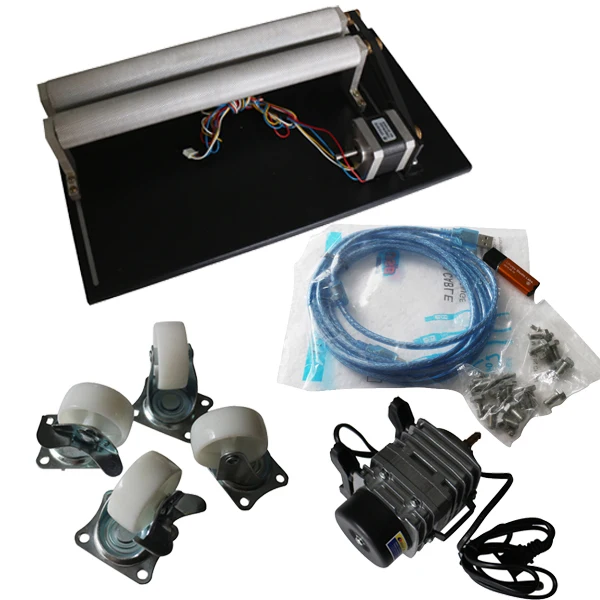

Packing List for this 80w Mini CNC CO2 Laser Cutting Machine











Packaging & Shipping

 Packing

Packing Material: Wooden box

Package Dimension: 157*94*78 cm

Package Weight: 230 kg

 Shipping

Ship out in 1-3 day after payment comfirmed.

If ship by air freight, delivery will be 3-7days.
If ship by sea, delivery will be 22-45days.





FAQ

MOQ

1 set. A sample welcomed, you may want more after a nice try.

Warranty

1 year free for spare parts, life time  maintenance service.

User Manual

We provide English user manual for free

Software

A software CD will send with the machine.

Interface

USB Interface

Graphic Format Supported

The files which CorelDraw can identify, BMP, JPEG, PLT, CDR ....
