cnc engraving machine for metal steel copper aluminum
-
Supplier: Shenzhen Scotle Technology Ltd. -
Region: Guangdong, China -
Contact: Mr Sharp Pong -
Price: $1699.00 /set -
Min. Order: 1 set
Product details
| Application: | Aluminum, steel etc; | Driven approach: | Bipolar constant current PWMdrive output; |
| Milling Cutter Diameter: | 2-13mm; | Rated Power: | 2200w; |
| Processing speed: | 0-4000mm/minute; | Payment Terms: | D/P,T/T,Western Union,paypal; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Repeat positioning accuracy: | 0.01mm; |
| Brand Name: | chinacnczone; | material: | Stainless steel tailgate; |
| Dimensions: | 510*620*570mm; | Output Current: | Drive 4.5A (peak 5A); |
| Feeding Height: | 100mm; | Warranty: | 1 year; |
| Packaging Detail: | Wooden Box; | Engraving Speed: | 0-4000mm/min; |
| water-cooled frequency spindle: | 1500w/2200w; | Place of Origin: | china; |
| Condition: | New; | Port: | Shenzhen; |
| Drive motor: | 57x78 steper motors, two-phase 4 wire stepper motor; | table maximum load: | 15kg; |
| Supply Ability: | 200 Set/Sets per Week; | Certification: | ce; |
| Effective Stroke: | 300(X)mm*400(Y)mm*80(Z)mm; | Weight: | 75kg; |
| Main Axle Rotational Speed: | 0-24000rpm; | Input Poewr: | 220AC power supply; |

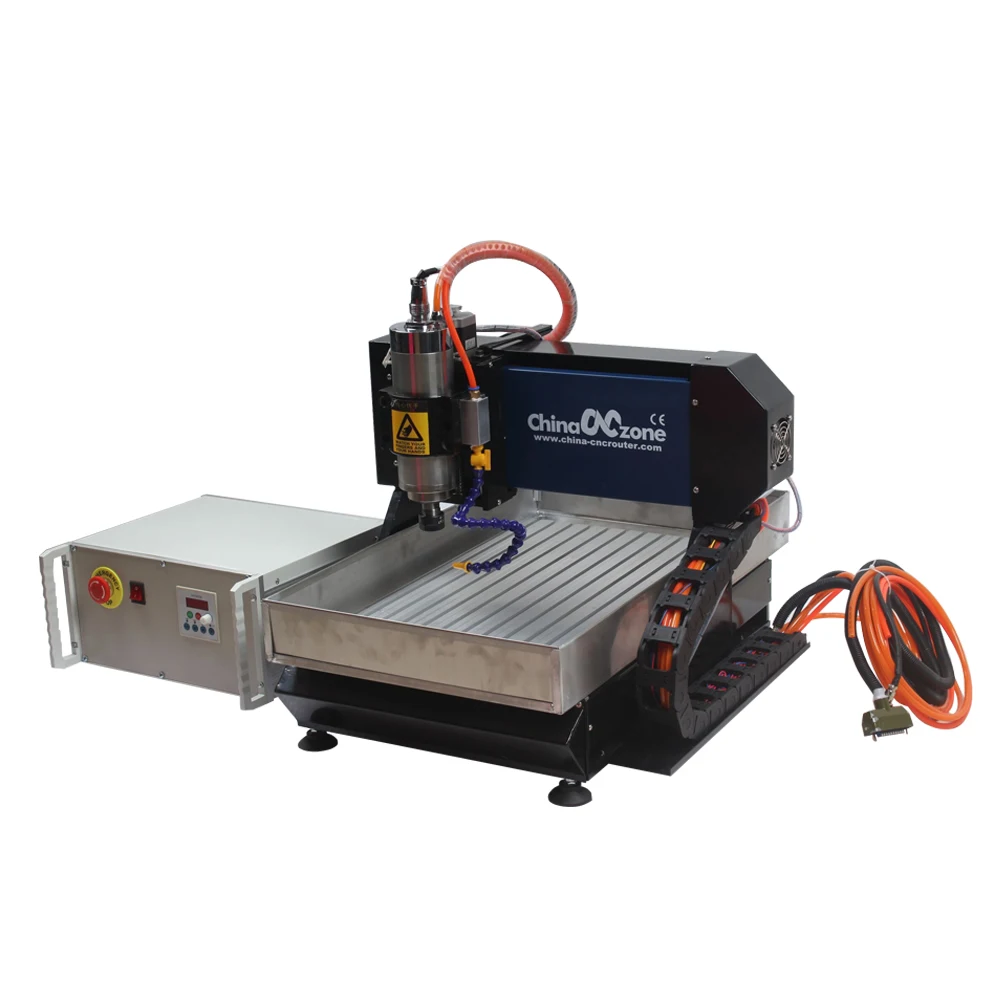

CNC3040 3 axis small cnc milling machine STEEL STRUCTURE
Product Description
Highlight for this CNC3040 3 axis small cnc milling machine with price for sale
Our advantages:
- It can work with 3 axis / 4 axis
- Integrated high-speed micro computer intelligent control chip.
- First STEEL STRUCTURE CNC3040 in the Market
- Mach 3 software, supports Win10
- Built in frequencey converter and without controller box
- Applicable to steel, aluminum, brass, copper, stone, granite etc.
Higher precision because:
- Heavier steel structure
- XHC control boad
- With auto-checking function.
- 2200w water-cooled spindle.
- Ball screw
You can buy this machine from us without any worry because:
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
- Can engrave material which hardness below 45.
- From reliable & trustable profesional China CNC Router manufacturer
This CNC3040 3 axis small cnc milling machine with price for sale Can be widely used as below:
Technical detailes for this CNC3040 3 axis small cnc milling machine Steel strcuture
| Model | 3 Axis CNC Machine |
| Product demention | 510*620*570mm |
| Effective work area | 300x400x80mm |
| Precision ballscrew | 1605 |
| XYZ rail material | Hard chrome shaft |
| XY rail diameter | 20mm |
| Z rail diameter | 16mm |
| XYZ axis torque | 57*78 250 OZ/IN (2.2N/CM) |
| Repeat positioning accuracy | 0.01mm |
| Working precision | 0.02mm |
| Processing speed | 0-4000 mm/Min |
| A-axis B-axis rotation speed | 0-180 rpm/min |
| Tailgate material | Stainless steel |
| Switching Power Supply | Integrated 24V 350W |
| Spindle power | 2200W water-cooled frequency spindle |
| Spindle converter | 2200w |
| Input Power | 220V / 110V power supply |
| Output Current | Drive 4.5A (peak 5A) |
| Drive motor | 57*42 stepper motors (two-phase 4 wire) |
| Net Weight | 75kg |
| Gross Weight | 102kg |
| Outside packing | 67*78*71 (cm) |

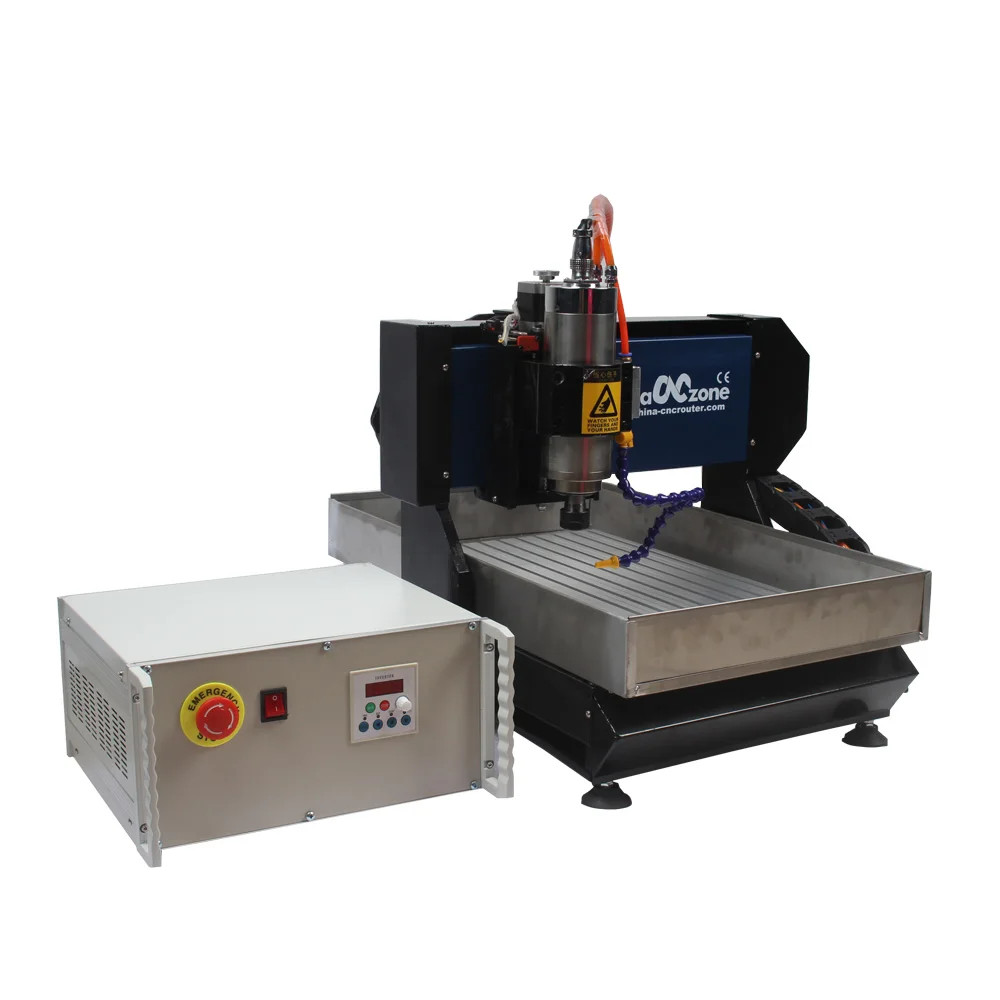

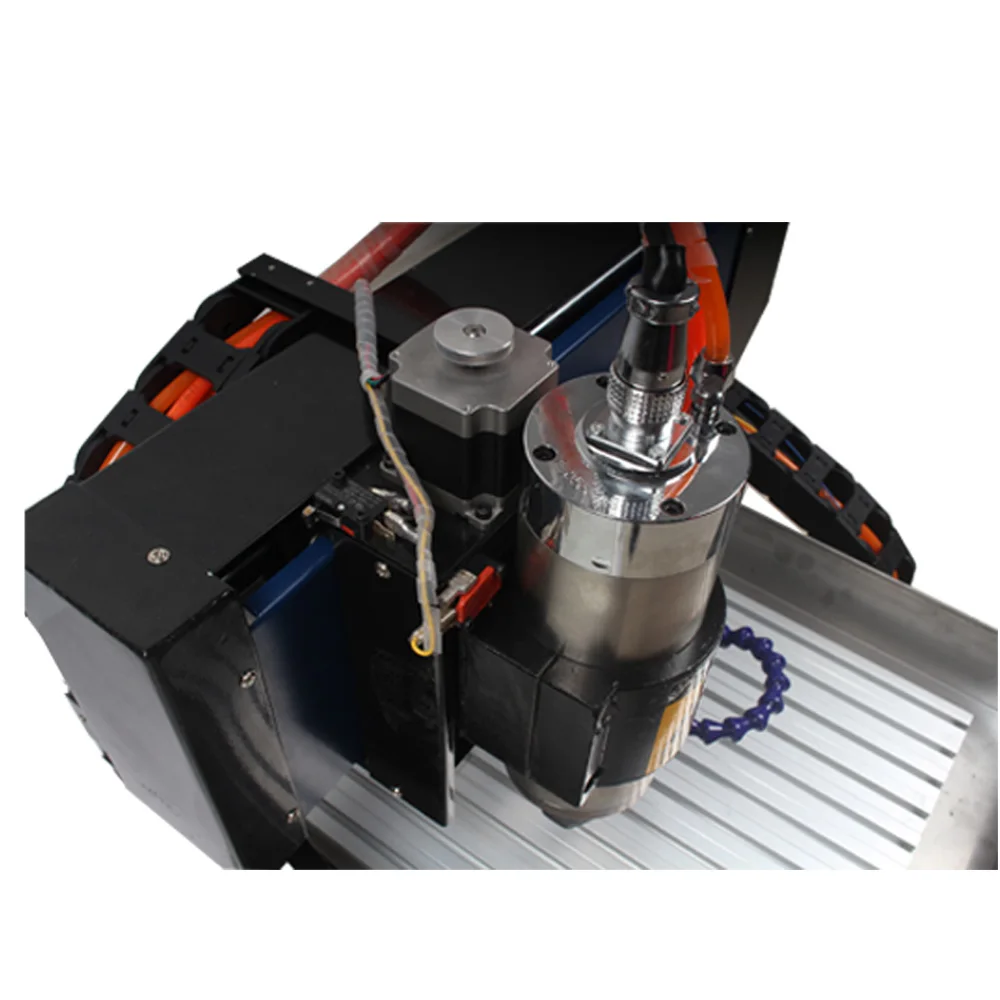

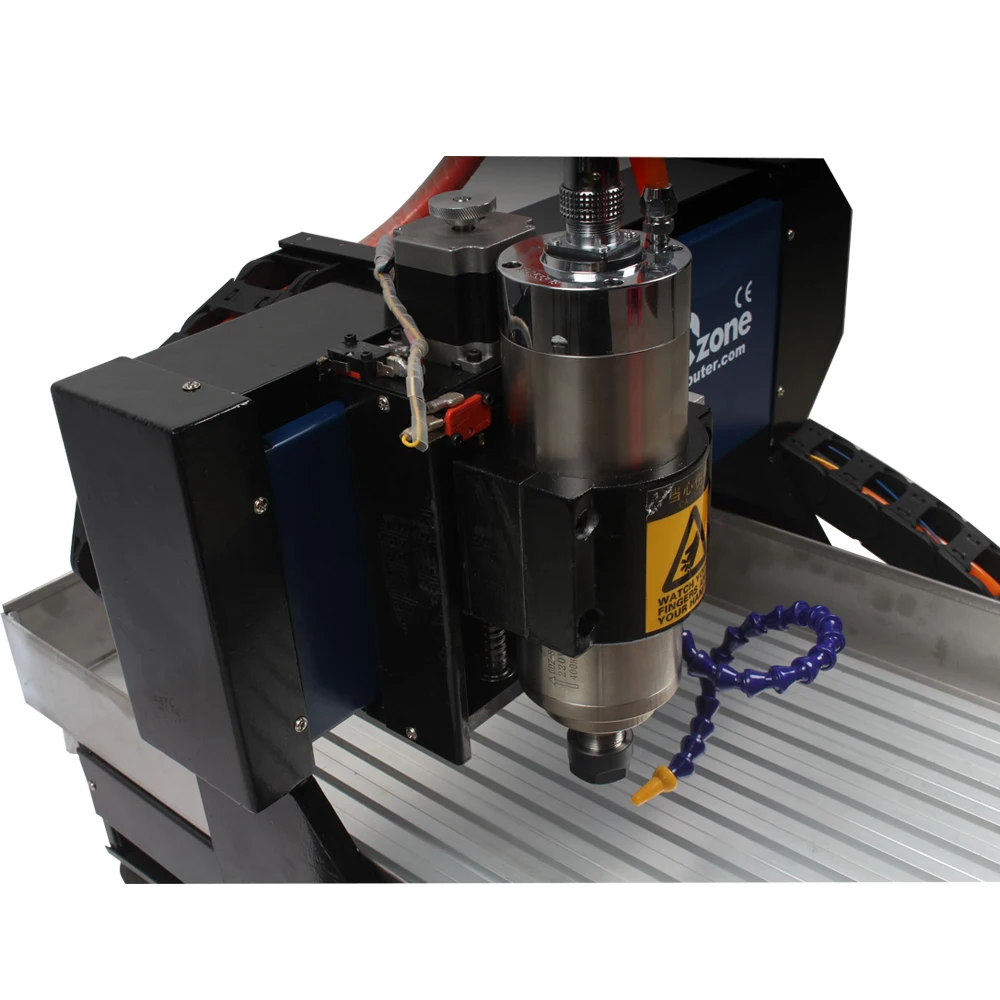

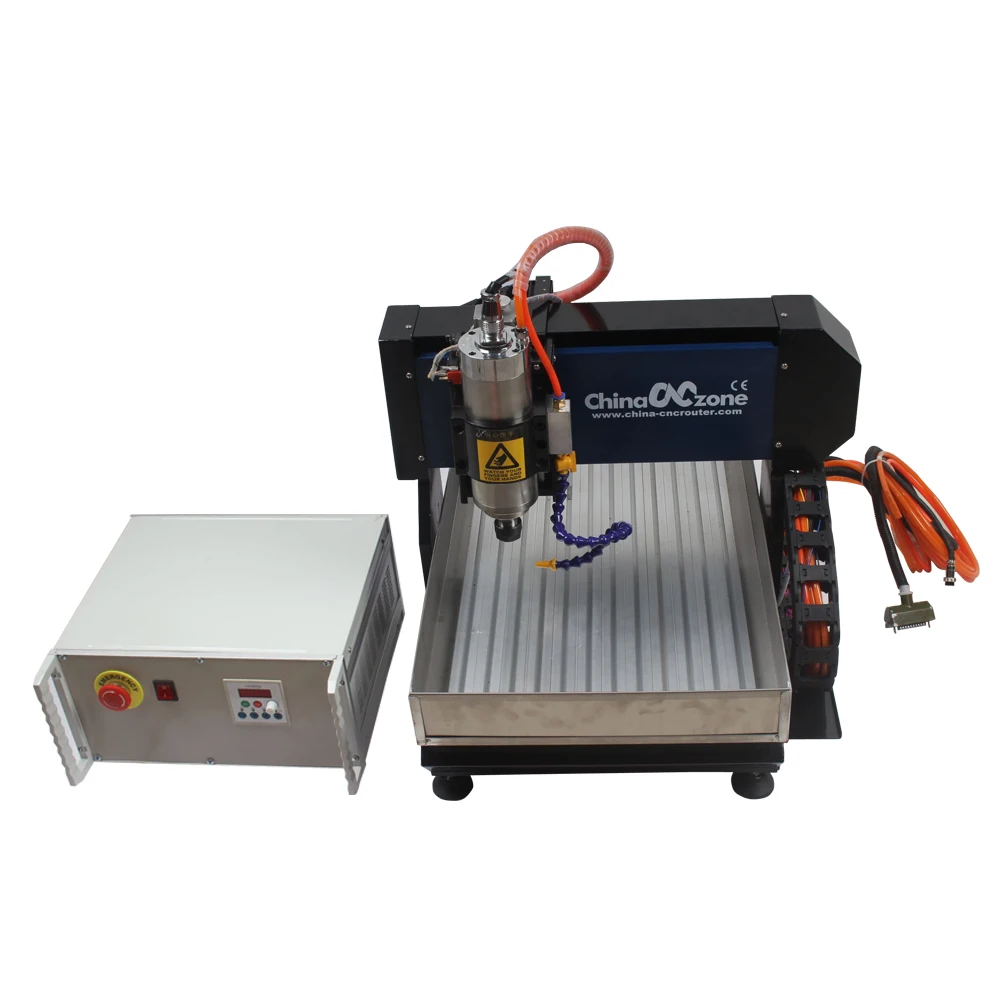

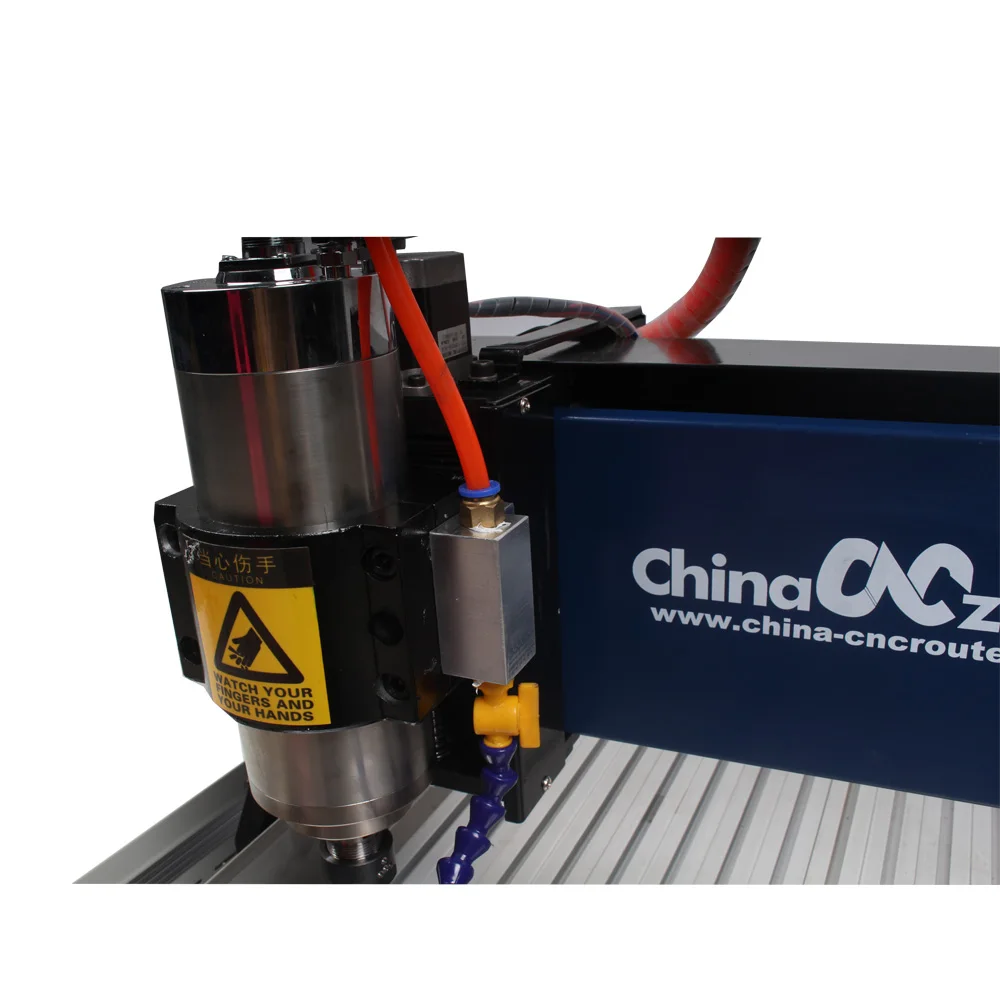

More pictures for this CNC3040 3 axis small cnc milling machine Steel structure

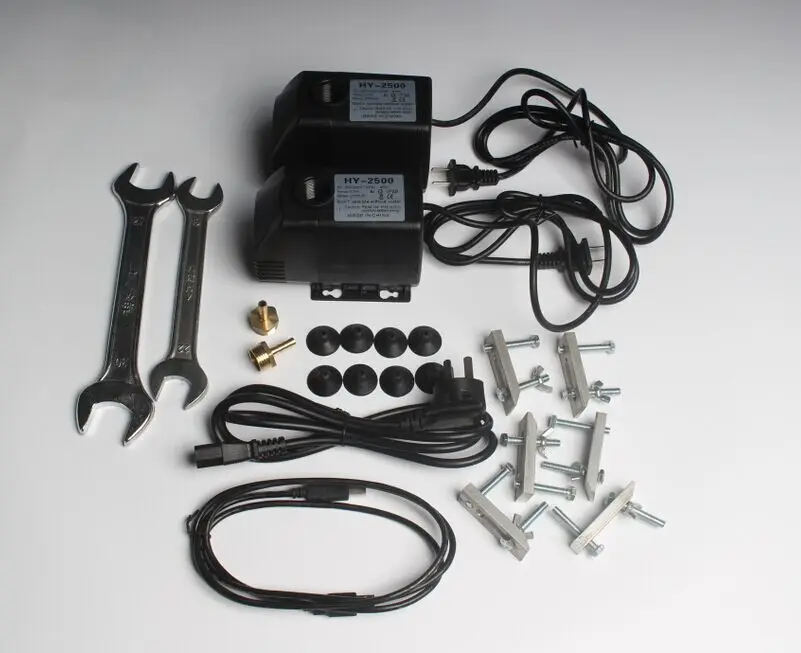

Promotion hot sale CNC3040 3 axis cnc router machine Packing list
FAQ
Packing : Standard carton box with protective foam for safe
MOQ : 1 Sample welcomed, it will be a nice try.
Shipping : By express DHL, UPS, EMS, Fedex and Sea.
Software : Send with the machine
User Manual : English user manual will send with the machie
Vedio : Vedio Supported in Pre-sales and After-sales service.
Don't hesitate to contact us !
