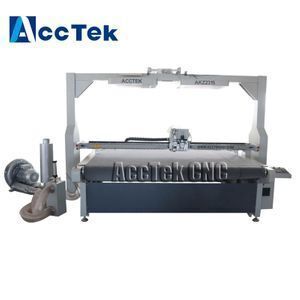

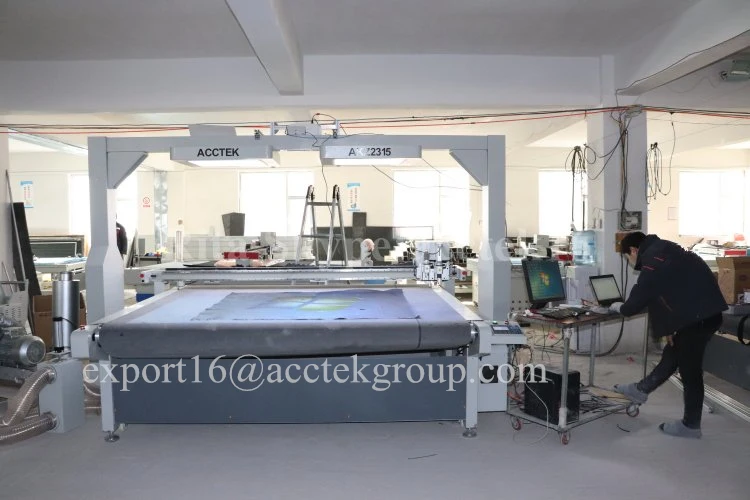

Auto feeding cnc vibratory tangential knife cutting machine /Oscillating Knife Leather Car Seat Cover Cutting Machine
-
Supplier: Jinan AccTek Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Mr Peter Cheng -
Price: $4500.00 /set -
Min. Order: 1 set
| Port: | Qingdao/china all seaport; | Certification: | CE Certification; |
| Cutting speed: | 1m/s; | Automatic Grade: | Automatic; |
| Place of Origin: | Shandong China (Mainland); | Servo motors: | Japan Fuji Electric Servo motors and drivers; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support,No after-sales service; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Voltage: | 380v; |
| Type: | Cutting Machine; | Weight: | 1500kg; |
| Dimension(L*W*H): | 2800mm*950mm*1400mm; | Rated power: | 11kw; |
| Guarantee: | 1.5 years; | Work area: | 1600*2500mm/1300*2500mm/1500*3000mm; |
| Application: | Car seat cover , leather ,toy,Farbric and textile cutting , curtain; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Name: | AKJ1625Oscillating Knife Leather Car Seat Cover Cutting Machine; | Condition: | New; |
| Function: | cutting clothes , leather , texitile fabrics; | Supply Ability: | 100 Set/Sets per Month AKJ1625Oscillating Knife Leather Car Seat Cover Cutting Machine; |
| Brand Name: | AccTek; | Power(W): | 11KW; |
| Control system: | China Trocen TC-6828; | Packaging Detail: | standard plywood box. Auto feeding cnc vibratory tangential knife cutting machine /Oscillating Knife Leather Car Seat Cover Cutting Machine; |
| Warranty: | 2 Years; |
Auto feeding cnc vibratory tangential knife cutting machine /Oscillating Knife Leather Car Seat Cover Cutting Machine
Product Application
Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc. .
* Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
* Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
* Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
* Positioning: positioning with cross red line positioning system.
* Drawing function with marker pen (optional)
* Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)
Main Features
1). 2 interchangeable tool heads, integral head frame for easy tool change.
2). four-axis high-speed motion controller, modular installation, easy maintenance (X / Y / Z / rotating seat).
3). The cutting depth can be adjusted arbitrarily. The parameter setting is simple, different materials can be processed by setting the thickness and speed of the lower knife.
4). It is easy to expand the functions of the upgraded device and load new modules (brush/punch/pressure wheel).
5). vibrating knife cutting function: can cut different materials (corrugated paper, cardboard, rubber sheet gray board color, composite paper, gasket, leather and cloth, etc.).
6). pressure folding function: It can press the perfect folding line on corrugated paper, cardboard, rubber sheet and other materials.
7). Cutting line function: It is used for folding after corrugated paper and paperboard half-cutting, and the function of dotted line cutting.
8). positioning function: the use of laser light accurate positioning.
9). drawing function: can draw a variety of high-precision patterns.
Model | 1325/1625/1825/2030 optional |
| Working area | 1300*2500mm/1600*2500mm/1800*2500mm/2000*3000mm |
Rated power | 11KW |
Fixed mode | AccTek cnc Flate plate table /auto feding plate optional |
| Multifunctional heads optonal | Vibration knife Circular knife Punching knife Oblique knife Pen Punch roller Milling knife Projector and camera optional |
| Safety device | Using infrared sensors, responsive, safe and reliable. |
| Translational velocity | 800-1200mm/s |
| Cutting speed | 200-800mm/s(according to different cutting materials) |
| Cutting thickess | ≤22mm(according to different cutting materials) |
| Cutting material | Leather, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber , clothes |
| Repated accuracy | ≤0.1mm |
| Capacity | 2GB |
Transmission system | imported(Digital servo motor, linear guide,aynchronous belt, ball screw) |
| Servo motors | Import Japan Fuji Electric Servo motors and drivers |
| Control system | China Trocen TC-6828 |
| Voltage | 380V±10% |
| Other configuration | Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pum |

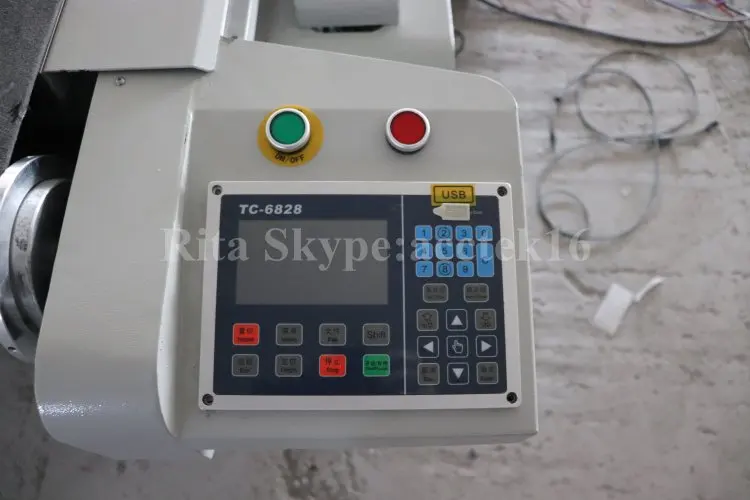

#. Control system : China Trocen TC-6828

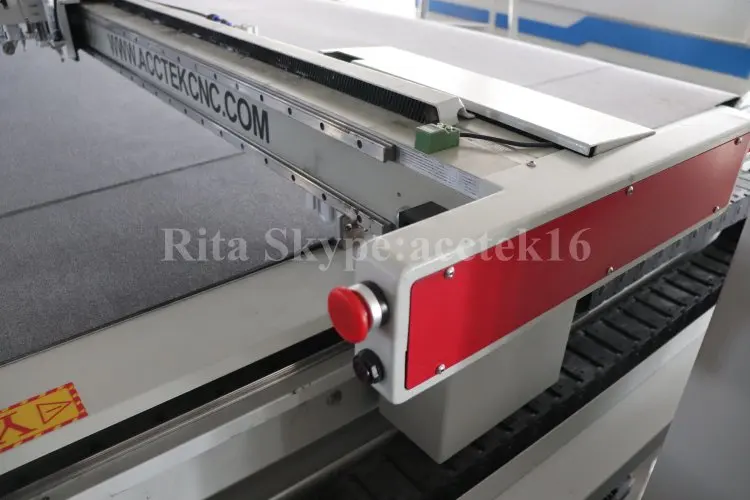

# .Protect worker inductor , avoid the worker has hurt from machine runing :
#. Oscillating Knife , cnc Vibrating Knife cutter
pin

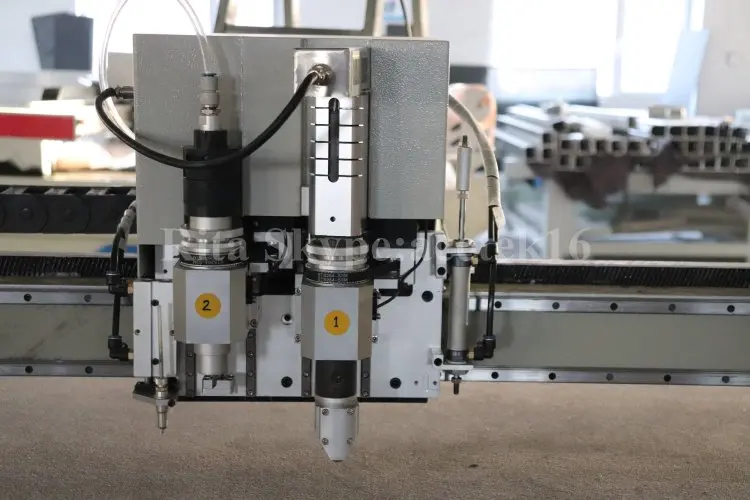

#. Oscillating Knife cnc Vibrating Knife cutter head and Pinch roller for paper skin of Carton made
#.V cut knife
#.Rotary tool
#.Circular knife
#.Drawing mark tool and punching knife

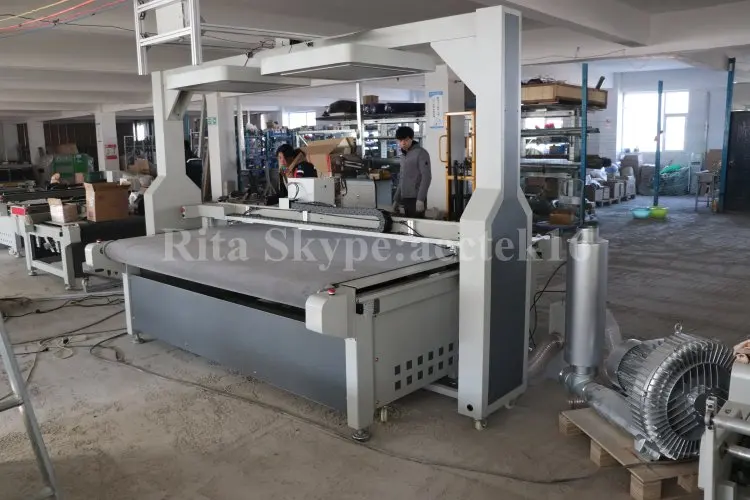

#.CCD camera and Projector fixed steel frame :

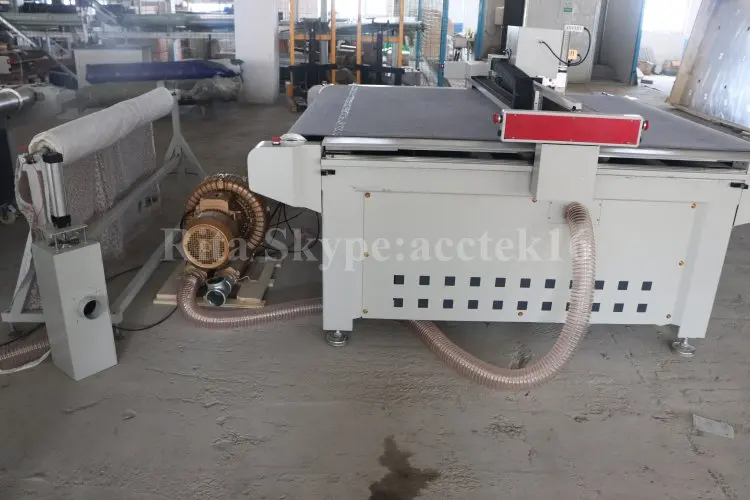

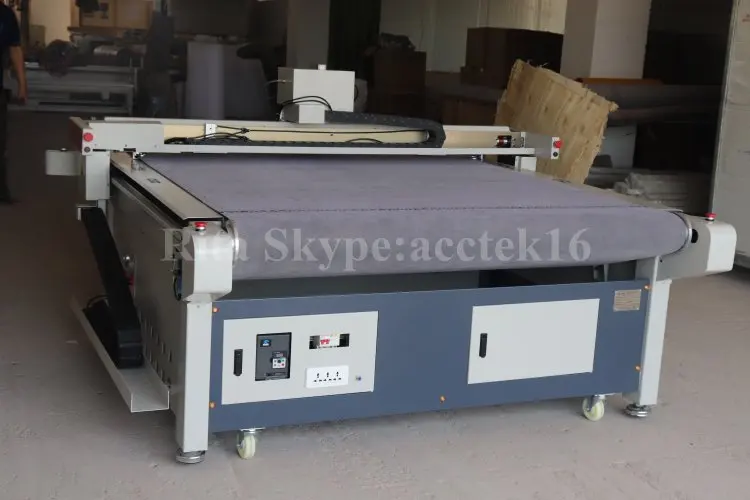

#.Gear transmission , vacuum table, Taiwan Hiwin rail, vacuum pum , Auto feed function table :

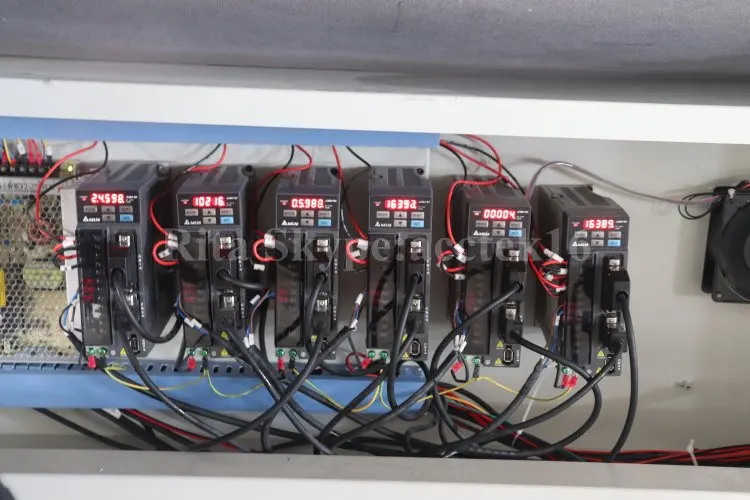

#. Japan Fuji Electric Servo motors and drivers

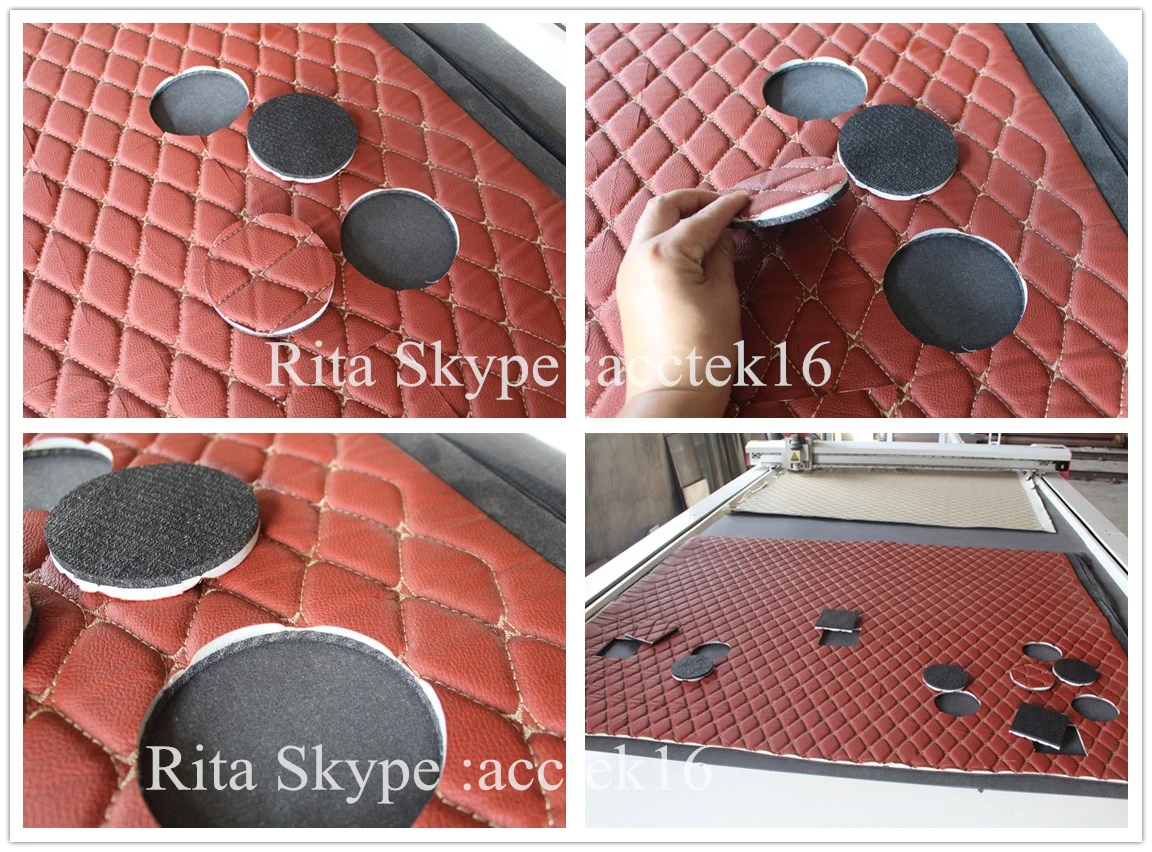

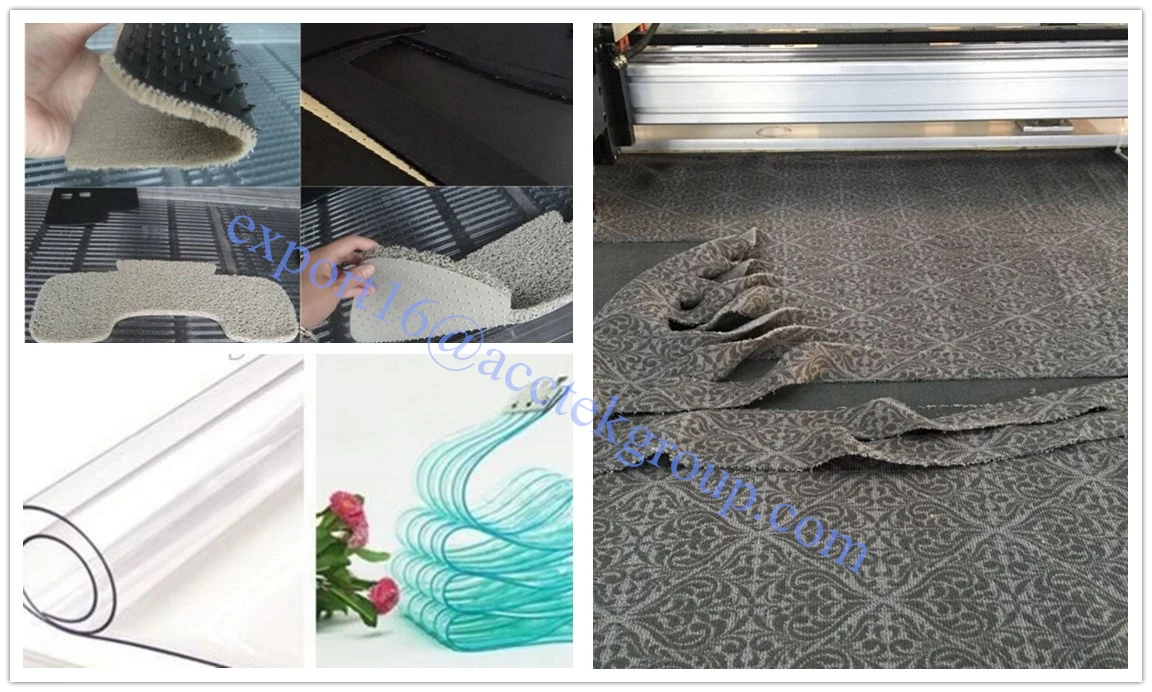

Samples of Oscillating Knife cutting cnc Vibrating Knife cutter leather , car seat cover , clothes :
Standard plywood box :
1).24 hours technical support by Email or phone Calling.
2). English manual and video for machine using and maintaining.
3). Hardware: 2 years on all parts (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4).Engineers available to service machinery overseas
We have attended Exhibition in Uzbekistan , Russia , Korea , Guangzhou , Suzhou etc , show you :
In these days has some clients visit our factory and had made deal with us :
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
4) Payment terms
We accpet T/T payment . 30% IN advance and 70% before delivery .
Please no hesitate contact with me and tell me your detail request , we can custom-made the cnc router machine according to your work :
Rita Shan :
E: export16(at)acctekgroup.com
S: acctek16
W: 0086 18660141826
-
