Float Switch Price IP68 Water Tank Float Level Switch Water

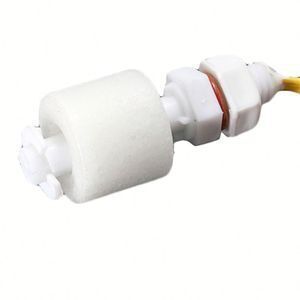

Plastic Float Switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices.

Float switches range from small to large and may be as simple as a mercury switch inside a hinged float or as complex as a series of optical or conductance sensors producing discrete outputs as the liquid reaches many different levels within the tank. Perhaps the most common type of float switch is simply a float raising a rod that actuates a microswitch.

Movement explaination:
when the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.

We can design and manufacture a custom or standard float switch or liquid level sensor in many shapes and materials. Whether you desire an inexpensive plastic float switch or a rugged stainless steel multi level liquid sensor, let use guide you to the proper solution. You can submit your project on line by selecting the customize  E-MAIL  Button next to the float switch product that best meets your needs, and an engineer will contact you to finalize any required details. Our on line application notes may also be used to let you design your own cost effective float switch pump control.

water tank level switch water

 A very common application is in sump pumps and condensate pumps where the switch detects the rising level of liquid in the sump or tank and energizes an electrical pump which then pumps liquid out until the level of the liquid has been substantially reduced, at which point the pump is switched off again. Float switches are often adjustable and can include substantial hysteresis. That is, the switch’s “turn on” point may be much higher than the “shut off” point. This minimizes the on-off cycling of the associated pump.

Float Switch Price IP68 Water Tank Float Level Switch Water
