4 20mA 1 5VDC RS485 PNP NPN output intelligent digital pressure switch for ro system water filter

Product details
Protection class:IP67;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Place of Origin:Shanghai China (Mainland);Packaging Detail:Net weight: 0.5kg Standard export box;
OEM services:Available;Overload:≥1.5 times full scale pressure;
Max. Working Pressure:40MPa;Model Number:PS131-TSR;
Output signals:4-20mA, 1-5VDC, Modbus-RTU/RS485,PNP or NPN output...;Process connection:G1/4, G1/2, M20*1.5, optional;
Accuracy:0.1%,0.5%;Port:Shanghai, Ningbo;
Pressure range:2kPa-40Mpa;Supply Ability:1000 Piece/Pieces per Month;
Media temperature:-40-120℃;Max. Current:24mA;
Item:intelligent digital pressure switch for ro system;Max. Voltage:24VDC;
Certificates:CE, RoHS;Brand Name:LEEG;

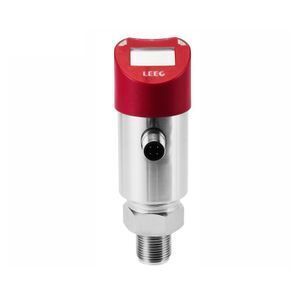

4 20mA 1 5VDC RS485 PNP NPN output electronic pressure switch

Product Description
The new generation of PS131 transmitters was developed in close coordination with the users. Its modern and userfriendly design stands out. High overload protection and best accuracy.

PS131 is a pressure transmitter with a pressure switch to safely and absolutely measure and monitor gauge pressures. It is highly stable and has a function check and onsite information due to its OLED and digital display. It can be rotated up to 350° if placed on the upper part of the house, also the display contents can be rotated up and down.





Main parameters
Pressure typesGauge pressure
Measuring range2kPa-40Mpa
Output signal4-20mA, 1-5VDC, Modbus-RTU/RS485,PNP or NPN output, customer
Reference accuracy±0.1%URL
Field of applicationPressure, level measurement
Stability±0.2% URL/ 5 years
Diaphragm materialSUS316L, Hastelloy C
process connection

Standard G1/4, G1/2, M20*1.5, optional

Electrical connection

Aviation plug, M12*1 (5 pins)

Sensor sealStainless steel welding seal; FKM
ApprovalsCE, RoHS
Working temperature -40-85℃
Storage temperature -40-85℃
Media temperature Sensor with silicon oil filling -40-120℃
Working humidity0-95%RH@40℃
Protection classIP67





Measuring range and limit
Nominal valueSmallest calibratable spanLower range limit (LRL)Upper range limit (URL)Overload limit
6kPa1kPa-6kPa6kPa25MPa
40kPa2kPa-40kPa40kPa25MPa
250kPa12.5kPa-100kPa250kPa25MPa
1MPa50kPa-100kPa1MPa25MPa
3MPa150kPa-0.1MPa3MPa25MPa
*10MPa500kPa-0.1MPa10MPa25MPa
40MPa5MPa-0.1MPa40MPa42MPa
*The norminal value of PS131-TSR-H ≤ 10MPa

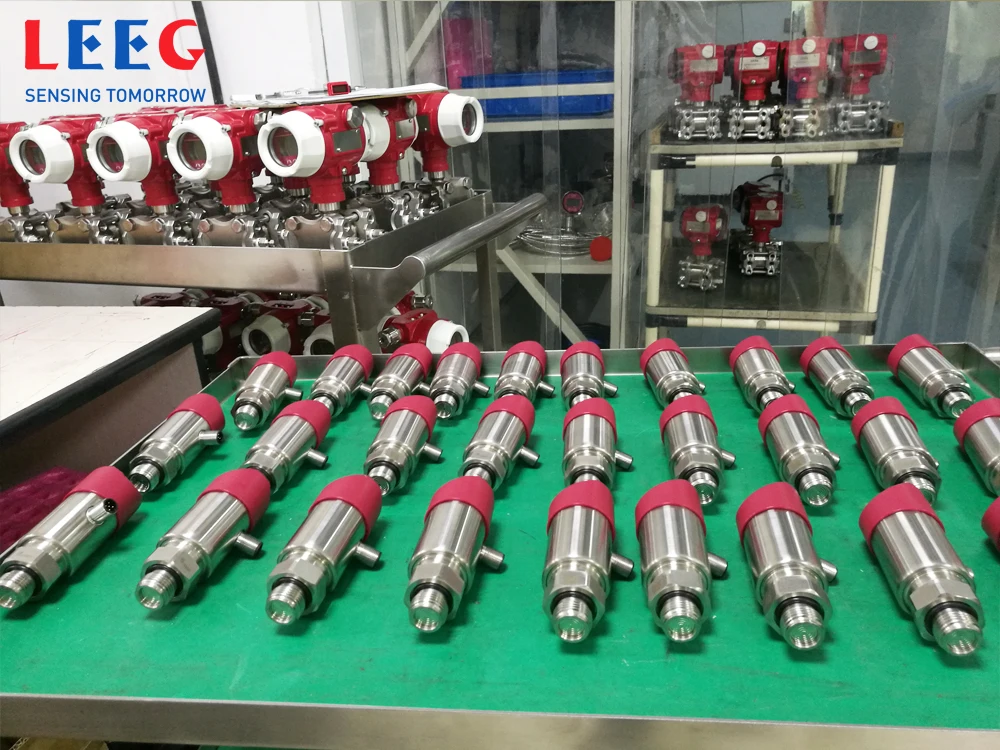

 Successful case: PS131 Digital pressure switch for ro system

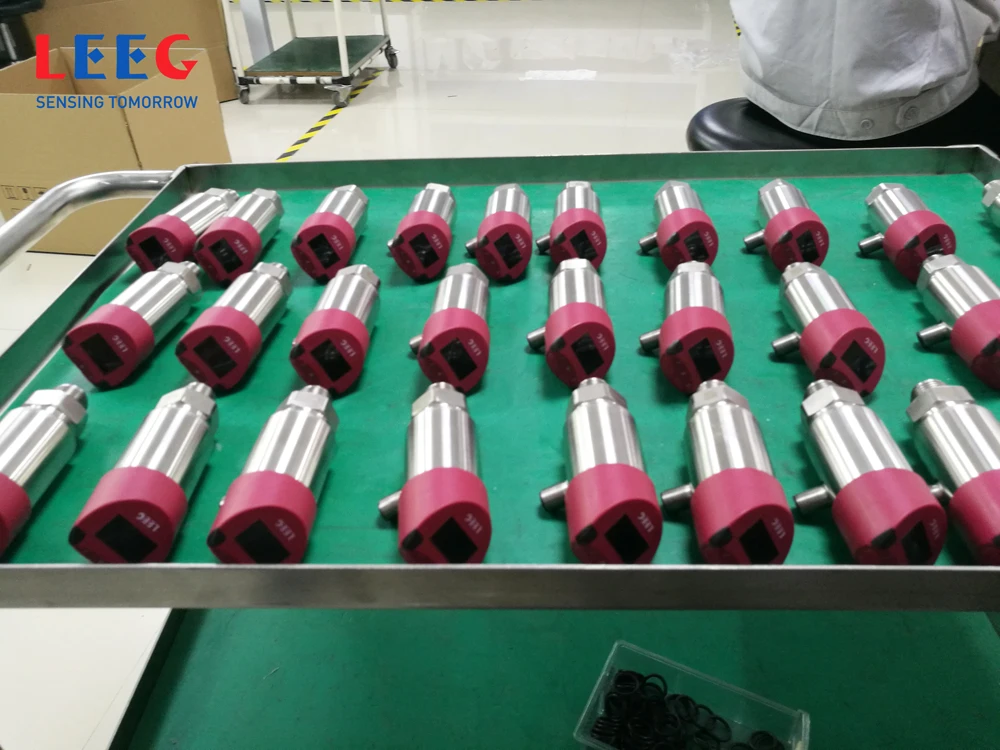

PS131 Pressure switch are under packing

Certificates



Quality Control



LEEG passed ISO9001 quality management system and using ERP , PDM, MES information administration system. Advanced management system ensures that each segment of quality control in the manufacturing process. QUALITY IS OUR SOUL.



Each of our products is subject to below testing process:

1.Automatic temperature compensation to ensure the temperature influence effects.

2.Automatic linear calibration to ensure linear precision.

3.Real-time online aging system to ensure the time drift performance.

4.Pressure cycling impact tests to ensure long-term stability.



And all products you receive have a unique

SN code to record material batches and

production information in details.

Just provide us the SN code, we can trace to

ALL the manufacturing data, which achieve

timely follow-up and feedback on product quality


Company Information



LEEG is a professional manufacturer in the field of electronic pressure measurement technique. We both have two core technologies of sensor technics and circuit board technics.



Our profound understanding to the product application and strong technical background ensure you the best products solutions and help you achieve a greater success.
