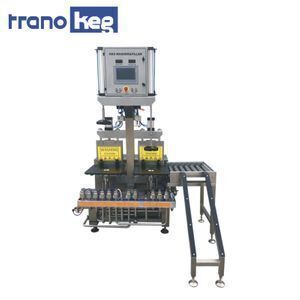

Siemens Automatic Beer Keg Combine Washer And Filler, Washing And Filling Machine

Product details
Processing Types:Beer keg;Place of Origin:Shandong China (Mainland);
Warranty:1 Year;Product name:Automatic Beer Keg Washing and Filling Machine;
Condition:New;Supply Ability:20 Set/Sets per Month;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Temperature control mode:CHINA ITECH/ ITALY EVCO EV K401N7;
Applicable Industries:Food & Beverage Factory,Food Shop,Food & Beverage Shops;Packaging Detail:plywood case with iron pallet;
Spear type:Depends on client's requirements;Power consumption:3.5 KW/ 5 LW;
Voltage:380V can customize;Heater way:Steam Coiler;
Processing:Washer;Keg type:EURO/DIN/US 20L-60L;
Dimension(L*W*H):1.23x1.57x2.03M/ 2.20x2.30x2.20M;Certification:ISO9001;
Moter type and brand:SUS304 pump head;Port:Qingdao;
Power port:3P+N+G;Capacity:Washing part: 20-30 pcs/h, Filling part: 40-60 pcs/h;
Weight:210/ 320 KG;Brand Name:Trano;
After-sales Service Provided:Video technical support;Power(W):According to user local power;
Time setting way:Siemens/;
Product Description
CFA2-22S-T-H-1
Size W*L*H
1.23x1.57x2.03M
Moter type and brand
SUS304 pump head
Weight
210KGS
Temperature
Pt100
With slide or not
No
Temperature control mode
CHINA ITECH
Packing Size W*L*H
1.75x1.38x2.20M
Time setting way
Siemens
Capacity
Washing part: 20-30 pcs/h
Connect type
1.5'' Tri-cleamp
Filling part: 40-60 pcs/h
Spear type
Depends on client's requirements
Power
According to user local power
Keg type
EURO/DIN/US 20L-60L
Power port
3P+N+G
Filling measurement type
No flow meter
Heater way
Steam heating
Washing part inlet with pressure detection or not
No
Power consumption
3.5KW
Main Material
SUS304
Washing part outlet with pressure detection or not
No
Water tank material and volume
Single tank/Volume=100L(2 pcs)
CFA2-33S-T-H-1-1M
Size W*L*H
2.20x2.30x2.20M
Moter type and brand
SUS304 pump head
Weight
320KGS
Temperature
Pt100
With slide or not
Yes
Temperature control mode
ITALY EVCO EV K401N7
Packing Size W*L*H
1.75x1.80x2.45M
Time setting way
Siemens PLC1200
Capacity
Washing part: 40-60 pcs/h
Connect type
1.5'' Tri-cleamp
Filling part: 40-60 pcs/h
Spear type
Depends on client's requirements
Power
According to user local power
Keg type
EURO/DIN/US 20L-60L
Power port
3P+N+G
Filling measurement type
Flow meter
Heater way
Steam Coiler
Washing part inlet with pressure detection or not
Yes
Power consumption
5KW
Main Material
SUS304
Washing part outlet with pressure detection or not
Yes
Water tank material and volume
Single tank/Volume=100L(3 pcs)

Main Structures and Characteristics

1) SIEMENS S7-200 control unit is adopted for automatic control of all processes. Washing, disinfecting and CO2 pressure preparation will be automatically finished.

2) lye water, disinfecting water can be recycled to save water.

3) Adopt pneumatic angle vale combination to ensure a safe work.

4) Frame, working station, pipeline and valves are all by stainless steel, all pipelines and pneumatic system are all closed cycle. Good look and stable.

5) Time parameters can be adjusted according to customers' demands. If a procedure is not needed, you can turn the time parameter of this procedure to "0".

The washer working procedure

Pressing → drain off → water washing → air blowing/drain off → hot soda-water washing → air blowing/to soda-water box → hot water washing →air blowing/drain off → hot water washing → drain off → steam sterilized (air blowing/drain off) →co2 blowing/drain off→ sterilized water washing →co2 blowing/to water tank→ co2 pressure preparing

The filler working procedure

Load the keg → Pressing → co2 pressure preparing → CO2 blowing spear → open the spear → filling → stop → unload the keg

CIP procedures at filling position:

Install washing accessory → start → spear cylinder open → time's up → stop

Certifications
Our Service
Packing & Delivery
Packaging
Size
1250 (L) * 1530 (W) * 2050 (D)
Weight
190 KG~ 350 KG



Packaging Details
The normal package is non-fumigated plywood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

1. Q:What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?

    A:Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .

2. Q: During Guarantee time , if machine broken by machine design ,what should we do?

    A:during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we would send new machine to you for exchange.

3. Q: Which kind documents your company can provided?

    A:after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.

4. Q:After guarantee time , if we need spare parts , can you provided it ?

    A:we can provided for the machine spare part .

5. Q:Which kind of package you will use ?

    A:For export , we usually use plywood box . which meet export standard.

If you have any question about our pasteurizer, please contact me no hesitate!
