OPTIC TECH Manual Mini Portable Desktop Titanium Gold Jewellery Jewelry Yag Micro Laser Spot Welding Machine Price for Goldsmith

Product details
Laser Type:YAG;Package Preview:https://sc01.alicdn.com/kf/HLB1inf6QwHqK1RjSZJnq6zNLpXa3.jpg_640x640.jpg;
Gross Weight:110KG;Laser Head Brand:OPTIC;
Selling Units:Single item;Max. Output Power:150W;
Servo Motor Brand:NONE;After-sales Service Provided:Online support,Free spare parts,Video technical support;
Power Supply:AC220±5%/50HZ/110V/60HZ;Laser Source Brand:OPTIC;
Condition:New;Frequency:0-20HZ;
Single gross weight:110 KG;Total power consumption:3kw;
Guiderail Brand:NONE;Dimensions:950x550x650mm;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Certification:CE,ISO,SGS,FDA;
Net Weight:90kg;Machine Dimension:850x500x600mm;
Wavelength:1064nm;Place of Origin:Guangdong China (Mainland);
Single Pulse Energy:80J;Control System Brand:OPTIC;
Single package size:95X55X65 cm;Package Dimension:950x550x650mm;
Brand Name:OPTIC;Focal Spot Diameter:0.1-3mm;
Package Type:Standard export wooden boxes;Pulse Width:0.1-10ms;
Welding depth:0.1-2mm;Key Selling Points:High-accuracy;
Usage:Welding;Cooling method:Build-in Water Cooling;
Warranty:1 Year;

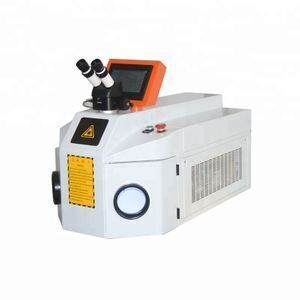

OPTIC TECH Cheap Manual Small Desktop Titanium Gold Jewelry Yag Micro Laser Spot Welding Machine for Goldsmith

Product Description

 1. Main feature
1.1,Whole machine adopted ergonomics design. It can better meet jewelry industry’s requirements on precision, beautiful, stable performance, long time and constant processing.

1.2,Big inner space, it is convenient for placing tools and fixtures.
1.3,It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
1.4,It is easy to replace dust screen, clean working area and recycle welding slag.
1.5,With the LED ring-shaped astral lamp which can be highlighted and 10x microscope, the observation on welding position is much clearer.
1.6,More precise light spot, it meets the requirement of precision welding.



2. Welding Material

Platinum, Karat Gold, Silver, Titanium, Stainless Steel, Cooper, Aluminum, other metal and alloy.



3. Application Area

Widely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, Dental,watches, military.



4.Advantage of our machine.

1)New Design:Pure white design highlights the similicity of beauty.

2)Real manufacturer:80% of the parts of the jewelry laser welding machine are designed by OPTIC including body,laser source,YAG crystal,Cavity etc.This give us strong custom ability,trused quality and reliable after-sale service.

3)Easy operation:Control board with ccd camera all in one.

4)Affordable price:$4000 FOB Shenzhen(Price will change due to exchange rate and the cost changes,please contact us for the price recently)

Parameters
ModelOPT-GY1-150
Laser Power150W
Laser TypeYAG
Laser wavelength1064NM
Max single pulse Energy80J
Pulse Width0.1-10ms
Frequency0-20HZ
Welding depth0.1-2mm
Spot size0.1-3mm
Power Consumption3kw
Power SupplyAC220±5%/50HZ/110V/60HZ
Cooling methodBuilt-in Water Cooling
New Weight90KG
Gross Weight110KG
Machine Dimension850x500x600mm
Package950x550x650mm
Detail





Application

Applicable materials:gold,silver,platinum,stainless steel,titanium, and other metals and their alloys.Widely used in gold and silver jewelry,rings,pendants,bracelets,necklaces,holes,spot welding brazing,repair seams and the welding of claw parts of the mosaic parts,tec..It can also be applied to artificial teech sand and small precision parts(such as:inheritance circuit lead,clock spring,kinescope,electron gun assembly,etc.



Feedback

FAQ

 1.What's the consumable parts?



The consumable parts are Xneon lamps and cover lenses.We will send one Xneon lamp and 1 cover lens for free.If you want to buy more parts to keep in hand,the price of one xneon lamp is $20 and 5% for cover lens.



2.Can I use my credit card?



We support trade assurance which make the payment easier and with safty.Please check the page---https://tradeassurance.alibaba.com/?spm=a272a.11111163.jc04ilky.17.1b5834d31oiet4&traclog=xbzx

Especially you can pay through Alibaba with your Credit card



3.What's your shipping method?



90% customers choose ship the machine by express.We will ship the machine by TNT or DHL express with fine package.The shipping time will be within 15 days if there is no delay in customs.Ofcourse you can choose ship the machine by sea and the shipping cost is cheaper but the shipping time is longer.Contact with us for the shipping time and cost.



4.Can I get the machine if I don't have a company?



Yes.We can ship the machine to your door even if you don't have a company.Contact with us if you have more questions about the shipping.

Related products

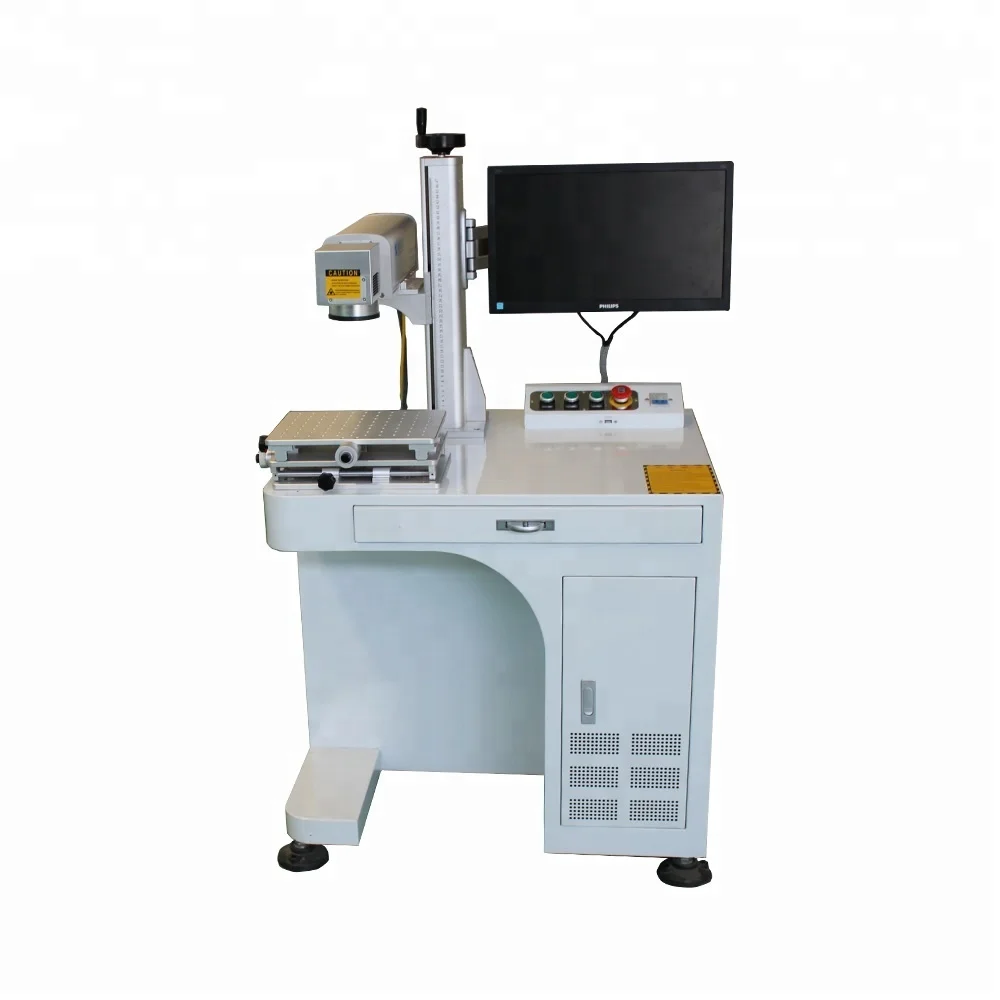

Table laser marking machine                                                           Portable laser engraving machine
