JC-TGA series deep hole surface finish skiving and roller burnishing tool developed system

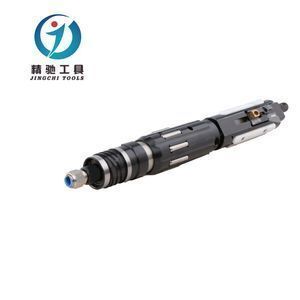

JC-TGA Skive burnishing tool
To improve fatigue strength and surface roughness,it is applied to the cutting and burnishing of inner hole contour surface.It can save a lot cost for customers.
Processing advantage
This tool is a professional tool for machining cylinder bore, especially for finishing of Cold-drawn Tube bore. It has fast efficiency and high precision. It is more than 10 times that of ordinary honing. It can process one meter in 1-3 minutes. The tool adopts reciprocating processing technology. It cuts the hole allowance when feeding forward, burnish back, and the surface roughness can reach Ra0.05-0. 2. Surface hardness can be doubled to increase the service life of cylinder.
Skills
Skiving and burnishing processes are carried out separately to help maintain low power requirements and feed force.
Feed and speed can be optimized for skiving and burnishing processes respectively.
It is the best scheme to improve tool life and machining safety.
Procssig method
Single rotary processing mode: Workpiece fixed, tool rotary feed processing
Processing method: Cutter feed into the inner hole first to finish boring and cutting the cylinder bore, to the end and return to the inner hole for burnishing processing.
Product data
Skive-burnishing tool | Cutter | ΦD/ΦG | 38-56 | 57-67 | 68-90 | 91-149 | 150-200 |
Blade | R420.37-06 | R420.37-07 | R420.37-11 | ||||
Copper guide | 300TDX | 400TDX | 500TDX | ||||
Rubber strip | 300DXT | 400XDXT | 400DXT | 500XDXT | 500DXT | ||
Tool body | TGA-xxxDT | ||||||
Roller | Conical sleeve | TGA-xxxZT | |||||
Tool support | TGA-xxxZJ | ||||||
Connection sleeve | TGA-xxxLJT | ||||||
Roller | 0625/0725GZ | 0830GZ | 1030GZ | 1435GZ |
Spare parts
Application:
1.Extrusion of pipes, such as seamless steel pipes or cold-drawn pipes;
2.Diameter range: 38-300 mm
3.Typical parts: hydraulic cylinder and cylinder;
4.Machine tools with forward and backward feeding functions can provide optimum performance and maximum machine tool utilization.
Main features
1. The roughness can basically reach Ra < 0.08um.
2. Ellipticity can be less than 0.01mm.
3. Increasing the hardness by HV > 4
4. Improving the surface corrosion resistance and delaying the generation and expansion of fatigue cracks, thereby improving the fatigue strength of cylinder barrel.
5. Improve the quality of matching, reduce wear and tear, prolong the service life of parts, but reduce the processing cost of parts.
6. Low noise, no pollution, saving labor costs.
7. Improves the wear resistance of cylinder inner wall.,improve the quality of matching, reduce wear and tear, prolong the service life of parts and reduce the processing cost of parts.
8. Scraping and rolling can be used as the last process to arrange processing after other processes (such as drilling oil hole, welding, turning thread, etc.) have been completed. The burns caused by traditional grinding process are effectively avoided.
Working parameter
Skiving | Tool diameter (mm) | Burnishing | |||
Speed(v) m/min | Feed(s) mm/rev | Allowance (mm) | Speed(v) r/min | Feed(s) mm/rev | |
80-300
| 1-4 | 0.6 | 38-56.9 | 500-1200 | 1-2 |
1 | 57-90.9 | 300-1000 | 1.3-2.1 | ||
1-5 | 1.6 | 91-148.9 | 100-800 | 2.2-3.0 | |
1.6 | 149-305.9 | 100-800 | 3.7-7.0 |
