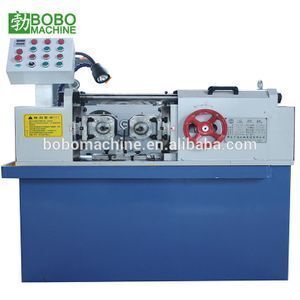

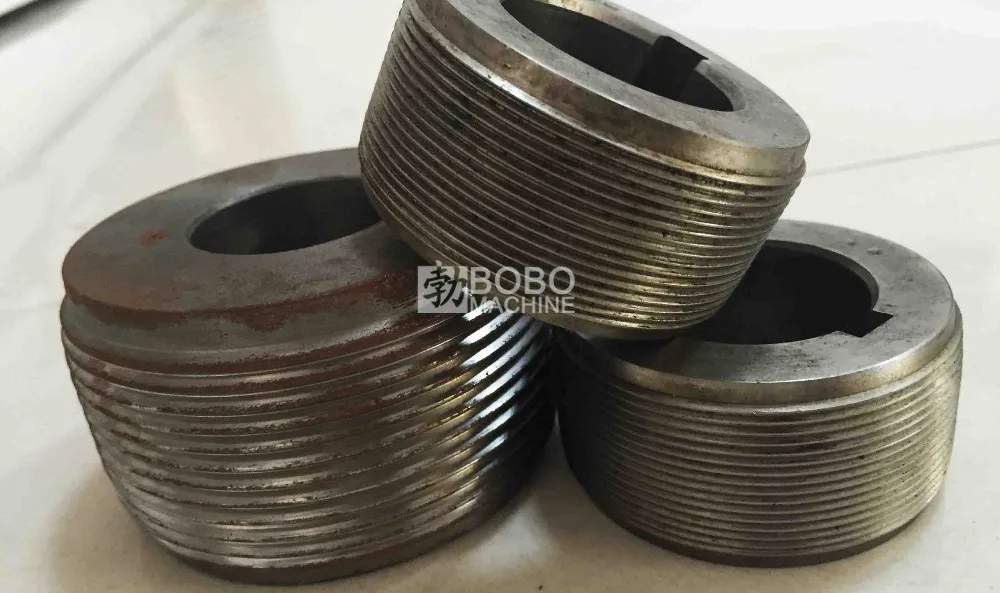

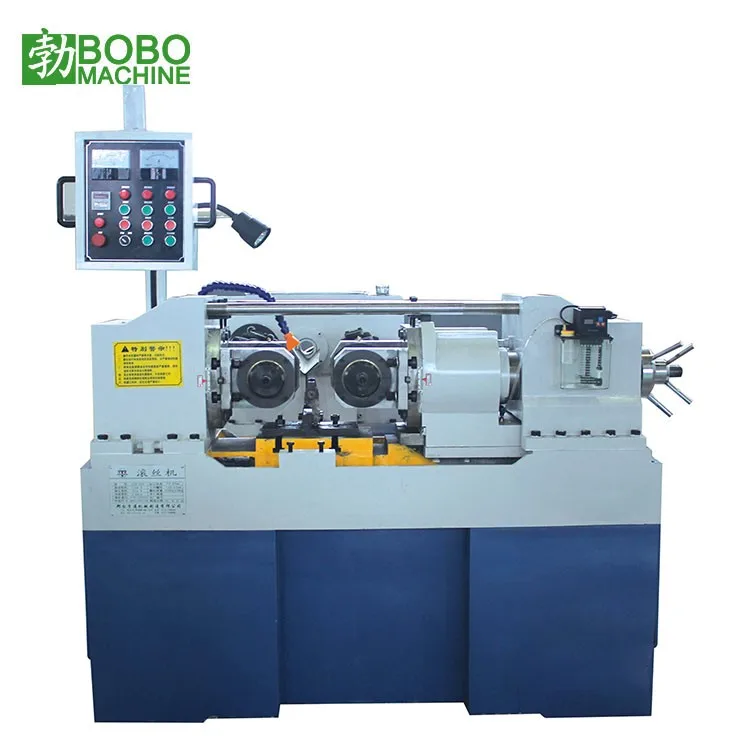

High speed solid bar thread rolling machine with thread roller

  • Supplier: Bobo Machine Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Sotu Zhu
  • Price: $5000.00 /set
  • Min. Order: 1 set
Product details
Dimension(L*W*H):1600*1550*1445mm;Delivery Detail:steel tube threading machine will be delivered in 15 days.;
Roller:customized;Main power:5.5.kw;
Diameter:6-50mm;Rolling length:unlimited length;
Voltage:380V;After-sales Service Provided:No overseas service provided;
Maximum rolling pressure:180kn;Warranty:ONE YEAR;
Application:thread rolling;Hydraulic power:2.2kw-kw;
Certification:ISO;Main spindle RPM:78;
Production Capacity:1M/min;Weight:1700kg;
Model:BO-150;Supply Ability:10 Set/Sets per Month High speed solid bar thread rolling machine;
Size:1600*1550*1445mm;Brand Name:BOBO;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,High speed solid bar thread rolling machine;Port:High speed solid bar thread rolling machine will be delivered from SHANGHAI;
Packaging Detail:High speed steel tube threading machine is packaged with wooden case.;Item:High speed solid bar thread rolling machine with thread roller;
Place of Origin:Jiangsu China;Condition:New;
Power(W):5.5KW+2.2KW;
Product Description

Product Application

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

1
Screw thread diameter
Ø6mm- Ø50mm
2
Threading pitch
1-3.5mm
3
With unlimited length
4
Roll screw wheel scope diameter
Ø120mm- Ø170mm
5
Roll screw wheel scope aperture
Ø54mm
6
Max width of rollers
100mm
7
Main spindle tilt angle
±3°
8
Spindle center distance
120-240mm
9
Main spindle RPM
36/47/60/78rmp(change gear)
10
Maximum rolling pressur
180KN
11
Spindle transmission power
5.5kw
12
Hydraulic transmission power
2.2kw
13
Size
1600*1550*1445mm
14
Weight
1700±50kg

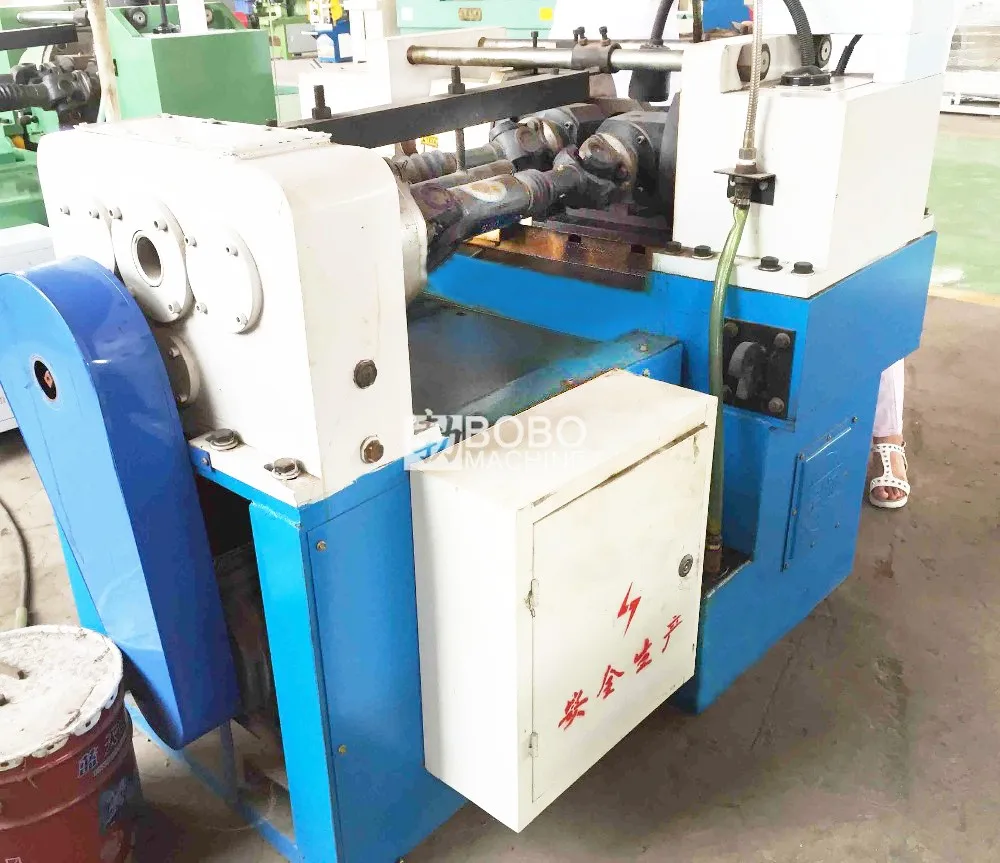

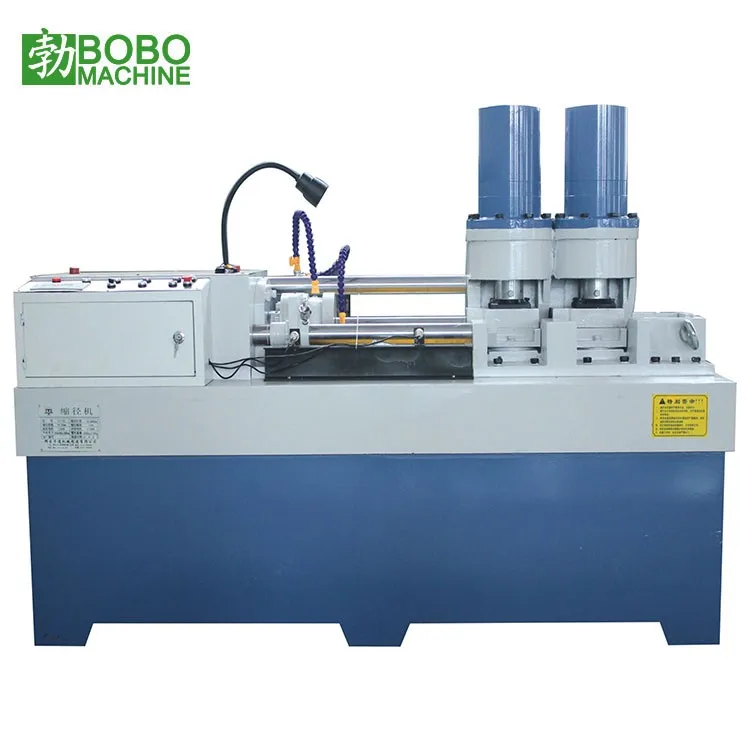

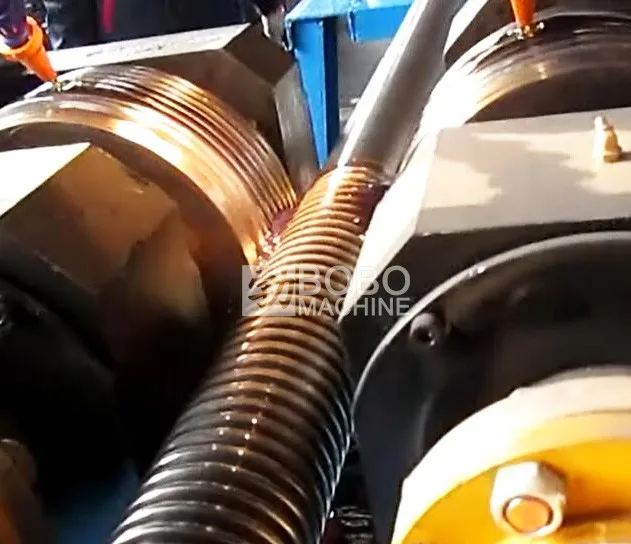

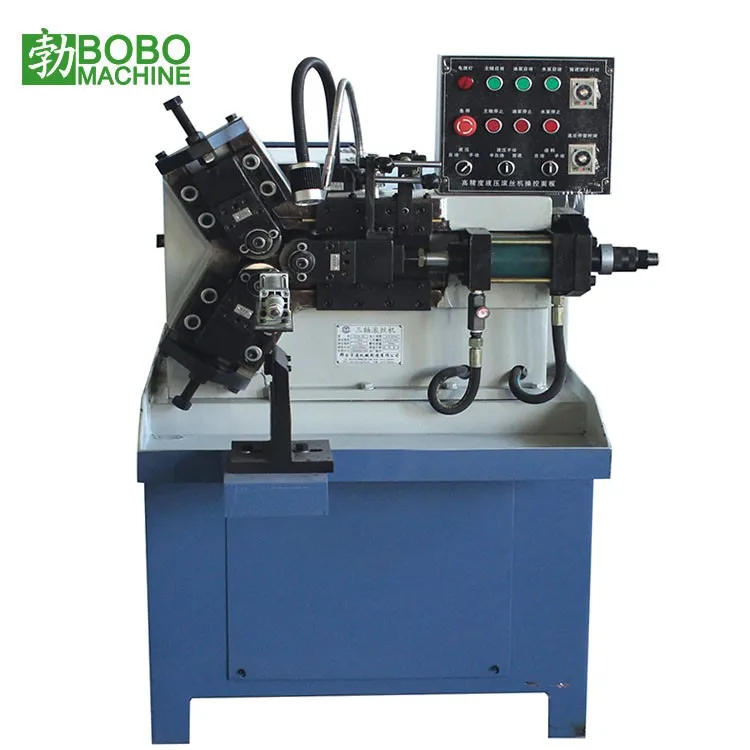

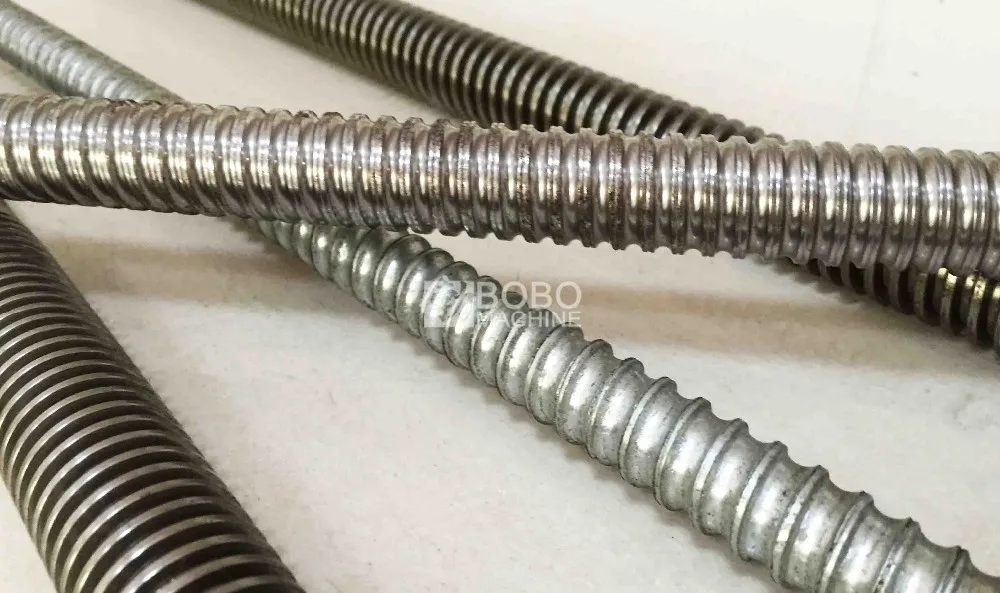

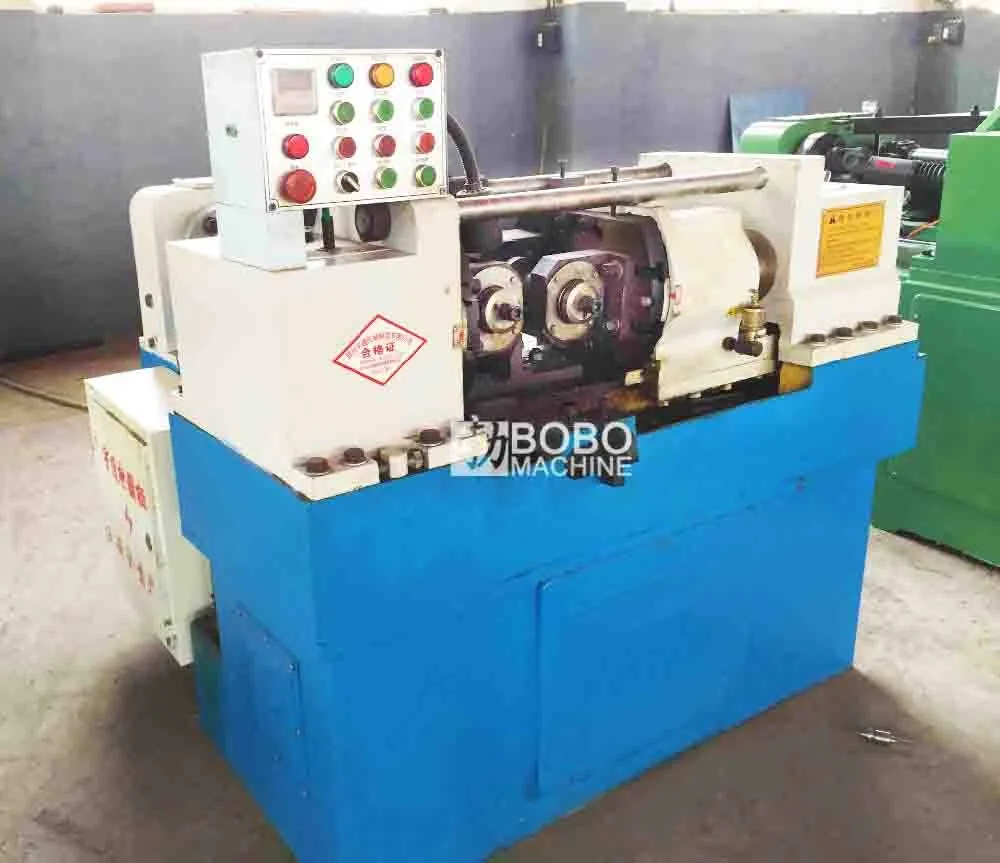

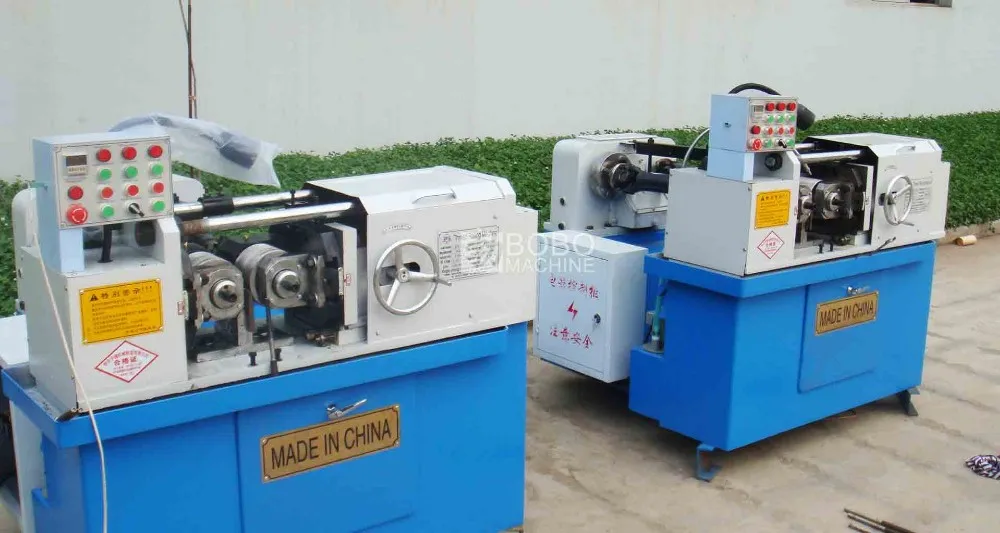

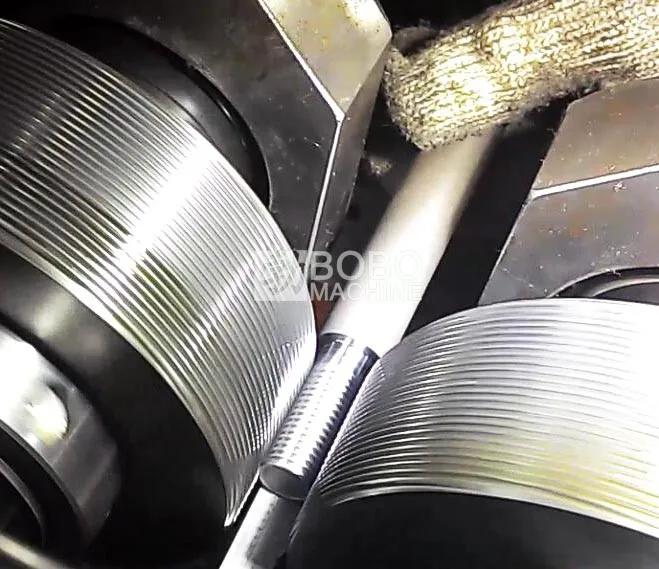

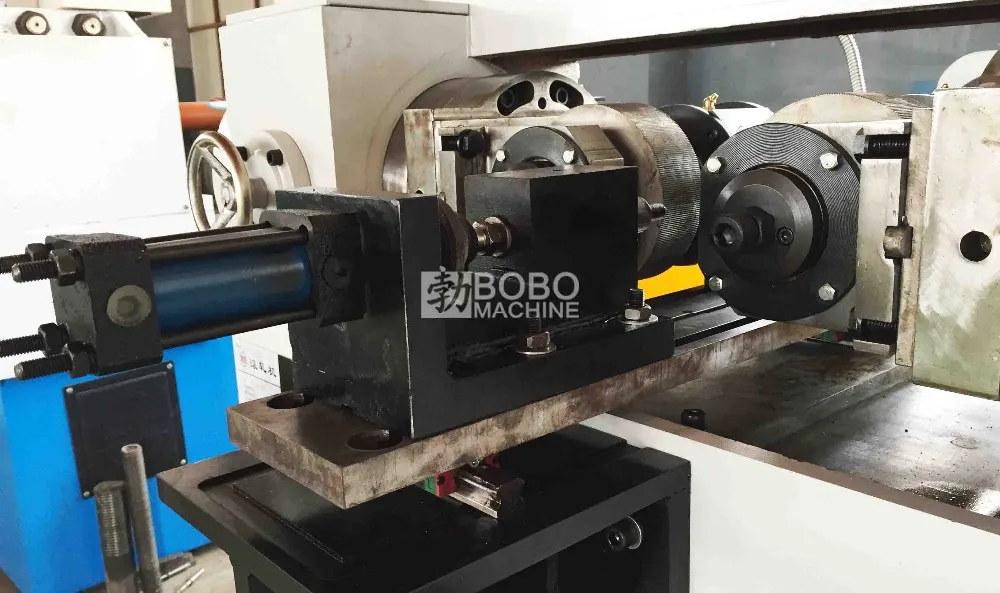

Detailed Images
Packing & Delivery
Packaging
Size
1600*1550*1445mm
Weight
1.2 T

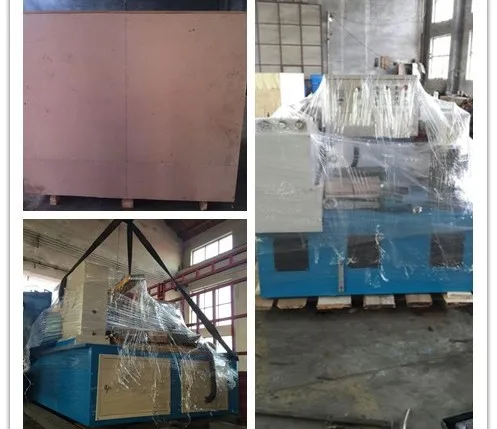

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
