Max 6.5m Piling Depth Screw Ground Machine/Solar Farm Hydraulic Pile Driver For Pv Installation

Product details
Warranty:1 Year;Port:Qingdao;
After-sales Service Provided:Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Payment Terms:L/C,T/T,Western Union;
Place of Origin:Shandong China;Supply Ability:80 Set/Sets per Month Pile Driver;
COLOR:Blue;Weight:6-8T;
Pile height (max):6.5m;Efficiency:High Efficiency;
Condition:New;Multi functions:Drilling, Pressing,Pulling Piles;
Certification:ISO9001;Dimension(L*W*H):7200*2100*4300 mm;
Rotary:360°;Brand Name:HWGK;
Advantages:Adapt to complex terrain/High efficiency;Packaging Detail:20'FCL 1 SET. 40'FCL 2 SET;
Product Name:Hydraulic Pressure Pile Driver;Pile type:Hammer/pile/screw;
UNIQUE SELLING POINT:Long lifetime;Piling Speed(m/min):1-2m/min;
Applicable Industries:Construction works ;
Product Description

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.


Advantages:

1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.

2 Parts for repairs are readily available.

3 Interchangeablity of parts is supported by all models.

4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.

5 Supplying power and fuel to these system is very feasible at construction sites.

Technical Parameter
SPECIFICATIONS FOR HAMMER PILE DRIVER






 Pile driver part
Engine power
Kw
34
No. of cylinders
PCS
4
Engine brand
Changcai engine
Working pressure
MPA
16-20
Working flow
L/Min
120
Wheel distance
M
2
Machine size
mm
4100×2000×2200
Machine weight
T
3.5






Track shoe part
Working pressure
MPA
20
Rubber track weight
T
5
Total displacement
1860
Total bearing weight
KGS
5000
Walking speed
kw/h
0-3
Ground connection beta ratio
0.036
Pulling capacity
KGS
4300
Clambing ability
≤ 30




Hydraulic hammer Part
Drill rod diameters
mm
70
Drill rod weight
KGS
19
Hydraulic hammer weight
KGS
230
Working flow
L/Min
40-70
Working pressure
bar
110-140
Impacting frequency
bpm
500-900
Detailed Images

Machine Parts

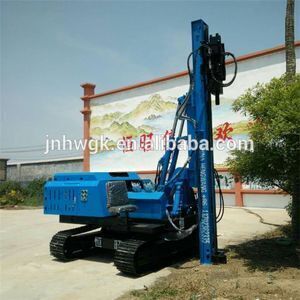

Name: Hydraulic Press Pile Driver
Brand: HWGK
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic.

Main Parts

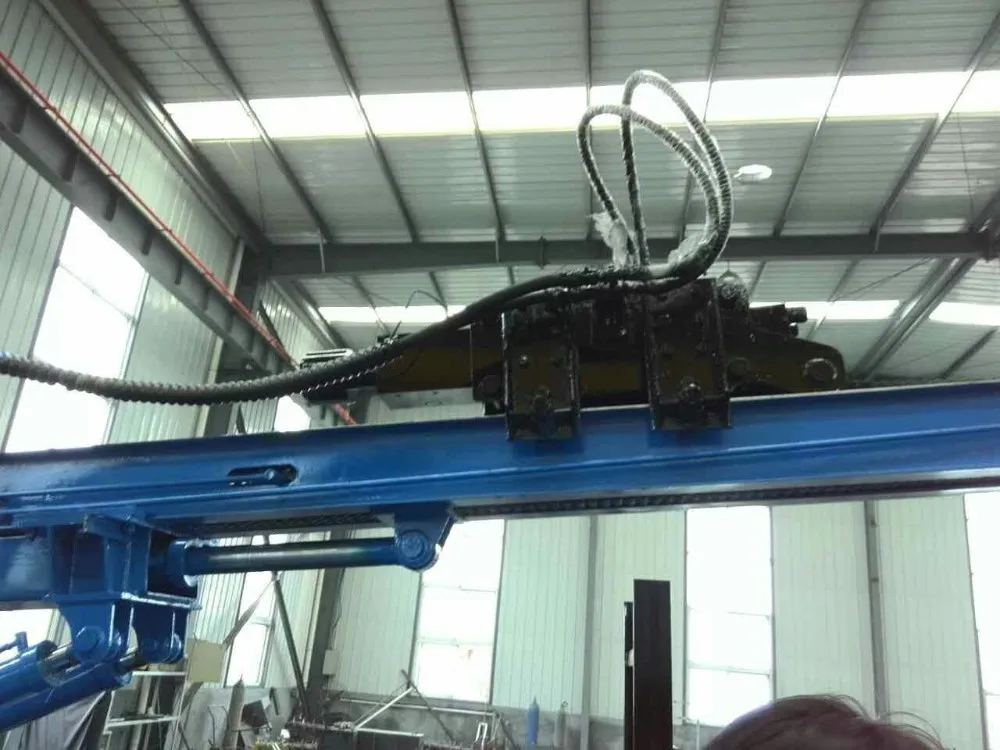

Name: Square hydraulic hammer
Brand: HWGK
Original: China
this hammer used for pressing the pile,pull out the pile,rotate the pile.

Machine Parts

Name: Round hydraulic hammer
Brand: HWGK
Original: China
Function 1: this hammer can drill the hard rock with air compressor.
Function 2: this hammer can drill the soil with the screw pipe.

Main Features

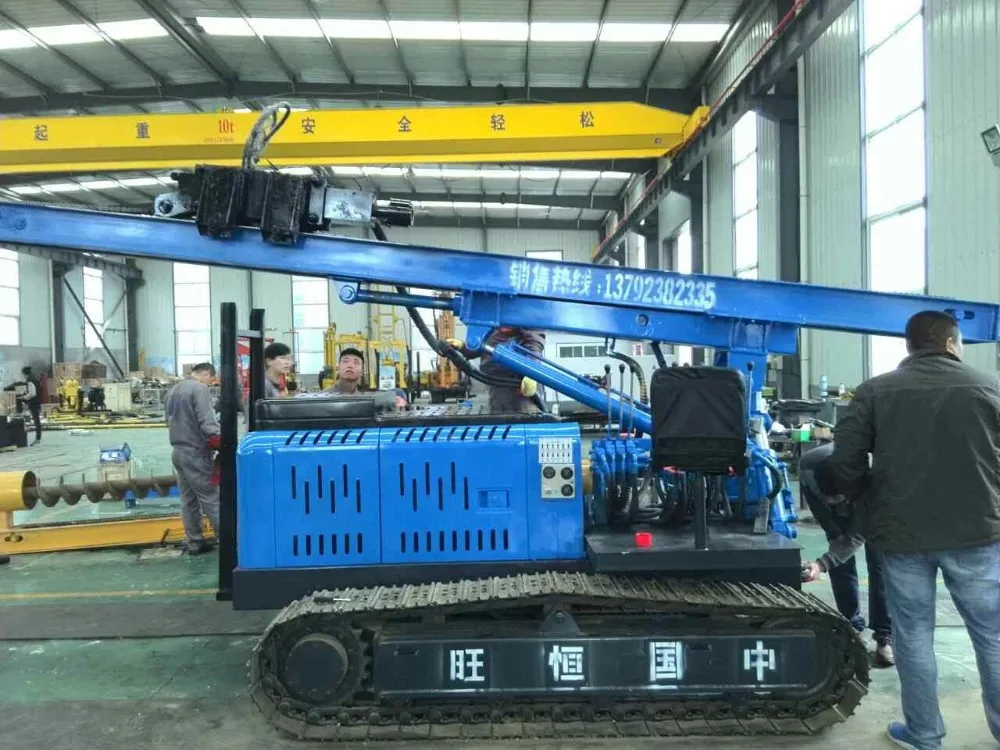

Name: Multifunction pile driver
Brand: HWGK
Original: China

this is the multifunction pile driver,we can change the different hammer to do the different works.it can press the pile,can drill the soil,also can drill the rock.

Oversea Service

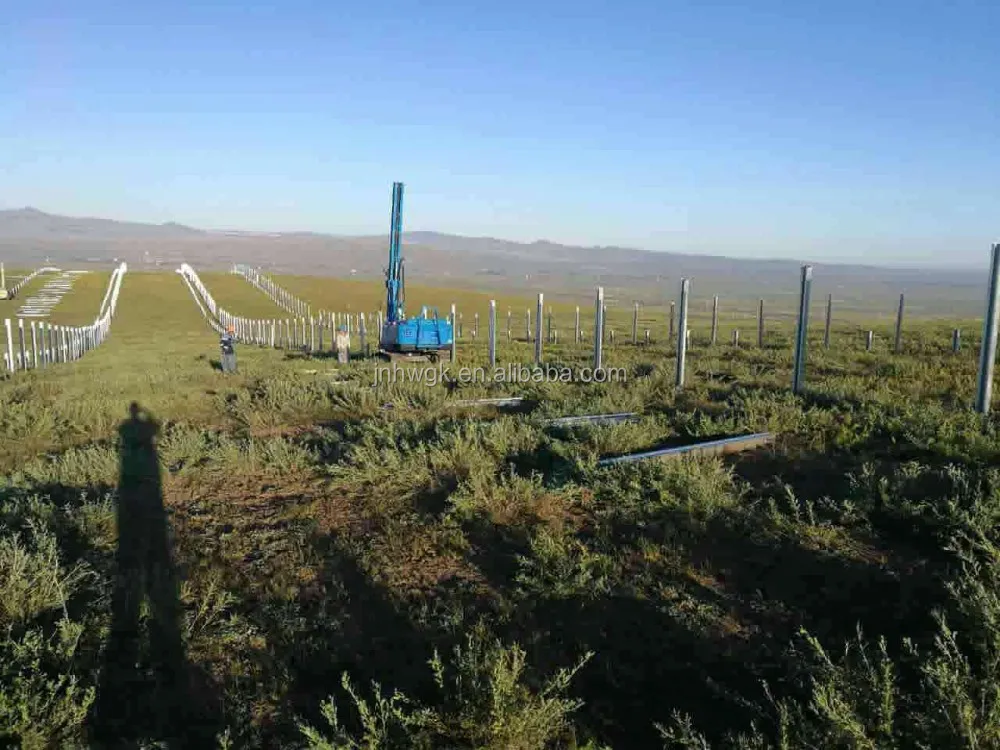

In August of 2016 ,according to Mongolia customer's request,our company sent technicist to Ulaanbaatar,Mongolia to offer the Oversea Service. With our help the progress of the works completed quickly and smoothly,final be highly appreciated by our customer.

Related Products

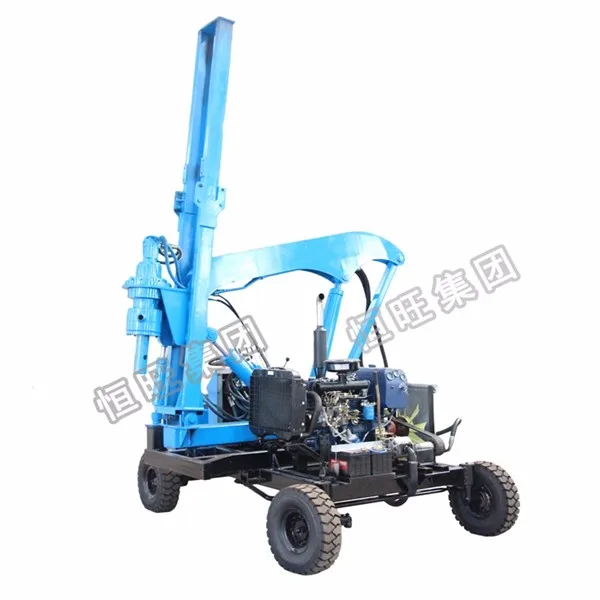

Guard Rail Pile Driver

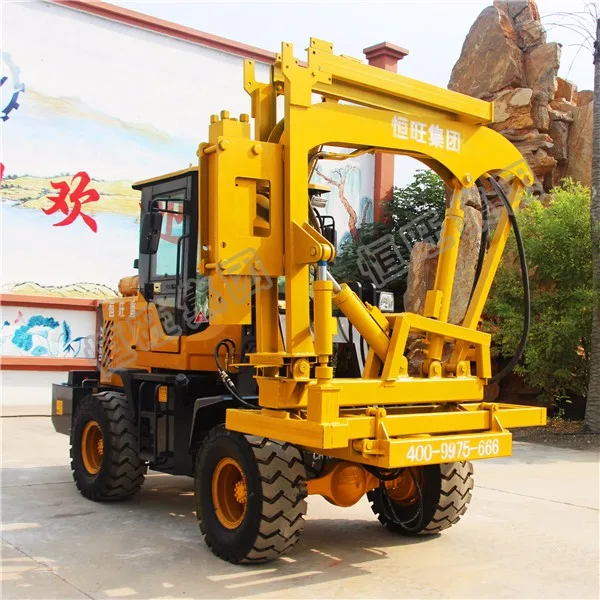

             Wheeled Pile Driver

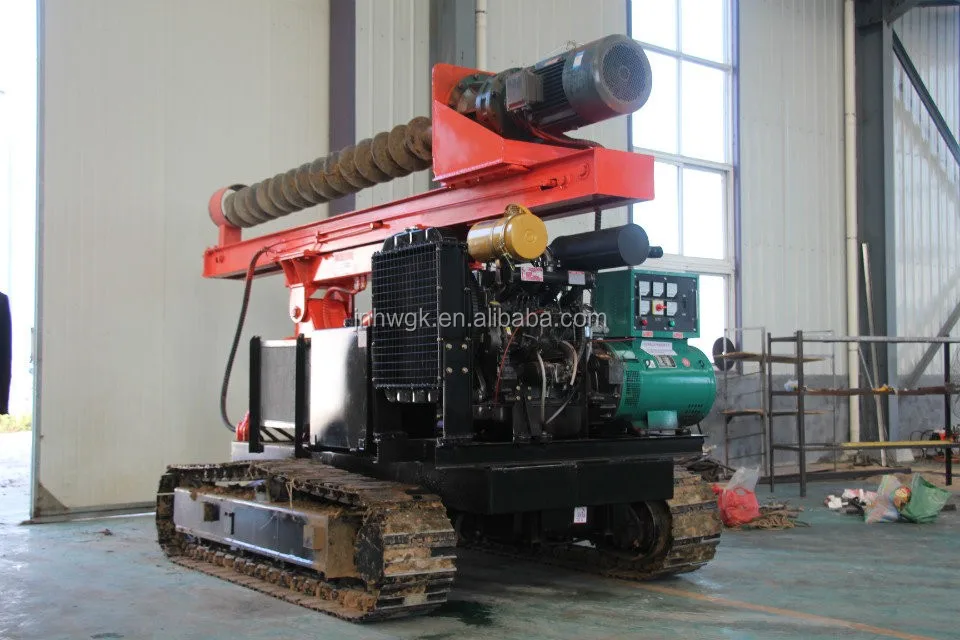

Photovoltaic Solar Spiral Pile Rig


Plz chick the photos to know more of them.
