Smart SST Electronic Automatic Pressure Control Switch For Water Pump

Product details
Supply Ability:2000 Set/Sets per Week Automatic Pressure Control Switch For Water Pump;Packaging Detail:each product in one inner paper box with foam protection;;
Max. Working Pressure:600bar;Pressure range:-100KPa~60MPa;
Brand Name:WNK;Max. Current:1.0A;
Output signals:4~20mA, 0-5V, 0-10V, RS485;Protection class:IP65;
Max. Voltage:30V DC;Accuracy:0.5%F.S;
Display:OLED;Housing material:304SST;
Port:Shanghai port;Switching type:NO/NC;
Model Number:WNK-SPS;Measured media:liquid, gas and steam;
Place of Origin:Anhui China;Payment Terms:T/T,Western Union,MoneyGram;
Power supply:12-30V DC;



 Smart SST Electronic Automatic Pressure Control Switch For Water Pump

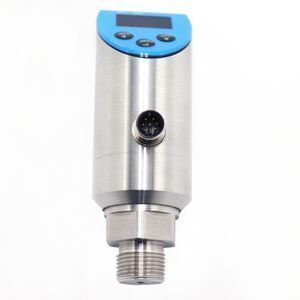

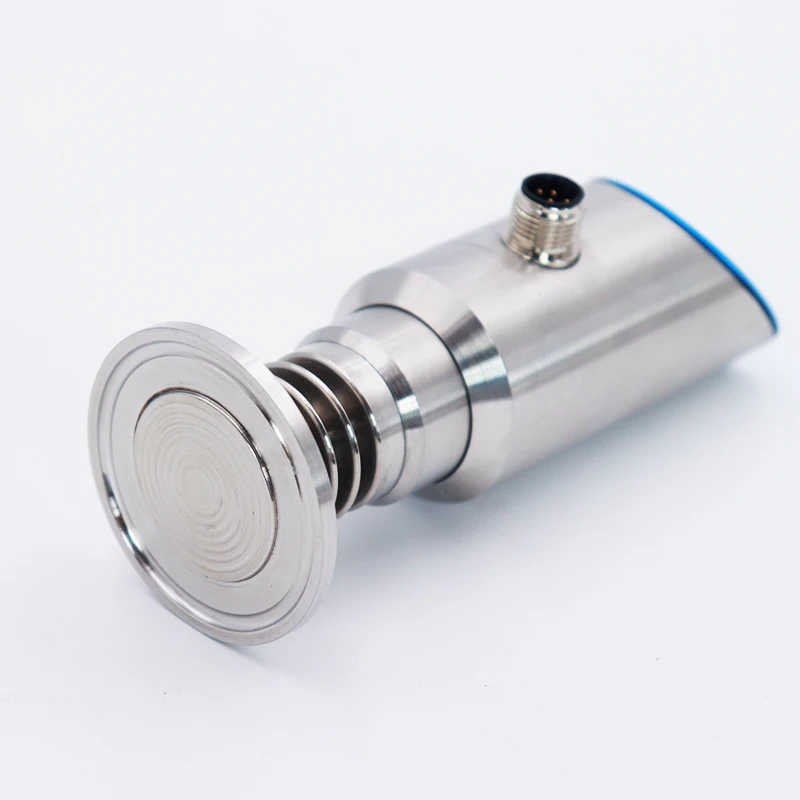

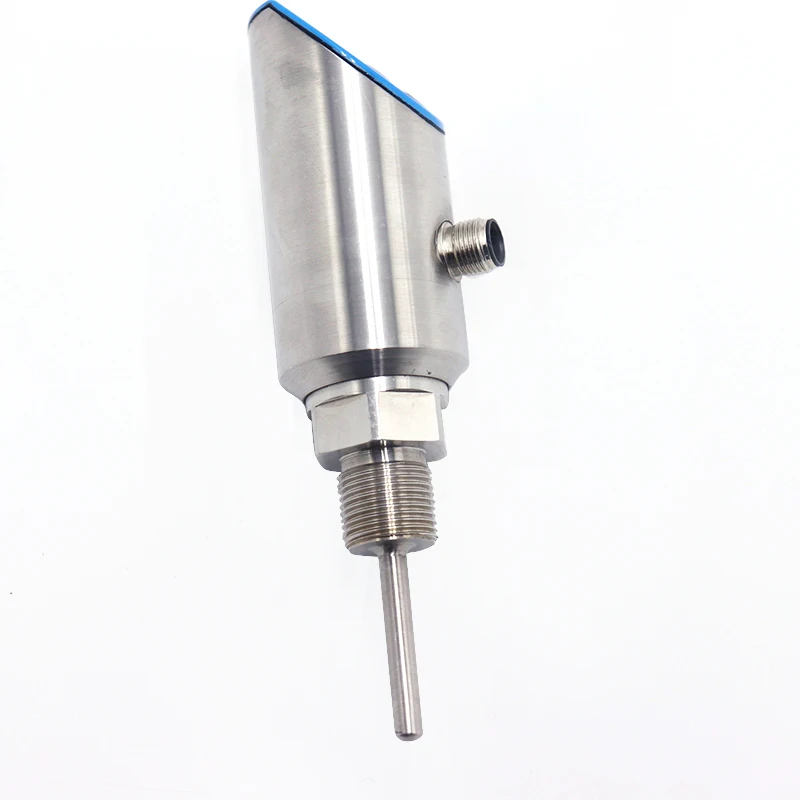

Product Show



Product Description



Introduction - Smart SST Electronic Pressure Switch for Water Pump, Compressor

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.



Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

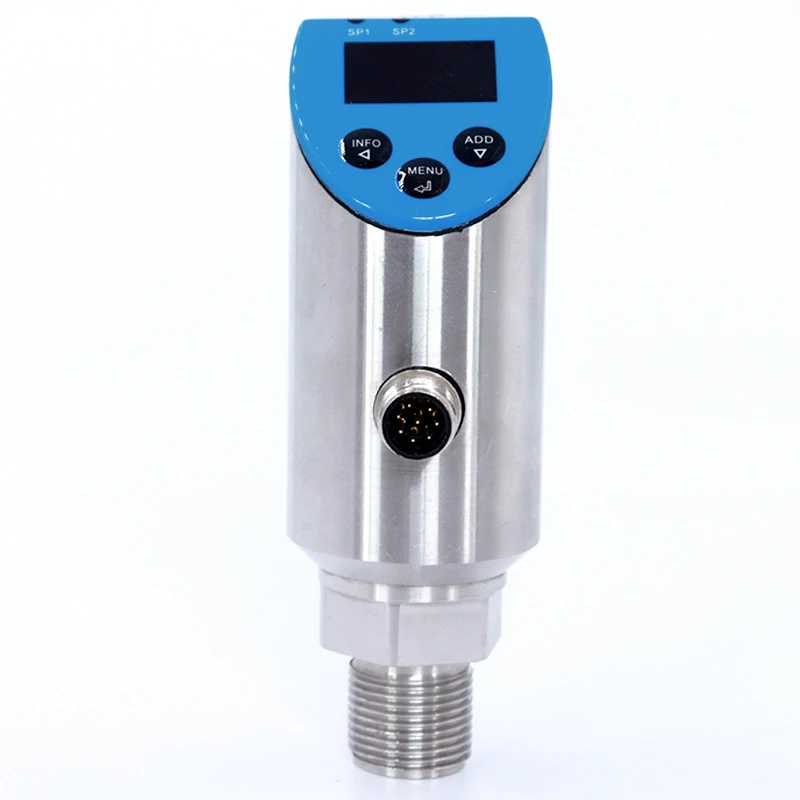

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure
Pressure range
-100kPa~60MPa
 Output                                         Signal
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy
0.5% FS
Stability
±0.3% FS/year
Switch current
1.0A(Max.)
Switching type
Normally open / closed (settable)
Display
OLED (Optional)
Housing material
304 stainless steel

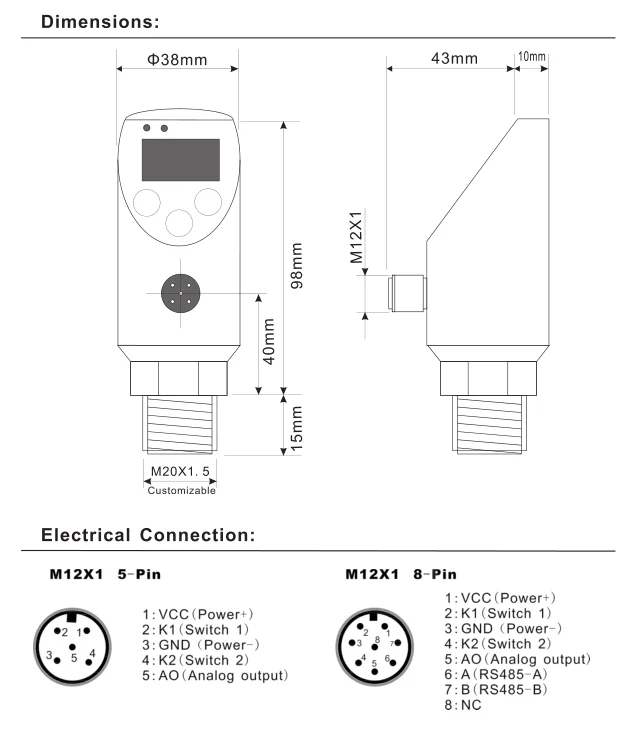

Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature
-40~80℃
Process temperature
-30~80℃
Protection class
IP65

+

+
