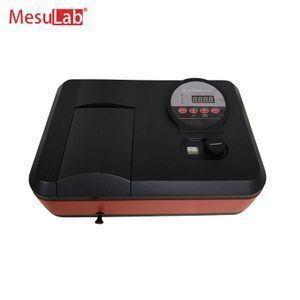

USB Visible Light Spectrometer

Product details
Port:GUANGZHOU;Focal Length:325-1000nm;
Band Width:4nm;Wavelength Setting:Manual;
Stray Light:≤0.05% T (340nm NaNO2);Photometric Repeatability:0.2% T;
Photometric Accuracy:±0.5% T;Display Mode:4 LED display;
Packaging Detail:Standard export packing;Brand Name:Mesulab;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;Size:36*28*19cm;
Supply Ability:100 Set/Sets per Week;Model Number:ME-V1100;
Wavelength Accuracy:±2.0nm;Weight:9kg;
Photometric Display Range:-0.3-3A;Stability:0.001A/30min@500nm;
Wavelength Repeatability:1nm;Wavelength Range:325-1000nm;
Place of Origin:Guangdong China (Mainland);Measurement Range:325-1000nm;

USB Visible Light Spectrometer

Advantage

l Single-chip microcomputer control, digital display, auto zero,100% adjustment function

l Can be directly enter F factor and establish a standard curve for concentration direct-reading

l Equipped with general parallel printer interface, measurement data can be printed.

l Directly input standard sample and the corresponding standard concentration value for concentration measurement

l With USB interface, achieve more accurate and flexible measurement requirements via PC control (optional)



 Specifications

Model

ME-V1100

Wavelength Range

325-1000nm

Band Width

4nm

Wavelength Accuracy

±2.0nm

Wavelength Repeatability

1nm

Photometric Accuracy

±0.5% T

Photometric Repeatability

0.2% T

Stray Light

≤0.05% T (340nm NaNO2)

Stability

0.001A/30min@500nm

Wavelength Setting

Manual

Photometric Display Range

-0.3-3A

Display Mode

4 LED display

Detector

Import Silicon Photodiode

Light Source

Import Tungsten Lamp

Power Requirement

AC 220V/50Hz 110V/60Hz

Power

120W

Dimensions(W*D*H)

36*28*19cm&9kg

Photometric Mode

T,A,C,E



 Standard Accessories

+

1. Main instrument ME-V1100 * 1pc

2. Glass cuvette 10mm * 4pcs

3. Power line * 1pc

4. Manual * 1pc

5. Dust cover* 1pc

6. PC Software ( optional )
