rb-6ftp automatic socks knitting machines price for making socks

Supplier: Shaoxing Rainbowe Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ophelia Yeung
Price: $3400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	330KGS;	Diameter of Cylinder:	3.75'';
Place of Origin:	Zhejiang China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Controller:	Glory or Minde;	Power(W):	1.1KW;
Dimension(LWH):	0.90.751.6M;	Port:	Ningbo or Shanghai;
Cylinder brand:	Hanxin;	H.S Code:	84471100;
Supply Ability:	500 Set/Sets per Month sock knitting machine for sale;	Volume:	1.3cbm;
Packaging Detail:	by plywood 18 sets can be loaded in a 20ft container; 39 sets in a 40ft container.;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Brand Name:	RB;	Sock Kinds:	Terry and Plain;
Needle Count:	84N~168N, 200N;	Voltage:	380V/220V;
Servo motor brand:	YMK;	Warranty:	1 Year Guarantee;
Condition:	New;	R.P.M:	280~330 R.P.M;
Gross weight:	330kgs;	Type:	Jacquard Knitting Machine;
Certification:	CE;	Production Capacity:	250~300 Pairs/24 hours;

Product Description

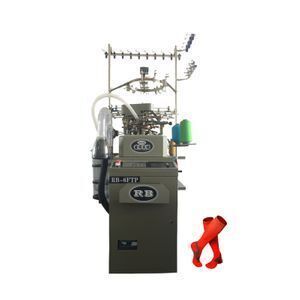

RB-6ftp automatic socks knitting machines price for making socks

This is 3.75 inch RB- 6FTP terry and plain socks making machine which is designed as a double-use socks machine. The machine can make both thin (summer) socks and thick (winter socks) and more popular in countries like Uzbekistan, Ukraine, Russian Federation, Peru, Finland, Norway, etc where is far from the equator and winter is very cold ( In some countries like Egypt, Thailand, India, Vietnam, etc where the average temperature is over 15 ℃ the whole year, it is vey suitable for 3.5 inch RB-6FP plain socks knitting machines).

3.75 Inch Plain & Terry Socks Knitting Machine Technical Specification
Cylinder Diameter	3.75"(3.5''/4.5''/5'')
Needle Number	72N-168N, 200N
Maximum Speed	280~330 R.P.M
Driving Control	Servo Motor
Servo driving/motor Power	0.85KW
Voltage	380V/220V(optional)
Main Motor	1.3KW
Fan	≥1.1KW(Optional)
Control Box	0.8KW
Site Area	150100200cm
Net Weight	250KG
Gross Weight	305KG
Package Size	9075160cm (1.08CBM)
Production Capcity	250~350pairs(terry socks); 300~380 pairs/(plain socks)24 hours according to different sizes of socks

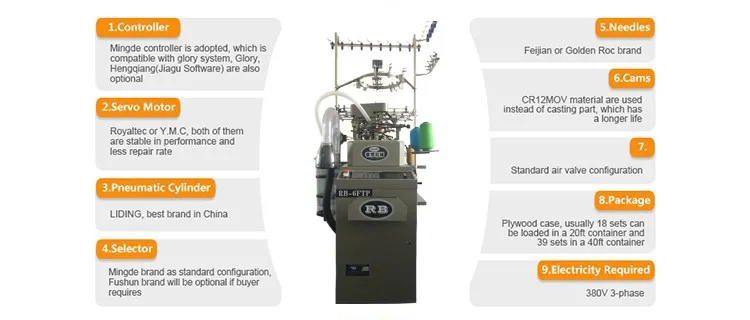

Standard configuration

1. Controller: Mingde controller is adopted, which is compatible with glory system, Glory, Hengqiang(Jiagu Software) are also optional

2. Servo Motor: Royaltec or Y.M.C, both of them are stable in performance and less repair rate

3. Pneumatic Cylinder: LIDING, best brand in China

4. Selector: Mingde brand as standard configuration,

Fushun brand will be optional if buyer requires

5. Needles: Feijian or Golden Roc brand.

6. Cams: CR12MOV material are used instead of casting part, which has a longer life

7. Standard air valve configuration

8. Package: Plywood case, usually 18 sets can be loaded in a 20ft container and 39 sets in a 40ft container

9. Electricity Required: 380V 3-phase

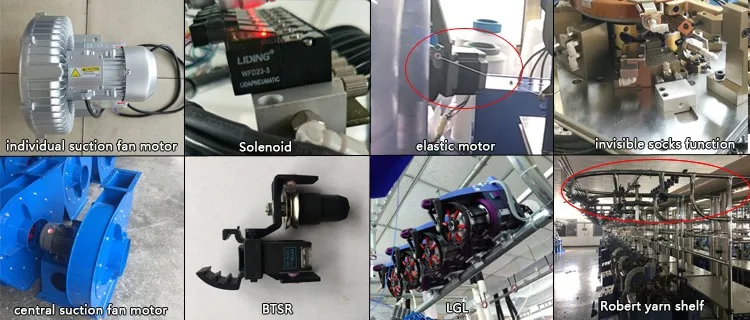

Optional Configuration

1. Suction fan motor 1.1kw (for small quantity of sock machine, below 10 sets, individual suction fan motor is suggested, if over 10 sets, central suction fan motor is better, which can help save electricity consumption greatly)

2. Solenoid on main feeders, sub-feeders, valve box

3. Double elastic motors, double elastic feeders

4. Invisible sock function

5. BTSR yarn break sensors

6. LGL or Chinese brand accumulators

7. Robert yarn creels

8. Power: 220V 3-phase

9. Machine colors: blue or grey

Needle counts.

96N, 108N is for baby aged 1-3 years old.

108N, 120N is for children aged 4-10 years old

120N, 132N is for teenager aged 11- 16 years old

144N, 156N, 168N for adults.

168N, 200N for high quality male socks

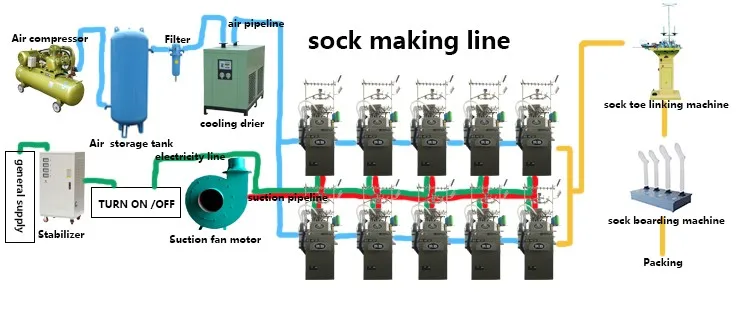

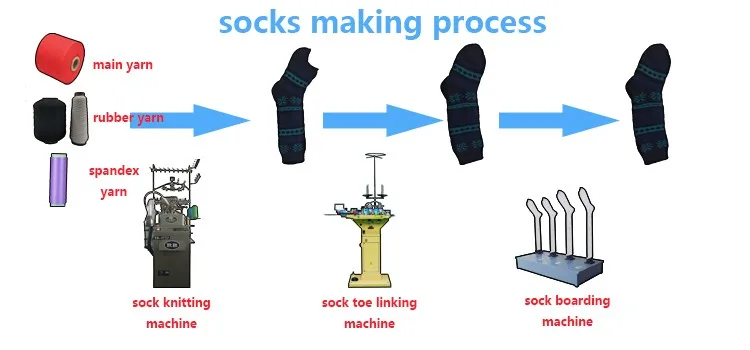

socks line building

Pre-production equipments
1. Air compressor

It is used to press the air to help sock machine change the working needles.
2. Air storage tank
It is used to storage the pressed air.

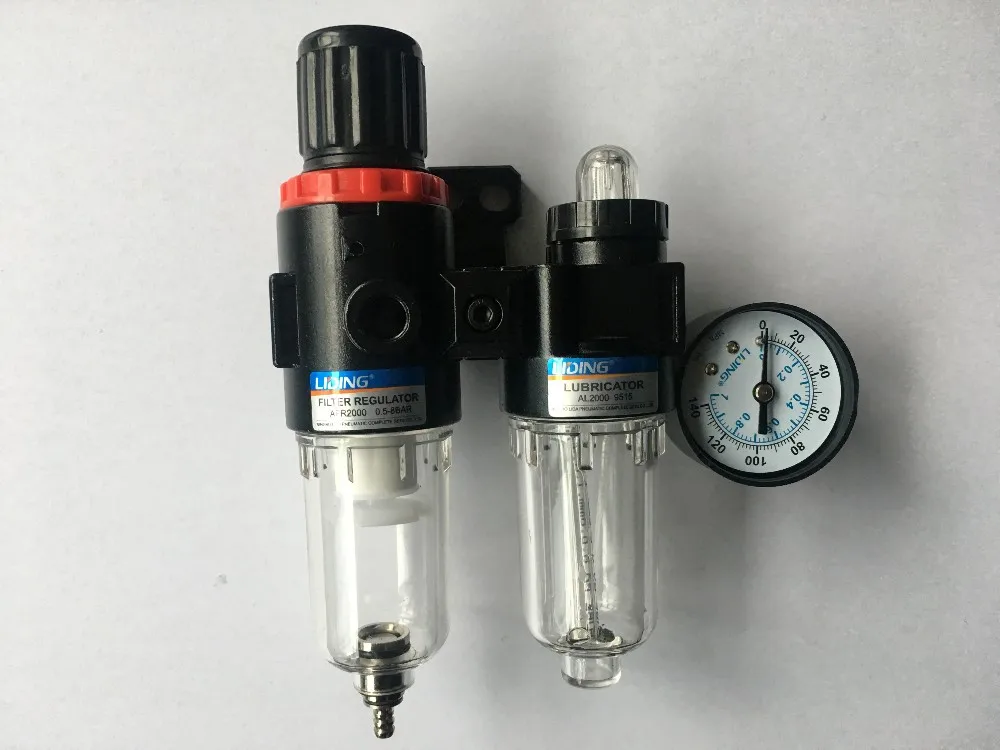

3. Cooling drier & Filter
They are used to filter the water vapour, impurity, etc.
4. Stabilizer

It make the voltage stable, then reduce the damage of socks machine.
5. Suction fan motor
It is an equipment which is used to suck the finished socks up from socks machine. There are two kinds can be choosen: 1) Individual suction fan motor: if the quantity of socks machine is 1, 2, 3 or 4 sets, this motor will be suitable because it is installed inside of machine which can save the space; 2) Central suction fan motor: it is suitable for a large quantity of socks machine because one set motor can support 5sets, 10 sets, 20 sets even more socks machine working.

After-treatment equipments

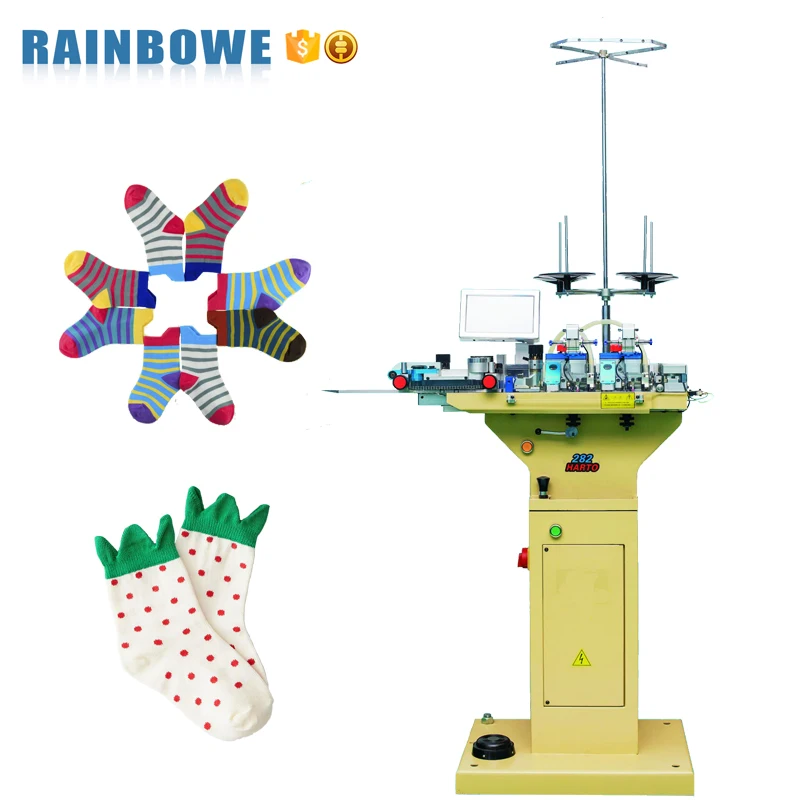

1. Sock toe linking machine

The finished socks from sock knitting machine is not completed, so sock toe linking machine is used to make toe closed.
There are several types can be offered: one linking motor, two linking motor, three linking motor, five linking motor, six linking motor. The more linking motor, the better linking effect.
One/ Two/ Three linking motor will be more popular to be purchased.

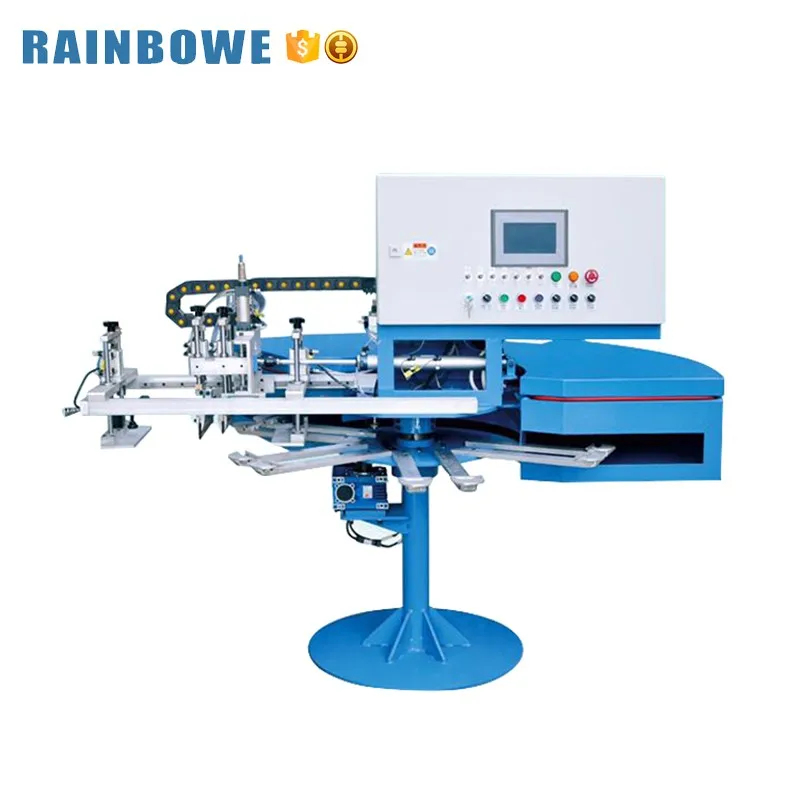

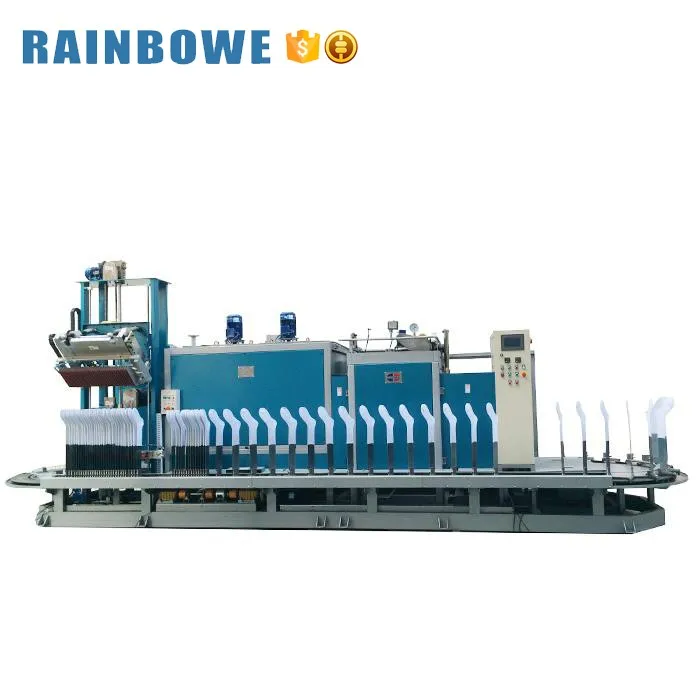

2. Sock boarding machine

This machine is also called sock ironing/ forming machine which makes the socks flat and no wrinkles.
There are some different types can be choosen: simple sock boarding machine with 4 forms, box steam sock boarding machine, rotary steam sock boarding machine. It depends on the production capacity of socks machines. Normally, a simple sock boarding machine can support about 10 sets socks machines.
Some friend want to make anti-slip socks for babys or trampoline socks, socks dotting machine will be available.

If you are in confusion, welcome to contact me

Main Spare Parts

Mingde Cotroller

It is a controller with mingde brand which is a famous brand in China. There is double system can be installed which be with mingde system and glory system ( If needed, Hengqiang controller with jiagu system can be also optional ).

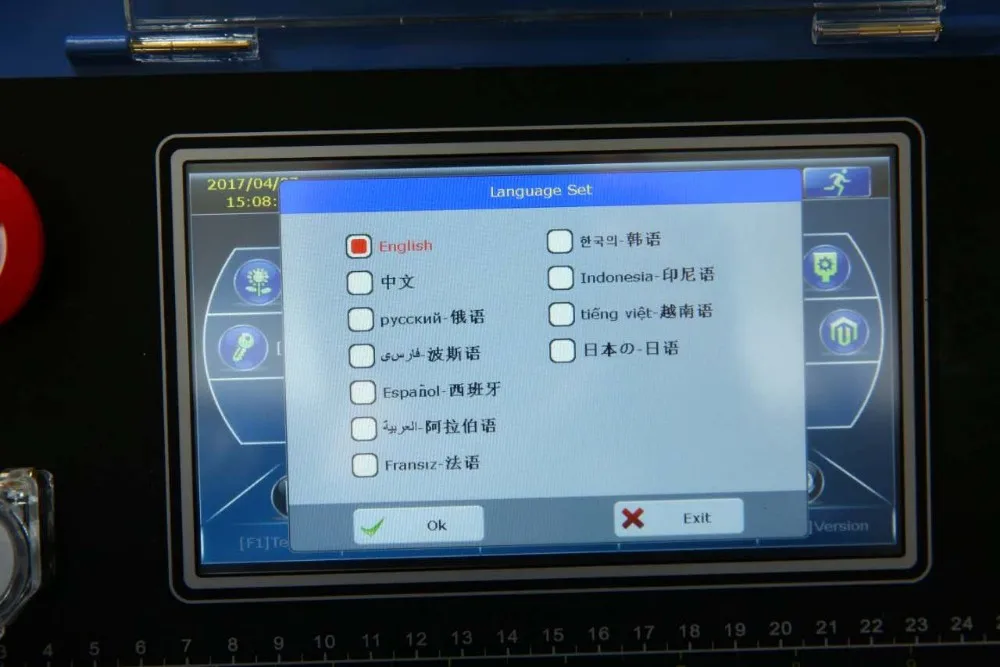

It is with touch screen combined with keyboard which will be more convienient. The language for systems can be setting in 11 kinds: Chinese, English, Spanish, Arabic, Japanese, Vietnamese, Indonesian, Korean, French, Persian, Russian,etc.

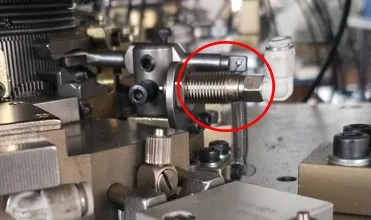

Liding Brand Pnuematic Cylinder

Liding brand is a best brand in China. It makes the socks machine running more smoothly and is durable.

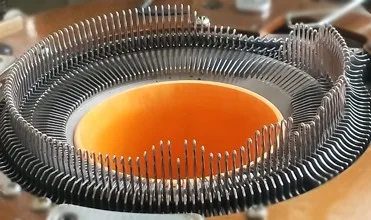

Hanxin Cylinder

It is the most important and main part of socks machine used to knitting socks. The diameter cylinder of this machine is 3.75 inch which is more suitable for making normall winter socks.

The needle counts of cylinder can be choosen from: 96N, 108N, 120N, 132N, 144N, 156N, 168N, 200N. With different age group, the needle counts will be different.

Mingde Selector

It is used to control the Jacquard needles to make jacquard patterns as you like. If needed, fushun brand can be optional.

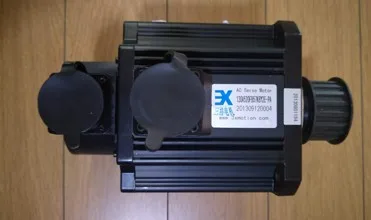

Servo Driving Motor

It is key part of socks machine to drive the machine running. Royaltec or Y.M.C brand are both stable in performance and less repair which can be choosen as you like.

Feijian or Golden Roc Knitting Needles

Feijian and gloden roc brand are both good quality and famous in China. As a quick- wear spare part, the price is cheaper and can be afford by buyers.

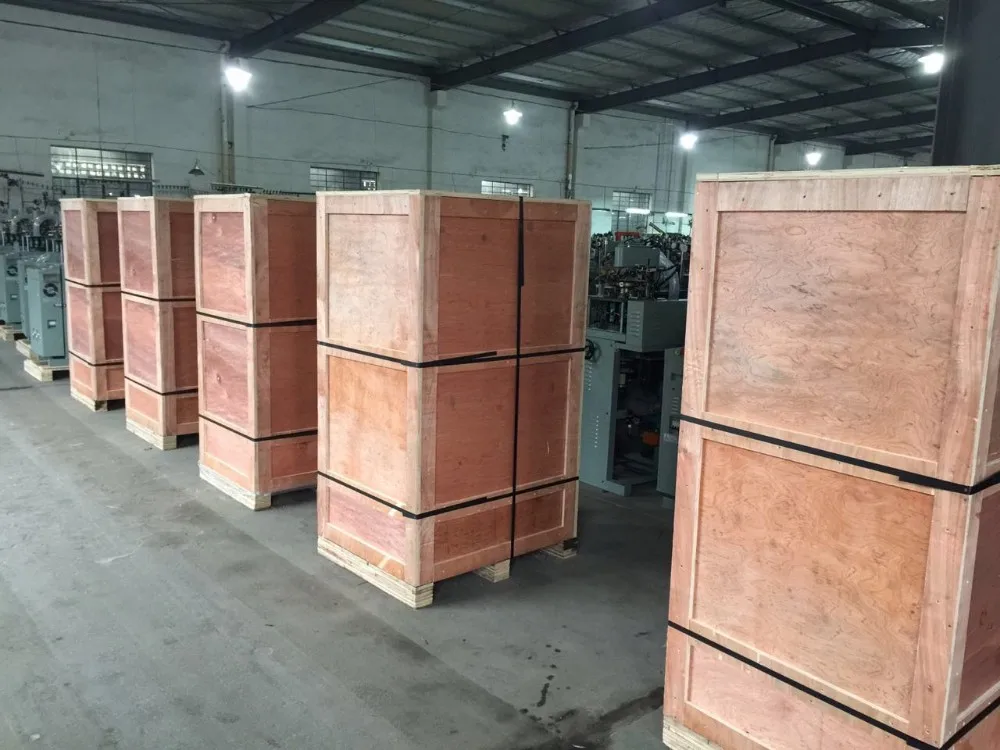

Packing & Delivery

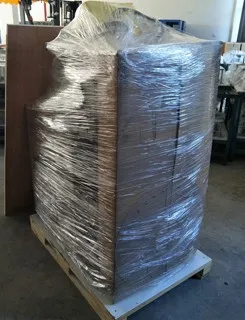

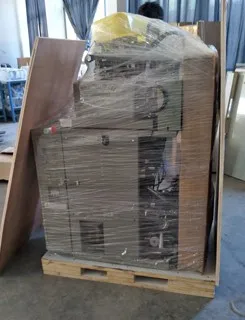

Pakage: plywood case.

18 sets socks machines can be loaded in a 20ft container. The whole socks making line based on 15 sets socks machine can be loaded in a 20 ft container. And 39 sets can be loaded in a 40ft container.

Delivery Time: 7-25 working days after receive the deposit. Special size or optional function may need more than 20 days.
