Scissor lift wheel 12x4.5: | GS1930; | Place of Origin: | Jiangsu China; |
Usage: | scissor lift; | Color: | Grey; |
Design: | three stage compound; | Package Type: | Packed by plastic band on pallet for scissor lift solid tire 12x4.5; |
Warranty: | 18 months quality warrenty; | Application: | Genie GS1530 1930; |
Modle number: | Genie105122; | Material: | rubber with C.I; |
Brand Name: | TOPOWER; | Single gross weight: | 14 KG; |
Type: | Solid Wheel; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Retail,Construction works ; |
Single package size: | 31X31X1 cm; | Certification: | ISO9001; |
Selling Units: | Single item; |

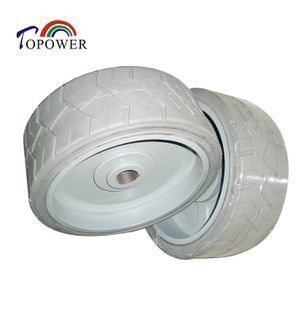

Genie GS1930 scissor lift assembly wheel 12x4.5 Genie 105122
Scissor lift solid tire 12x4.5, Genie GS 1530, GS 1532, GS 1930. GS 1932
Wide and flat tread pattern
High performance of stability
Low resistance for running
Super lug tread pattern
Anti-wear resistance
High efficiency
Aerial Work Platform is aerial mobility product which services in aerial work, equipment installation, and maintenance.
Non-marking solid tires are prefered to meet safety performance and environmental requirements.
MOULD ON SOLID TYRE/LIFT WHEEL SIZE | MAX.LOAD(kg) | ||||
10km/h | Other Industrial 16km/h | ||||
Inch | Pattern | MM | LOAD | ROTATION | |
22x6x16 | TP328 | 559x152x406.4 | 2265 | 2015 | 1740 |
22x6x17 3/4 | TP328 | 559x152x450.8 | 2185 | 1945 | 1680 |
22x7x17 3/4 | TP305/TP321 | 559x178x450.8 | 4220 | 3715 | 3250 |
4.00-8 | TP303 | 408X115 | 1055 | 845 | 730 |
15x5 | TP305 | 379x127 | 1275 | 1135 | 980 |
15x5 | TP321/TP328 | 381x127 | 1290 | 1150 | 995 |
14x4.5 | TP303/TP328 | 355x115 | 1085 | 965 | 835 |
12x4.5 | TP328 | 306x115x237 | 970 | 865 | 745 |
12.5x4.25 | TP328 | 317x127x246 | 1100 | 990 | 855 |
16x5 | TP303/TP329/TP328 | 406X125 | 1400 | 1020 | 1080 |
16x5 | TP328 | 406X127 | 1400 | 1020 | 1080 |
16x6 | TP328 | 406x152 | 1680 | 1220 | 1295 |
15 3/4x4 3/4 | TP321 | 400x120x298 | 1350 | 985 | 1040 |
12 3/8 x4 | TP321 | 310x100x250 | 850 | 620 | 655 |
12x3x10 | TP322 | 305/76-254 | 650 | 480 | 500 |
12x4x10 | TP322/TP328 | 305/100-255 | 820 | 730 | 630 |
12x4 1/8x10 | TP305 | 305x105 | 835 | 745 | 645 |
12 3/4x4 | TP329 | 323x100 | 850 | 750 | 675 |
12x4 (200X8) | TP323/TP305 | 305X100 | 550 | 440 | 400 |
12x4 (200X8) | TP321/TP312 | 305X100 | 550 | 440 | 400 |
10x3 | TP303 | 254X76 | 540 | 485 | 420 |
230x80 | TP321/TP330 | 230x80 | 400 | 345 | 280 |
230x100 | TP321 | 230x100 | 625 | 550 | 490 |
250x80 | TP330 | 250x80 | 440 | 385 | 320 |
250x100 | TP303 | 250x100 | 660 | 560 | 515 |
600x190 | TP303/TP328 | 600x190 | 3360 | 3000 | 2705 |
25x7 | TP326 | 640x170x560 | 2525 | 2250 | 1905 |
—— | TP310 | 720x195 | 3105 | 2390 | 2390 |
31x5x7 | TP308B | 3225 | 2358 | 2485 | |
31x6x10 | TP308B | (Instead 10-16.5) | 4230 | 3080 | 3260 |
33x6x11 | TP308B | (Instead 12-16.5) | 5060 | 3700 | 3900 |
36X7X11 | TP308B | (Instead 14-17.5) | 5650 | 4450 | 4650 |
Below are some factors that affect the lifespan and longevity of our your solid tyres:
1. Distanced Travelled-- this causes the build-up of heat
2. Speed Travelled -- this causes the build-up of heat
3. Products Handles -- depending on weight and size
4. Climate Conditions -- long time left in the air
5. Surface Conditions -- abrasive or smooth surfaces
6. Amount of cycles per load
7. Rest period between loads -- the cooling period
8. Driver Training

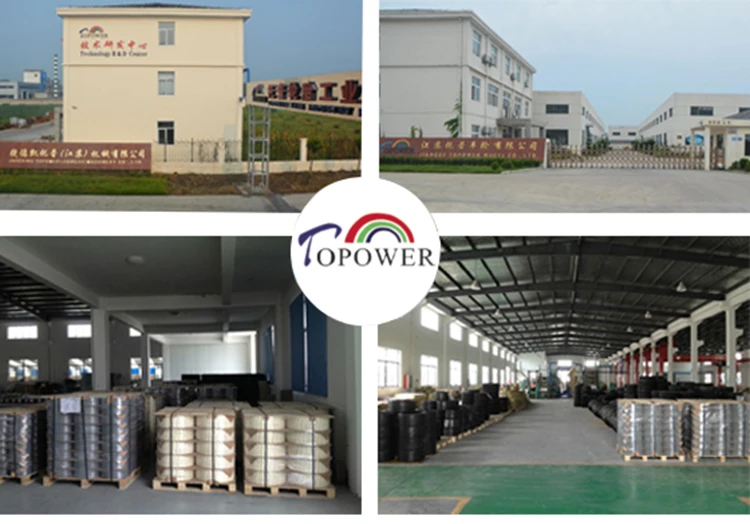

Yancheng Tuopu Tyre Co.,Ltd. was established in 1997, and have been specializing in R&D and manufacture of solid tyres, industrial tyres.
1, Our key products include pneumatic shaped solid tyre, press-on solid tyre and cured-on
solid tyres.
2, We have about 200 employees, among which about 15 are professional technicians,
and 1/4 of them has experience of solid tyres field of over 10 years .(Technical power)
3, We have a throughput of 300 000 pcs a year with a complete set of production line and testing equipments.(Production capacity)
4,We have gained ISO/TS 16949:2002, ISO9001:2008
