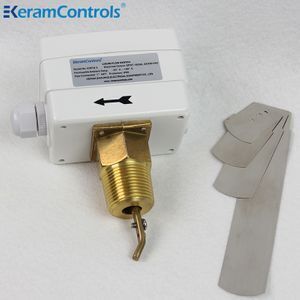

1" 2" 3" Water Flow Control Switch, paddle water pump Flow Controller

Product details
Port:Nanjing or Shanghai;Supply Ability:10000 Piece/Pieces per Month ***1" 2" 3" Water Flow Control Switch, paddle water pump;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Description:Waterproof liquid flow switches;
Operating Temperature:-20-120℃;Type of operation:On/Off,single-stage,micro switch;
Product name:Water Flow Switch;Packaging Detail:strong carton for Water Flow Switch / Paddle / KWFS Series;
Features:IP65, class I enclosure;Brass material;Max working pressure 13.5 Bar;Place of Origin:Jiangsu China;
Certification:CE;Model Number:KWFS series;
Sensing element:Paddle;Delivery Detail:30days after receive the order;
Protection:IP65;Liquid temperature:-20°C~120° C;
Output:SPDT 15(8A) 24/250VAC;Media Type:Liquid;

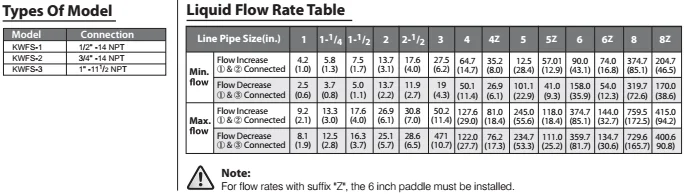

Flow Rate:refer to flow rate table;Cable entry:M18 Fitting;
Brand Name:KeramControls;

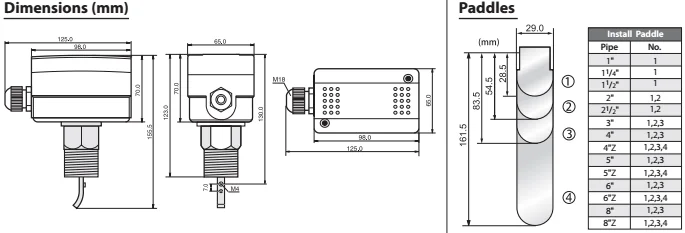

Specification



♦Features



* Flow control of water and normal media

* Renovated SPDT micro switch ensures the reliable switch function

* 15 (8A) 250 VAC switch rating

* IP65

* Setpoint adjustable

* Stainless steel paddle

* Brass material

* Max liquid temp 120℃

* Max working pressure 13.5 bar



Product name

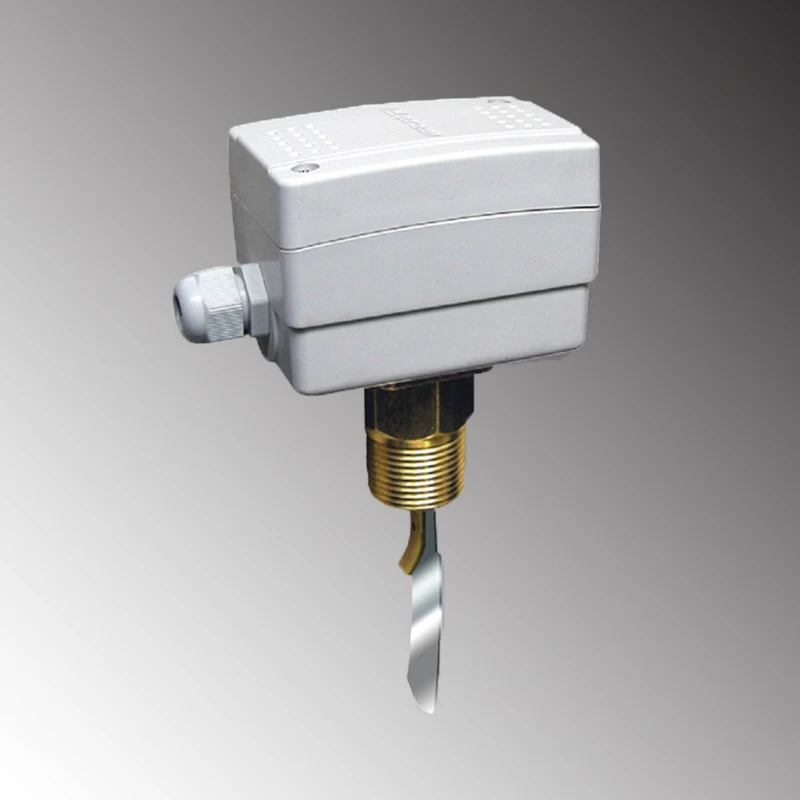

1" 2" 3" Water Flow Control Switch, paddle water pump Flow Controller

Type of operation

On/Off,single-stage,micro switch

Output

SPDT 15(8A) 24/250VAC

Liquid applications

Hot, chilled, well, pool and sea water,Brine or ethylene glycol

Paddle material

Stainless steel

Permissible ambient temperature

-40 ℃~85 ℃

Cable entry

M18 fitting

Housing

Fire resistance ABS or PC

Protection

IP65

Description

Waterproof liquid flow switches

Application

Control and monitor liquid flow of boilers, pumps, etc., of heating,cooling, and air conditioning equipment.

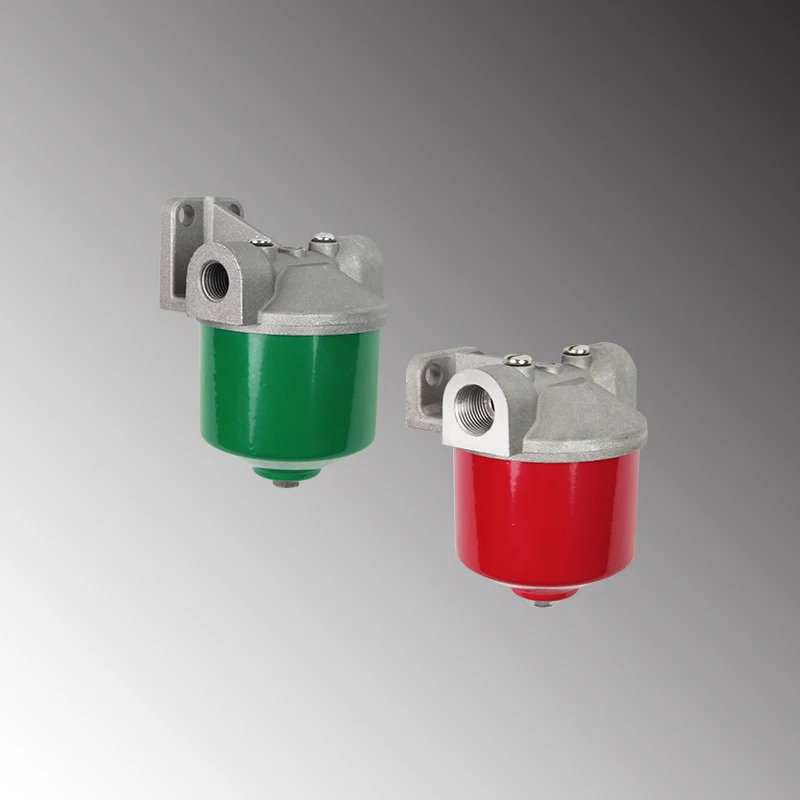

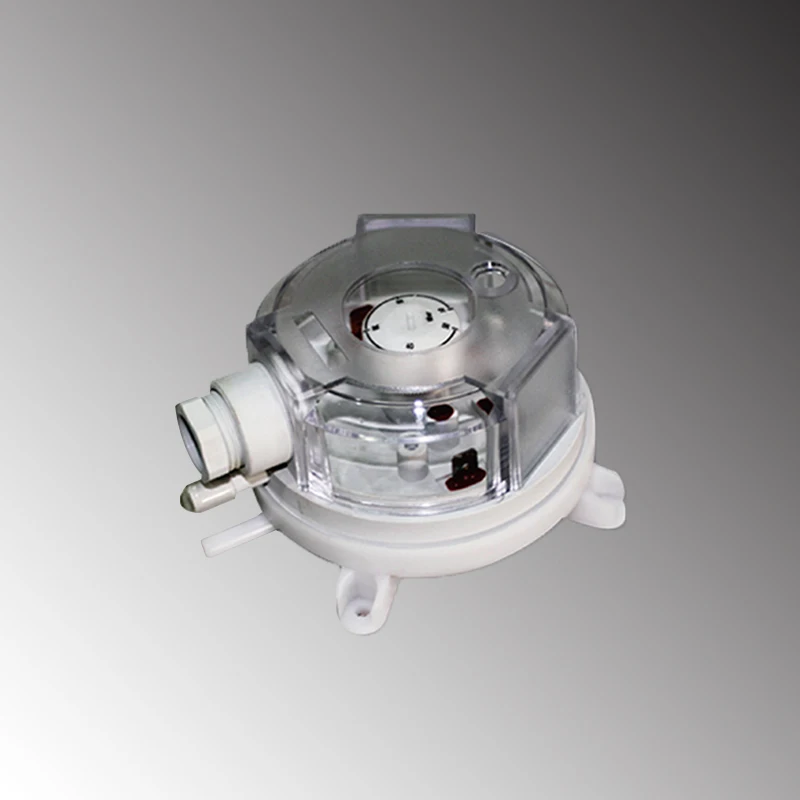

Related Products



Company Information



Certifications

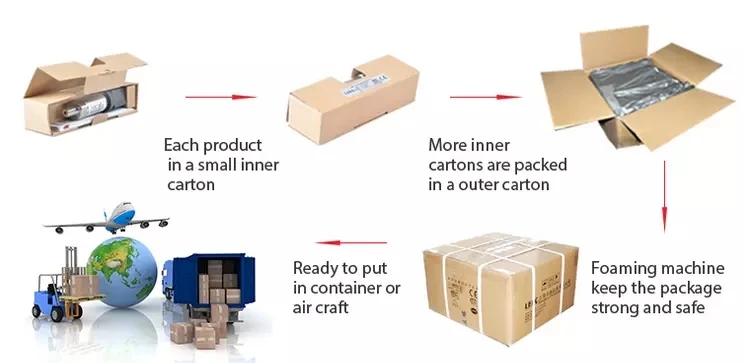

Packaging & Shipping

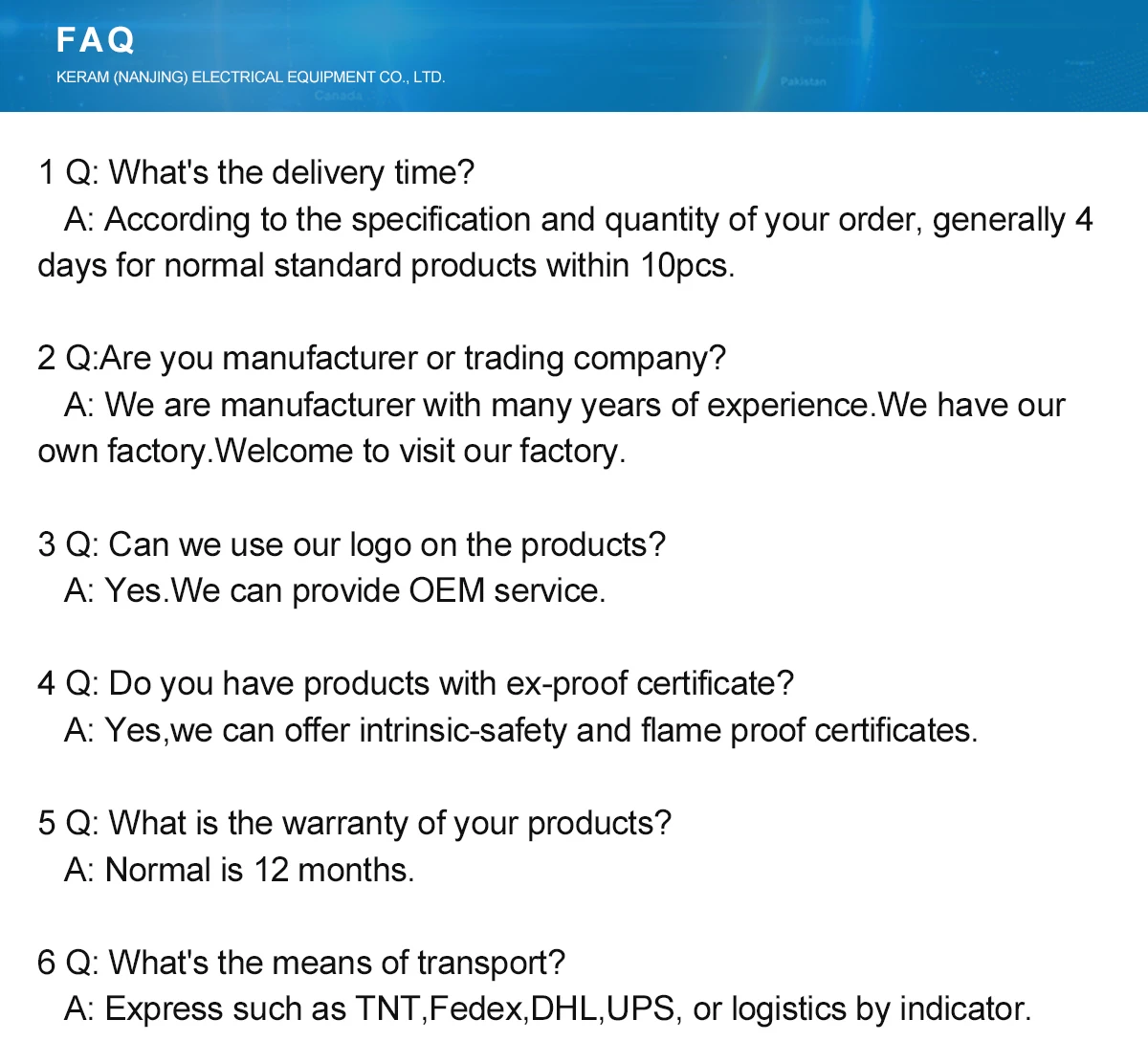

FAQ
