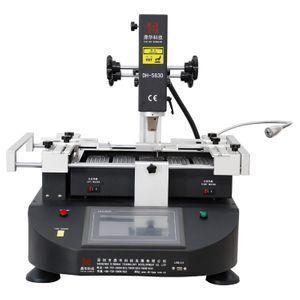

Dinghua DH-5830 BGA Rework Station

This machine is for repairing motherboard IC/Chip/Chipset of Laptop, Mobile, PC, mobile phone , Xbox, etc. With features 3-heater(2xHot air+IR Preheating), embedded Smart PC, Auto Profile, Cooling Fan, Micro hot-air adjustment, Vacuum Pick-up & Place, Universal Support for most of the PCB Size/Shape.

SPECIFICATIONS
Total Power
4800W
Top heater Power
800W (1st Hot air heater)
Bottom Heater
1200W(2nd hot air heater), 2800W (IR preheat)
Temperature Accuracy
±2℃
Power Supply
AC220V±10%     50Hz
Dimension
700x760x580mm (L*W*H)
Temperature Profile Storage
50,000 groups
Operation Mode
Manual+Touchscreen
PCB Support
V-groove + universal fixture + 5-points support + Adjustable in X direction
Temperature Control
K-type Thermocouple + Closed Loop
PCB Size
Max.410x370mm, Min. 22x22mm
BGA Chip
2x2mm-80x80mm
Minimum Chip Spacing
0.15mm
External connector for temperature testing
1pcs or Customized
Net Weight
48KG

Product  Application
Motherboard of computer,smartphone,laptop,digital camera ,air conditioner,TV and other electronic equipments from medical industry,communication industry,automobile industry,etc.

Wide range of application: BGA, PGA, POP,BQFP, QFN, SOT- 223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED chip.
Main Features
BGA rework station DH-5830 structure

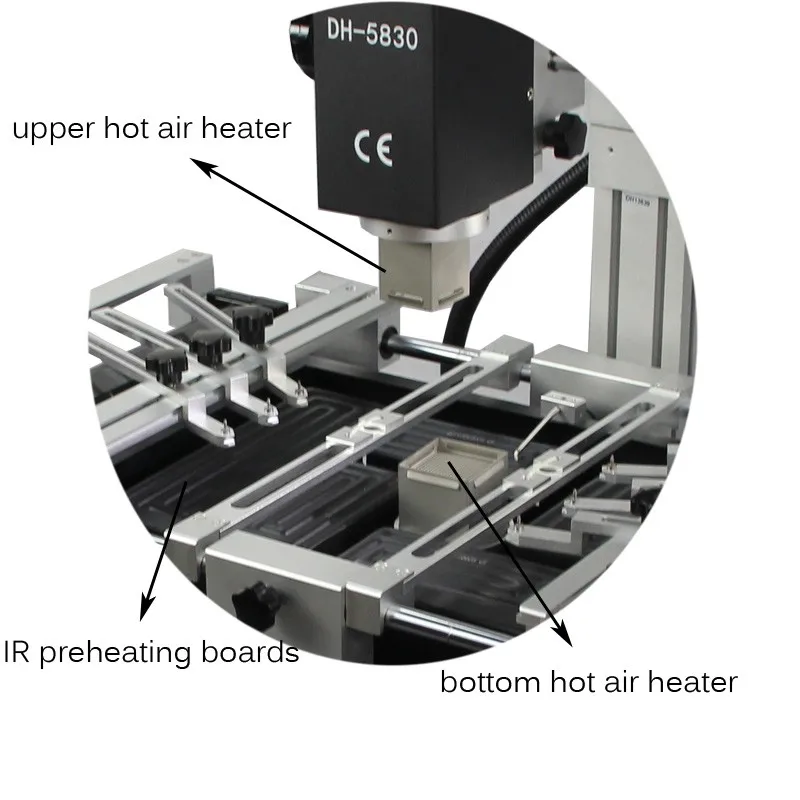

1. 3 independent heater

Top hot air, bottom hot air and a large IR preheating area ,

HR's height can be adjusted, IR with a wide square for most of

big PCBs.



2. Cooling Fan

1) Cross air flow to cool  the PCB after heating, it is important for preventing deformation

2) Auto Cooling after the heating completion.

PCB table

With 6 universal fixtures, 2 PCB brackets and 2 pcs of "V" groove for any shape PCB to be fixed





4. Top Air Flow Adjust Button

This is optional function, if it is needed, please let us know in advance, with top air speed adjustable function, prevent small bga chip from moving flow by strong air, and sometimes, if the temperature is too hot, you can deduct the air flow(If you order more than  50 sets , the top air flow knob will be installed for you ).
