Packaging Type: | Bags,Foil,Pouch; | Place of Origin: | Guangdong China; |
Packaging : | one machine with one plywood case; | Automatic Grade: | Automatic; |
Voltage: | 220V; | Selling Units: | Single item; |
Range of measurement : | 0.5-100ml(need change pump); | Single package size: | 180X101X150 cm; |
Certification: | CE; | Package Type: | one machine with one plywood case; |
Brand Name: | MINGYUE; | Type: | liquid packing machine; |
Machine Funtion: | filling,sealing,cutting and logo date; | Bag size: | (L)20-160 (W)15-100mm; |
Capacity: | 20-60BAG/MIN; | Driven Type: | Electric; |
Packaging Material: | Plastic,Paper,Aluminum foil; | Machine Warranty: | one years; |
Function: | Filling,Wrapping,Sealing,Counting,Cutting,Print Date; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Construction works ,Food & Beverage Shops,Advertising Company; |
Warranty: | 1 Year; | Condition: | New; |
After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Power: | 1.18kw; |
Sealing type: | Back Sealing; | Type: | Multi-Function Packaging Machine; |
Application: | Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware; | Dimension(L*W*H): | 80*80*200CM; |
Packaging Material: | plastic,aluminum foil.nylon etc; | Single gross weight: | 270 KG; |
fruit jam/honey/paste/ketchup/mayonnaise chocolate liquid packing machine filling and sealing machine
Usage:
Designed for the automatic package of liquid, semi-liquid ,stickly liquid materials such as water,honey,cream,shampoo,comsmetic cream,paste,suace,oil,bean sauce,chocolate sauce,ketchup,perfume etc.
Machine features:
1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.
Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.
Technical parameters
Model No.: | MY-60YB |
Packing capacity | 20-60bags/min |
Filling range | 0.2-100ml(need change pump) |
Bag Size | L 20-200mm, W 15-100mm |
Packing accuracy | ≤±1% (per material) |
Power supply | 220V 50/60Hz, 1.1Kw |
Sealing type | Back sealing |
Machine Weight | 250KG |
Machine Size | 80*80*190cm |

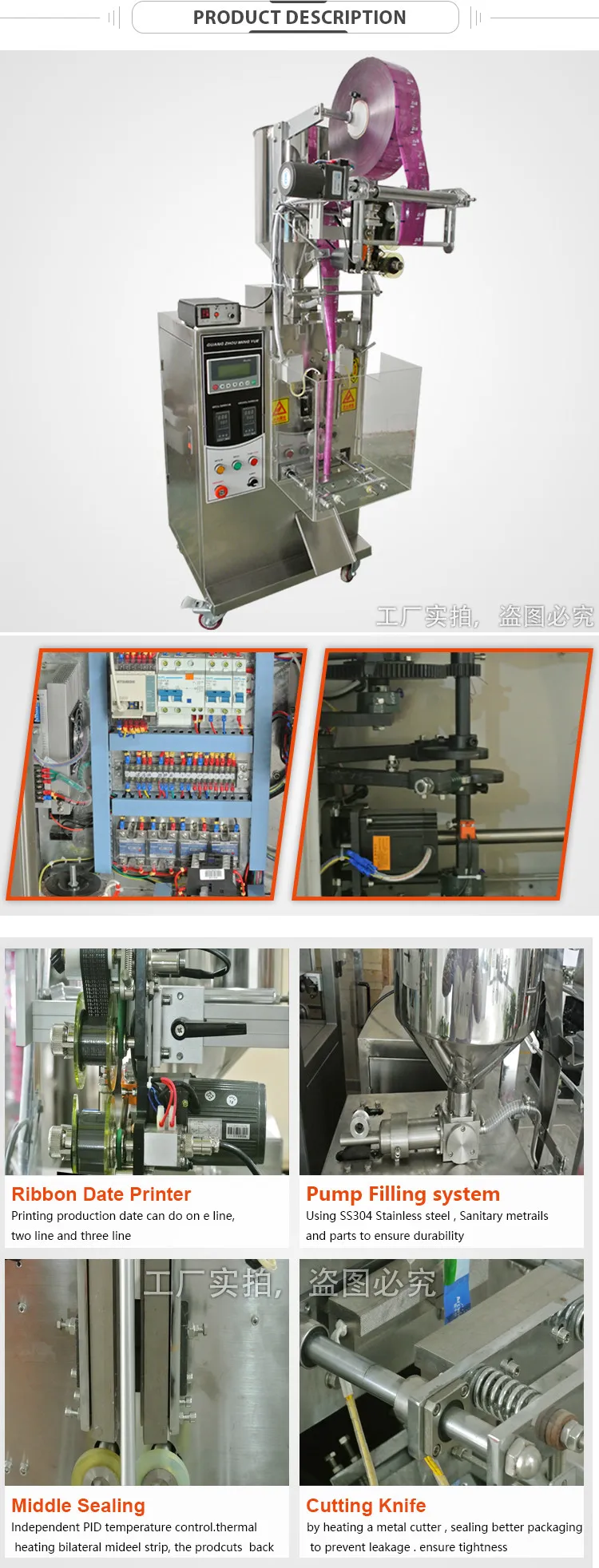

Machine Picture:
