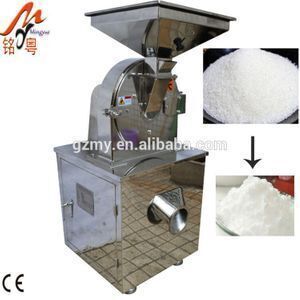

China manufacture factory direct sell spice grinding machine/herb grinder machine

Product details
Overall Size:850*700*1600;Selling Units:Single item;
Condition:New;Voltage:380V;
product name:spice grinding machine;Function:Grinding to powder;
Key Selling Points:Easy to Operate;Max. Grinding Length:120mm;
CNC or Not:Normal;Speed of principal axis(r/min):2900;
Type:Cylindrical Grinding Machine;Dimension(L*W*H):850*700*1600;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops;Weight (KG):280;
Certification:CE;Size of input granules(mm):<12;
After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;Single package size:80X70X160 cm;
Weight(kg):450;Warranty:1 Year;
Warranty:one year;Size of output granules(mm):12-120;
Max. Grinding Diameter:10mm;Power(W):5.5kw;
Package Type:Each machine wrapped with waterproof PO film, then pack to a standard wooden case;Certification:CE;
Capacity(kg/h):100-500;Single gross weight:450 KG;
Brand Name:mingyue;Place of Origin:Guangdong China;

China manufacture factory direct sell spice grinding machine/herb grinder machine

Product Description

1 Main application:

The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc.

2 Characteristics:

The crushing chamber is equipped with wind wheel type high~speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.

3 Working Method:

The machine uses the wind wheel type high~speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.

Technical Parameters:

Model

MY-20

MY-30

MY-40

Capacity(kg/h)

30-50

30-200

50-300

Size of input granules(mm)

<10

<10

<12

Size of output granules(mm)

12-120

12-120

12-120

Power(kw)

2.2

5.5

11

Speed of principal axis(r/min)

3000

2900

2900

Weight(kg)

120

280

450

Overall Size(L×W×H) (mm)

550×420×1400

750×550×1400

850×700×1600






Sample Photo:
