High speed fine powder milli food grinder grinding machine

Supplier: Guangzhou Mingyue Packaging Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Ella Wen
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	Food , Pharmacy;	Voltage:	110V/220V/380V;
Weight:	280kg;	Warranty:	1 Year;
Max. Grinding Diameter:	20mm;	Certification:	CE Certification;
Packaging Detail:	one machine with one wooden case;	Max. Grinding Length:	100mm;
Fineness(mesh):	12-120um;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal cash;
Place of Origin:	Guangdong China (Mainland);	Type:	Universal;
Speed of principal axis(r/min):	2900;	Capacity(kg/h):	30-200;
Size of output granules:	12-120;	Product name:	Powerful Grinder;
Material:	SS304;	Size of input granules:	<10;
Condition:	New;	Function:	mill and shear raw material;
Brand Name:	MINGYUE;	Supply Ability:	100 Set/Sets per Month;
CNC or Not:	CNC;	Customize:	Accpet;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Dimension(LWH):	7505501400mm;
Power(W):	5.5kw;	Port:	China any port;

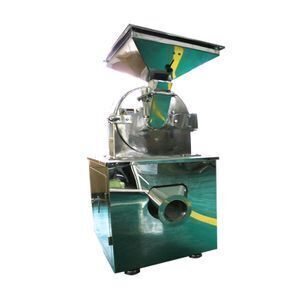

High speed fine powder milli food grinder grinding machine

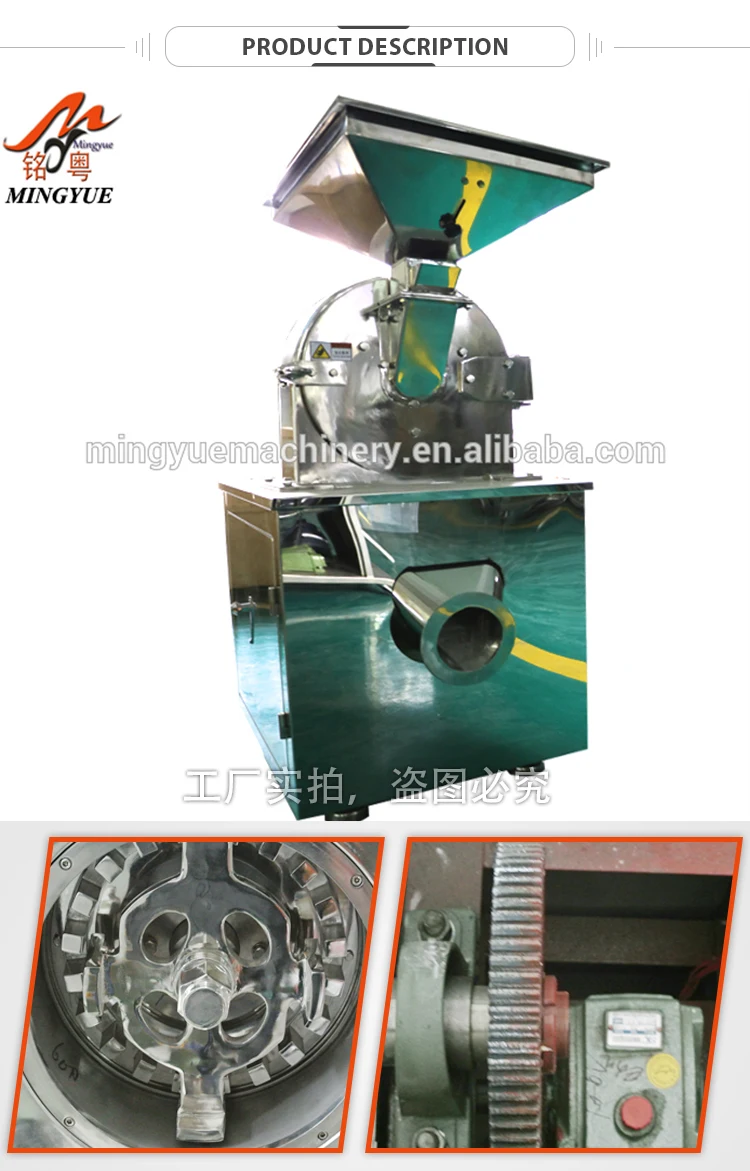

Product Description

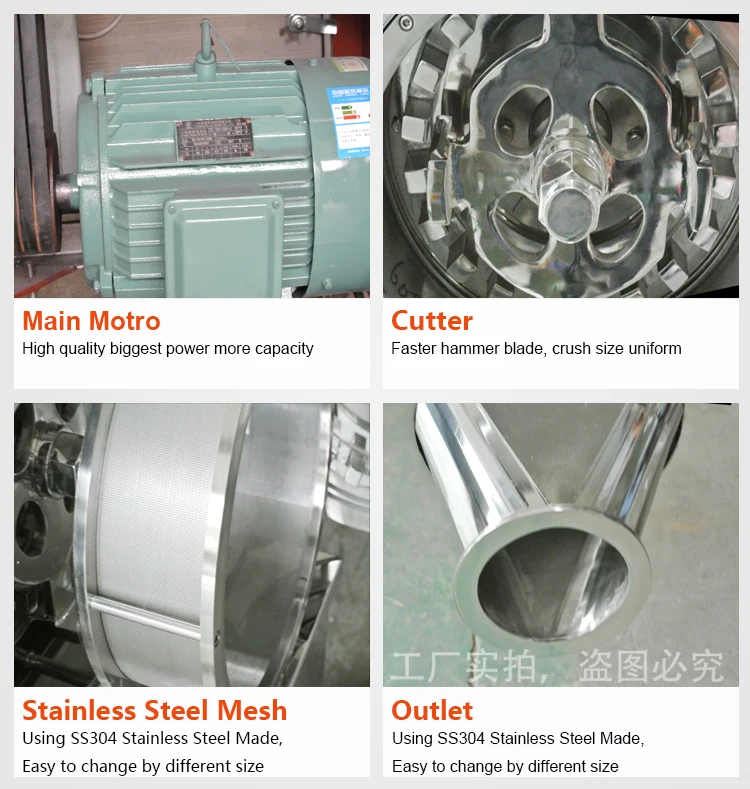

This pulverizer urilizes the high-speed relative motion between the moving tooth set and regular tooth set,which makes the material.crushed through concussion,rub and crush between the material.

The structure of machine is simple,firm and operating stedily and the result of crushing is well,The crushed thing is discharged directly from mainframe,the size of the granularity is gained through changing different network aperture sift and get grain size in the diredtly,in addittion,this machihne is made for the whole stainless steel.Surface of the inside of the machine reaches smooth by tooling,which changes the phenomenon of inboard wall coarse accumulating of power machine in the past,it can accord with the national standard even more to make medicines,food ,chemical industry,ect.and meet the requirment of GMP.

Technical parameters:

Model:	MY-20	MY-30	MY-40
Capaclty(kg/h):	30-50	30-200	50-300
Motor power (kw):	2.2	5.5	11
Size of input granule(mm):	<10	<10	<12
Size of output granule(mm):	12-120	12-120	12-120
Speed principal axis(r/min):	30000	2900	2900
Weight(kg):	120	280	450
*Overall size(LWH)cm:*	5542140	7555140	8570160
