Hot Sale Good Quality Portable Cnc Plasma Cutting Machines Portable Plasma Cutters Plasma Cut Cnc Routers

Product details
Voltage:220V 50/60Hz single phase;Warranty:2 Years;
Package Preview:https://sc01.alicdn.com/kf/ULB8NSpyKarFXKJk43Ovq6ybnpXaW.jpg_640x640.jpg;Single package size:371X207X133 cm;
Cutting material:Mild Steel;Motor:Stepper;
Year:2019;Cutting thickness:0-40mm;
Dimensions:6000*3000mm;Dimension(L*W*H):3710x2070x1325;
Transmission:Gear Rack;Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company;
Place of Origin:Shandong China;Application:Industrial Metal Cutting;
Single gross weight:700 KG;Weight (KG):700;
Brand Name:FIRMCNC;Selling Units:Single item;
Software:Fastcam Software;Rated Power:1.5KW;
Working area:1500mm*2500mm/1500mm*6000mm;Condition:New;
Key Selling Points:Competitive Price;Control system:Starfire Control System;
Motor Type:Stepper Motor;After-sales Service Provided:Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support;
Cutting speed:0-15000 Mm/min;Plasma power:63A;
Certification:SGS,ISO,CE;Package Type:1.)Inner pakage:waterproof plastic film. 2.)Outer pakage:standard export plywood case. 3.)Of course, we also can pakage depend on your request.;



Model

FMP1325

FMP1530

FMP2040

As requested

Working area(mm)

1300*2500

1500*3000

2000*4000

As requested

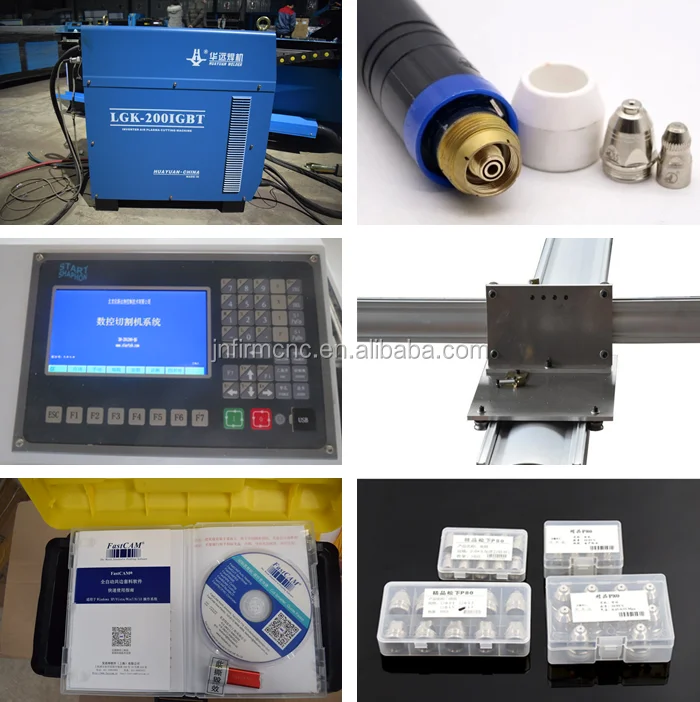

Plasma source

China best brand Huayuan:

LGK40A

LGK63A

LGK100A

LGK160A

LGK200A

USA brand Hypertherm:

Powermax45A

Powermax65A

Powermax85A

Powermax105A

Powermax200A

Applied materials

Iron, steel, aluminum, sheets, galvanized sheets, titanium plates

Cutting thickness

0.5-40mm (With flame , can cut 150mm carbon steel )

Cutting speed

0-8000mm/min

Repeat positioning accuracy

±0.05mm

Process precision

±0.35mm

Control system

Beijing Starfire control system

Support software

Drawing software--Auto CAD

Nesting software--Australia fastcam software

Cutting path file--artcam, type3 etc

Height control

arc voltage torch height controller

Drive system

Stepper motors

Transmission system

X,Y Taiwan Hiwin high-precision,zero clearance increased linear guide+ gear rack

Working Table-board

Steel blade saw tooth mesa

Input voltage

380V/3P/50HZ (220V with transformer)

Files transfer

USB interface

File format

G-code

Working mode

Non-contact arc

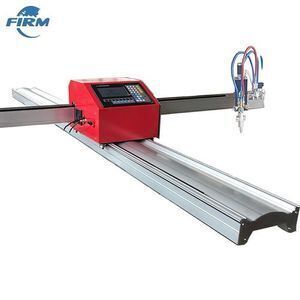

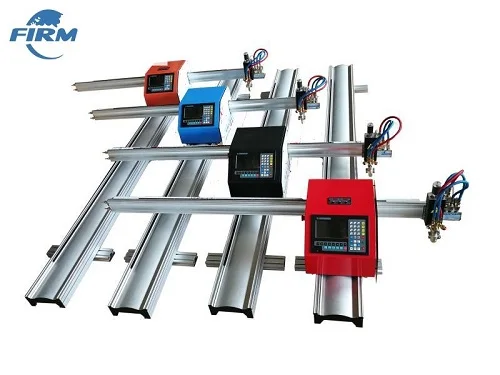

This kind of portable cnc plasma and flame cutting machine is specially developed for steel plate cutting,

2 kinds of cutting modes are provided:plasma cutting and flame cutting,working size can be customized

upon requirements,this portable cnc plasma and flame cutting machine is characterized of easy operation,

compact structure and low cost.It is suitable for large, medium and small mines, widely used in automobile,

shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.

Product Description

plasma torch cutting machine  application industry:

Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture,boat building, electrical accessories, board cutting.

plasma torch cutting machine  application materials:

steel, copper, iron, aluminum, galvanized sheet, titanium plates, etc.

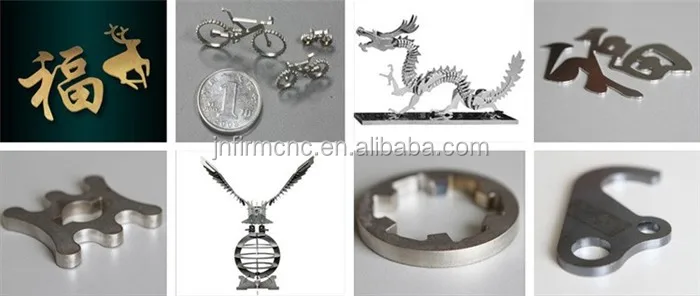

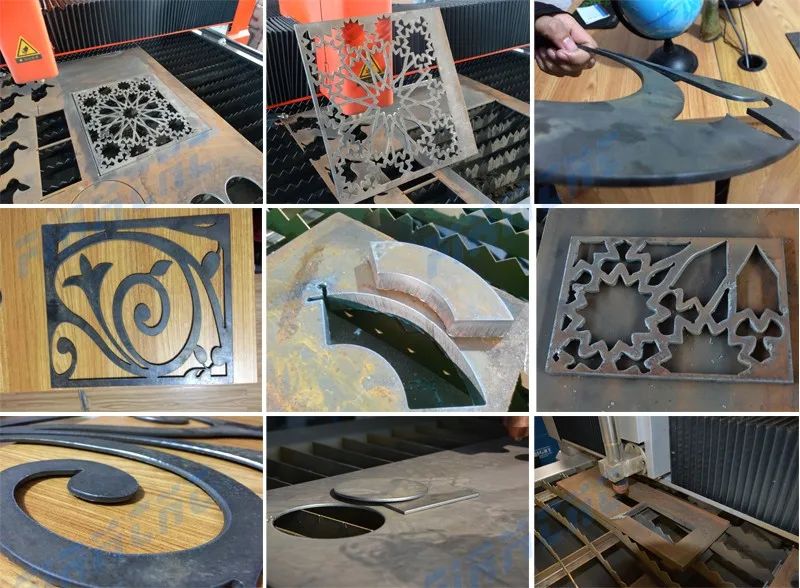

Samples:

Payment Terms

1) T/T. 30% as deposit, and the rest 70% is paid off before delivery

2) Trade assurance (Recommended) :

More Products

Company Information

Jinan Firmcnc Equipment Co.,Ltd, the professional cnc router manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.

Packaging & Shipping

Firstly we will make sure machine clean before package,

then add Stretchy film for the whole machine and spare parts for better protection,

finally we will make export standard strong plywood case package according to your needs.

Our Services

Before sale

Our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine

During production

We will send the production the machine pictures for customer in time , customer can know more the detailed machine parts

Before shipping

The machine parts will be installed and tested by our professional technician, send the test video according to customer’s processing materials for customer confirmations

After shipping

We will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

Teaching

The English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely

Our warranty



We guarantee the machine for  2~3 years,some machine parts ( quality problems ) can be free charge to replace it within warranty
FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our years of experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it,  we can talk by phone, video call ,email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use", and we provide engineers available to service machinery overseas.
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

Q5:What's the guarantee, in case the machine breaks down?
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q8:How's the payment?
We provide L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal payments for offline orders and online orders
Q9:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q10:How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading,
