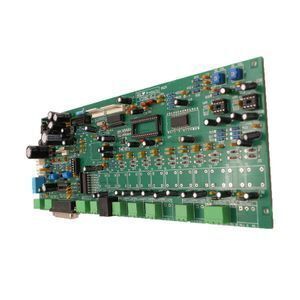

Shenzhen Hi-Tech Circuit Board Ballast Circuit Board Synthesizer Analog

Supplier: Shenzhen UC Industrial Limited
Region: Guangdong, China
Contact: Ms Lisa You
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Shenzhen;	Base Material:	FR4;
MOQ:	1 PC;	Min. Line Width:	0.1mnm;
Copper Thickness:	0.5/1/2/3/4 OZ;	Min. Hole Diameter:	0.20 MM;
Min. Line Spacing:	0.01mm;	Place of Origin:	Guangdong China;
Surface finish:	HASL lead free;	Product name:	Assembly for Circuit Board, AC110V 220V Infared Led Pcb Board;
Packaging Detail:	ESD bags,carton;	PCBA design:	base on your request;
OEM/ODM:	Support;	Board Thickness:	1.6mm;
Surface Finishing:	HASL Lead;	Brand Name:	UC;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;	Supply Ability:	10000 Piece/Pieces per Week;
Model Number:	Customized;	Certificate:	CE,ROHS,SGS etc;
Metrials:	FR-4,Aluminum,CEM-1 etc;	Silkscreen color:	White or on your request.;
Copper thickness:	0.25OZ~12OZ;	Color:	Green,Blue on your request;

Product Details

Custom-Made OEM Electronic PCBA Assembly Manufacturer

U-C Group Limited is Electronic PCB & PCBA manufacturer

Specifications:
1.Fast and one-stop service
2.Accept PCB design,clone and OEM/ODM service.
3.PCB+Components+PCBA
4.Quote within 24 hours with China and US office.

PCB Technical Capacity

Layers	Mass production: 2~58 layers / Pilot run: 64 layers
Max. Thickness	Mass production: 394mil (10mm) / Pilot run: 17.5mm
Material	FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc.
Min. Width/Spacing	Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Max. Copper Thickness	UL certificated: 6.0 OZ / Pilot run: 12OZ
Min. Hole Size	Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
Max. Panel Size	1150mm × 560mm
Inner layer: 3mil/3mil(HOZ), Outer layer: 4mil/4mil (1OZ)	Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Aspect Ratio	18:1
Surface Finish	UL certificated: 6.0 OZ / Pilot run: 12OZ
Special Process	Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

PCBA Technical Capacity

SMT	Position accuracy:20 um Components size:0.4×0.2mm(01005) -130×79mm,Flip-CHIP,QFP,BGA,POP Max. component height:25mm Max. PCB size:680×500mm Min. PCB size:no limited PCB thickness:0.3 to 6mm PCB weight:3KG
Wave-Solder	Max. PCB width:450mm Min. PCB width: no limited Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep Metal material:Copper , Aluminum Surface Finish:plating Au, plating sliver , plating Sn Air bladder rate:less than20%
Press-fit	Press range:0-50KN Max. PCB size:800X600mm
Testing	ICT,Probe flying,burn-in,function test,temperature cycling

PCB

LED Driver

PCBA

Our Service

Our Company

U-C Group Limited is an electronic PCB & PCBA manufacturer, founded in 2010.
With high quality, quick-turn assembly and competitive price.

With the qualified, experienced and dedicated team of professionals.
Meet the requirments from the customers--OEM and ODM services.
Introduce the new products to markets in the first time.
Offer a full suite of innovative design services.

Factory Show

Packing

Package:

Each products with ESD bags (or on your request).
Provide the hard outer packing carton, to protect the goods during transport.

Transport:
Sample: 2~3 weeks by DHL,UPS,FedEx etc.
Order: 3~4 weeks (depend on the quantity of order)

The best shipping cost we can get from professional shipping company if with long-term cooperation.

Payment

Paypal, Western Union,T/T, Alipay, Secure Payment in Alibaba.

FAQ

Q: Are you manufacturer?
A: Yes we are manufacturer.

Q: Do you provide samples?
A: Yes we can provide free samples, price and shipping cost open for negotiation.

Q: What certificates does this product have?
A: We have CE, FCC, ROHS certified.

Q: What about OEM and ODM?
A: We accept OEM and ODM orders, MOQ is open for discussion.

Q: What is depvery terms and time?
A: We use FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
