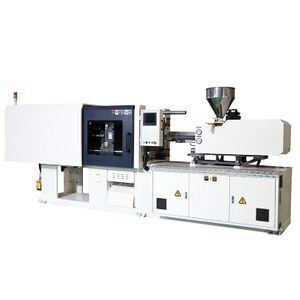

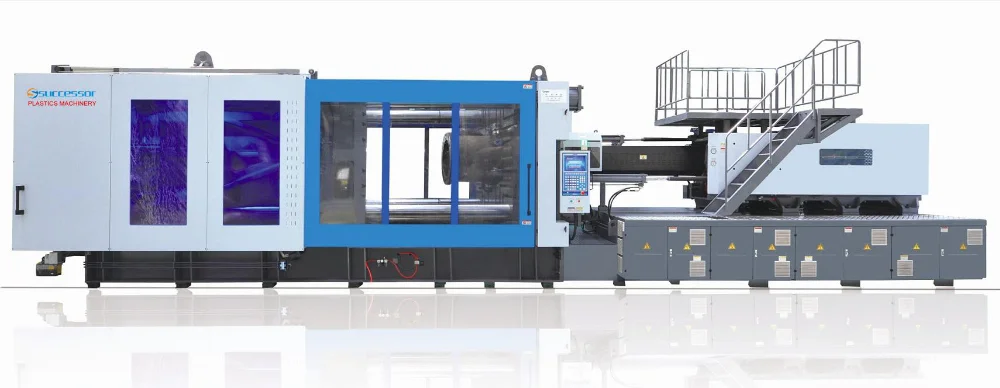

hot sale Plastic injection molding machine best price in alibaba

Product details
Port:Ningbo;Machine weight:5TON;
Opening Stroke:280-1500 mm;Voltage:380V/ 50Hz 3P+N+E (alterable);
Payment Terms:L/C,T/T;Brand Name:SUCCESSOR;
Power(W):50HZ;Delivery Detail:30-90 day;
Automatic:Yes;Itme:plastic injection making machine;
Warranty:12 Months;Plastic Type:Thermoplastic;
Condition:New;After-sales Service Provided:Engineers available to service machinery overseas;
Injection Rate:300g/s ~ 1200g/s;Clamping Force:500-30000KN;
Place of Origin:Zhejiang China;Machine dimension(L*W*H):5.5*1.5*2.15;
Model Number:HC, MZ, S;Packaging Detail:Wood Pallet;
Certification:SGS CE;Style:Horizontal;
Supply Ability:60 Set/Sets per Month injection molding machine price;Injection Weight:101g-30000g;
Type:Injection Molding;
Product Description

hot sale Plastic injection molding machine best price in alibaba

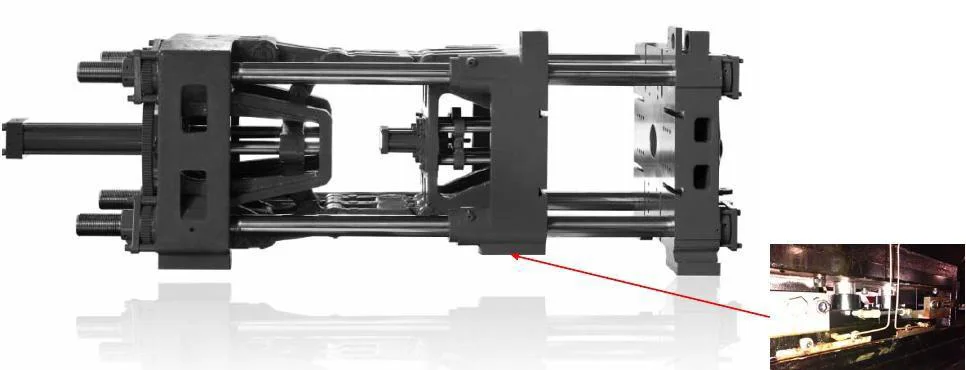

OUR IMM Advantages (Clamping Unit):

Five-point box-type mold platen design, strong and reliable.

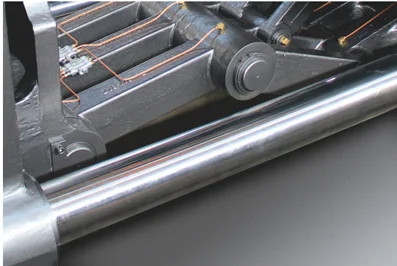

    Up-grade Tie-bar material and processing technology, with high frequency induction hardening processing      technology, working life much longer.

    Toggle pin adopt 42CrMo material, and different section adopts different heating processing technology,           ensure the best durability.
High quality copper bushes on tie bars guiding parts, working life long.

Push platen adopts the graphite-cooper bushes, long life, high speed & precision.

Thicken central of platen, effective for mold and machine life and product precision.

Enhanced strength for fixed platen, improve products stability and quality.

Gear type mold height adjustment, easy and precise.

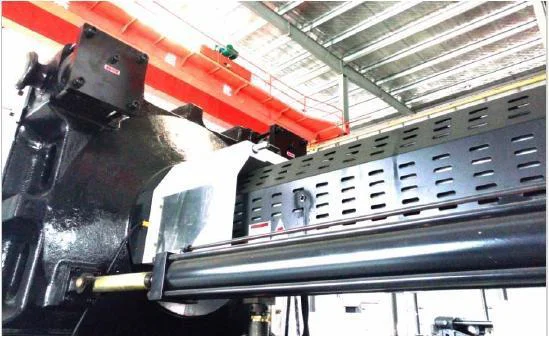

800T and above machine, the moveable platen support feet adopt hydraulic support device, ensure                  perfect  mold open and close stability, and extend mold using life.

High precision transducer to control position. The control precision is ±0.1mm.

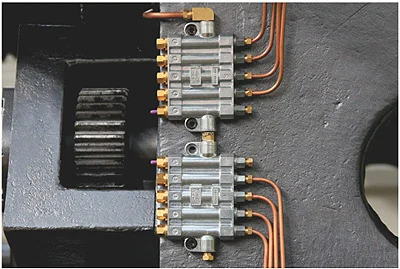

Automatic dosing lubrication system guarantees

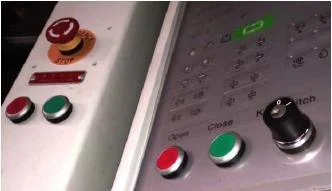

Mechanical and double electric interlock protection devices guarantee the safety of the operators. (Machine above 400T is also equipped with hydraulic safety device.)

Wear resistant hard chromium plated tie bar with high-tensile and high strength.


Mold platen adjustment. Hydraulic motor with centering gear mould adjusting system makes mould adjusting system to be better.

OUR IMM Advantages (Injection Unit):

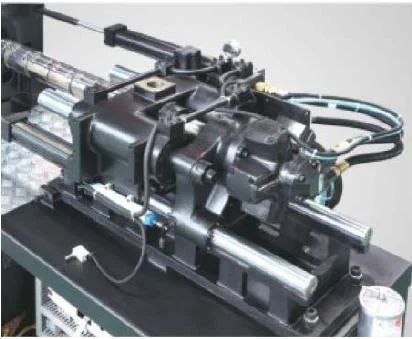

Double cylinder balance injection mechanism provides high-pressure injection, easy maintenance and saves space.

Full supported injection unit structure, avoid it up and down under high pressure injection, ensure high precise injection.

Imported high quality SKD61 material screw tip, check ring and thrust ring; a lot kinds of screws design can meet different plastic material and special processing injection molding necessary.

Injection guiding bushes adopt graphite-cooper material; ensure high repeatability precision and long life.

Centralized lubrication for injection unit, easy for machine maintenance.

Barrel PID controls the difference of temperature, less error.

Dual carriage cylinders ensure the best injection precision, and avoid injection unit move right and left.

For big machine (600T and above size), adopts the barrel support device, avoid barrel up and down, ensure no material leaking under high pressure injection.

OUR IMM Advantages (Hydraulic Unit):

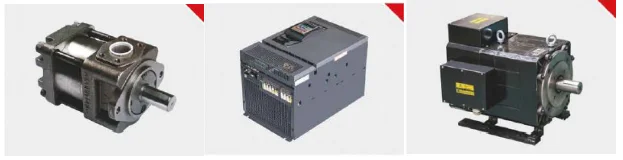

Standard equipped with precise and energy saving servo motor system, energy saving capacity can reach to 20%~80% than traditional injection machine.

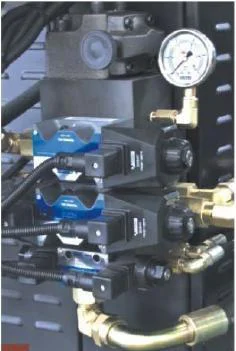

World famous brands hydraulic parts ensure machine’s reliability and fast response speed.

Adopt modular adaptor valve blocks, hydraulic circuit and functions easy for up-grade and maintenance.

Self-sealed magnetic suction filter, make your maintenance more convenient.

Logical distribution of pump oil suction port, oil tank oil outlet and hydraulic pipe fits, easy for maintenance.

Germany DIN standard hydraulic pipe fits with seal, ensure no leaking.

800T and above machine adopts the by-pass filter, ensure machine hydraulic oil under good condition, useful for machine working life.

800T and above machine adopts simultaneous ejector or core pull, improved the cycle time.

Machine lubrication adopts full-automatic type, easy and safe for machine working life.

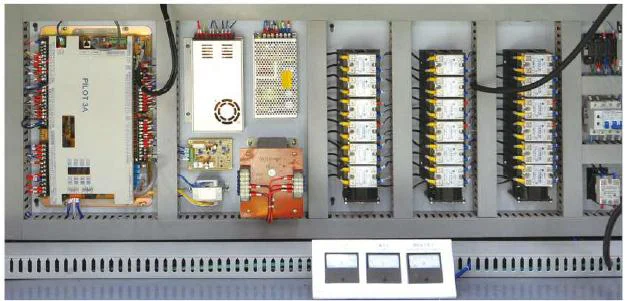

IMM Advantages (Electric Unit):

Hardware advantages:

1. Stable and reliable hardware

- Adopt world first-class hardware and production testing technology, ensure its stable and reliable quality, IO short circuit protection function, more safety for using.

- All of product passed CE certificate, stable hardware performance reduced your maintenance and service cost.

2. Precise measurement and control

- High precision analog input (14 bit), output (12 bit), excellent interference immunity, ensure the precision and stability of measurement and control.

- Analog output support voltage and current output way, and able to direct drive PQ valve and other external equipment, avoid the amplify converter’s tolerance, and can save cost.

3. Fast response

- Strong 400MHz, 32 bit CPU, 128MB SD RAM, high speed task cycle time 2ms.

- High performance CPU with logic task distribution system, ensure high efficient and high precise movement control, and smooth menu changing.

software advantages:

4. Excellent control software

Controlling software is very advanced and excellent, ensure machine movement stable and precise, we support the functions like: machine automatic adjustment, mold data automatic memory (easy Mold), and optimized temp PID control functions etc.

5. User-friendly menu design

New designed user-friendly operation menu, it will make you feel “machine operation is so easy”

6. Safe and reliable

all electric parts are from the world first-class suppliers, strong and weak current were separated distributed, main electric box, junction box adopt waterproof design, max ensured electric safety.

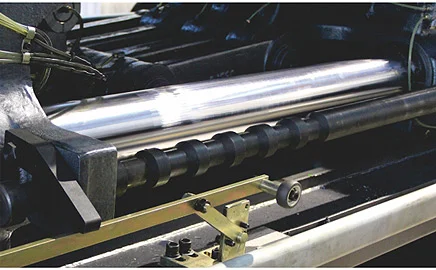

The excellent chrome, molybdenum aluminum alloy screw and barrel have undergone the nitriding process, applicable to various plastic materials.

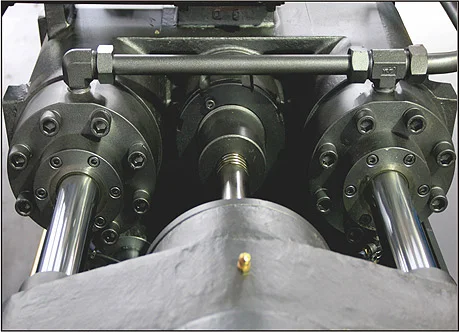

The injection cylinder is parallel or balance to both sides of the barrel, so as to ensure the non-deviation of the nozzle, good sealing and non-leakage of rubber. It is equipped with double guide pillar supporting system, which can inject under multi-pressure and at various speeds. It also uses one-stop hydraulic motor pre-injection device.


It used closed-loop temperature control system to ensure the accuracy and the reliability of the barrel temperature. It is also equipped with the functions of cold-proof start, alarming and parameter memory for the modeling, with password protection. Imported location ruler controls the injection and switch.

There is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servomotor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor does not work and consumes no energy. According to different products, servo energy-saving injection molding machines will save 20%-80% energy and bring you prominent economic benefit

High energy saving, In an ideal working state, compared with conventional injection molding machines, their energy saving can reach 20%-80%. Compared with conventional injection molding machines, repeatability is greatly improved due to servo motor close-loop control. Better molding stability, Quick response, Sensitive servomotor, the response time only 0.05 second. Sensitive servomotor, the response time only 0.05 second. Quiet& low noise, the machine runs with low noise, and will be much quieter in allow speed. Reliable holding pressure, Comparing with all electric injection-molding machine, the time for pressure holding will be much longer and steady. Oil temperature rise slowly.

Servomotor proportionally deliver hydraulic oil base on our needs, it is can prevent un-necessary heat being generated, even in some cases does not require, cooling. Excellent characteristics inheritance outstanding machine stability, being safety and dependability, strong mechanical parts, complete functional human-oriented system and long service life.

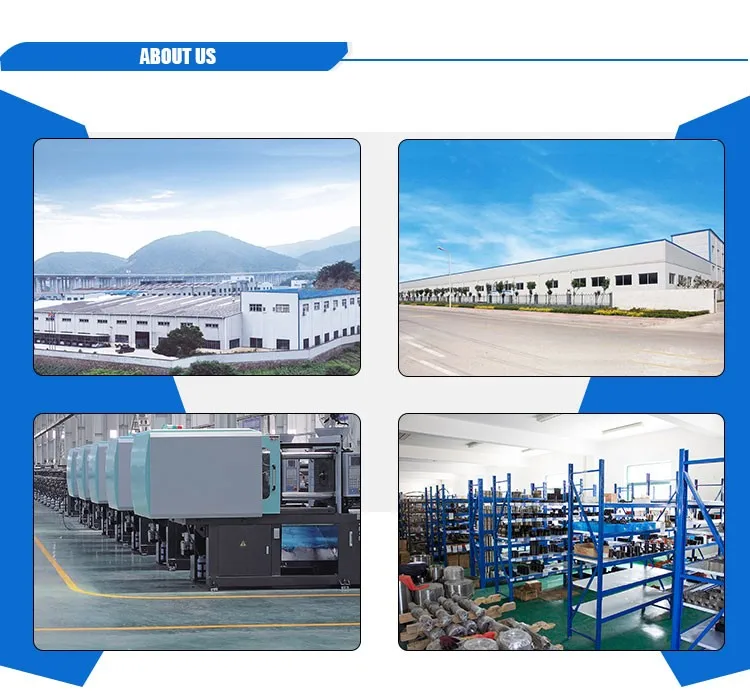

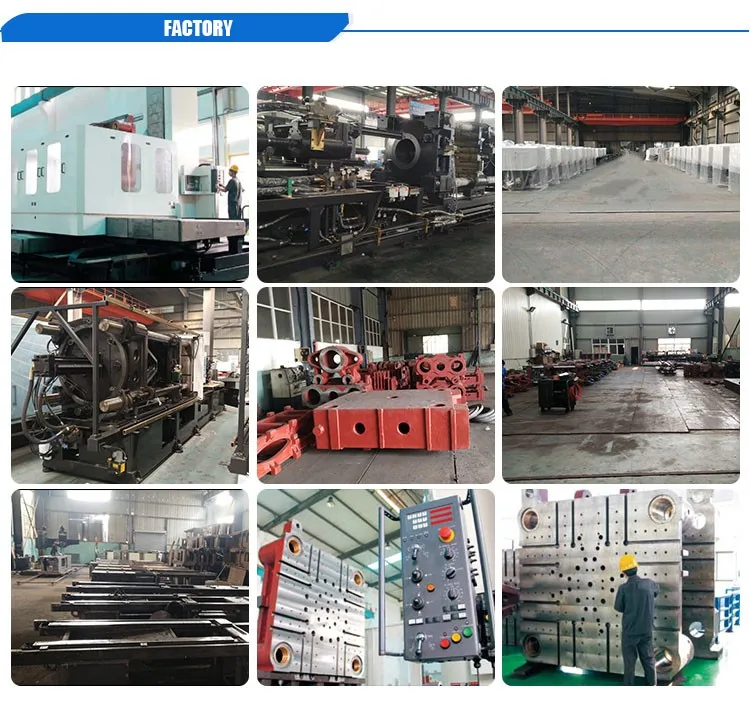

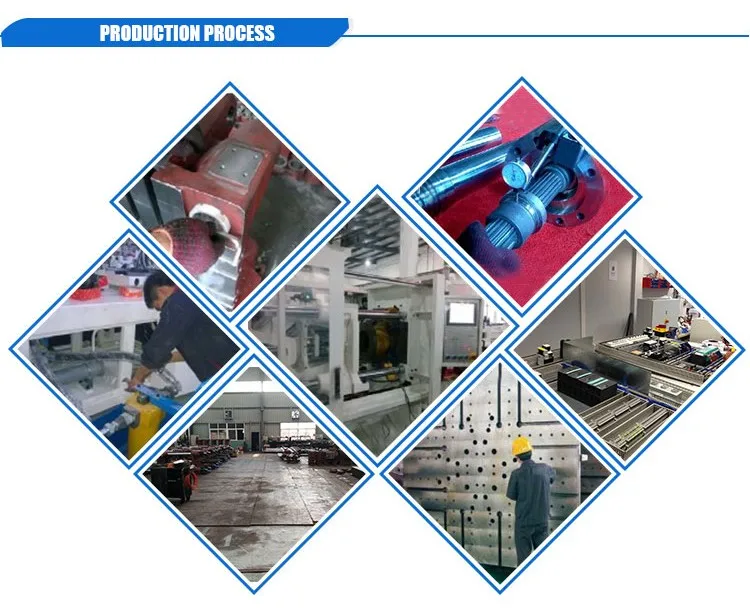

Company introduction
Packing & Delivery
FAQ

1.Q: How can we order your machines if we have interest in your machines?

A: That is quite easy. You send us an inquiry; we will give you quotation and delivery time. Once you confirm the order, we will send proforma invoice for down payment. After deposit payment, we will arrange production. Before delivery, we will send trial-running video to you. Moreover, after full payment, we will arrange shipment. Alternatively, you can inspect machines in our plant before payment done.

2.Q: I want to make some plastic products and need some machines, but I have no idea on how to choose the machine. Can you help us?

A: Yes, we are very willing to support you. We have experienced technical engineers who will guide you to choose suitable model machines. You may provide detailed information to us including products name, picture, sizes, weight, output, etc. You can email to us or leave your message to us.

3.Q: Is that possible for your company to send engineer to install machine for commissioning, even train our workers?

A: Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-7 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.

4.Q: If we buy your machines, is there any warranty?

A: Yes, definitely. Totally 1-year warranty after shipment for mechanical parts, hydraulic parts, electric components. We are responsible for broken parts within one year. We will supply those parts in freeway but the possible transportation cost should be paid by clients.
