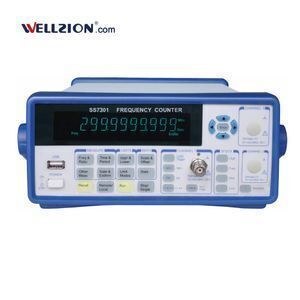

SS7301,0.001Hz to 200MHz Frequency Range 10 Digits Frequency Counter

Product details
Frequency:0.001Hz ~ 200 MHz;optional: 3GHz, 6.5GHz, 12.4GHz, 16GHz;Place of Origin:Fujian China;
Port:xiamen,shenzhen;Display Type:Digital Only;
Supply Ability:10000 Piece/Pieces per Month 10 Digits Frequency Counter;Website:www.wellzion.com;
Brand Name:OEM;Voltage:220V;
Operating Temperature:Normal;Payment Terms:T/T,Western Union;
Measuring Range:0.001Hz~200MHz;Name:10 Digits Frequency Counter;
Dimensions:375mm*105mm*235 mm;Packaging Detail:Accessories with gift box 10 Digits Frequency Counter;
Model Number:SS7301;Accuracy Class:10 digits /s;
Interface:Standard:USB, RS-232;Option:GPIB;

SS7301,0.001Hz~200MHz Frequency Range 10 Digits Frequency Counter

Features and Benefits :

  • High accuracy, the resolution is 10 digits /s.
  • Single resolution can reach 500ps.
  • The frequency measurement of CH1 can reach to 200MHz.
  • The maximum frequency’s measurement can reach to 16 GHz (optional)
  • 16-bit Microchip microcontroller is used and the speed of data processing is fast.
  • Large scale integrated circuit and CPLD and high reliability.
  • With the functions of limit and mathematics for frequency measurement
  • With the statistics functions of average, maximum value, minimum value, PPM, standard deviation and Allan Variance for frequency measurement
  • Standard interface is USB, GPIB and RS232.
  • High-stability crystal oscillator is optional.
  • Comfortable vision and clarity with VFD display

ModelSS7301
Measurement Resolution10 digits /s
FrequencyCH10.001Hz ~ 200 MHz
CH2optional: 3GHz, 6.5GHz
CH3optional: 3GHz, 6.5GHz, 12.4GHz, 16GHz
Period5ns ~1000s
InputDynamic Range50mVrms~1.0Vrms (Sine);  150mVP-P~4.5VP-P (Pulse)
Input Impedance1MΩ//35pF or 50Ω
Input Coupling ModeAC or DC
Input Trigger ModeRising edge or falling edge
Input Attenuationx1 or x10
Low-pass filter Ending frequency is around 100 kHz
Trigger level     -5.000V~+5.000V (Step 5mV)
Other functionsFrequency RatioSupport
Frequency Self-testSupport
Up/Low Limit"Limit" light on shows the result out of range,off shows within range
Statistics CalculationMulti-average,Max.,Min.,PPM,SD,Allan Variance
Time BaseNominal frequency10MHz
Time base inputFrequency :5MHz or 10MHz   Amplitude:≥1VP-P
Time base outputFrequency :10MHz Sine   Amplitude:≥2.5VP-P
Standard Time BaseAccuracy:5×10-8     Daily Aging:1×10-8/day
Optional Time BaseAccuracy:5×10-8   Daily Aging:5×10-10/day
Remote programmable interfaceUSB, RS232 are standard and GPIB is optional.
Dimensions375×105×235 mm
Weight3.7kg





+
OptionsFrequency RangeDynamic  Range
  3GHz100MHz~3GHz-27dBm~+19dBm Sine (Frequency: 100MHz~2.6GHz)
-15dBm~+19dBm Sine (Frequency: 2.6GHz~3GHz)
  6.5GHz200MHz~6.5GHz200MHz~400MHz         -15dBm~+13dBm
400MHz~6.5GHz         -20dBm ~+13dBm
 12.4GHz6.5GHz ~ 12.4GHz-18dBm ~  +10dBm
  16GHz6.5GHz ~ 16GHz6.5GHz~12.4GHz         -18dBm ~  +10dBm
12.4GHz~16GHz          -15dBm ~  +10dBm
