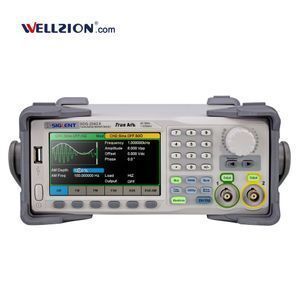

SDG2042X,40MHz Arbitrary Signal Generator

Supplier: Xiamen Wellzion Electronics Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Melissa Zhang
Price: $499.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Display:	4.3" touch screen display, 480 * 272;	Frequency range:	1μHz~40MHz;
Sample Rate:	1.2 GSa/s (4X Interpolation);	Packaging Detail:	packing box Arbitrary Signal Generator;
Website:	www.wellzion.com;	Sine Wave Distortion:	0.075%;
Brand Name:	Siglent;	Payment Terms:	T/T,Western Union;
DIMENSIONS:	260.3mm107.2mm295.7mm;	Waveform:	Sine, Square, Ramp, Pulse, Noise, Arbitrary;
WEIGHT:	3.43 kg;	Port:	xiamen,shenzhen;
Supply Ability:	5000 Piece/Pieces per Month Arbitrary Signal Generator;	Place of Origin:	Fujian China;
Model Number:	SDG2042X;	Standard Interface:	USB Host, USB Device, LAN;
Optional interface:	:GPIB (USB-GPIB adaptor);

SDG2042X,40MHz Arbitrary Signal Generator

Product Overview

SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution.
The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Function & Benefits

4.3” touch screen display for easier operation

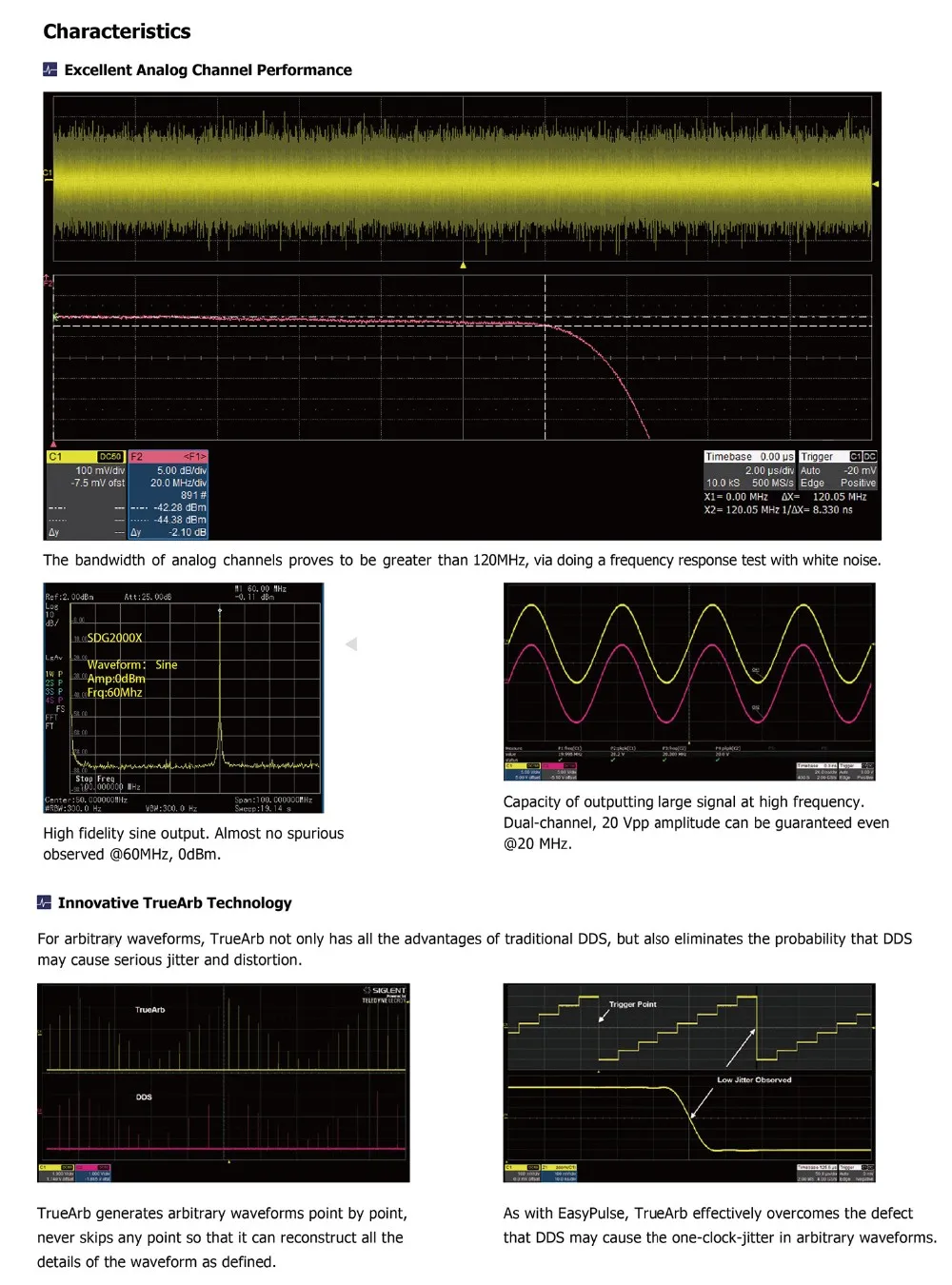

Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range

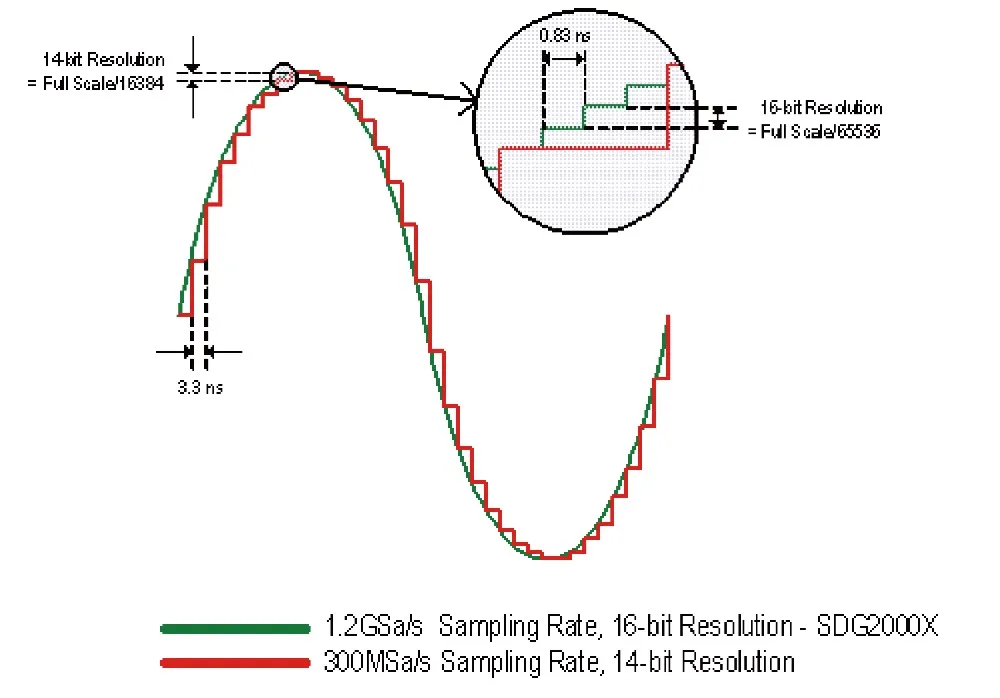

High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution.
Innovative TrueArb technology, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1μSa/s~75MSa/s

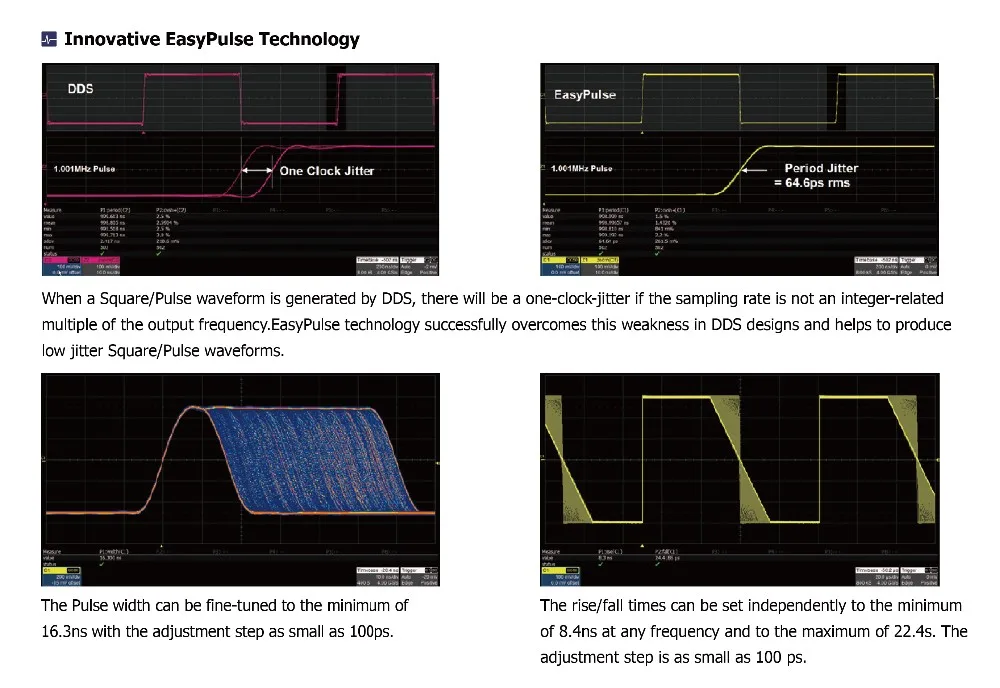

Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms
Modulation types: AM,DSB-AM,FM,PM,FSK,ASK and PWM
Standard interfaces: USB Host, USB Device(USBTMC), LAN(VXI-11)
Optional interface: GPIB

Specifications

Model	SDG2042X	SDG2082X	SDG2122X
Sine	1μHz~40MHz	1μHz~80MHz	1μHz~120MHz
Square	1μHz ~ 25MHz
Pulse	1μHz ~ 25MHz
Noise	120MHz(-3dB)
Ramp	1μHz~1MHz
Arbitrary	1μHz~20MHz
Waveform	Sine, Square, Ramp, Pulse, Noise, Arbitrary
Total harmonic distortion(Sine)	0.075%
Non-harmonic spurious	-70 dBc ≤50 MHz; -65 dBc >50 MHz
Waveform length	8Mpts
Sampling rate	1.2 GSa/s (4X Interpolation)
Vertical resolution	16 bit
Num. of channels	2
Amplitude	2mVpp~20 Vpp(≤20MHz, HiZ load); 2 mVpp~10 Vpp(>20MHz, HiZ load)
Vertical accuracy(10kHz sine)	±(1%+1mVpp)
Modulation	AM,FM,PM,FSK,ASK,PWM,DSB-AM
DC Offset	Support
Burst	Support
Sweep time	1ms~500s
Frequency Counter	100m~200MHz (DC coupling) ; 10~200MHz (AC coupling)
Reference Clock Input/Output	Support
Trigger Input/Output	Support
Sync Output	10MHz
Modulation Input	Single Channel:100mHz~200MHz
Interface	Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor)
Display	4.3” touch screen display, 480 * 272
Dimensions(WHD)	260.3mm107.2mm295.7mm
Net weight	3.43 kg
Gross weight	4.42 kg
