SSA3021X 2.1GHz Portable Spectrum Analyzer

Supplier: Xiamen Wellzion Electronics Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Melissa Zhang
Price: $1353.75 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Fujian China;	Resolution Bandwidth:	10Hz~1MHz, in 1-3-10 sequence;
Single package size:	48X28X30 cm;	Selling Units:	Single item;
Frequency range:	9kHz~2.1 GHz;	Brand Name:	SIGLENT;
Website:	www.wellzion.com;	Model Number:	SSA3021X;
Single gross weight:	8 KG;	Package Type:	gift box portable spectrum analyzer;
Product Name:	portable spectrum analyzer;

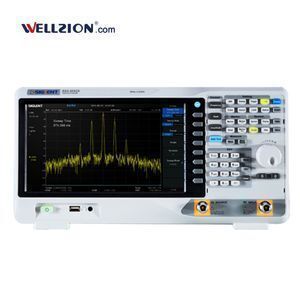

SSA3021X 2.1GHz portable spectrum analyzer

Function & Benefits

10.1 lnch WVGA(1024x600)Display
Frequency Range from 9 kHz up to 2.1 GHz
-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 0.7 dB
10 Hz Minimum Resolution Bandwidth (RBW)

Specifications

Model		SSA3021X
Frequency Characteristic
Frequency range		9kHz~2.1 GHz
Frequency resolution		1Hz
Frequency span range		0 Hz, 100 Hz to 2.1 GHz
Frequency span accuracy		± Span / (number of sweep points - 1)
Frequency aging rate		<0.5 ppm/first year, 3.0 ppm/20 years
Temperature stability		<1 ppm/year,0°C~50°C
Filter Bandwidth(RBW)		10Hz~1MHz, in 1-3-10 sequence
Selectivity(60dB:3dB)		< 4.8:1, Gaussian-like
RBW uncertainty		<5%
Video bandwidth (VBW)		1 Hz ~3 MHz, in 1-3-10 sequence
VBW uncertainty		<5%
Amplitude Characteristic
Amplitude & Level	Measurement range	DANL to +10dBm, 100kHz~1MHz,preamplifier off DANL to +20dBm, 1MHz~3.2GHz,preamplifier off
	Reference level	-100 dBm to +30 dBm, 1 dB steps
	Preamplifier	20dB(nom.), 9kHz~3.2GHz
	Input attenuation	0~51 dB, 1 dB steps
	Max. input DC voltage	±50 V_DC
	Max. series RF power	33 dBm, 3 minutes, input attenuation >20 dB
SSB Phase Noise	10 kHz offset, <-98 dBc/Hz (typ.)	<-95 dBc/Hz
	100 kHz offset <-97 dBc/Hz (typ.)	<-96 dBc/Hz
	1 MHz offset <-117 dBc/Hz (typ.)	<-115 dBc/Hz
Spurious response	TOI	fc≥50 MHz, two -20 dBm tones at input mixer spaced by 100 kHz, attenuation = 0 dB, preamp off, 20°C~30°C +10dBm
	SHI	fc≥50 MHz, mixer level -30dBm, attenuation = 0dB, preamp off, 20°C~30°C; -65 dBc
	Input related spurious	Mixer level = -30 dBm, 20°C~30°C; <-65 dBc
	Residual response	input terminated = 50 Ω,attenuation = 0 dB, 20°C~30°C; <-90 dBm,typ.
Sweep and Trigger	Sweep time	1 ms to 3000 s, Span ≥ 100 Hz 1 μs to 3000 s, Span = 0 Hz, RBW ≥ 100 kHz
	Sweep accuracy	Accuracy, Speed
	Sweep mode	Sweep, FFT
	Sweep rule	Single, Continuous
	Trigger source	Free, Video, External
	External trigger	5V TTL level, rising edge/falling edge
Input/Output	Front panel RF input	50 Ω,N-female
	Front panel TG output	50 Ω,N-female
	10 MHz reference output	10 MHz, >0 dBm, 50 Ω, BNC-female
	10 MHz reference input	10 MHz, -5dBm~+10dBm, 50 Ω, BNC-female
	External Trigger input	1 kΩ, 5V TTL , BNC-female
	USB Host	USB-A 2.0 +
	USB Device	USB-B 2.0
	LAN	LAN (VXI11), 10/100 Base, RJ-45
General Specification
Display		10.1 inch TFT LCD, 1024×600(waveform area 751×501)
Dimensions		393 mm×207 mm×116.5 mm (W×H×D)
Weight		Contain tracking generator 4.60 kg (10.1 lb)

Frequency Characteristic

Frequency range 9kHz~2.1 GHz
Frequency resolution 1Hz
Frequency span range 0 Hz, 100 Hz to 2.1 GHz
Frequency span accuracy ± Span / (number of sweep points - 1)
Frequency aging rate <0.5 ppm/first year, 3.0 ppm/20 years
Temperature stability <1 ppm/year,0°C~50°C
Filter Bandwidth(RBW) 10Hz~1MHz, in 1-3-10 sequence
Selectivity(60dB:3dB) < 4.8:1, Gaussian-like
RBW uncertainty <5%
Video bandwidth (VBW) 1 Hz ~3 MHz, in 1-3-10 sequence
VBW uncertainty <5%

Special Function

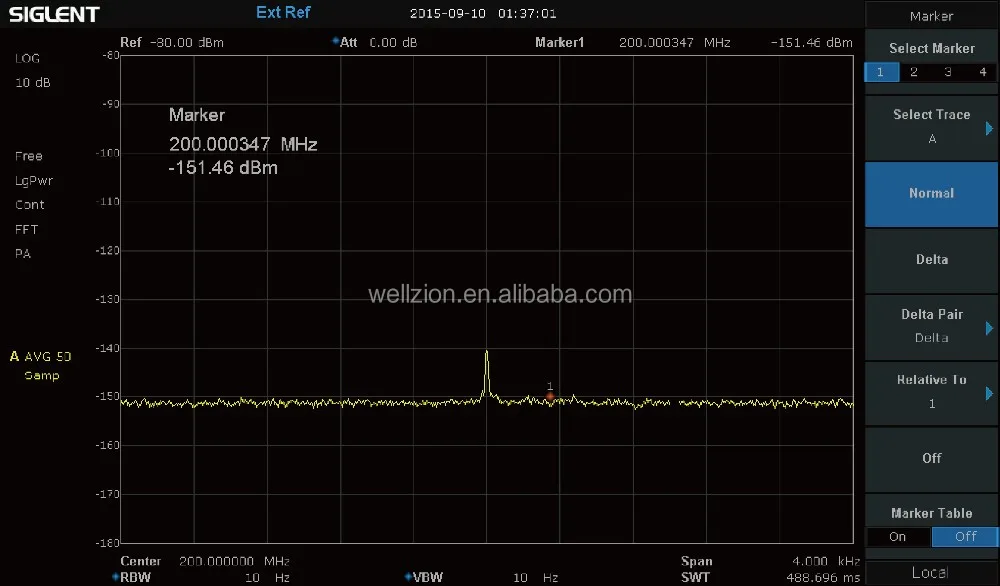

10 Hz Minimum Resolution Bandwidth (RBW) -151 dBm Displayed Average Noise Level (RBW=10 Hz)

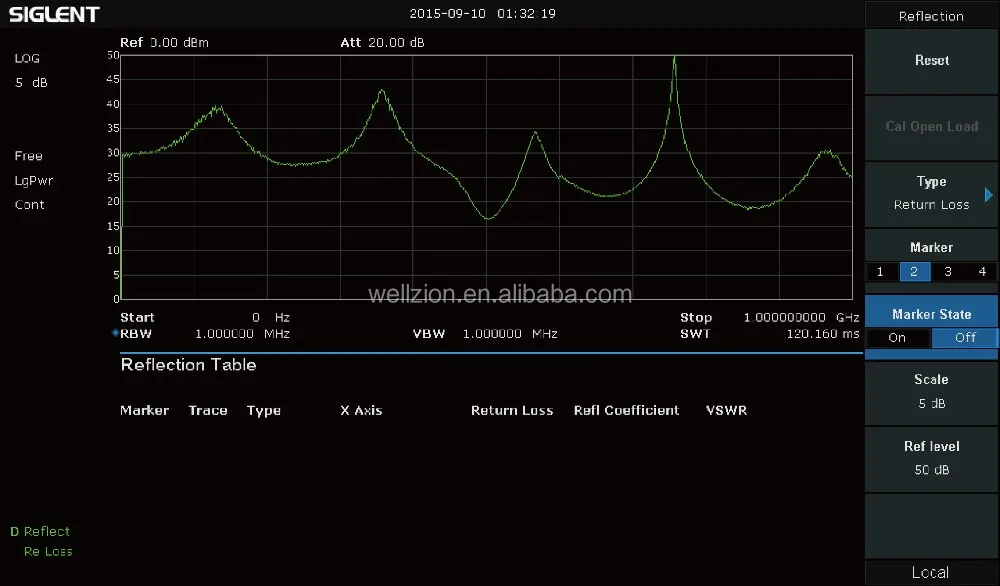

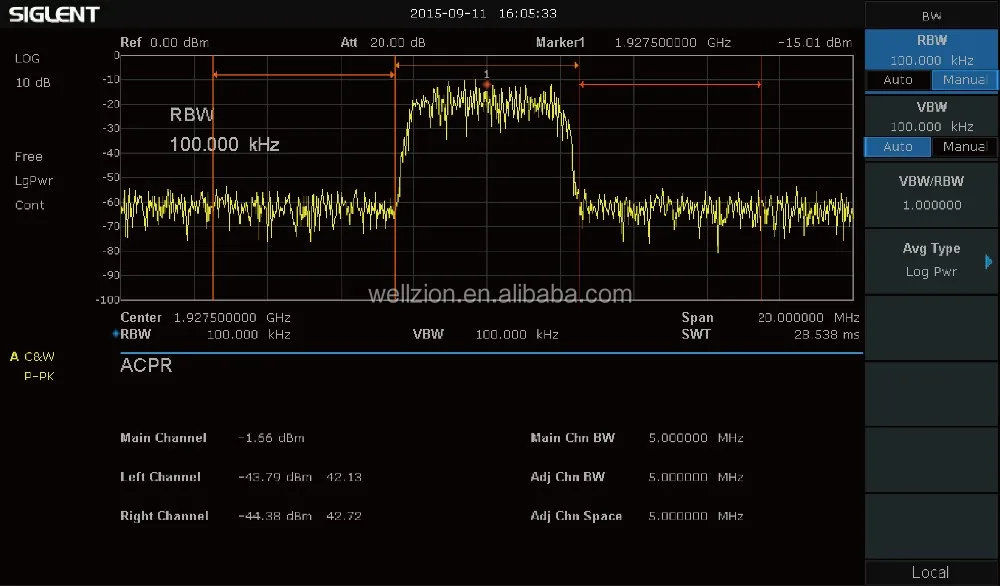

Advanced power measurement, calculate the ACPR Reflection measurement, acquire characteristic curve of the parameters Return Loss

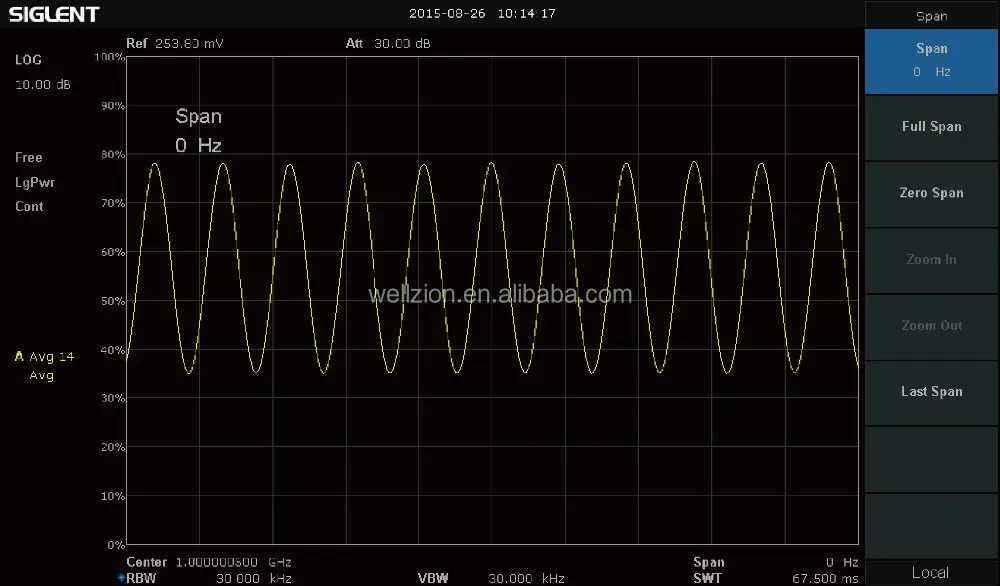

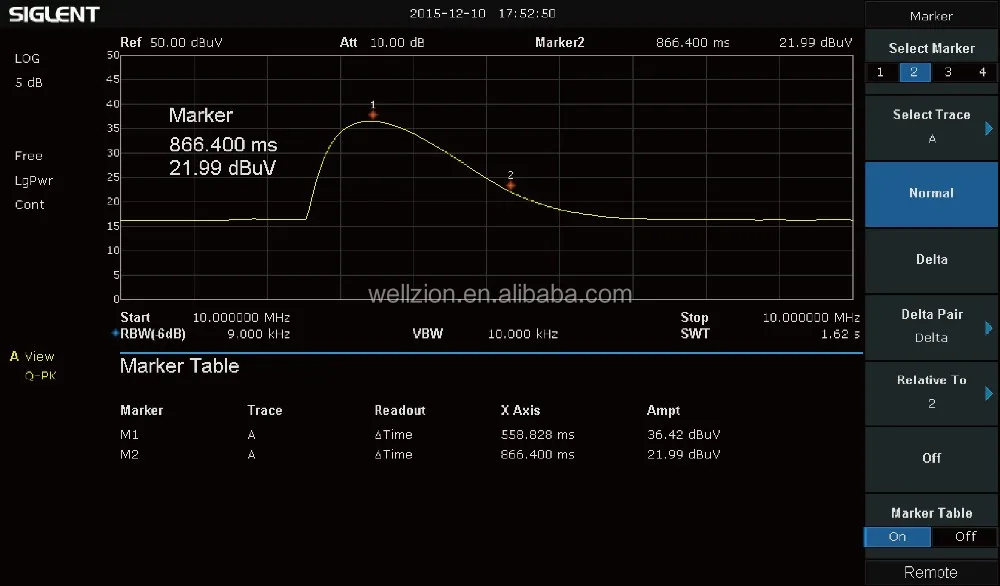

Demodulation at the zero span EMI filter, Quasi-Peak detector with limit template following CISPR 16

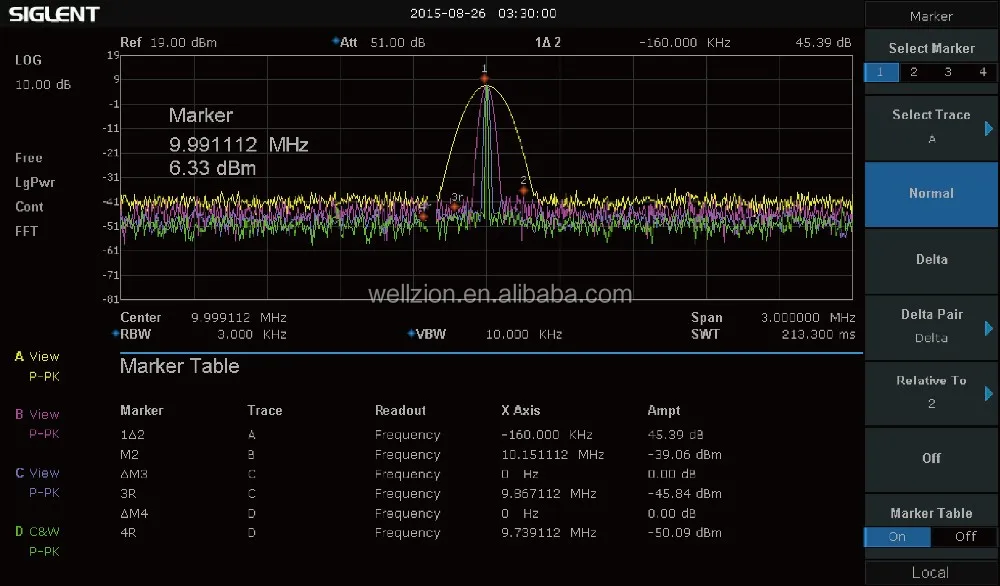

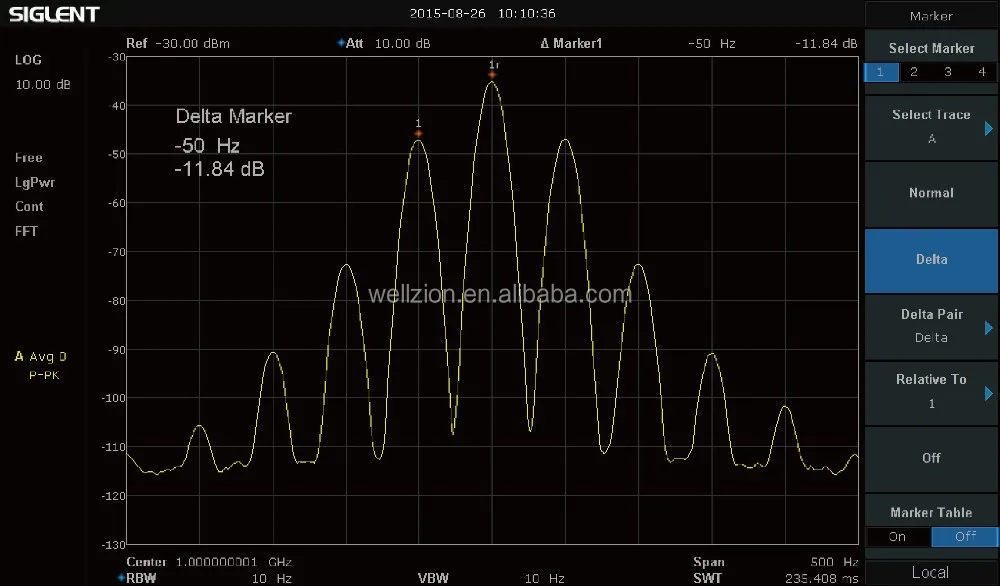

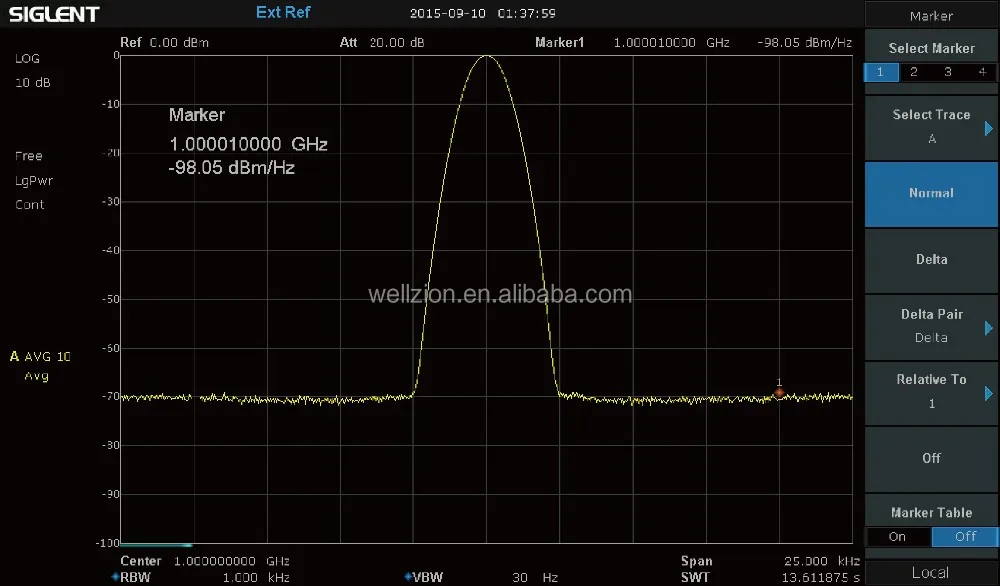

Phase noise -98 dBc/Hz@1 GHz, offset 10 kHz Support four traces and cursors independently
