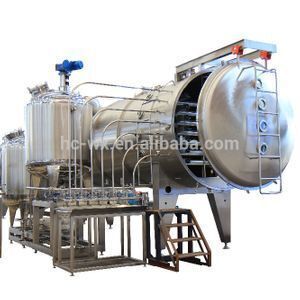

  gagfsdf       Chinese manufacturer stevia sugar processing machinery for plants

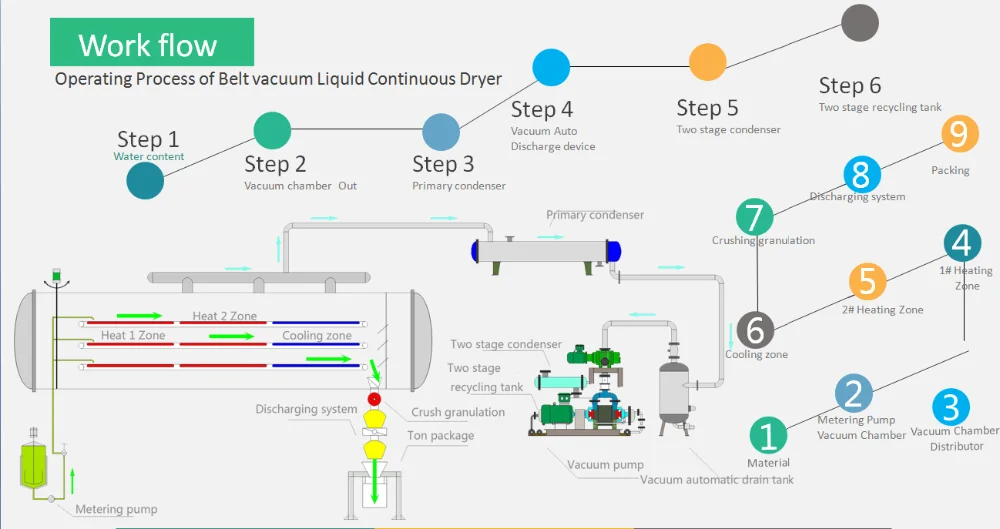

Operating principle

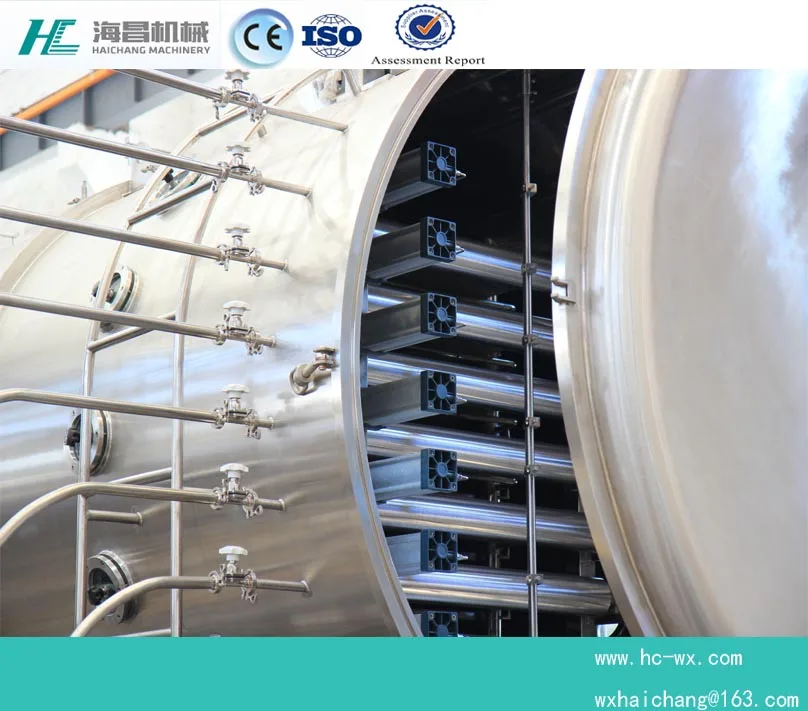

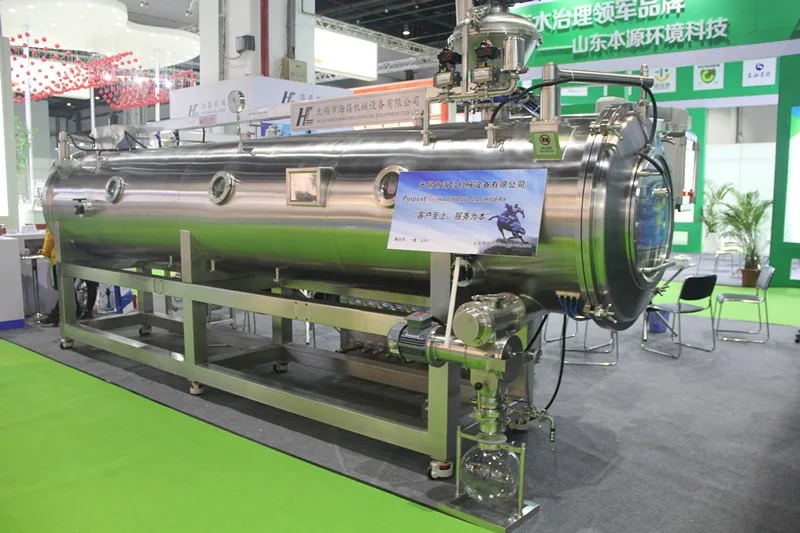

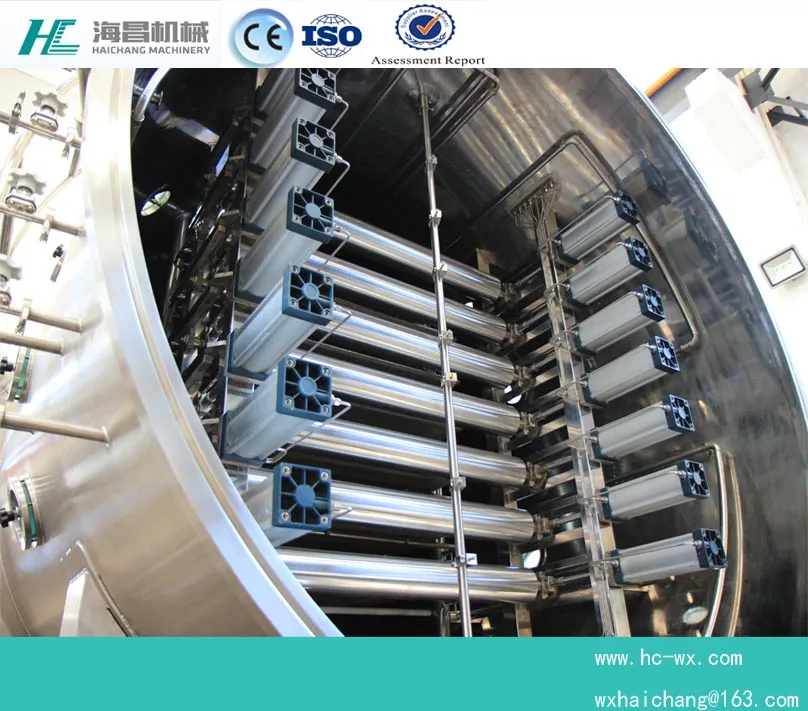

This equipment is a vacuum chamber where a material conveying guide belt(Teflon PTFE) is fixed in it.Materials are distributed continuously on the guide belt after they pass through the vacuum continuous distributor on the top of the equipment. Based on material propertise,the material distribution thickness is adjustable (3mm~30mm).The guide belt keeps conveying slowly to the other end,with the heating zone under it to provide drying heat for the belt,so the materials on the belt evaporate water during convoying constantly and the vapor is quickly removed by vacuum. The materials will automatically fall on the secondlayer guide belt when they reach the end of the equipment,and they will repeat the operation again and again until they meet the drying requirements. Multilayered structure can be designed according to materical process requirements. With(40.C_180.C) temperature for each layer and adjustable running speed, this equipment is suitable for drying curve required by all kinds of materials and realizes mild drying. Finally the mater ials fall into the conveying chute at the discharging end,conveyed to the exit hole by the screw conveyor,and then delivered to the material_receiving barrel after grinding and sieving by the pulverator with adjustable mesh (20_200). The drying is finished after continuous discharging.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

DATA

Main Features

1.It meets the GMP hygienic requirements to realize drying by finishing continuous charging,continuous discharging and grinding under vacuum condition;

2.It can realize controllable drying temperature(40℃-80℃) ,unchanged thermal sensitivity of materials,recoverability of 95%solvent as to solvent materials and vacuum drying of oxidizing materials without oxidation;

3.It can finish drying,grinding,and granulating under vacuum condition;

4.Continuous discharging starts after 20--60minutes,with product yield up to 99%;

5.Highly sticky materials will not stick to the belt(which is Teflon PTFE),and crystal materials will not damage the crystal form after drying;

6.The moisture content of the dried product can optimize such major parameters as temperature,vacuum degree and speed of the drying process,enabling the utilization of the equipment to achieve the best economic benefit;

7.It adopts PLC automatic programming control system to realize high-degree automation and greatly reduce labor operating costs;

8.Its operating cost is only one third of or even lower than of its similar drying equipment;

9.CIP automatic online cleaning system with various cleaning methods can clean the equipment completely and quickly after drying and meet the GMP requirements;

10. It is suitable for large-scale,continuous and automatic operation.

Youtube vedio:https://youtu.be/LsBQfJubEBg

Machine Parts

Name: Belt


Original: Greece

Machine Parts

Name: PLC

Original: Germany

Machine Parts

Name: Motor

Original: Germany

Machine Parts

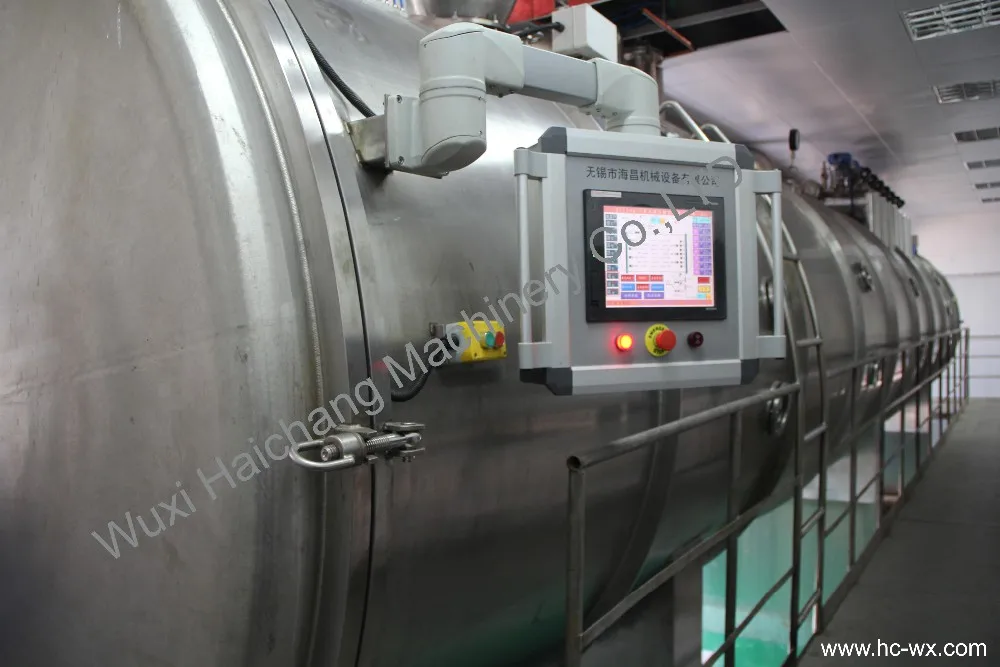

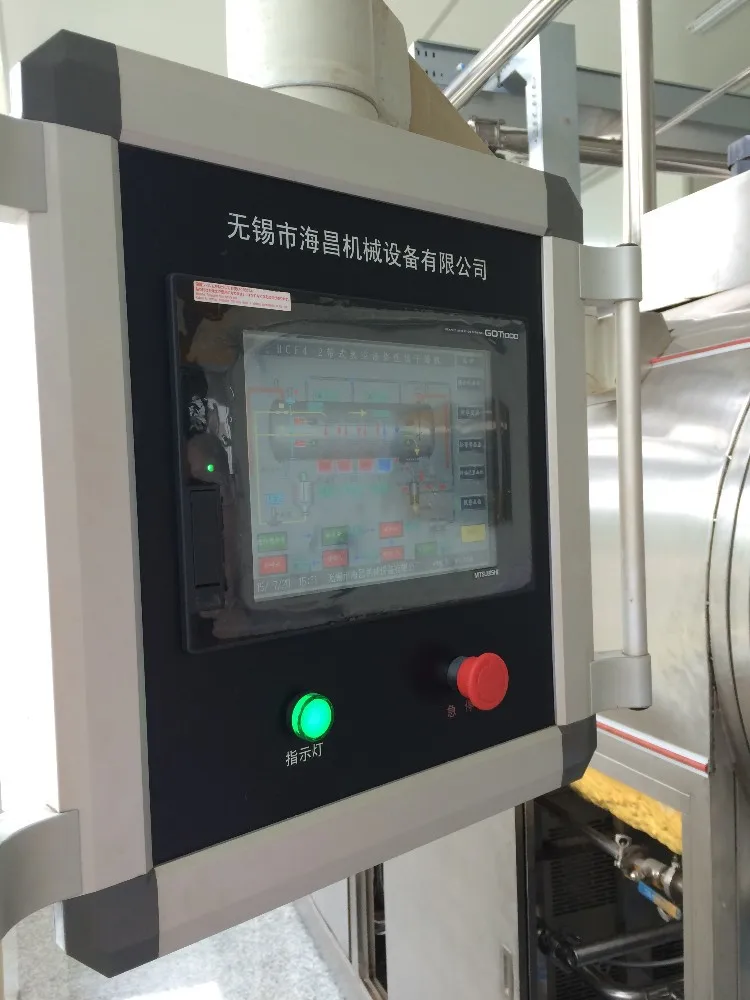

Name: Human interface

Original: Janpanese

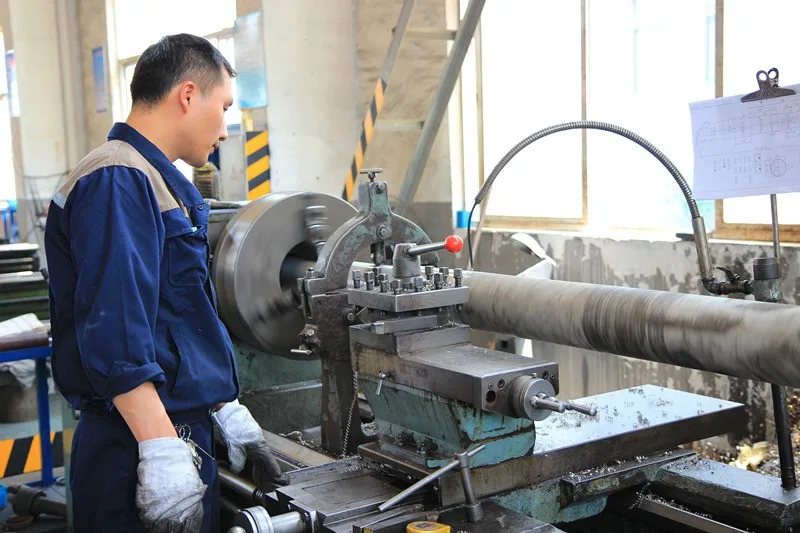

Our Team

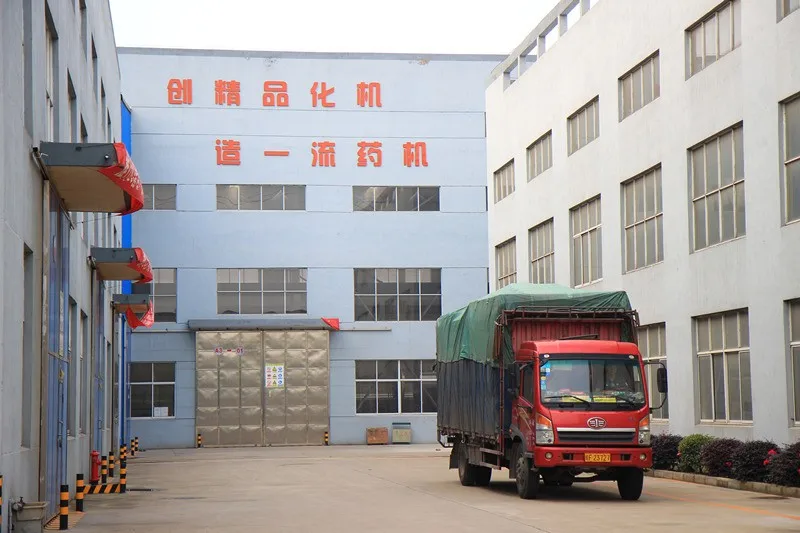

Wuxi Haichang Machinery Co.,Ltd. is an enterprise specialized in manufacturing drying,crystallizing and granulating &tableting equipment for such industries as pharmacy,food,chemical engineering

and and biochemistry.Its floor afea is 15000 square meters with 12000 square meters building

area and 38 million Yuan investment in total.

Since its foudation,it has been always producing machines and equiment of high quality and in line

with various national industy standards by taking advantage of advanced production equipment,

strong technical force,sound test method,strict management system and good business reputation.

1.Are you a manufacturer ,trading company or a third party?

We are a manufacturer ,we founded in 2001.The floor area of our factory is 15000 square meters with 12000 square meters building area and 38 million Yuan investment in total.

2. How long will you provide the warranty period?

Our factory Provide clients one-year warranty to make sure the machine work well.

3. what kind of after-sales service do you provide?

Our professional technicians will travel to carry out onsite training and assist with instanllation .

4.About Delivery

Usually we send the shipments in FOB Shanghai iterm.

However, the CIF are also acceptable which decided by the clients.

5.About period of production

Usually it takes about 90-270 days after we received your PO and prepayment. Different type of machine has different time .

However, it would depend on our production line schedule and the complexity of the item.

6.About Payment Term

By T/T in Advance, or Irrevocable L/C at Sight.

Equipments can be customized, leave us an inquiry to know more details about price, packing and shipping.
