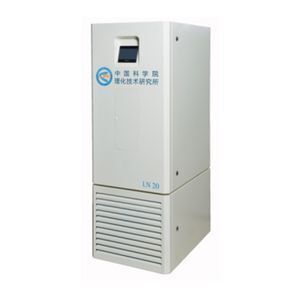

20L/h Small Liquid Nitrogen Generator
-
Supplier: Hangzhou Chenrui Air Separator Installation Manufacture Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Daisy Fang -
Price: $20000.00 /set -
Min. Order: 1 set
| Supply Ability: | 50 Set/Sets per Quarter; | After-sales Service Provided: | Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| operating period: | 24 month; | start-up time: | ~4 hours; |
| Brand Name: | CHENRUI; | Dimension(L*W*H): | 8000*2860*2500mm; |
| Warranty: | One Year; | Voltage: | 220v/380v/50-60hz; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | ISO9001:2008; |
| Condition: | New; | Place of Origin: | Zhejiang China; |
| Life time: | ≥20 years; | Production Rate: | 100%; |
| HS CODE: | 8419609090; | Weight: | 1000kg; |
| Packaging Detail: | standard export packing; | Capacity: | 3-50L/h; |
| MOQ: | 1set; | Heating thawing time: | ~3 hours; |
| Payment Terms: | L/C,T/T; | Port: | SHANGHAI OR NINGBO; |
| Usage: | Nitrogen; | Purity: | 99.9%-99.999%; |
| Product: | Liquid Nitrogen Psa Nitrogen Generator; |
1. Features of liquid nitrogen generator:
1. Capacity from 3L/h to 50L/h. Meet all your requirements.
2. Low power consumption.
3. Automatic operate.
4. Small floor space.
5. Durable. Can work 24 hours per day.
6. One station of liquid nitrogen generator manufacture. ( we supply liquid nitrogen generator, vacuum tube and liquid nitrogen dewar.
| Model | LN20 | LN50 | LN100 | LN240 | LN500 | LN1000 |
| capacity (L/day) | 20 | 50 | 100 | 240 | 500 | 1000 |
| Power (KW) | 1.2 | 3 | 7 | 11 | 25 | 50 |
| Nitrogen gas capacity (Nm3/h) | 1.5 | 3 | 6 | 12 | 25 | 50 |
| Nitorgen gas pressure (Mpa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
| Power (AC/V) | 220 | 380 | 380 | 380 | 380 | 380 |
| Cooler | air cooler | air/water cooler | air/water cooler | water cooler | waTer cooler | water cooler |
2. Working principle
Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180℃) for Nitrogen Liquefier from TIPC, CAS. MRJT, a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants through optimizing various refrigerants with different boiling points with a good match along with their respective efficient refrigeration temperature ranges, is an efficient refrigerator for the temperature range from -40 to -196℃. The feature of this product is as following: the available mature commercial compressors and heat exchanges, high liquefaction efficiency, high reliability, no maintenance and long life.
a.fish boat,hotel and food processing plant: food quick-freezing,Beverage processing
b.hospital and beauty salon:Liquid nitrogen refrigerating apparatus,Vaccine preservation
c.laboratory: transducer calibration,Specimen preservation
d.farm: Embryo freezing instrument,freezing spermatozoon
1.Are you manufacture or trading comany?
We are professional factory in oxygen generator, nitrogen generator, liquid nitrogen generator and air separator generator field for about 20 years.
Our factory located in Hangzhou city, covering an area of 20,000 square meters.
2. Which part will you provide?

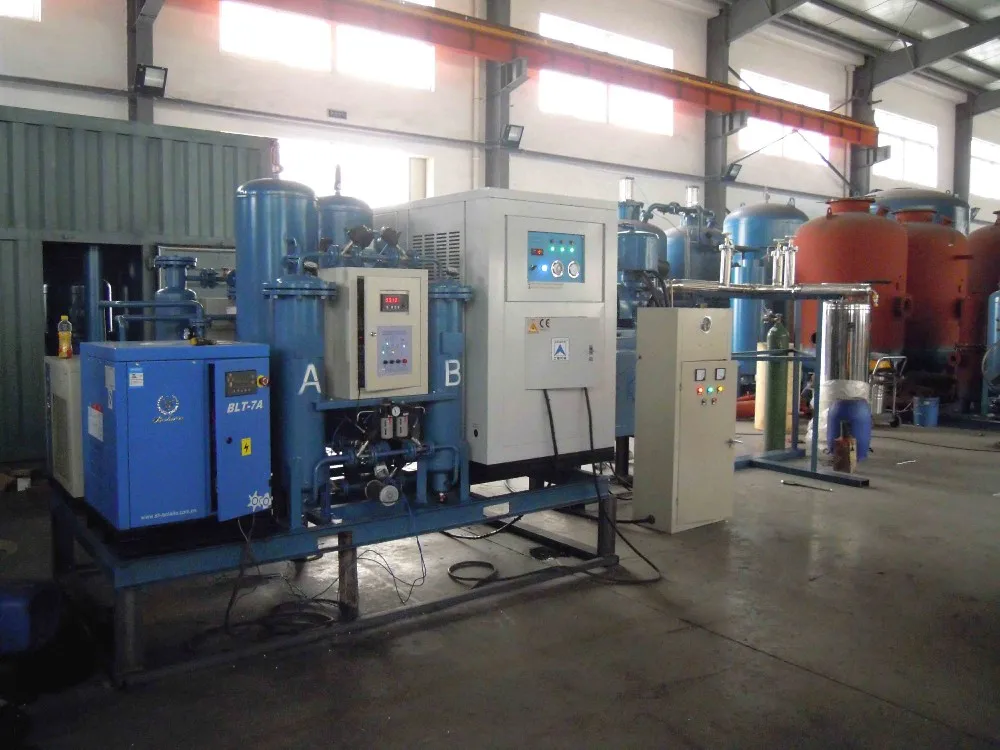

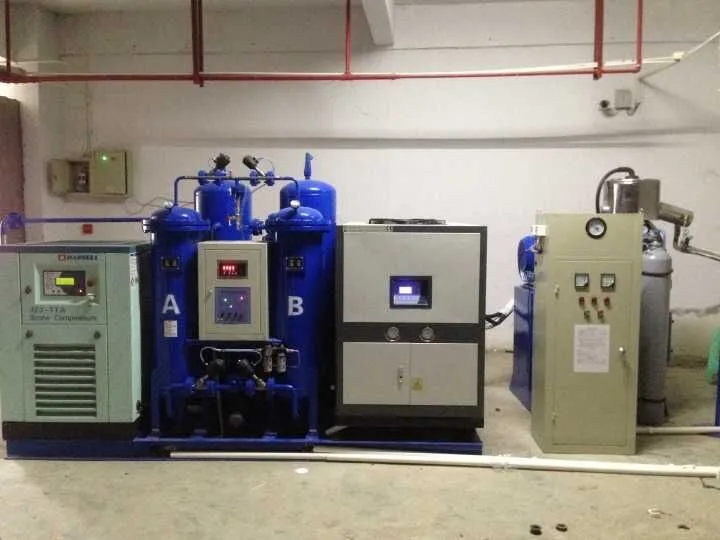

We will provide whole set of the generator, including air compressor, air purification system, buffer tank, PSA system. If required we will also provide pressurization system and filling system.
3. What certifications do you have?
We have ISO 9001:2008, ISO14001:2015, OHSAS18001: 2007 and many patent certifications.
4. How could I get a quotation?
It required to know the capacity, purity and pressure of the generator.
Different country, different voltages. So it's better noted what voltage of 3 phase and 1 phase when inquire ?
In China, power supply is 380V(3phase)/220V(1 phase) /50Hz.
If you have any queation, please do not hesitate to contact us by following information :
-
