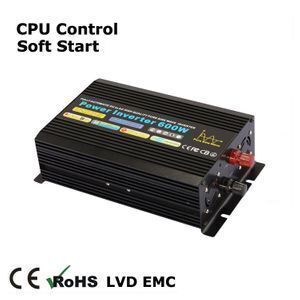

CPU soft start Pure sine wave power inverter dc 12v 24v 48v to ac 110v 220v 230v 240v 300watts to 3000watts for choice

Supplier: Yiwu Carelink Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Albert Hou
Price: $30.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	DC/AC Inverters;	Certified:	CE and ROSH;
Input Voltage:	12V-24V-48V;	Size:	335205125mm;
Warrently:	24 Month;	Protection:	OK;
USB:	Yes;	Plug type:	EU.UK.US etc;
Output Type:	Single;	Output Current:	2.77A;
Power range:	300W to 3000W;	Output Frequency:	50Hz or 60Hz;
OEM/ODM:	Acceptable;	Packaging Detail:	Box and Standard carton;
Weight:	2.540kgs;	Model Number:	HDS-600W;
Wave form:	Pure Sine Wave;	Rated Power:	600Watts;
Output Voltage:	110V 120V 230V 240V;	Shell material:	Aluminium alloy;
Brand Name:	ZYUMMY / Neutral;	Place of Origin:	Zhejiang China;

You May Also Like:

Yiwu Made quality Pure sine wave power inverter dc 12v 24v 48v to ac 220v 230v 240v 600watts to 3000watts for choice

• Technical Data
Rated Output Power	600Watts
Peak Output Power	1200Watts
DC Input Voltage	12V	24V	48V
AC Output Voltage	100V / 110V / 120V / 220V / 230V / 240V
AC Output Frequency	50Hz / 60Hz
AC Output Wave Form	Pure Sine Wave
Waveform distortion	THD<3%
AC Output Plug Option:	Universal / GM / UK / USA /JAP/ RU…
Converting Max. Efficiency	>90%	>90%	>90%
DC Input Voltage Range	10V~15V	20V~30V	40V~60V
Input Low-Voltage Alarm	10.5V±0.5V	20.5V±0.5V	41V±0.5V
Under-voltage Cut-Off Voltage	9.5V±0.5V	19.5V±0.5V	40V±0.5V
Input Over-voltage Cut-Off Voltage	15V±0.5V	30V±0.5V	60V±0.5V
Over loaded protection:	Yes	Yes	Yes
Short-circuit protection:	Yes	Yes	Yes
Over Temperature Protection:	Yes	Yes	Yes
Built-in Cooling Fan:	Yes	Yes	Yes
Cables Included:	Yes	Yes	Yes
2 Year Warranty Parts and Labor	Yes	Yes	Yes
No Load Current	<0.33A	<0.32A	<0.31A
Working environment	Operation Temperature : -20°C~50°C
	Storage Temperature : -40°C~85°C
	Considerable air humidity should be less than 85%
	No electrical conductivity,corrosion-free gas
	No shock and vibration in the working place
Weight ( Kg)	2.545 kgs
Dimensions (W x H x D)	335205125.5mm

Products Description:

Yiwu Made quality Pure sine wave power inverter dc 12v 24v 48v to ac 220v 230v 240v 600watts to 3000watts for choice

This pure sine wave inverter provide superior quality clean true sine wave output, it is designed to operate inductive loads and sensitive loads. Connect this pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical or even better than the power supplied by your utility.

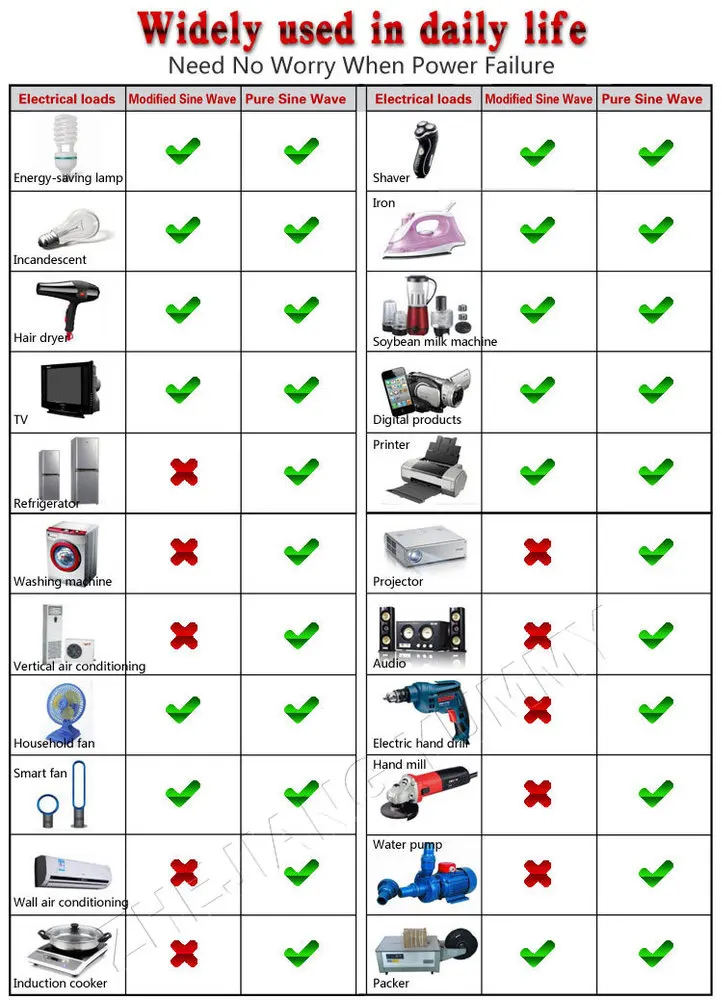

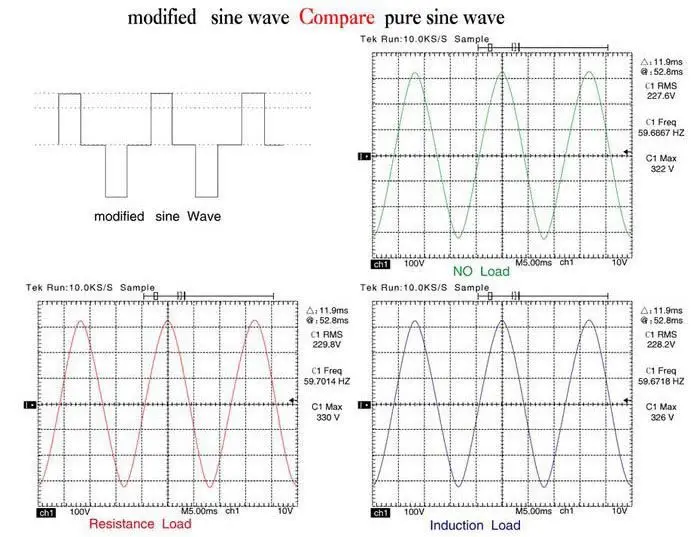

Advantages of Pure Sine Wave inverters over modified sine wave inverters:

a) Output voltage wave form is pure sine wave with very low harmonic distortion and clean power like utility-supplied electricity.

b) Inductive loads like microwave ovens and motors run faster, quieter and cooler.

c) Reduces audible and electrical noise in fans, fluorescent lights, audio amplifiers, TV, Game consoles, Fax, and answering machines.

d) Prevents crashes in computers, weird print out, and glitches and noise in monitors.

e) Reliably powers the following devices,you'd better choose pure sine inverter

Quality Advantage:
1> Controlled by CPU
2> Galvanic isolation (DC AC Isolated)
3> Soft Start Function
4> Low Static Current

ZYUMMY INVERTER

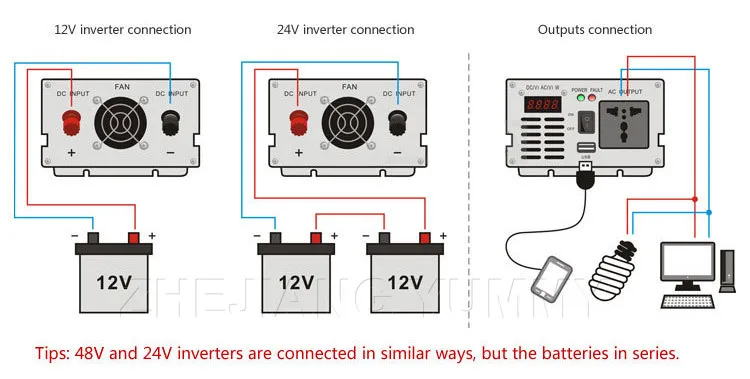

Connection Diagram

Protection Function

High Standard

1. Iron Silicon Aluminum Copper, reduce the EMI interference, the output wave form more pure.	2. The former driver control panel ,PWM signal, the perfect protection, precision patch.
3. The after driver control panel, Four-layer board sided precision chip technology, improve the protection of the sine wave signal modulation
4. GB Copper Wire, reducing the line losses
5. Stainless steel screws, insulation covering played shell and radiator insulation ,more safe.
6. Oxidation treatment radiator, heat dissipation more better, more safe.
7. Insulating paper ,make the heat sink and PCB circuit board insulation ,avoid leakage, safety protection
8. High quality silicone thermal pad, thermal faster,insulation better.
9. High current terminal, over 300A rated current, safe and reliable

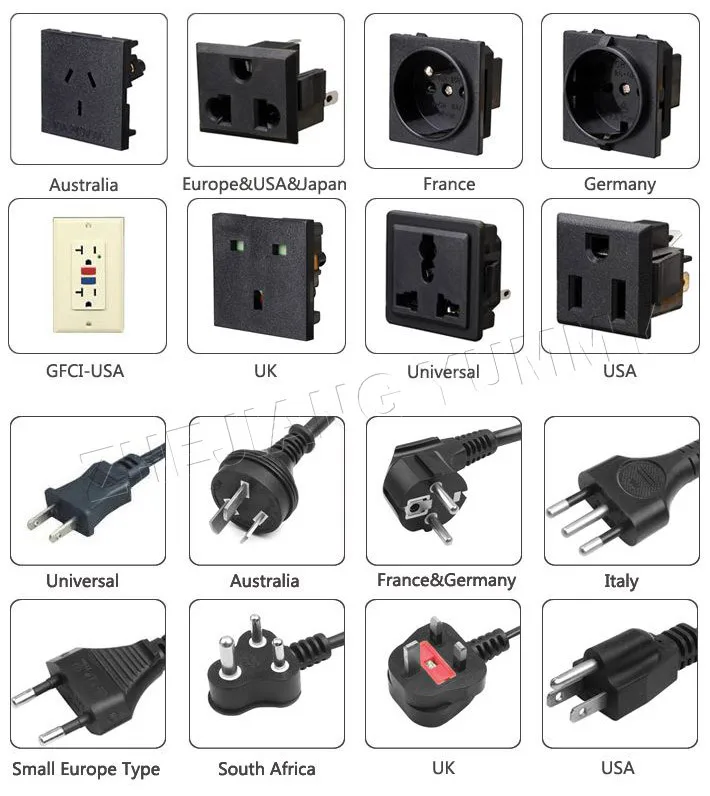

Sockets & Plugs

Company Information

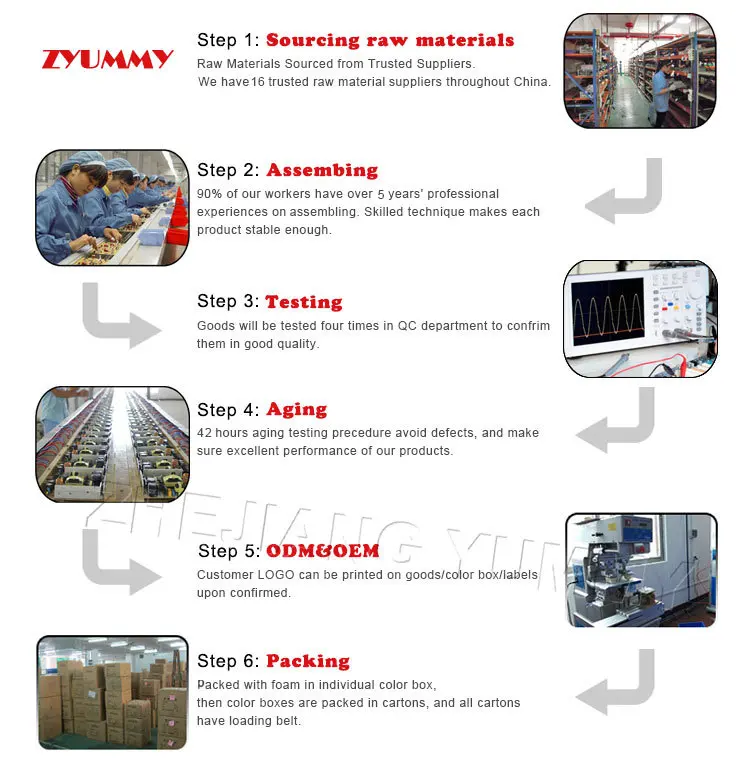

Production Flow

Packing & Shipping

Company Imformation

BRIFE INTRODUCTION:

ZHEJIANG YUMMY TECHNOLOGY CO., LTD is specialized in manufacture and marketing high quality solar power products for more than 10 years.Our products are selling in huge quantity in some country and recganized as famous brand in their local market, Our Main products including : Solar System,Power Inverter, Solar Controller, Solar Battery,Battery Charger,Solar lighint system, We welcome OEM or ODM orders from you.
As one of the leading manufacturer of solar products with well-equipped testing facilities and strong technical force.

Choose ZYY, Choose the best partner!

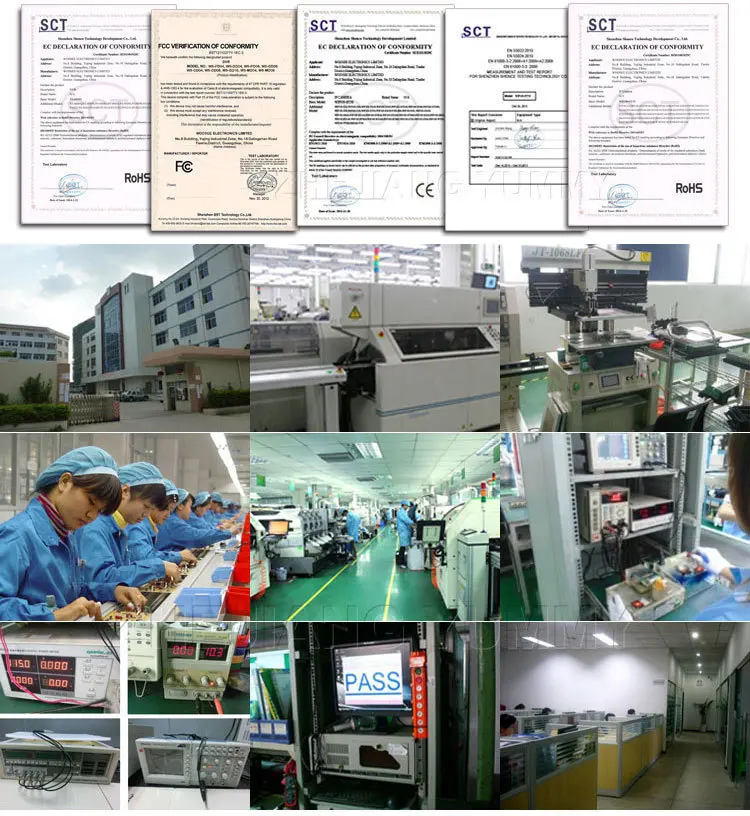

WE HAVE THE MOST AUTHORITATIVE CERTIFICATION:
