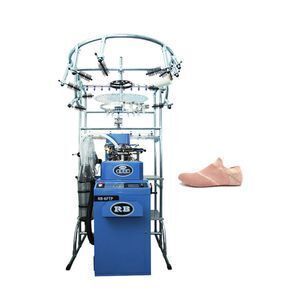

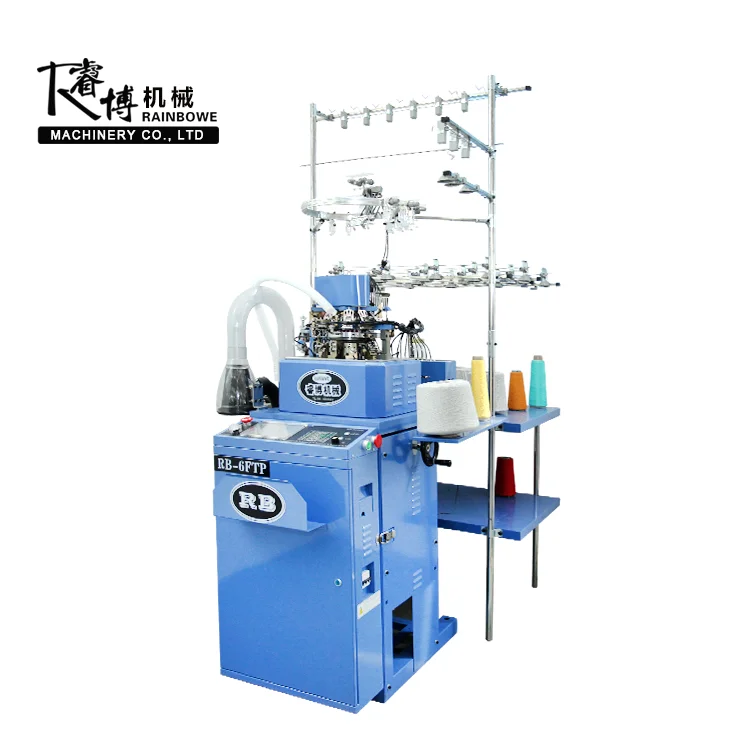

full automatic computerized sock flat shoe socks knitting machine for making sport shoe uppers

Supplier: Shaoxing Rainbowe Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ophelia Yeung
Price: $3800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Gross weight:	300kgs;	Place of Origin:	Zhejiang China;
Power(W):	1.3KW;	Type:	Jacquard Knitting Machine;
Control box:	0.35 kw;	Voltage:	380V/220V/415V;
Condition:	New;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Drive motor power:	1.0kw;	Dimension(LWH):	0.940.751.55m;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Space required for installation:	11.42.4m;
Weight:	305KGS;	Rotational speed:	220~280RPM;
Brand Name:	Rainbowe;	Product:	Any type of shoe uppers;
Package:	0.940.751.55m;	Needles:	144N;
Supply Ability:	500 Set/Sets per Month automatic flat sport shoe socks knitting machine;	Port:	Ningbo or Shanghai;
Warranty:	1 Year;	Cylinder diameter:	3.75 inch;
Production Capacity:	100 pairs/24 hours;	HS Code:	8447110000;
Certification:	CE;	Packaging Detail:	by plywood 18 sets can be loaded in a 20ft container; 39 sets in a 40ft container.;

full automatic computerized sock flat shoe socks knitting machine for making sport shoe uppers

Knitting Types

Main Functions

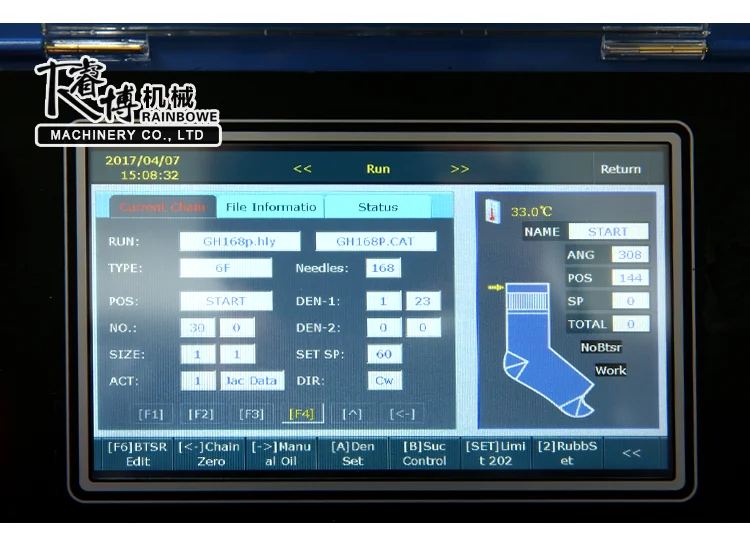

1.Fully computerized touch-screen control system with 80 valves.
2.All pneumatic control 8 fingers on main feed and 3 fingers on 4 motif colors, 5 fingers on the second feed. There are real two feeds.
3.Precision air actuated elastic yarn fingers feeding system.
4.Pneumatic control the head of the machine up and down.
5.Stepping motor to control elastic yarn fingers for various course sizes.
6.Double pickers and double down pickers for fast alternation movements.
7.Computerized stepping motor control on cylinder and elastic yarn assure fine quality.
8.Automatic oil feeding according to knitting condition ensures the machine's lubrication cycle.
9.Advance UPS backup system for self-protection and automatic erro detection.
10.High speed, high memory CPU capacity onboard for handy modifications on chain programming, 8 sizing, patterning. Multilingual featuring Chinese, English and various major languages.

Special Functions

1.The weaving pattern does not require a disc scissors to cut the line and the remaining 6% -10% of the raw materials, greatly extending the life of the disc scissors.
2.The machine moves one course to knit double course of fabric, equivalent to double efficiency as a single feeder machine.
3.Made shoe uppers a noticeable bump inside , and can make all kinds of products simple 3D.
4.The machine can knit welt-covering socks with a tidy interior, similar to double cylinder.
5.Heeling and knitting with 2 colors connecting function.

Product Parameters

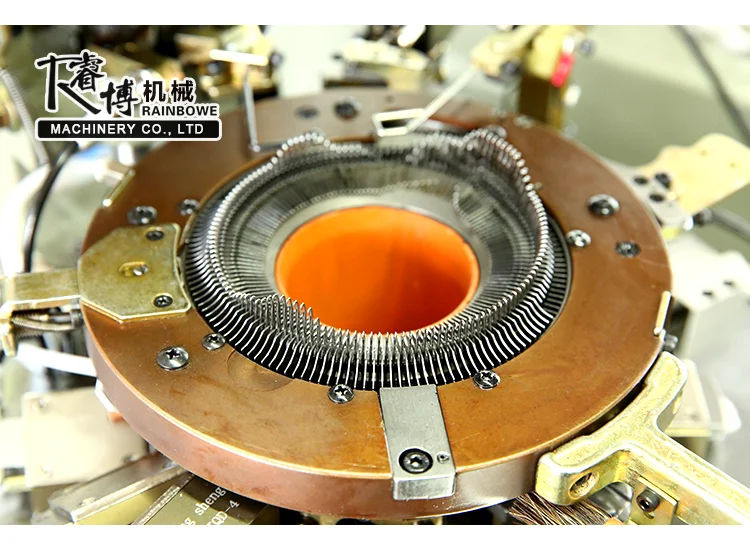

Cylinder Diameter	3¾''
Needle range	96-156 needles
Speed (RPM)	Plain 150-280RPM, Heel 150-250RPM
6-8 Electromagnetic Actuators	8 main feeders ,13 color jacquard feeders

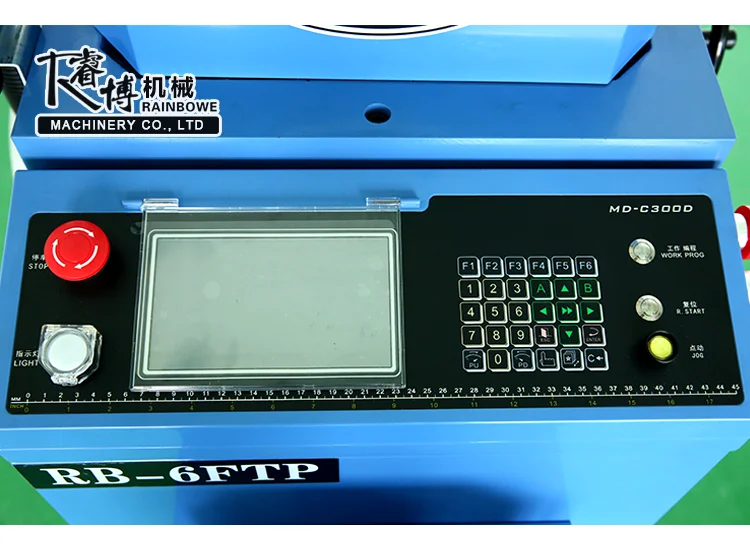

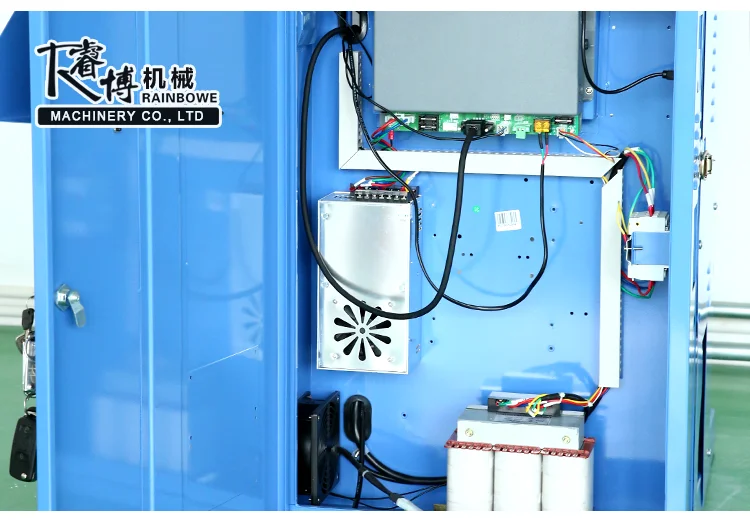

Operate main board	Touch screen controller
Controller/computer	Mingde bran
Controller	0.8kw
Servo driving & motor	1.3kw
Package size	0.940.751.55m
Gross weight	300kgs
Space required	11.42.4m
