heat exchanger

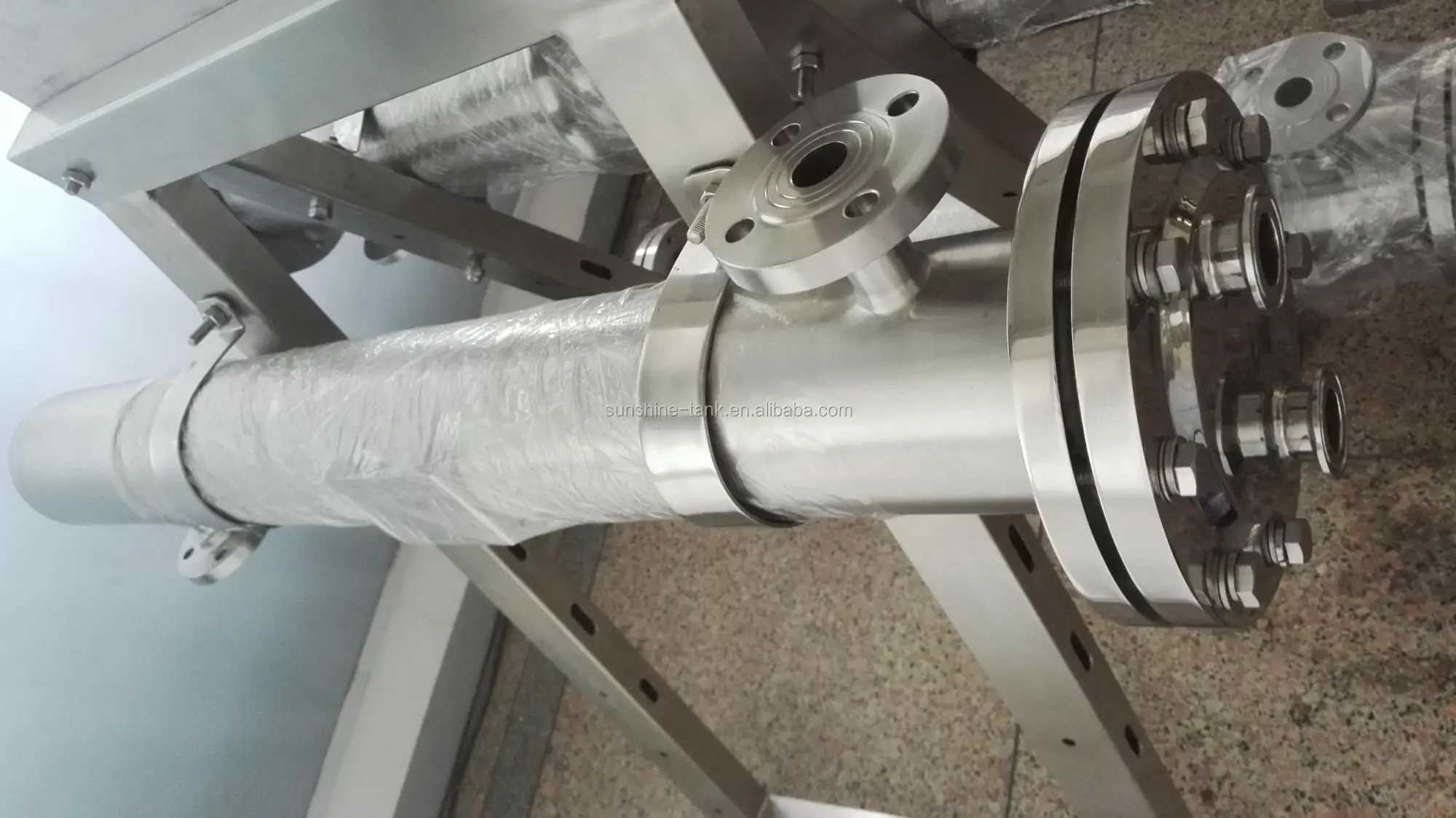

heat exchanger Double tube sheets

type : Vertical and Horizontal

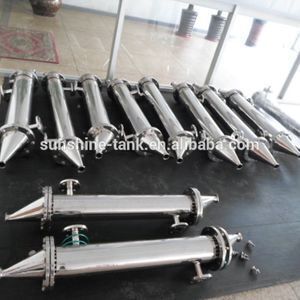

Product Name: Sanitary tube heat exchanger
Brand: Sunshine
Material :304(L) 316(L)
Finish:,EP,Mirror or Matt Polish; Ra<0.4um
Certification: CE  ISO9001:2000

Applications

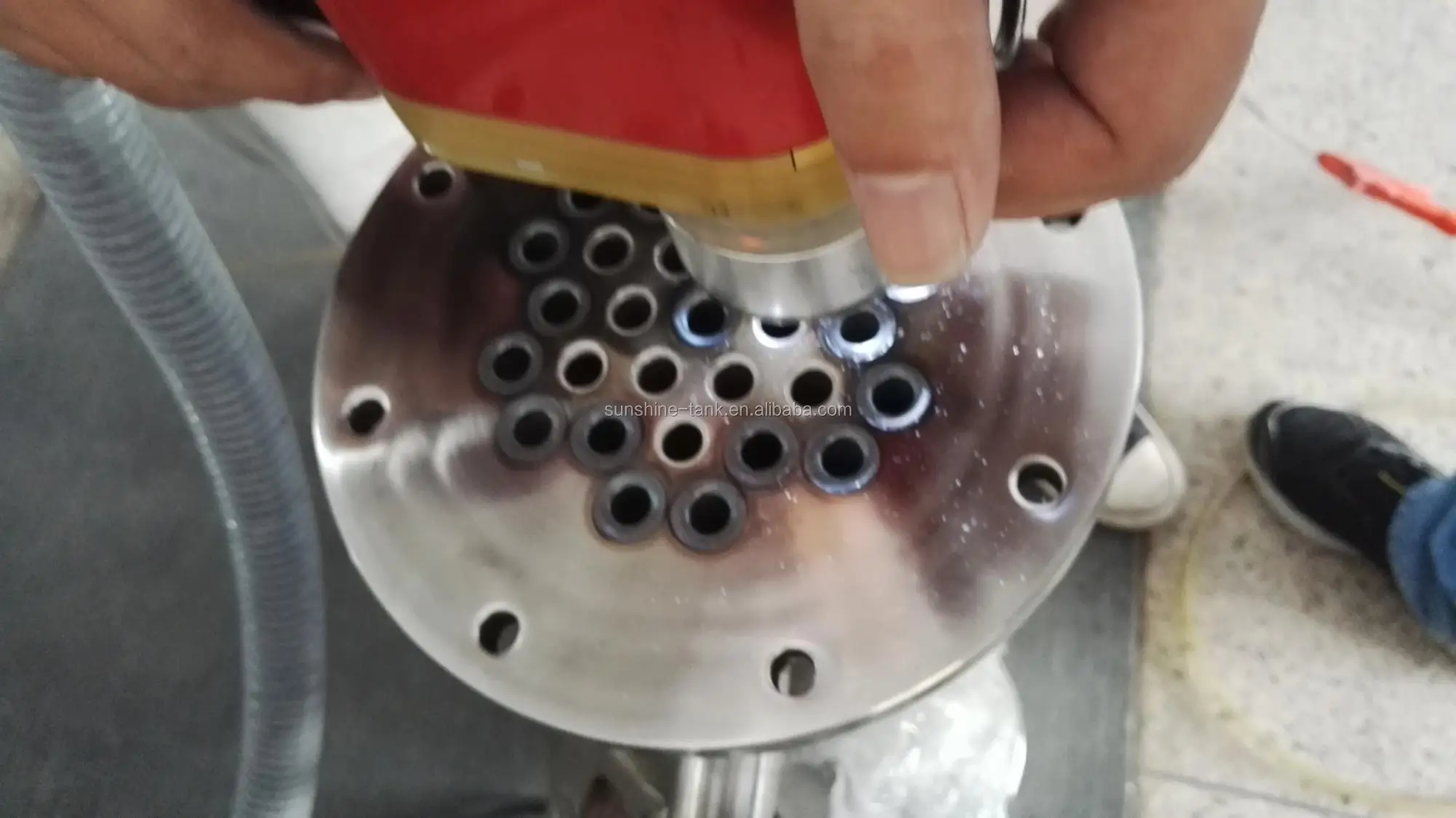

The equipment is mainly used for heating and cooling treatment of materials during production in food, beverage, Pharmacy, chemical industry etc. Heat exchanging pipes can be Parallel pipes or screw pipes. And the minimum size can be 6*1. Connection between pipes and plates can be welding or expanding. It also could be designed and produced according customers various requirements.

Material Available:
SUS304  SUS316  SUS316L

The products could be applied in food, beverage, Pharmacy, chemical industry etc.

The E-Pharma is a high quality DTS shell & tube heat exchanger especially meets the high hygienic demands of the pharmaceutical industry. The heat exchanger was designed to work in the highest hygienic conditions in applications such as water-for-injection (WFI), Purified Water (PW), and heating/cooling of pharmaceutical products.

Working principle

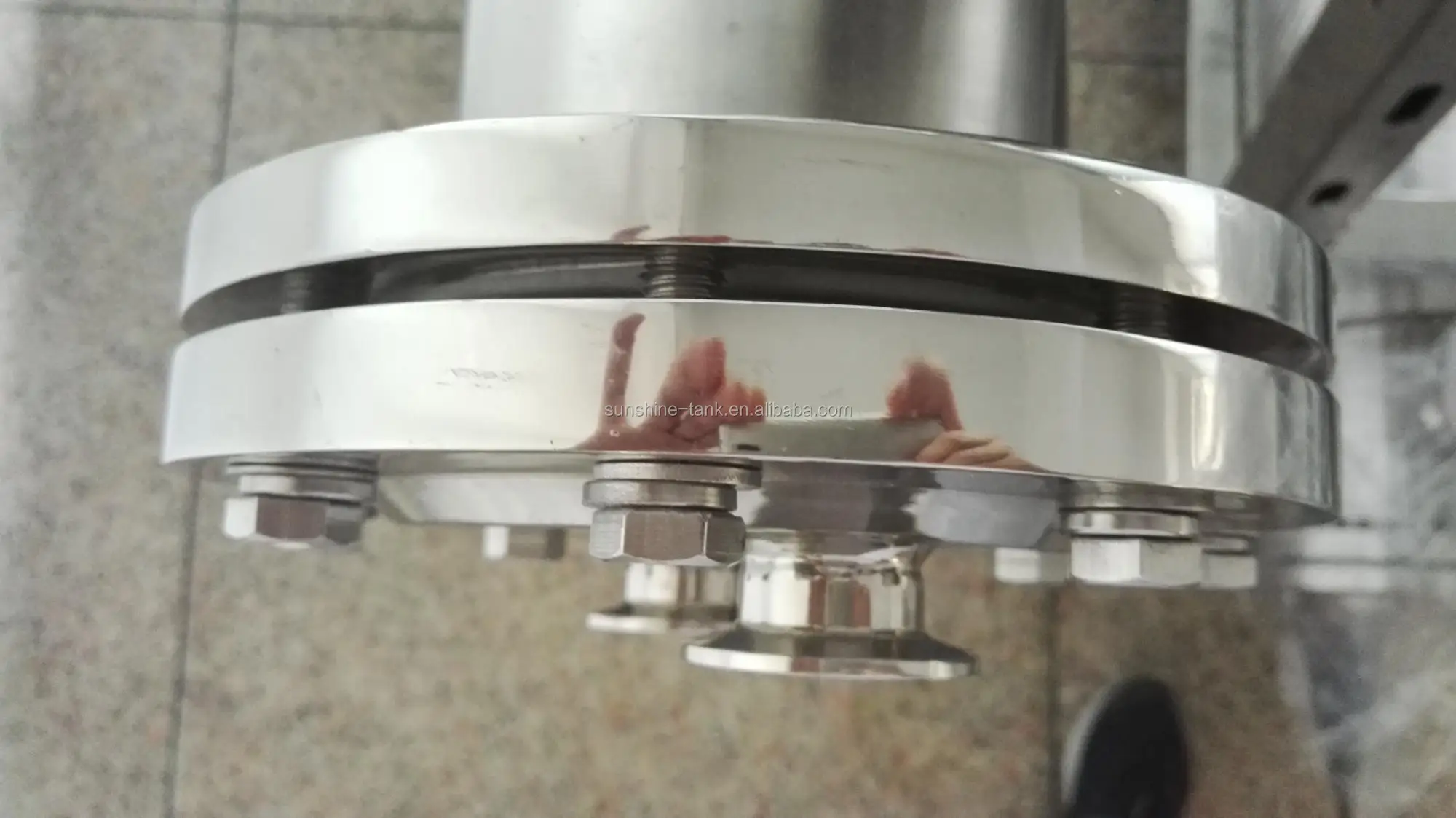

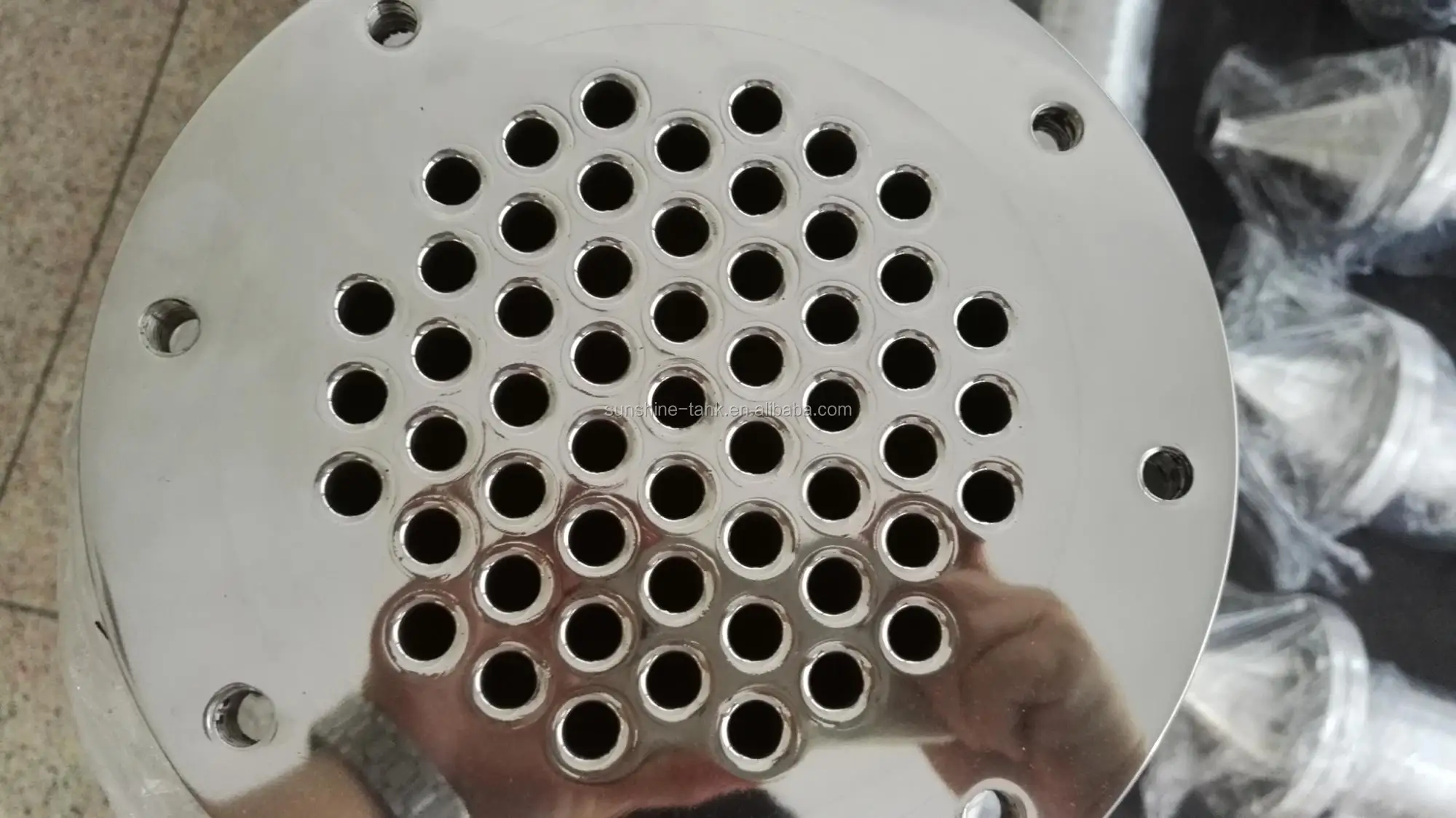

The product media flows through a bundle of seamless, polished tubes. The service media flows outside the tubes in a cross flow. At the end, the tubes are fastened by two tube-sheets acting as leakage indicators, preventing cross contamination between the product and the service media.
The heat exchanger can be installed horizontally or vertically depending on the duty or space. Thermal fatigue caused by large temperature changes is managed by expansion connection in straight units.

Features and Benefits

• Double tube-sheets to protect against service media leaking into the product .
• Completely drainable on product side and easy to clean
• No dead point in the tubes
• No risk of cross contamination
• Designed according to FDA and cGMP requirements
• Flexibility or standard in design
• A high quality documentation package as standard
