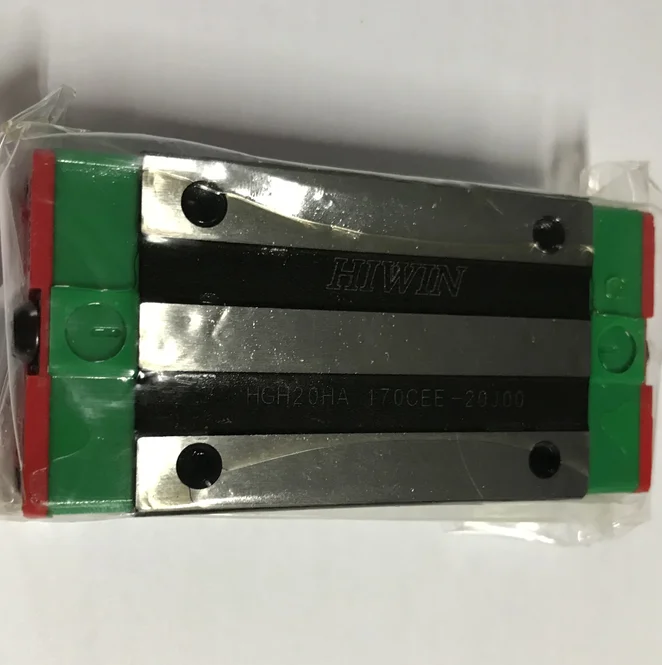

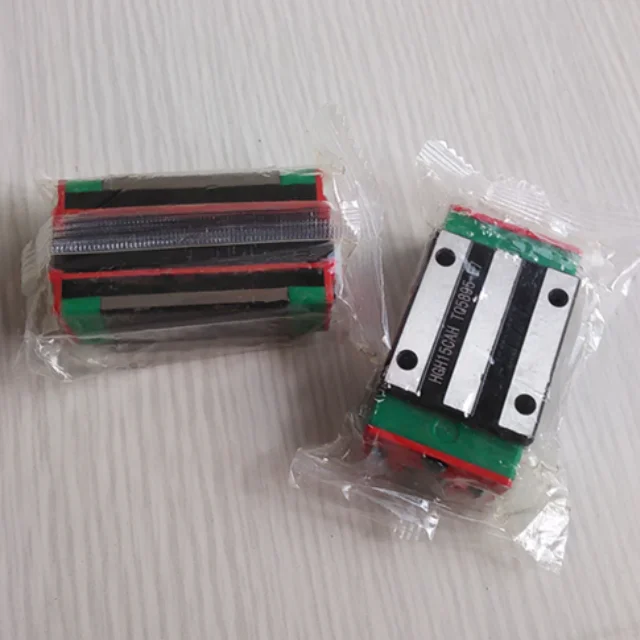

Hiwin Linear Guide HGR20 With Linear Block HGH20CA

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $25.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	HGH20CA HGR20;	Product name:	Hiwin Linear Guide HGR20 With Linear Block HGH20CA;
Application:	used for cnc machine;	Place of Origin:	Taiwan, China;
Packaging Detail:	original hiwin packing;	Rail weight:	2.21kg/m;
Block Type:	Square Type(H);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
block weight:	0.2kg;	Material:	chrome steel;
Port:	shanghai ,ningbo ,shenzhen;	other models:	HGH15CA HGH20CA HGH25CA HGH30CA;
Service:	OEM;	Brand Name:	HIWIN;
Packing:	original packing;	precion:	C. H;
Type:	HGH;	Supply Ability:	10000 Piece/Pieces per Month HGH20CA;

Hiwin Linear Guide HGR20 With Linear Block HGH20CA

Product Description

HG Series - Interchangeable Type - Block

HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

Block types
HIWIN offers two types of linear guideway which are flange and square types. Because of the low assembly height and larger mounting surface, the flange type is suitable for heavy moment load application.

HGH Series Block Applications

Machining centers
Machine tools
Heavy cutting machines
Grinding machines
Injection molding machine
Automatic equipment
High speed transfer device

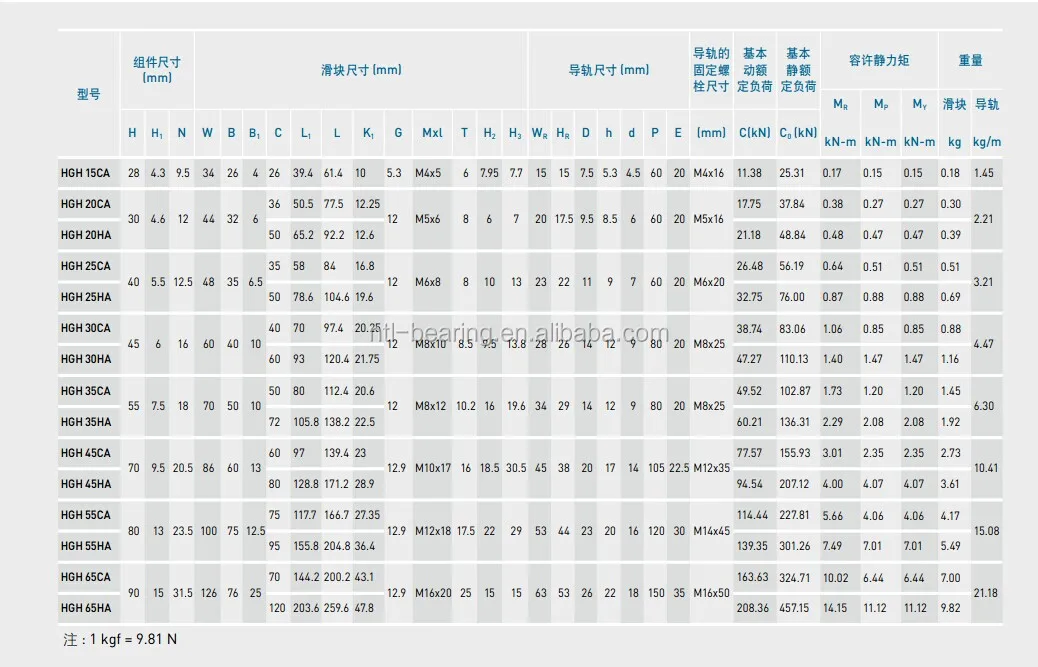

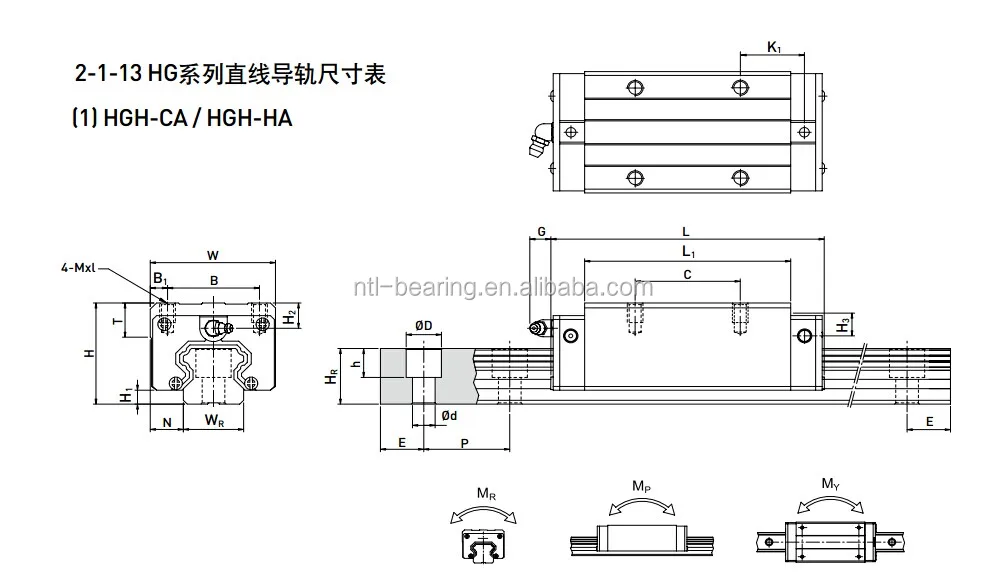

Drawing and Size
