Energy Saving Agitation Leaching Tank For Mineral Ores

Supplier: Zhengzhou Hengxing Heavy Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Sara Pang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	standard container,small parts by wooden box;	Condition:	New;
Motor Type:	AC Motor;	After sale service:	Working Life;
Model Number:	SJ2000,SJ2500,3500;	application:	for gold ore cyanide leaching;
Warranty:	1 Year;	Price:	Negotiable;
name:	Gold Mine Machine Double Impeller Agitation Leaching Tank;	Supply Ability:	100 Set/Sets per Year;
Installation:	Engineer Guide;	Payment Terms:	L/C,T/T;
Brand Name:	HengXing leaching tank;	drawing:	supply;
Certification:	ISO9001:2008,CE;	colour:	as request;
Port:	QingDao;	Effective Volume(m ):	2.2-31m3;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	Mining;
Production Capacity:	99%;	ore pulp density:	40-45%;
Delivery Detail:	Shipped in 15 days after payment;	Power(W):	depending on different model;
Place of Origin:	Henan China;	Dimension(LWH):	refer to different specifications;
Mixer Type:	double impeller;	Type:	Leaching Tank;

Energy Saving Agitation Leaching Tank For Mineral Ores :

Double-impeller leaching tank is a equipment used for gold cyanidation leaching process and absorption, two transmission ways, one is the planet-cycloid reducer drive; the other is the plane envelope reducer drive.

This equipment working conditions: pulp concentration ≤ 45%, pulp concentration ≤ 1.4 t / m.

so before the leaching tank ,will use thickener .

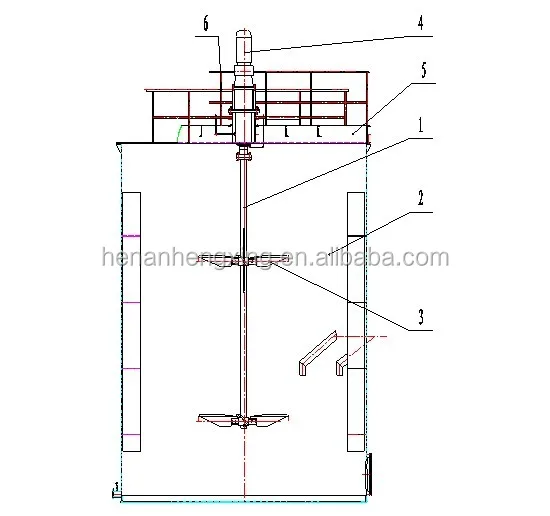

Double Impeller Leaching Tank Structure:

1. Vertical axis 2. Agitator 3. Impeller 4. Drive of motor 5. Beam 6. Railing

Leaching Tank Working Principle:

Double impeller leaching tank equipped with motor, cycloidal planetary gear speed reducer, bearing block and agitating shaft, is characterized by compact structure, little occupied space, and the agitating shaft equipped with a double impeller , from the top view the impeller rotating clockwise, each impeller composed of 4 blades, and the angle of the top blade and the below one is 45 degree. The compact air gets through the elbow pipe or the hollow shaft to the tank’s bottom, the raising air plays the role of mixing , at the same time the big bubble shattered by the impeller changing into small bubbles, in the end the pulp and air reaches fully mixing and sodium cyanide solution contacts with the pulp completely, thereby gets the better gold leaching result. The design of this device keeps the impeller low-speed moving, reducing the possibility of wearing or smashing the active carbon, so as to achieve high leaching rate, high absorption rate and collects more gold.

Leaching Tank Technical Parameters:

Model	Tank Specification Diameter × Height (mm)	Effective Volume (m 3 )	Impeller Rotation Speed (r.p.m)	Impeller Diameter (mm)	Motor Power (kw)	Model of Planetary Cycloid Reducer	Tank Weight (kg)	Total Weight (kg)
SJ2.0×2.5	2000×2500	6	52	909	2.2	XLD2.2-4-29	1609	2144
SJ2.5×3.15	2500×3150	13.14	52	935	2.2	XLD2.2-4-29	2241	3095
SJ3.0×3.0	3000×3000	18	40.85	1130	4	XLD4-5-35	3391	4583
SJ3×3.15	3000×3150	18.93	43	1130	4	XLD4-5-35	2801	4160.6
SJ3×3.5	3000×3500	21	43	1130	4	XLD4-5-35	2975	4334.6
SJ3.15×3.55	3150×3550	24	43	1260	4	XLD4-5-35	3330	4322.8
SJ3.5×3.5	3500×3500	30	52	1310	5.5	XLD5.5-5-29	4286	5025
SJ3.5×4	3500×4000	32.7	52	1310	5.5	XLD5.5-5-29	4631	5429
SJ3.55×4.0	3550×4000	33.6	43	1310	4	XLD4-5-35	4060	5025
SJ3.7×4.2	3700×4200	38.4	42	1310	4	XLD4-5-43	5058	6153
SJ4.0×4.5	4000×4500	48	35	1750	7.5	XLD7.5-7-43	6105	7569
SJ4.5 ×5.0	4500×5000	71.57	35	1750	7.5	XLD7.5-7-43	7506	10864
SJ5.0×5.6	5000×5600	98	31	2046	11	XLD11-8-47	10482	14291
SJ5.5×6.0	5500×6000	112	31	2100	11	XLD11-8-47	14209	18745
SJ6.5×7.0	6500×7000	195	21	2400	22	XLD22-10-47	17890	26900
SJ7.0×7.5	7000×7500	245.4	21	2400	22	XLD22-10-47	22090	29030
SJ7.5×8.0	7500×8000	268.6	21	2900	18.5	XLD22-10-47	24594	32796
SJ8.0×8.5	8000×8500	342	18.5	3200	30	XLD22-11-59	33489	42467
SJ8.5×9.0	8500×9000	395	18.5	3300	30	Y250-8	36696	46623
