NXZ Series Automatic Rake Tailing Thickener For Gold Ore Beneficiation

Supplier: Zhengzhou Hengxing Heavy Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Sara Pang
Price: $6000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Mining Thickener;	Motor Type:	AC Motor;
Payment Terms:	L/C,T/T;	Place of Origin:	Henan China;
Production Capacity:	5-1400 T/d;	Thickener Price:	Negotiable;
Packaging Detail:	thickener delivery by bulk container,or flat rack container;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Brand Name:	HengXing;	product name:	tailing thickener;
Drive:	center driving;	Condition:	New;
Dimension(LWH):	refer to specification;	Supply Ability:	100 Set/Sets per Year thickener;
Port:	QingDao,TianJin;	drawing:	supply foundation drawing;
Function:	for beneficiatioin increase density;	Warranty:	1 year;
Installation:	Technical Guidance;	Color:	Customerized;
After Sales Service:	Long Time Service;	Name:	thickener;
Application:	Beneficiation Plant;	Keyword:	thickener;
Certification:	ISO9001:2008,CE;

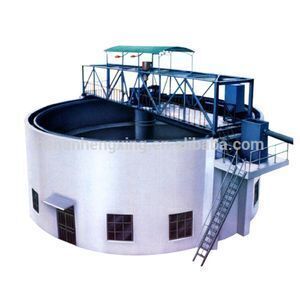

NXZ Series Automatic Rake Tailing Thickener For Gold Ore Beneficiation

Product Description

High-Efficiency thickener is a new type of solid-liquid separation equipment, it has a high concentration of underflow, overflow turbidity small features, are widely used in tailings processing, hydrometallurgy, environmental engineering, mineral processing, environmental engineering and many other fields. It is mainly used for the end of the pulp, metal selection pulp, slurry water, electricity, chemical industry and clarified slurry concentration to achieve the purpose of dehydration.

The thickeners with a diameter less than 12m is of manual handle type, and

thickeners with a diameter over 12m adopt electric handle devices. Large-scale thickener is usually arranged

with a concrete tank, with overload indicating or alarming devices. This machine has the features like simple

structure, lower wearing and convenient maintenance.

[Power]: 1.1-3KW

[Capacity]:14-250t/h

[Processible Materials]:To dehydrate concentrate and tailings of the ore beneficiation plant.

[Application]:Metallurgy, chemical engineering, coal and non-metal beneficiation.

Thickener is suitable for concentrate and tailings dehydration process in dressing plant, and is widely used for concentrated dehydration processing of slime, waste water and waste residue in metallurgy, mining, coal, chemical industry, building materials, environmental protection and other departments. There are three kinds of thickeners: NZ series centre transmission type thickener, NXZ series center transmission type-- automatic rake high efficient thickener, NZT series peripheral transmission type high efficient thickener.

Thickener working priciple:

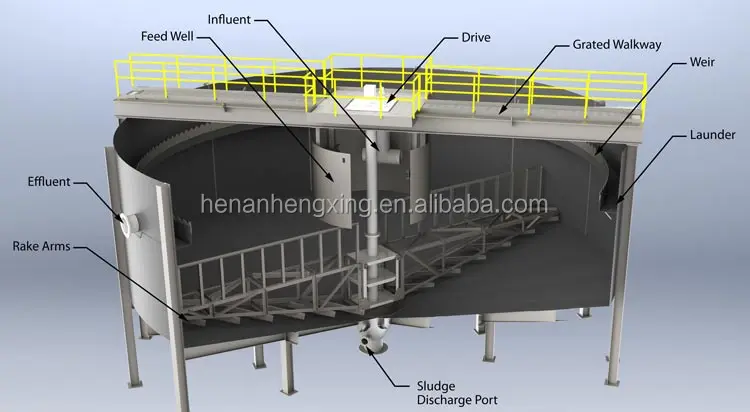

The high efficiency thickener concentrator is mainly composed of round concentration basin and rake scraper. The solid particles hanging in the ore pulp of the concentration basin fall under the gravity and the upper part will be clear water, so that the solid particles will be separated from the liquid. The slurry deposited on the bottom of the concentration basin is continuously scrapped by the rake scraper to central discharging port of the bottom of the basin and discharged, and the clear water will overflow along the upper edge of the concentration basin.

Features of the thickener :

(1) Add flocculating agent to increase the grain size of the falling solid particles to accelerate the falling process.

(2) Install an inclined board to shorten the falling distance of the ore particles and increase the falling area.

(3) Perform the functions of flocculating, filtering, concentrating and improving the processing quantity.

(4) High efficiency concentrator is equipped with comprehensive automatic control device.

Thcikener technical parameters:

Thickener Technical parameters:

Specification		Concentration pond (m)		Deposit square(m2)	Harrow part			Motor		Processing capacity (t/d)	Total weight(t)
Model	Specification	Inner diameter	Depth	Pond degree	Method	Height(m)	Rotation time(min/r)	Driving	Lifting	Processing capacity (t/d)	Total weight(t)
NZS-1	Φ1.8m	1.8	1.8	2.54	Manual	0.16	2	Y90L-6 1.1KW	----	5.6	1.9
NZS-3	Φ3.6m	3.6	1.8	10.2	Manual	0.35	2.5	Y90L-6 1.1KW	----	22.4	4.3
NZS-6	Φ6m	6	3	28.3	Manual	0.2	3.7	Y90S-4 1.1KW	----	62	10.7
NZSF-6	Φ6m	6	3	28.3	Manual	----	3.7	Y90S-4 1.1KW	----	62	5.1
NZ-9	Φ9m	9	3	63.6	Auto	0.25	4.34	Y132S-6 3KW	XWD0.8-3 0.8KW	140	8.5
NZS-9	Φ9m	9	3	63.6	Manual	0.25	4.34	Y132S-6 3KW	----	140	7.5
NZS-12	Φ12m	12	3.5	113	Manual	0.25	5.28	JTC752A-44 5.2KW	----	250	11.1
NZ-15	Φ15m	15	4.4	176	Auto	0.4	10.4	JTC752A-44 5.2KW	Y112M-6 2.2KW	350	26.0
NZ-20	Φ20m	20	4.4	314	Auto	0.4	10.4	Y100L1-4 5.2KW	Y112M-6 2.2KW	960	28.9
NZ-30	Φ30m	30	7.165	707	----	0.61	13.7	JTC672A-44 5.2KW	YCJ132-S 1.5KW	----	36.6
NZS-45	Φ45m	45	4.633	1590	Manual	----	20	JTC672A-44 5.2KW	YCJ160-S 2.2KW	515	54.4

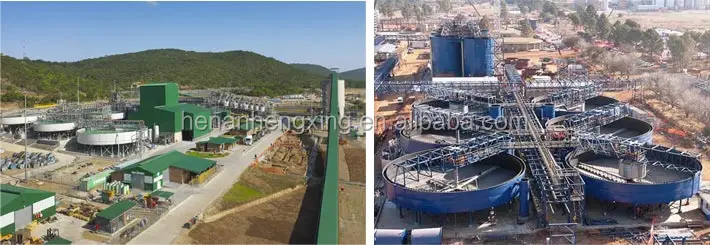

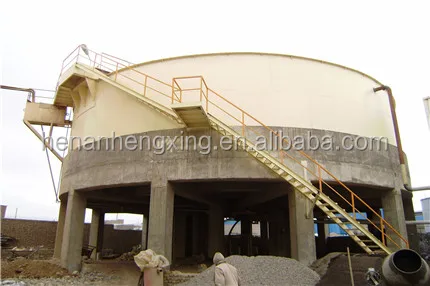

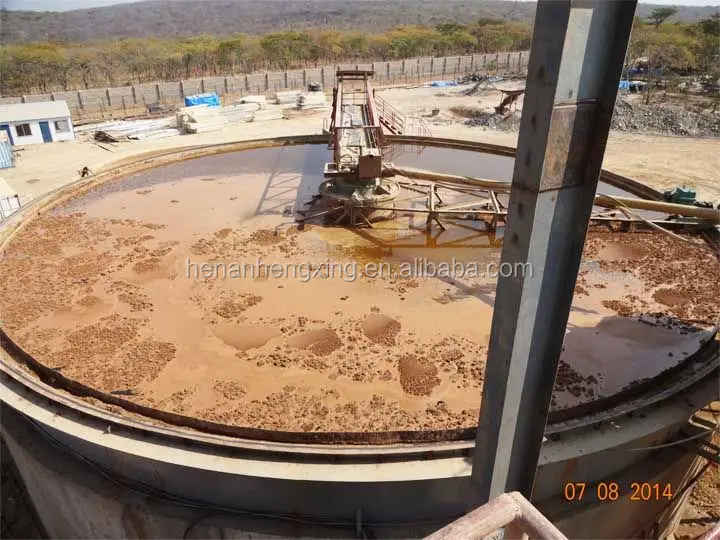

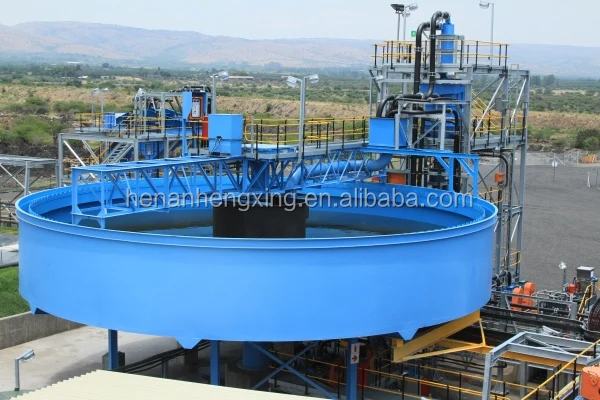

Thickener customer case :

Our Services

Pre-sale services:

We will provide you with the prior plan, process flow design and production equipment in line with your special needs.

Sale services:

We will send technicians to you for guiding the equipment installation and commissioning and staff training.

After-sale services: faithfulness

We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

Company Information

Zhengzhou HengxingHeavy Equipment Co.,Ltd is a professional manufacturer of mining, crushing, screening and drying equipments, with a long-term supply of ore dressing and gravel aggregate industries with crushers, vibrating screens, washing equipments and belt conveyors, drying equipment,rotary kiln,AAC equipement ,etc. we persist in providing highly customized solutions according to different requirements, including single machines, and complete production lines. While expanding domestic market percentage constantly, our products are being exported to Europe, Africa, Central Asia, Southeast Asia, South America, North America, Australia and so on, more than 20 countries and regions totally.

FAQ

How do you do QA for the thickener?

A:We have special team do strict QA,this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

1.How is the quality of your thickener ?

Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.

2.Guaranteed:

If product quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3.How about Price?

We are manufacturer of 20 years experiences, and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
