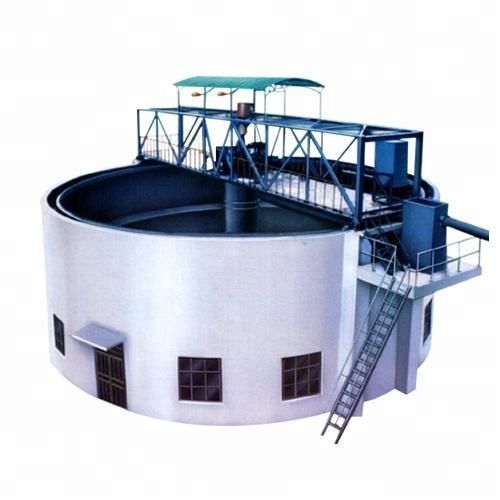

GNZ type center drive mining thickener for gold concentrate

Product details
Thickener price:NegotiableMotor Type:AC motor
payment terms:letter of credit, wire transferInstall:Technical support
Applicable industries:Manufacturing, Energy & MiningSupply capacity:100 sets/year good price GNZ type medium-drive type gold beneficiation thickener C
Name:thickenerVideo external inspection:if
Production capacity:5-1400 tons/dayWeight (kg):25000
port:Qingdao, TianjinKey words:thickener
type:Mining ThickenerMarketing Type:Hot Products of 2019
motor:Chinese famous brand or Siemens brandPackaging Details:Ship thickeners in bulk or flatbed containers
Mechanical test report:ifWarranty:one year
painting:Supply base mapbrand:Hengxing
Core components:motorcolor:customized
Dimensions (L*W*H):Reference SpecificationsHealth status:new
application:ConcentratorAfter-sale service:long service
Function:Used for beneficiation to increase densityCore Components Warranty:1 year
place of origin; place of origin:Henan, ChinaShowroom location:not any
drive:center driving
GNZ type center drive mining thickener for gold concentrate

Product Description

High-efficiency thickener is a new type of solid-liquid separation equipment. It has the characteristics of high underflow concentration and low overflow turbidity. It is widely used in tailings treatment, hydrometallurgy, environmental engineering, mineral processing, environmental engineering and many other fields. It is mainly used for tailing pulp, metal selection, slurry water, electric power, chemical industry and concentration of clarified pulp to achieve the purpose of dehydration.

The thickener with a diameter of less than 12m is a manual handle type.

The thickener with a diameter of more than 12m adopts an electric handle device. Usually a large thickener is arranged

With concrete tank, with overload indication or alarm. This machine has simple features

Structure, low wear and tear, easy maintenance.

[Power]: 1.1-3KW

【Capacity】: 14-250t/h

【Processable materials】: Dewatering the concentrate and tailings in the concentrator.

【Application】: Metallurgy, chemical industry, coal and non-metal beneficiation.



The thickener is suitable for the dewatering process of concentrate and tailings in the processing plant, and is widely used in the concentration and dewatering treatment of coal slime, wastewater and waste residue in metallurgy, mining, coal, chemical industry, building materials, environmental protection and other departments. There are three types of thickeners: NZ series central drive thickener, NXZ series central drive-automatic rake high-efficiency thickener, and NZT series peripheral-driven high-efficiency thickener.

How thickeners work:

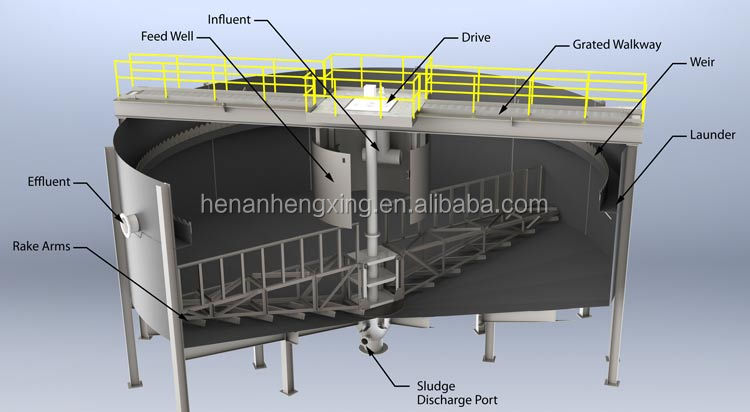

The high-efficiency thickener is mainly composed of a circular thickening tank and a rake scraper. The solid particles suspended in the slurry in the concentration tank fall under the action of gravity, and the upper part becomes clear water, so that the solid particles are separated from the liquid. The slurry deposited at the bottom of the concentration tank is continuously scraped by the rake scraper to the center discharge port at the bottom of the tank, and the clean water overflows along the upper edge of the concentration tank.






Thickener Features:

(1) Add flocculant to increase the particle size of falling solid particles and accelerate the falling process.

(2) Install the inclined plate to shorten the falling distance of ore particles and increase the falling area.

(3) Play the role of flocculation, filtration, concentration and increase the processing capacity.

(4) The high-efficiency concentrator is equipped with a comprehensive automatic control device.





Thickener technical parameters:










Thickener technical parameters:



Specification

Concentration pool (m)

Deposit square (m2)

rake part

motor

Processing capacity (t/d)

Total weight (t)

Model

Specification

the inside diameter of

depth

pond degree

method

Height (m)

Rotation time (min/r)

drive

lifting

NZS-1

Φ1.8m

1.8

1.8

2.54

manual

0.16

2

Y90L-6 1.1KW

----

5.6

1.9

NZS-3

Φ3.6m

3.6

1.8

10.2

manual

0.35

2.5

Y90L-6 1.1KW

----

22.4

4.3

NZS-6

Φ6m

6

3

28.3

manual

0.2

3.7

Y90S-4 1.1KW

----

62

10.7

NZSF-6

Φ6m

6

3

28.3

manual

----

3.7

Y90S-4 1.1KW

----

62

5.1

New Zealand - 9

Φ9m

9

3

63.6

car

0.25

4.34

Y132S-6 3KW

XWD0.8-3 0.8KW

140

8.5

NZS-9

Φ9m

9

3

63.6

manual

0.25

4.34

Y132S-6 3KW

----

140

7.5

NZS-12

Φ12m

12

3.5

113

manual

0.25

5.28

JTC752A-44 5.2KW

----

250

11.1

New Zealand - 15

Φ15m

15

4.4

176

car

0.4

10.4

JTC752A-44 5.2KW

Y112M-6 2.2KW

350

26.0

New Zealand - 20

Φ20m

20

4.4

314

car

0.4

10.4

Y100L1-4 5.2KW

Y112M-6 2.2KW

960

28.9

New Zealand - 30

Φ30m

30

7.165

707

----

0.61

13.7

JTC672A-44 5.2KW

YCJ132-S 1.5KW

----

36.6

NZS-45

Φ45m

45

4.633

1590

manual

----

20

JTC672A-44 5.2KW

YCJ160-S 2.2KW

515

54.4


our service

pre-sale service:

We will provide you with pre-plans, process design and production equipment that meet your special needs.

Sales service:

We will send technicians to you to guide equipment installation and commissioning and personnel training.


After-sale service: integrity

We will visit customers regularly to establish long-term friendly relationship.
