High quality high gas glass decorating lehr with factory price
-
Supplier: Yixing Sunny Furnace Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms. Linda Yu -
Price: $50000.00 /set -
Min. Order: 1 set
| Delivery Detail: | 30 days after received the payment; | Tube standard: | International Standard; |
| Power(W): | 18KW; | Supply Ability: | 5 Set/Sets per Month; |
| Certification: | CE ISO; | Warranty: | 1 year; |
| Voltage: | 380V; | Heating mode: | electric or fuel gas; |
| Dimension(L*W*H): | Production Capacity; | Production Capacity: | HIGH EFFICIENCY; |
| Model Number: | YXYYT-KHL; | Payment Terms: | L/C,T/T,Western Union; |
| certification: | CE; | Condition: | New; |
| Weight: | 15t; | Brand Name: | YXYYT; |
| Environmental impact: | Friendly; | Port: | shanghai; |
| Place of Origin: | Jiangsu China (Mainland); | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Packaging Detail: | export package or according the customer's requirement; |

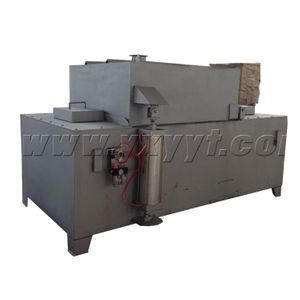

High quality high gas glass decorating lehr with factory price
Main parameters:
1.Hearth effective size:B600mm*H200mm
2.Furnace appearance size:L24000mm*B1350mm*H1300mm
3.Heating mode:Far infrared quartz gas tube
4.Total power:90 Kw /380V
5.Maximal use temperature:650°C
6.Temperature control point: 5 pcs
7.Temperature zone(preheating zone,heating zone,insulation zone,cooling zone)
8.Transmission mode:304 stainless steel wire (0Cr18Ni9Ti)
9.Transmission control:frequency control of motor speed
10.Temperature control mode:PID intelligent temperature control system,SCR silicon controlled module control,design manual regulatory function,over temperature alarm,simplicity of operation,have the automatic constant temperature,liner proportion output,power adjustable and other advanced function.
11.Mesh belt speed control mode:exchange speed regulation,speed adjustable in a certain range.
Products show:
-
