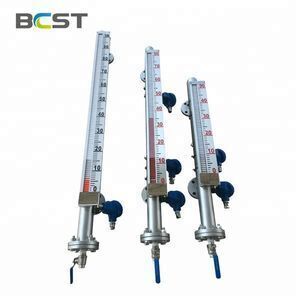

magnetic float liquid level gauge/meter/indicator

Supplier: Jiangsu BCST Group Co., Ltd.
Region: Jiangsu, China
Contact: Ms Emily Xu
Price: $200.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Nominal Pressure:	PN16;	Package Preview:	https://sc01.alicdn.com/kf/HTB1G2zqaeT2gK0jSZFvq6xnFXXaw.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1Q4YqaoY1gK0jSZFMq6yWcVXaL.jpg_640x640.jpg;
Float Material:	SS316L;	Product Name:	magnetic float liquid level gauge/meter/indicator;
Model Number:	JC-56L;	Place of Origin:	Jiangsu China;
Measuring Range:	200-6000mm;	Medium Density:	more than 0.5Kg/L;
Output Signal:	4-20mA, hart;	Brand Name:	BCST;
Medium Temperature:	0~200'C;	Connection Method:	DIN/ANSI/JIS;
Single gross weight:	30 KG;	Single package size:	90X30X30 cm;
Selling Units:	Single item;	Nominal Diameter:	DN25;
Package Type:	magnetic float liquid level gauge/meter/indicator; exported wooden box;	Body Material:	SS304, SS316L;

magnetic float liquid level gauge/meter/indicator

Product Description

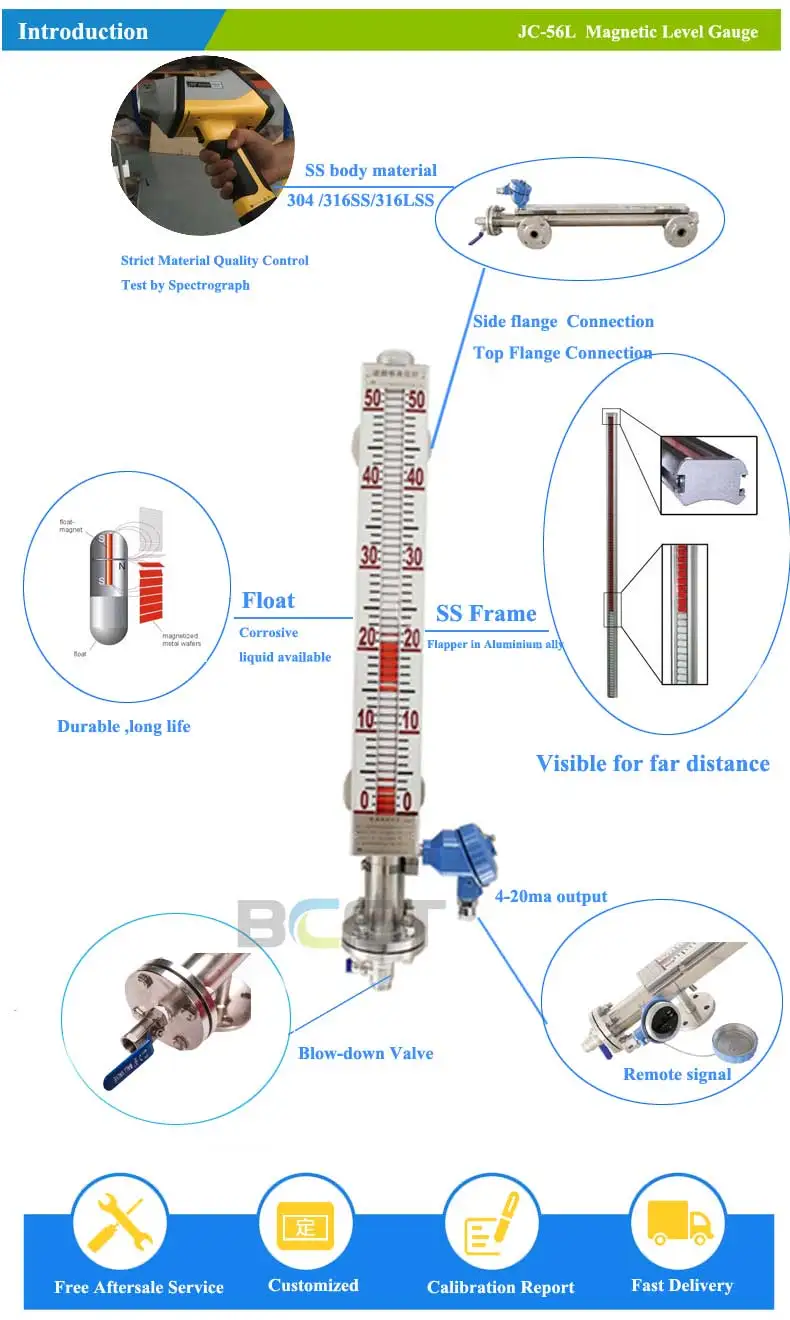

Operating principle
The magnetic level gauge, JC-56L, operates on the principle of magnetic field connected to the vessel to
provide fluid level information. As the level starts rising or falling the magnetic float travels also with
the liquid. Outside the tube is mounted an aluminium indicator with bi-colour (red-white) rollers
causes, each roller can rotate 180°. There is always a communication between the magnetic inside
the float end the rollers, red mean liquid and white mean gas side. For details, pls browse our website: www.bcstgroup.com.

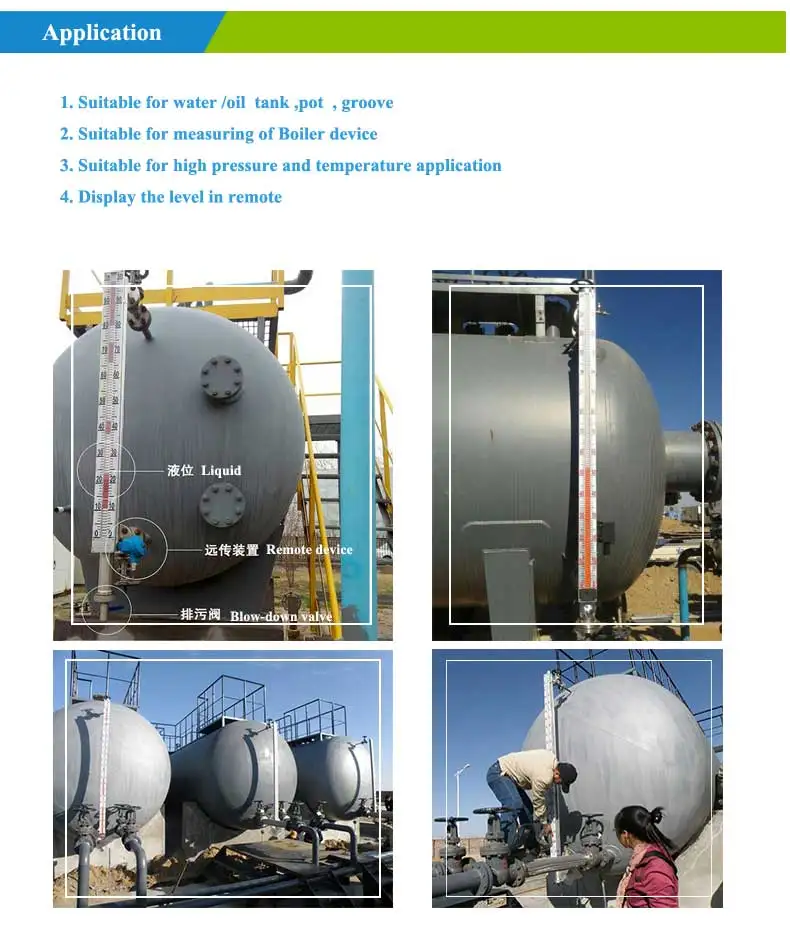

Suitable for various industries including

* Offshore
* (Petro) chemical plants
* Gas installations
* Power plants.
* Water purification plants

Materials

*304 SS .
* 316L (standard)
* 316T
* 316L PTFE gecoat

Technical Parameter

Product Name	Full Stainless steel Magnetic Level Indicator	Polypropylene (PP) Magnetic Level Indicator
Medium Density	≥0.5kg/L	≥0.4kg/L
Density Difference of Interface Measured	≥0.1kg/L	≥0.1kg/L
Medium Pressure	≤5.0MPa	≤1.0MPa
Medium Viscosity	≤5000mPa.s	≤5000mPa.s
Medium Temperature	Standard :-40 to 120°C	On site Instruction:-20 to 80°C
Medium Temperature	Special:-40 to 350°C	Remote transmission output: -20 to 80°C
Measuring range	200-8000mm	200-8000mm
Measurement Accuracy	±5mm of measured valve	±5mm of measured valve
Indicator type
Measured Tube Material	SUS 304 , 316L	PP
Float material	SUS 316	PP
Ventilation sewage form	1/2”plug	1/2”plug
Connection Form	Flange (DIN/ANSI/GB)	Flange (DIN/ANSI/GB)
Optional Installation	Remote transmission transmitter or limit switch

FAQ

Q:How long will you get our reply?

A: We will contact you as soon as possible but within 12 hours.Whatsapp:+86-15052699328. www.bcstgroup.com
Q:Could I get samples?
A:Yes, samples are available.
Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with moderate price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Pls tell me your detailed requirements, we will send to you as early as we can.
Q:Could I visit your factory?
A:Welcome! our factory is located in Jinhu, Jiangsu province, China.
Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.

Q: What are your brand names for international market?
A: BCST is the brand namefor our international marketing.
