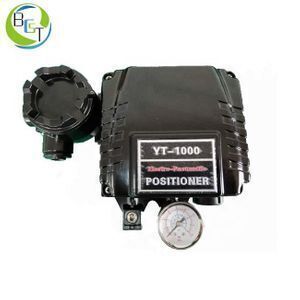

Pneumatic linear valve positioner 4-20mA

Product details
Selling Units:Single item;Place of Origin:China;
Product name:Pneumatic linear valve positioner 4-20mA;Impedance:250±15 OHM;
Package Type:Exported wooden box, electropneumatic rotary valve positioner 4-20mA;Air Consumption:3 LPM(Sup.=1.4kg/,20psi);
Temperature of Media:Medium Temperature;Single gross weight:5 KG;
Power:Solenoid;Pressure:Medium Pressure;
Acting type:single acting and double acting;Material:Stainless Steel, Aluminum Die casting;
material:Aluminum Die casting;Model Number:YT1000;
input signal:4-20mA DC;Media:Water;
Single package size:20X80X80 cm;Medium:water Oil Gas steam;
Brand Name:BCST;Port Size:NPT1/8;
Application:General;Conduit:PF 1/2(G1/2), (N) PT1/2;
Stroke:0~60° , 0~90°;Structure:Needle;
Flow Capacity:80 LPM(Sup.=1.4kg/,20psi);Package Preview:https://sc02.alicdn.com/kf/HTB1Cor1X2fsK1RjSszbq6AqBXXaI.jpg_640x640.jpg;
Standard or Nonstandard:Standard;

electropneumatic linear valve positioner 4-20mA

  • Pass explosion proof ( ExIa BT6,Exdm BT6,Exdm CT6)authentication
  • Pass Ip66 authentication
  • High anti-vibration (none effective in 5 to 200 Hz)
  • The linking of alr duct is perforated form, convenient for the linking in all direction
  • Convenient for the transform of positive action and counteraction
  • 1/2spllt range available by simple adjustments without changing parts
  • Easy maintenance
  • SImpie structure for feed back connection
  • Economical energy saving





FAQ

Q:How long will you get our reply?

A: We will contact you as soon as possible but within 12 hours once getting your inquiry.Whatsapp:+86-15052699328; Website: www.bcstgroup.com
Q:Could I get samples?
A:Yes, samples are available.
Q: What certificates do we have ?
A:We have the certification of ISO,CE, SIL2, SGS etc.,we could send them to you by email.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality  with moderate price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Pls tell me your detailed requirements, we will send to you as early as we can.
Q:Could I visit your factory?

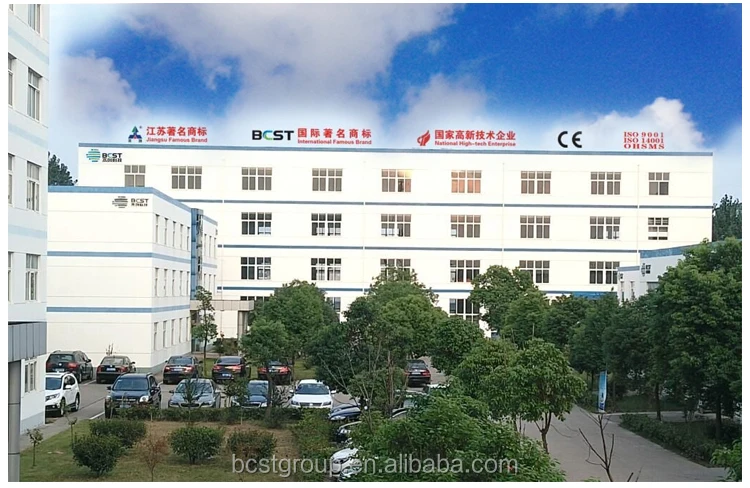

A:Welcome! our factory is located in Jinhu, Jiangsu province, China.
Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.

Q: What are your brand names for international market?
A: BCST is the brand for our international marketing.
