high temperature pressure transmitter

Product details
Housing material:Cast Aluminium Alloy;Medium:any gas, liquid, oil;
Warranty:One Year;Material:Stainless steel;
Model Number:JCDP;Product Name:high temperature pressure transmitter;
Place of Origin:Jiangsu China;Single gross weight:5 KG;
Brand Name:BCST;Package Preview:https://sc02.alicdn.com/kf/HTB1huhpXfvsK1Rjy0Fiq6zwtXXam.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1ra0pXdjvK1RjSspiq6AEqXXaC.jpg_640x640.jpg;
Single package size:38X22X25 cm;Output signal:4~20mA;
Package Type:high temperature pressure transmitter, Exported carbon box;Accuracy:0.2%FS 0.25 %FS;
Power supply:24 vdc;Selling Units:Single item;
Protection:IP65;Pressure connection:M20*1.5 Customization;

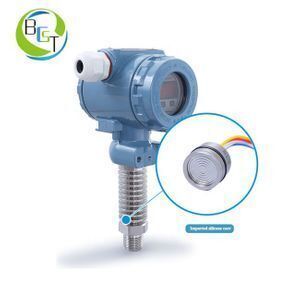

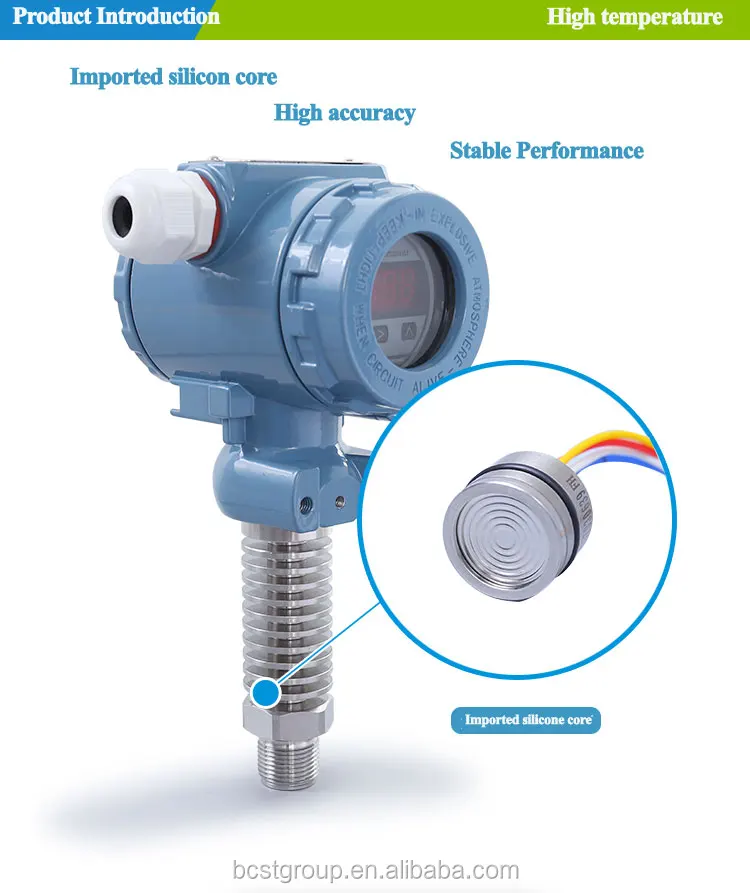

high temperature  pressure transmitter



General

JCBP series is a digital pressure transmitter designed for industrial pressure measurement application .

The JC ersial can be configured to provide integral solution for a broad range of pressure and flow measurement application



Features

1. Updating time of output current in 200ms

2. Improved performance , increased accuracy and greater stability

3. Two years stability of 0.2%

4. 0.1% of accuracy

5. Parameter setting by keypad directly

6. 4-20ma output plus direct digital hart communication

7. Automatic zero calibration by press-button

8. Explosion proof and weather proof housing

Service

liquid, gas and steam

 Measuring range

0~0.06 kPa to 0~40Mpa

Output signal

4~20mA DC (four-wire 220V AC power supply, 0~10mA DC output for special)

Power supply

        12~45V DC, generally 24V DC

Temperature range

        amplifier operation temperature range: -29 ~ +93C

 (LT type: -25 ~ +70C); measuring component of fill silicone oil: -40 ~ +104C















For more information , please kindly visit our website  www.bcstgroup.com

FAQ

Q:How long will you get our reply?

A: We will contact you as soon as possible but within 12 hours.Whatsapp:+86-15052699328,www.bcstgroup.com.
Q:Could I get samples?
A:Yes, samples are available.
Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality  with moderate price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Pls tell me your detailed requirements, we will send to you as early as we can.
Q:Could I visit your factory?
A:Welcome! our factory is located in Jinhu, Jiangsu province, China.
Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.

Q: What are your brand names for international market?
A: BCST is the brand for our international marketing.
